P1594 on 2015-2018 Ford Focus: Remote Start Stall Causes and Fixes

What's Unique About the 2015-2018 Ford FOCUS

The Ford Focus in this era, along with other models on the same C1 platform like the Escape and Transit Connect, is known for this specific software issue. The problem isn't a failing mechanical part, but rather the BCM's logic being overly sensitive. TSB SSM 46322 explicitly states that for 2015-2016 models, the BCM may misinterpret a tiny, erroneous signal from a wheel speed sensor as the car moving, creating a conflict with the 'parked' status required for remote start, leading to the shutdown. This is a well-documented issue addressed by Ford through multiple technical service bulletins, confirming it as a factory software defect.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Engine starts and then immediately stalls ONLY when using the remote start feature (key fob or FordPass app).
• The FordPass app may incorrectly report that the remote start was successful, even though the engine has shut down.
• The Malfunction Indicator Lamp (Check Engine Light) may be illuminated.
• A single horn honk may occur as the remote start attempt fails, which is a general indicator of a remote start failure condition.

Most Likely Causes

1. Outdated Body Control Module (BCM) Software 🔴 High Probability Ford issued multiple Technical Service Bulletins (TSBs), such as SSM 47519 and SSM 46322, for this exact problem on the Focus and similar platforms, indicating a known software defect from the factory.
   How to confirm: A Ford dealer or qualified shop can check the current BCM software calibration level against the latest version available from Ford. The presence of P1594 combined with the remote start stall symptom is a strong confirmation. The fix is to update the BCM using IDS release 106.05 or higher.
   Typical fix: Reprogram the Body Control Module (BCM) to the latest software calibration using a Ford IDS scan tool or equivalent J2534 device. The technician must ensure the tool is connected to the internet to download the latest update.
   Est. part cost: $0

Rare But Worth Checking

• Failing 12V Battery or Battery Monitoring System (BMS) Issue: While the primary cause is software, a weak or improperly configured battery can cause a variety of electrical issues. If the remote start system detects low voltage during the startup sequence, it may shut down as a precaution. This can be especially true if the BMS was not reset after a battery replacement or if an incorrect battery type (e.g., flooded instead of AGM) was installed, causing the system to misinterpret the voltage.
• Faulty Wheel Speed Sensor: A faulty wheel speed sensor could provide the erroneous 'vehicle moving' data that triggers the BCM software glitch, as noted in TSB SSM 46322. However, this would almost certainly be accompanied by ABS, traction control, or other stability control warning lights and codes.

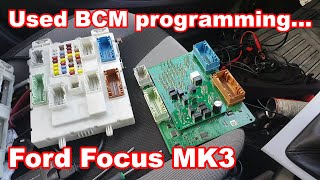

• Body Control Module (BCM) Hardware Failure: In very rare cases, the BCM itself could have an internal hardware fault. A user on a Ford Focus forum reported that washer fluid leaking onto the BCM 🎬 Watch: How to access and replace Focus BCM fuses. caused erratic behavior, necessitating a replacement. Another Reddit user with a 2016 Focus reported that replacing a BCM diagnosed as 'bad' put the car into a 'transport mode' that had to be cleared by the dealer. This should only be considered after a software update fails to resolve the problem.
• Hood Ajar Switch Fault: All Ford remote start systems require the hood to be fully closed. A faulty or misaligned 🎬 See why the hood latch is the #1 failure point. hood latch switch can prevent the remote start from working, though this typically results in a no-start condition rather than a start-and-stall. The system will often honk to signal the failure.

Diagnosis Steps

1. Confirm the primary symptom: Does the engine start and stall ONLY when using the remote start function?
2. Scan the Body Control Module (BCM) for code P1594. Do not just scan the Powertrain Control Module (PCM), as the code is stored in the BCM. A tool like FORScan can be used for this.
3. If P1594 is present and the symptom is confirmed, the next step is to check for relevant TSBs (e.g., SSM 47187, SSM 47519, SSM 46322).
4. Take the vehicle to a Ford dealership or qualified repair shop to have the BCM reprogrammed to the latest calibration level. TSBs specify using IDS version 106.05 or higher.
5. If the issue persists after the update, perform a full diagnostic on the charging system. This includes load testing the 12V battery and verifying the Battery Monitoring System (BMS) has been correctly configured for the installed battery type (AGM vs. Flooded) and was reset if the battery was replaced.
6. As a final step, investigate potential wiring issues, a faulty hood latch switch, or a hardware fault in the BCM itself.

Parts You'll Likely Need

• Body Control Module (BCM) Reprogramming — This is a software fix, not a physical part. It corrects the logic error that causes the BCM to incorrectly shut down the engine during a remote start. The causal part number for warranty claims is often listed as 14A068.
  OEM price range: $100-$250
  Aftermarket price range: N/A

Technical Service Bulletins (TSBs) & Recalls

• SSM 47519: Addresses engine shut off after remote start on 2016-2018 Focus, Escape, and Transit Connect, recommending a BCM reprogram.
• SSM 47397: Also covers 2016-2018 Focus/Escape/Transit Connect with immediate engine shut off after remote start, with or without P1594, and advises a BCM reprogram using IDS release 110.02 or higher.
• SSM 47187: Mentions P1594 and remote start shutdown on Ford vehicles, pointing to a BCM issue and noting the FordPass app may incorrectly report success.
• SSM 46322: Cites P1594 and vehicle stall on 2015-2016 Focus models built before late 2016, linking it to erroneous wheel speed sensor data and fixing it with a BCM update using IDS version 106.05 or higher.

Platform-Specific Known Issues

• Ford issued several Special Service Messages (SSMs) and Technical Service Bulletins (TSBs) for this issue, including SSM 47519 and SSM 47397, which specifically mention the 2016-2018 Focus. The fix is consistently a BCM reprogram.
• TSB SSM 46322 notes that for some 2015-2016 models built on or before October 17, 2016, the issue may be due to a wheel speed sensor reporting movement while the vehicle is stopped, which is corrected by the BCM update.

Hidden / Shadow Codes Worth Checking

• P1594:04-28: When viewed with an advanced scan tool like FORScan, the code may display with a Failure Type Code (FTC) and status. The ':04' indicates a 'System Internal Failure,' and the '-28' indicates the DTC status (e.g., previously set). This points more specifically to a logic fault within the module rather than a component or wiring failure. (see via Advanced scan tools like FORScan or Ford IDS.)

Scan Tool Commands That Help

• Ford IDS: BCM Self-Test — This is a standard diagnostic step a dealer technician would perform. It commands the BCM to check all its inputs and outputs and report any status codes, including P1594.
• Ford IDS: Module Reprogramming / Programmable Module Installation (PMI) — This is the function used to perform the software update that fixes the P1594 issue. It downloads the latest calibration from Ford's servers and flashes it to the BCM.
• FORScan: BCM 'As-Built' Configuration — While not a direct fix for P1594, this function allows users to enable or disable the remote start feature by changing specific lines of code (e.g., 726-19-01). This is more for retrofitting or customizing features and confirms that the BCM has dedicated parameters for remote start functionality.

Wiring & Ground Locations

• Body Control Module (BCM) — Located in the passenger side footwell, typically behind or below the glove box.. This is the module that stores the code and contains the faulty software. Physical access is required for replacement, and checking its connectors for corrosion is a last-resort diagnostic step.
• BCM Fuses F11 and F41 — In the engine compartment fuse box. In many configurations, F11 is a 30A fuse and F41 is a 20A fuse that provide power to the BCM.. While a blown fuse is unlikely to cause only the remote start to fail, confirming the BCM has proper power is a fundamental diagnostic step if multiple unrelated electrical issues are present.
• Main Chassis Ground — A primary grounding point for many systems is located under the airbox in the engine compartment.. A poor ground connection at this point can cause a wide range of unpredictable electrical issues and codes. While not a direct cause of the P1594 software bug, ensuring grounds are clean and tight is essential when diagnosing any electrical fault.
• BCM Connectors (e.g., C2280B) — These are the large, multi-pin connectors that plug directly into the BCM.. In rare cases of water intrusion or physical damage, pins within these connectors can corrode, leading to BCM faults. The washer fluid leak issue, for example, causes damage to pins in one of these connectors.

Real Owner Repair Stories

• Reddit r/Ford / F-150 owner experience (2022 Ford F-150 (Note: While a different model, the BCM update process and risks are identical across modern Fords)) — Vehicle was taken to the dealer for a software update. During the BCM update process, the module failed, rendering the truck completely dead and inoperable.
  ❌ Tried (didn't work) The dealer attempted the BCM software update as per a service action.
  ✅ What actually fixed it The dealer had to replace the 'bricked' BCM with a new one. The second attempt to program the new BCM also failed, bricking it as well. The story highlights a known issue acknowledged by Ford engineering where BCM updates can fail and corrupt the module, requiring physical replacement. The ultimate fix requires a successful BCM replacement and programming, which can be difficult even for dealers.

"I Checked Everything" — The Actual Cause

• A technician could verify all sensors are working, the battery is healthy, and no other codes are present, yet P1594 persists. The root cause in one documented edge case was washer fluid wicking up the wiring harness from the washer pump, traveling several feet, and entering the BCM through its connector. This introduces moisture and causes corrosion and short circuits inside the BCM that are completely unrelated to the remote start software logic but can manifest as various BCM-related codes and failures.

OEM Part Supersession History

• DV6T-14A073-xx → F1DT-14A073-xx — Standard part evolution and hardware revisions across model years.
  Heads up: When replacing a BCM, the Engineering ID (e.g., F1DT-14A073-JF) MUST be matched for hardware compatibility. The service part number (e.g., F1DZ-14A068-D) is not sufficient. Furthermore, suffixes like -PA, -FA, -EA denote different feature levels (basic, high, max) and are not interchangeable. A used BCM must be reprogrammed with the vehicle's 'As-Built' data to function correctly.

Model Year Variations Within This Range

• 2015-2018: The BCM hardware evolved during this period. Earlier models often use a BCM with an engineering ID starting in 'DV6T', while later models use 'F1DT'. While the P1594 software fault can affect both, the physical part numbers are different and not interchangeable without ensuring full compatibility of the engineering ID.
