P1530 on 2011-2018 Ram 1500 5.7L: Ignition Run/Start Sense Circuit Performance Guide

What's Unique About the 2011-2018 Ram 1500

On these Ram trucks, the P1530 code is not very common, and there is limited documentation in forums and repair databases. The ignition system changed mid-generation; 2011-2012 models use a Wireless Ignition Node (WIN) module that integrates the key reader, security functions, and the physical ignition switch mechanism. These WIN modules are a known failure point. Later 2013-2018 models use a simpler 'dummy' ignition switch that acts as a reader, sending the key's signal to a separate Radio Frequency Hub (RFH) module, which is typically located behind the rear seat. Diagnosis can differ slightly depending on which system the truck has, with the RFH module in later models also being susceptible to failure, sometimes due to water intrusion from a leaking rear window seal.

Symptoms You May Notice

• Engine does not crank or start (no-crank, no-start)
• Intermittent no-start condition (may start after multiple tries or wiggling the key).
• Check Engine Light is illuminated
• Dashboard lights may flicker or behave erratically during a failed start attempt
• Key fob may not be recognized, or the 'Key in Ignition' warning may stay on
• Remote start works, but turning the key in the ignition does not.

Most Likely Causes

1. Faulty Ignition Switch / Wireless Ignition Node (WIN) Module 🔴 High Probability The ignition switch or WIN module is a component with both mechanical and electronic parts that can wear out over time, leading to intermittent contact failure. Forum discussions for no-start issues on these trucks frequently point towards the WIN module (2011-2012) as a common culprit, with symptoms like needing to wiggle the key to get it to start. 🎬 See this quick WIN module repair tutorial to fix ignition no-starts For 2013+ models, the simpler ignition switch can also fail, though less commonly than the earlier WIN modules.
   How to confirm: A technician can use a scan tool to monitor the ignition switch status data in the PCM. They can also test the voltage on the signal wire from the ignition switch to the PCM; the voltage should change predictably as the key is turned from OFF to RUN to START. For the WIN module, if the remote lock/unlock works but the dash doesn't light up when the key is turned, the WIN module is highly suspect.
   Typical fix: Replacement of the ignition switch or WIN module. For 2013+ models, this is a simpler 'dummy' switch. For 2011-2012 models, the WIN module must be replaced and programmed to the vehicle's VIN and existing keys using a capable scan tool like AlfaOBD or by a dealer.
   Est. part cost: $100-$400
2. Wiring Harness or Connector Issue 🟡 Medium Probability Vibrations, heat, and age can cause wires to break or chafe, and connectors can become corroded or have pins back out. This can interrupt the signal between the ignition switch and the PCM. A known issue on some Ram trucks involves wiring chafing near the Integrated Power Module (fuse box), which can cause intermittent electrical problems.
   How to confirm: Perform a visual inspection of the wiring harness between the ignition switch (at the steering column) and the PCM. Check for continuity on the run/start signal wire and verify it is not shorted to power or ground. A 'wiggle test' on the harness at the steering column and at the PCM connectors while monitoring the signal can help identify intermittent breaks.
   Typical fix: Repairing the damaged section of wire or cleaning/repairing the affected connector.
   Est. part cost: $5-$50
3. Faulty Powertrain Control Module (PCM) ⚪ Low Probability While less common, the internal driver circuit in the PCM that receives the signal from the ignition switch can fail. PCM failure can manifest in various ways, including a 'no bus' message on the dash and a complete lack of communication with a scan tool.
   How to confirm: If the ignition switch and wiring have been tested and are confirmed to be good, the PCM becomes the primary suspect. This is typically a diagnosis of exclusion. A technician would verify all power and ground inputs to the PCM are present before condemning it.
   Typical fix: Replacement and programming of the PCM. The new PCM must be programmed with the vehicle's VIN.
   Est. part cost: $500-$1000

Rare But Worth Checking

• Faulty Totally Integrated Power Module (TIPM):

Diagnosis Steps

1. Connect a professional scan tool capable of reading manufacturer-specific codes to confirm P1530 is present.
2. Using the scan tool, access the live data stream for the PCM and monitor the parameter for 'Ignition Switch Position' or a similar name.
3. Turn the key through its positions (OFF, ACC, RUN, START) and verify that the status on the scan tool changes correctly and without hesitation. If it doesn't change or is erratic, the issue is likely in the switch/WIN or its wiring.
4. If the scan tool shows an incorrect or intermittent status, perform a visual inspection of the wiring and connectors at the ignition switch/steering column and at the PCM.
5. For 2011-2012 models, check the connector at the WIN module. For 2013+ models, check the connector at the ignition switch and the RF Hub behind the rear seat.
6. If wiring appears intact, use a multimeter to test the run/start signal wire (often a pink/white wire on these models, but always verify with a wiring diagram). Check for correct voltage when the key is in the RUN and START positions.
7. Perform a 'wiggle test' on the harness at the ignition switch and PCM while monitoring the voltage to check for intermittent breaks or shorts.
8. If the wiring is good but the signal from the switch is faulty, replace the ignition switch/WIN module.
9. If the switch and wiring are confirmed to be good by testing, the fault likely lies within the PCM.

Parts You'll Likely Need

• Ignition Switch (OEM #6CK46DX9AC (for 2013-2014 models, supersedes 1UW38DX9AC)) — For 2013+ models, this is the most likely component to fail in the circuit, causing an intermittent or total loss of the run/start signal.
  Trusted brands: Mopar, Standard Motor Products
  OEM price range: $100-$180
  Aftermarket price range: $70-$140
• Wireless Ignition Node (WIN) Module (OEM #68290854AB (Gen 3 replacement for earlier modules)) — For 2011-2012 models, this integrated module is the most common point of failure for ignition signal issues. 🎬 Watch this step-by-step Ram WIN module replacement guide
  Trusted brands: Mopar, Dorman
  OEM price range: $250-$400
  Aftermarket price range: $180-$300
• Powertrain Control Module (PCM) — In the rare case that the switch and wiring are good, the PCM's internal circuit may have failed. This is the least likely and most expensive repair.
  Trusted brands: Mopar (Remanufactured), Cardone
  OEM price range: $700-$1000
  Aftermarket price range: $400-$700

Related Codes That Often Appear With This One

• U0100 — If the PCM is failing or there's a major wiring issue, you may also see a 'Lost Communication With ECM/PCM' code.
• U0141 — Lost Communication with Front Control Module (FCM)/TIPM. This can occur if the TIPM is failing or has a connection issue, which can accompany other electrical gremlins.

Platform-Specific Known Issues

• WIN Module Failure (2011-2012): The Wireless Ignition Node (WIN) used in early 4th gen Ram trucks is a frequent source of no-start problems. Owners report needing to wiggle the key fob in the ignition to get the truck to start, which points to worn internal contacts. Failures typically begin to appear after 80,000-90,000 miles. In some cases, owners have successfully repaired the module by disassembling it and cleaning the internal copper contacts, avoiding a costly replacement.
• RF Hub Failure due to Water Intrusion (2013-2018): On later models, the Radio Frequency Hub (RFH), which communicates with the ignition switch and key, is located behind the rear seat. This location makes it vulnerable to water damage from a leaking rear window seal, a common issue on these trucks. Water intrusion can corrode the module or its connector, leading to a no-start condition that can be mistaken for a simple ignition switch failure.

Mechanic-Grade Diagnostic Values

• WIN Module Fused B+ Input Voltage — expected: Above 10.5 volts. Failure: If voltage drops below 10.5 volts for more than 15 seconds (except during cranking), the WIN module may set an internal fault and fail to operate correctly.
• Run/Start Signal Wire Voltage (2011-2012) — expected: Should switch between 0V and battery voltage as the key is turned from OFF to RUN/START.. Failure: No voltage change, or an erratic/intermediate voltage when wiggling the key or harness, indicates a fault in the WIN module or wiring.

Scan Tool Commands That Help

• Autel IM508/IM608: Erase VIN, then PCM Replaced — When installing a USED WIN module. The 'Wireless Ignition Replaced' function alone is often insufficient and may leave the security light on. The correct procedure is to first go into the immobilizer functions, erase the VIN from the donor WIN module, and then execute the 'PCM Replaced' function to synchronize all modules.
• AlfaOBD: Radio Frequency Hub (RFH) - Read PIN Code — Before replacing the original WIN/RFH module. This function allows you to extract the vehicle's unique 4-digit security PIN, which is required to program a new module and keys, saving a trip to the dealer.
• AlfaOBD: Radio Frequency Hub (RFH) - Program Ignition Fobiks — After installing a new WIN/RFH module, this function is used with the vehicle's security PIN to program the existing or new key fobs to the new module.

Wiring & Ground Locations

• WIN Module Connector C1 (2011-2012) — On the back of the Wireless Ignition Node (WIN) module in the steering column.. This connector carries the critical signals for ignition status. Pin 3 (Pink/White wire) is the Fused Ignition Switch Output (Run/Start) signal that is sent to the PCM. Testing voltage at this pin is a key diagnostic step.
• WIN Module Connector C1 Pins 5 & 6 (2011-2012) — On the back of the Wireless Ignition Node (WIN) module in the steering column.. Pin 5 (White/Light Blue) is HS CAN High and Pin 6 (White/Brown) is HS CAN Low. A fault on these data lines can prevent the WIN from communicating with the PCM, potentially causing starting issues, though this would typically set U-series communication codes as well.
• Ground Points G302/G303 — Typically located on the A-pillars, behind the kick panels on the driver and passenger side.. These are major interior ground points for many modules. While not directly tied to the P1530 circuit in diagrams, a poor ground at these locations can cause a host of bizarre, intermittent electrical issues, including problems with the BCM or RF Hub that could mimic an ignition switch failure.

Real Owner Repair Stories

• Reddit user on r/MechanicAdvice (2016 Ram 1500) — Key unlocks/locks and remote start works, but turning the key in the ignition does nothing. No accessory power, no crank. The issue was intermittent at first, requiring wiggling the key to start.
  ❌ Tried (didn't work) Cleaning the ignition switch (WIN module), Reseating wiring harness behind the e-brake, Changing key fob battery, Resetting the truck battery
  ✅ What actually fixed it A locksmith confirmed his scanner was not getting an ignition signal when the key was turned. The ignition switch assembly (often called a WIN module by owners, even on newer models) was faulty and had to be replaced and programmed.
• YouTube channel 'Matt Verley' (2012 Ram 3500 (uses same WIN module as 1500)) — No-crank, no-start condition unless diagonal pressure was applied to the key fob while turning it. Remote start worked fine.
  ❌ Tried (didn't work) Initial diagnosis pointed to a full WIN module replacement.

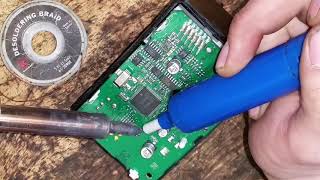

  ✅ What actually fixed it The owner disassembled the WIN module by de-soldering the circuit board. He found worn and dirty internal contacts. He cleaned the contacts with 1000-grit sandpaper, carefully bent the contact fingers to increase spring tension, reassembled, and re-soldered the module. This completely resolved the problem for under $10 in materials, saving over $500.

OEM Part Supersession History

• 68063400AA, AB, AC, AD, AE, AF, AG, AH → 68158217AA, then 68158217AB — These are earlier generation (Gen 2) WIN modules for 2011-2012 models that were prone to internal contact failure. The newer part numbers are for the more reliable Gen 3 module.
  Heads up: The Gen 2 modules are identifiable by a housing that splits below the middle and lacks white tabs on the connector ports. While a direct replacement, upgrading to the Gen 3 design is recommended for longevity.

Model Year Variations Within This Range

• 2011-2012: These years use an integrated Wireless Ignition Node (WIN) module that combines the ignition switch, key reader, and security module. These are known to fail internally but can sometimes be repaired by cleaning contacts. Replacement requires programming.
• 2013-2018: These years use a separate, simpler ignition switch (key reader) that communicates with a remote Radio Frequency Hub (RFH) module located behind the rear seat. The switch itself is less complex, but the RFH is a potential failure point, especially from water leaks.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Hemi Tick (Lifter/Camshaft Failure) 🔴 High — Common, especially on engines with high idle time or extended oil change intervals. Can occur anytime after 50,000 miles. (Ref: No specific recall, but it is a widely documented failure. The failure is often attributed to insufficient oiling to the lifter rollers at idle.)
• Broken Exhaust Manifold Bolts 🟠 Medium — Extremely common. The steel bolts and cast iron manifold expand/contract at different rates, causing the bolts (especially the rearmost ones) to snap, resulting in a ticking noise when cold that often disappears as the engine warms up and the gap seals. (Ref: Multiple TSBs exist, such as 09-019-23 and 09-001-24, which apply to later models but describe the same fundamental issue seen for years.)
• TIPM (Totally Integrated Power Module) Failure 🔴 High — Very common on 2011-2012 models. Can cause a wide array of random electrical problems, most notably a crank-no-start due to internal fuel pump relay failure. (Ref: A recall (NHTSA #15V115000) was issued for the fuel pump relay on some Chrysler vehicles, and external relay kits became the common fix.)
• Water Pump Failure 🟠 Medium — Common failure item, often presenting as a coolant leak from the weep hole or bearing noise. Onset can be anywhere from 60,000 to 120,000 miles.
• Leaking Rear Window / 3rd Brake Light 🟠 Medium — Common issue where the seal for the center high-mount stop lamp (3rd brake light) or the rear window frame itself fails, allowing water into the cab. This can damage the RF Hub on 2013+ models. (Ref: TSBs exist for this issue on some model years.)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For 2013-2018 models, the ignition switch itself is a simple reader. A used part from a reputable salvage yard is a reasonable, cost-effective option. For the 2011-2012 WIN module, a used part is NOT recommended unless you are an advanced user with specific programming tools, as it can be very difficult to make it work with your vehicle.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a 2013+ ignition switch, ensure the key turning motion is smooth with no binding.
• Check the connector pins for any signs of corrosion, bending, or damage.
• If possible, get the key that was used with the switch to ensure the internal mechanism isn't worn to a specific, damaged key.
• For any used electronic module, ask about the donor vehicle's history (e.g., flood damage, collision).

OEM-only on this vehicle (don't cheap out):

• For the 2011-2012 WIN module, a remanufactured OEM unit from a specialist like Circuit Board Medics is the highest-value option. It's your original part, rebuilt to be better than new, and requires no programming.

Aftermarket brands forum-validated for this vehicle:

• Dorman (Part # 601-082 for WIN module): A user review reported a successful installation and programming on a 2012 Ram, with zero issues after four months of use.

Brands owners have reported issues with on this vehicle:

• No-name, unbranded WIN modules or ignition switches from online marketplaces should be avoided due to high rates of DOA (Dead On Arrival) parts and lack of quality control.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• U0100 — Lost Communication with PCM — may appear if the PCM has an internal driver circuit failure or power/ground issues related to the P1530 code.
• U0168 — Lost Communication with Vehicle Security Control Module — often associated with WIN module or RF Hub failures that prevent the ignition signal from reaching the PCM.
• B2224 — Often related to internal WIN module failures or 'no bus' conditions where the ignition switch status cannot be verified by the PCM.
• U1411 — Implausible Fuel Volume Signal — can be triggered during the erratic electrical behavior or 'no bus' messages seen during PCM or TIPM-related ignition failures.
