OBD-II Code P1491: EGR System, Fan Relay & Solenoid Circuit Fault Guide

What Does P1491 Mean?

P1491 is a manufacturer-specific code. For Honda and Acura, it means the Exhaust Gas Recirculation (EGR) valve lacks sufficient lift. For Chrysler, Dodge, and Jeep, it indicates a radiator fan control relay circuit failure. For Nissan, it points to a Vacuum Cut Valve Bypass Valve fault, and for Subaru, a PCV function problem.

Technical definition: The SAE/OBD-II definition varies by manufacturer: 'EGR Valve Insufficient Lift Detected' (Honda/Acura), 'Radiator Fan Control Relay Circuit' (Chrysler/Dodge/Jeep), 'Vacuum Cut Valve Bypass Valve' (Nissan), or 'Positive Crankcase Ventilation (PCV) Function Problem' (Subaru).

Can I Drive With P1491?

Yes, But With Caution. You can drive with this code, but ignoring it causes failed emissions tests and poor fuel economy. On Chrysler, Dodge, and Jeep vehicles where this code indicates a cooling fan circuit failure, driving causes engine overheating. Stop driving immediately if the temperature gauge rises, as overheating causes head gasket failure costing over $2,000.

Common Causes

• Failed radiator fan relay or blown fuse (Chrysler/Dodge/Jeep) (Very Common) — On Dodge, Jeep, and Chrysler vehicles, this code points directly to a bad solid-state relay or a blown 40A fuse in the cooling fan circuit.
• Clogged EGR passages or faulty EGR valve (Honda/Acura) (Very Common) — Carbon buildup blocks the EGR passages or jams the valve itself, preventing it from opening correctly. The valve's internal diaphragm also fails over time, preventing it from holding a vacuum.
• Faulty Vacuum Cut Valve / Bypass Valve (Nissan) (Common) — The Vacuum Cut Valve Bypass Valve assembly in the EVAP system cracks, suffers a failed solenoid, or has broken vacuum hoses attached to it.

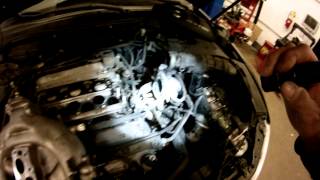

🎬 Watch: How to fix the Nissan vacuum cut valve bypass.
• Disconnected PCV 'babysitter' connector (Subaru) (Common) — A simple two-wire connector on the PCV hose acts as a jumper. If this connector is unplugged during maintenance or the wires break, the code sets immediately.
• Damaged wiring or poor electrical connection (Common) — Wires leading to the EGR valve, cooling fan relay, or EVAP solenoids corrode, fray, or disconnect. Internal corrosion within the wire sheathing causes this even without visible external damage.
• Faulty EGR valve lift sensor (Honda/Acura) (Less Common) — The sensor measuring how far the EGR valve opens fails, sending incorrect voltage data to the engine computer.
• Incorrect EGR Gasket (Rare) — If the code appears immediately after replacing an EGR valve, the wrong gasket was likely used. Aftermarket gaskets sometimes block the small port for the lift sensor.

Symptoms

• Engine overheating at low speeds or idle — On Chrysler/Dodge/Jeep vehicles, a failed fan relay circuit stops the cooling fans, causing overheating in traffic. This is a critical symptom requiring immediate attention.
• Check Engine Light is on — The Malfunction Indicator Lamp (MIL) illuminates on the dashboard.
• Rough or unstable idle — The engine shakes or runs unevenly when stopped, particularly on Honda/Acura models with clogged EGR ports.
• Engine knocking or pinging — A faulty EGR system causes detonation, sounding like a metallic pinging noise during acceleration due to high cylinder temperatures.
• Failed emissions test (also visible on scanner) — The underlying issue causes the vehicle to exceed legal emission limits and fail readiness monitor checks.

Common Fixes & Costs

• Replace Radiator Fan Relay — Parts: $25-$80, Labor: $50-$125, ~0.5 hr book time (DIY)
  : OEM 56045873AA (Alt: Dorman 902-310, Standard Motor Products RY345T)
  : OEM 4692269AI (Alt: Dorman 902-310, Four Seasons 35927)
  : OEM 56041891AD (Alt: Dorman 902-303, GMB 520-2210)
• Clean EGR Valve and Intake Manifold Ports — Parts: $10-$30, Labor: $150-$500, ~1.5 hr book time (Intermediate)
• Replace EGR Valve — Parts: $40-$200, Labor: $75-$150, ~0.8 hr book time (DIY)
  : OEM 18011-P8A-A00 (Alt: Dorman 911-769, Standard Motor Products EGV983)
  : OEM 18011-P8A-A00 (Alt: Wells EGV983, Walker 19001)
• Replace Vacuum Cut Valve / Bypass Valve (Nissan) — Parts: $60-$120, Labor: $75-$150, ~0.7 hr book time (DIY)
  : OEM 14933-0Z80A (Alt: Standard Motor Products CP533, Beck/Arnley 045-0359)
• Replace PCV Valve and/or Repair Connector — Parts: $10-$50, Labor: $100-$250, ~0.8 hr book time (DIY)

Used vs. New Parts: Buying Guide

When a used part is worth it: For electronic components like fan relays, a used OEM part from a reputable salvage yard is a cost-effective alternative to a new aftermarket part. For mechanical parts like EGR valves, buy new, as a used part's remaining lifespan is unknown.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

Donor quality checklist:

• Verify the donor vehicle's mileage and ensure it wasn't scrapped for an overheating issue.
• Avoid donors from regions with heavy road salt usage to minimize corrosion risk on electrical parts.
• Match the OEM part number exactly to ensure compatibility.

Decision logic:

• If The part is a simple electronic relay and the vehicle is over 10 years old. → A used OEM relay is a reliable and budget-friendly choice.
• If The part is an EGR valve, which is a known wear item. → Buy a new OEM or high-quality aftermarket part to avoid repeating the labor.
• If The cost of a new part is less than $100 and the labor is complex. → Buy new to minimize the risk of paying for the same labor twice if a used part fails.

Warranty tradeoff: Used parts come with a 30-90 day warranty covering only the part. New aftermarket parts have a 1-year to limited lifetime warranty, while new OEM parts offer the best guarantee.

Worst-case if a used part fails: 400

Cost of Not Fixing It

• 0-1 month: Reduced fuel economy by 5-10%, rough idle, and an automatic emissions test failure. (Added cost: Negligible, other than increased fuel costs.)
• 1-6 months: On EGR faults, prolonged high combustion temperatures cause engine pinging. On fan relay faults, a single overheating event in traffic causes severe engine damage like a blown head gasket. (Added cost: $1500-$2500+)
• 6+ months: A malfunctioning EGR system causes heavy carbon buildup on intake valves and catalytic converter failure. Repeated overheating from fan circuit issues warps cylinder heads, requiring engine replacement. (Added cost: $3000-$5000+)

Diagnosis Steps

1. Identify the Code's Meaning for Your Vehicle
   Search '[Year] [Make] [Model] P1491' to confirm if it indicates an EGR, fan, or EVAP system fault. This code's definition changes entirely based on the manufacturer.
   Tools: OBD-II Scanner, Internet Access (Beginner)
2. Check Fuses and Relays (Chrysler/Dodge/Jeep)
   Locate the Power Distribution Center under the hood. Inspect the 40A fuse for the radiator fan. If intact, locate the solid-state fan relay mounted to the frame near the radiator or behind the driver's side headlight. 🎬 See how to locate and replace the Jeep fan relay. Swap it with an identical non-critical relay to test.
   Tools: Owner's Manual, Fuse Puller or Pliers (Beginner)
3. Clean the EGR Valve and Passages (Honda/Acura)
   Remove the EGR valve. Use carburetor cleaner and a small brush to remove carbon buildup from the valve pintle and the intake manifold port. On V6 models, this requires removing the intake manifold to clean the main passage per TSB 99-085. 🎬 Watch: Honda Accord EGR cleaning and diagnostic walkthrough.
   Tools: Socket Set, Gasket Scraper, Carburetor Cleaner, Brushes (Intermediate)
4. Visually Inspect Hoses, Wiring, and Connectors
   Inspect vacuum hoses connected to the EVAP canister (Nissan) for cracks or disconnections. Examine the electrical connector going to the relevant component for corrosion. On Subarus, verify the two-wire PCV 'babysitter' connector is plugged in.
   Tools: Flashlight (Beginner)
5. [PRO TIP] Test Fan Relay Circuit Voltage (Chrysler/Dodge/Jeep)
   Disconnect the fan relay connector. With the ignition ON, verify 12V at the main power pin and less than 0.1V at the ground pin. The control wire from the PCM must show voltage when the fan is commanded on. Correct voltages confirm the relay itself is the failure point.
   Tools: Multimeter, Service Manual (Advanced)
6. [PRO TIP] Test the EGR Lift Sensor Circuit (Honda/Acura)
   Backprobe the EGR valve connector. With ignition ON, locate the 5V reference wire and ground. The signal wire reads about 1.2V. Manually apply vacuum to lift the pintle; voltage must increase smoothly towards 4.5V. Erratic or stuck voltage means the internal sensor failed.
   Tools: Multimeter, Backprobe Pins, Hand Vacuum Pump (Advanced)
7. [PRO TIP] Command the Solenoid/Relay with a Scan Tool
   Use a bi-directional scan tool to command the component ON. Command a Chrysler fan on and listen for the relay to click. Command a Honda EGR solenoid open at idle; the engine must stumble or stall. If it responds to the tool but not while driving, suspect a sensor input issue.
   Tools: Bi-directional Scan Tool (Advanced)
8. Check for Low System Voltage (Chrysler/Dodge/Jeep Quirk)
   A failing alternator or bad battery dropping system voltage below 11 volts triggers a P1491 code for the fan relay circuit, even if the relay is good. Verify the charging system operates at 13.5-14.5 volts with the engine running.
   Tools: Multimeter (Intermediate)

When This Code Triggers (Freeze-Frame Conditions)

• Engine Coolant Temp: 180-200°F (The engine must be fully warmed up for the EGR or fan control monitors to run.)
• RPM: 1500-2500 (The EGR monitor runs during steady-state cruising, not at idle or full throttle.)
• Engine Load: 20-60% (The test is performed under light to moderate acceleration or steady cruising conditions.)
• Vehicle Speed: 40-60 mph (A steady speed is required to meet the criteria for the EGR system self-test.)

Related Codes

• P0401 — Means 'EGR Flow Insufficient' and appears with P1491 on Hondas. P1491 points to the valve's lift sensor circuit, while P0401 indicates a lack of exhaust flow. A clogged port triggers both.
• P0480 — On Chrysler/Dodge vehicles, this code for 'Cooling Fan 1 Control Circuit Malfunction' is a close relative of P1491. Both point to the fan relay circuit, but P0480 also includes the fan motor itself.
• P1498 — On Honda models, this code for 'EGR Valve Position Sensor Circuit High' indicates an open circuit. If unplugging the valve changes P1491 to P1498, the wiring is good and the sensor is faulty.
• P0455 — On Nissan vehicles, a 'Gross EVAP Leak' code appears alongside P1491. P1491 points to the bypass valve's electrical circuit, while P0455 indicates a physical leak in the EVAP system.

Climate & Environmental Factors

• High Heat & Humidity: High ambient temperatures place extra demand on the cooling system, accelerating the failure of an already-weak fan relay on Chrysler/Dodge/Jeep vehicles.
• Cold Weather: Plastic and rubber vacuum hoses become brittle in extreme cold and crack, causing vacuum leaks that trigger P1491 on Honda or Nissan vehicles.
• Fuel Chemistry: Certain fuel formulations contribute to faster carbon buildup in the intake and EGR passages, making P1491 more common on Honda/Acura vehicles.

How to Clear the Code After You Fix It

1. Use an OBD-II scan tool to clear the diagnostic trouble codes.
2. Reconnect the battery if it was disconnected for the repair.
3. Perform a complete drive cycle to allow readiness monitors to run.

Drive cycle (~30 minutes): A general drive cycle includes a cold start, a few minutes of idling, mixed city driving, and 10 minutes of steady highway-speed driving at 55 mph. Allow the vehicle to cool down completely.

Readiness monitors affected: EGR System, Catalyst (CAT) System, Evaporative (EVAP) System

Before emissions retest: drive at least 100 miles to fully set monitors.

Watch out for:

• Disconnecting the battery clears the code but resets all readiness monitors to 'Not Ready', causing an automatic emissions test failure.
• The code returns immediately if the underlying cause, like a clogged EGR port or faulty relay, is not fully resolved.

Will This Fail Emissions / State Inspection?

Yes — this code typically fails an OBD-II emissions inspection.

• California: An active P1491 code is an automatic Smog Check failure. After repairs, most 2000+ gasoline vehicles must have all readiness monitors set to 'Ready' (except EVAP) to pass a re-test.
• New York: A vehicle fails the NYS inspection if the Check Engine Light is on for any code. For 2001 and newer vehicles, only one readiness monitor is allowed to be 'Not Ready'.
• Texas: In the 17 counties requiring emissions testing, an active P1491 code causes an automatic failure. The state allows one non-continuous monitor to be 'Not Ready' and still pass.

Most Commonly Affected Vehicles

• Honda Accord (1996-2002) — Extremely common for EGR passages to clog with carbon. For V6 models, TSB 99-085 outlines a specific procedure to drill the port and install a pipe kit.
• Honda Odyssey (1999-2004) — V6 models are prone to clogged EGR ports and failing EGR valves. Intermittent failures of the EGR position sensor are also common.
• Acura TL (1999-2003) — Shares the V6 engine with Honda models and suffers from the same EGR port clogging issues.
• Dodge Ram 1500 (2001-2008) — Frequently experiences P1491 due to a faulty radiator fan relay or the associated fuse.
• Chrysler Town & Country (1998-2007) — P1491 almost always indicates a fault in the radiator fan control relay circuit, not an emissions issue.
• Jeep Liberty (2002-2007) — Commonly triggers P1491 for a radiator fan control relay circuit malfunction. The relay is located behind the driver's side headlight.
• Nissan Pathfinder (1996-2004) — Points to a problem with the Vacuum Cut Valve Bypass Valve in the EVAP system, located near the charcoal canister at the rear of the vehicle.
• Subaru Impreza / WRX / Forester (2004-2009) — Indicates a PCV Function Problem, caused by a disconnected or faulty PCV jumper connector.

Manufacturer-Specific Notes

• Honda/Acura: The most common cause is carbon buildup clogging the EGR port in the intake manifold, not a failed part. Cleaning the port is the complete fix.
• Dodge/Chrysler/Jeep: The issue is almost always electrical within the cooling fan circuit, typically a bad solid-state fan relay or its wiring, rather than a mechanical fan problem.
• Nissan: The code points to the Vacuum Cut Valve Bypass Valve, which is part of the EVAP system diagnostics located near the spare tire, not the EGR system.
• Subaru: Triggered by a simple connector on the PCV hose that acts as a jumper. If this 'babysitter dongle' is disconnected, it sets the code.
