P1437 on 2012-2016 Mazda CX-5: A/C Evaporator Temperature Sensor Causes and Fixes

What's Unique About the 2012-2016 Mazda CX-5

The first-generation Mazda CX-5 is generally reliable, but this specific issue highlights a common failure point in modern climate control systems. While no TSB is specific to the 2012-2016 models for this code, Mazda did issue a bulletin for the next generation (2017+) for the same sensor failing due to poor waterproofing. This suggests a potential design or supplier weakness for this component that may affect the first-generation CX-5 as well. The primary challenge on this platform is not the part itself, but its difficult-to-access location deep within the dashboard, requiring complete removal of the instrument panel for replacement.

Symptoms You May Notice

• A/C blows warm or ambient temperature air
• Check Engine Light is on
• A/C compressor does not engage or cycle
• Flashing A/C light on the control panel (in some cases)
🎬 Watch this troubleshooting guide to diagnose your CX-5 AC issues.

Most Likely Causes

1. Failed A/C Evaporator Temperature Sensor 🔴 High Probability A TSB for later models suggests a potential weakness in the sensor's waterproofing, leading to premature failure. This is the most cited cause for this specific code across Mazda forums and repair databases.
   How to confirm: Use an OBD-II scanner with live data capability to monitor the sensor's output. A static, out-of-range high temperature reading (often displayed as a default low like -40°F/°C or a high of 255°F), regardless of actual ambient temperature, points to a failed sensor. The sensor is a thermistor and should show changing resistance/temperature values.
   Typical fix: Replace the A/C evaporator temperature sensor. This requires removing the dashboard for access.
   Est. part cost: $15-$25
2. Wiring Harness or Connector Damage ⚪ Low Probability While not common, the wiring is buried deep in the dash, making it susceptible to damage during other unrelated repairs if care is not taken. Rodent damage is also a remote possibility.
   How to confirm: Visually inspect the wiring and connector leading to the sensor for any signs of breaks, corrosion, or loose pins. This is extremely difficult due to the sensor's location. A multimeter can be used to check for continuity and proper voltage at the connector if it can be accessed.
   Typical fix: Repair the damaged section of the wiring harness or clean/replace the connector.
   Est. part cost: $5-$50

Rare But Worth Checking

• Faulty Climate Control Module or PCM: This is extremely rare. Before condemning a control module, all other possibilities (sensor, wiring) must be exhaustively ruled out. This should be the absolute last step in diagnosis.

Diagnosis Steps

1. Connect an OBD-II scanner and confirm P1437 is the active code.
🎬 See how to read and clear codes with a scanner.
2. Access the live data stream for the 'A/C Evaporator Temperature Sensor'.
3. Observe the reading. If it is an illogical, fixed high value (e.g., -40°F or 255°F, depending on the scanner's interpretation of an open circuit), the sensor or its circuit is faulty.
4. If you can access the sensor connector, disconnect it and check for 5V reference voltage from the control module on one pin and a good ground on another.
5. With the connector unplugged, the live data reading should remain at its default out-of-range value. If you jump the signal and ground wires at the connector with a fused jumper wire, the reading should change to the opposite extreme. This test confirms the wiring and control module are likely functional, isolating the fault to the sensor itself.
6. Due to the sensor's location, step 4 and 5 are often skipped, and the diagnosis proceeds based on the conclusive live data from step 3.
7. If wiring appears intact upon visual inspection (if possible), the sensor itself is the most likely culprit and should be replaced.

Parts You'll Likely Need

• A/C Evaporator Temperature Sensor (OEM #KD45-61-J22) — This sensor is the direct cause of the P1437 code and is a known failure point.
  Trusted brands: Mazda (OEM), Four Seasons, Uro Parts
  OEM price range: $16-$25
  Aftermarket price range: $15-$35

Platform-Specific Known Issues

• Extreme Labor Cost for a Cheap Part: Owners and technicians on forums like Reddit confirm the repair is exceptionally labor-intensive. A technician described the job as requiring complete disassembly of the center console, dashboard, A-pillar trim, and cowl, plus draining coolant and evacuating the A/C system. Mazda's warranty time is listed as only 3.2 hours, but real-world shop quotes reflect 5-8+ hours of labor, leading to repair costs often exceeding $1,000.

Mechanic-Grade Diagnostic Values

• A/C Evaporator Temperature Sensor Resistance — expected: The resistance should correlate with the ambient temperature. At 0°C (32°F), expect 7.30-9.10 kΩ. At 10°C (50°F), expect 4.40-5.35 kΩ. At 20°C (68°F), expect 2.70-3.25 kΩ. At 30°C (86°F), expect 1.71-2.05 kΩ.. Failure: An infinite resistance (open circuit) reading regardless of temperature indicates a failed sensor. This is the direct cause of a P1437 'Circuit High' code.
• Sensor Connector Voltage (Key On, Engine Off, Connector Unplugged) — expected: Approximately 5.0V on one of the two pins (the 5V reference from the climate control module).. Failure: No voltage indicates a wiring problem or a fault in the climate control module, not the sensor itself.
• Sensor Connector Voltage (Key On, Engine Off, Connector Plugged In) — expected: A voltage reading that is less than the 5V reference, which varies with temperature. For example, around 1.88V at approximately 20°C (68°F).. Failure: A reading that stays at 5V or 0V suggests the sensor is not changing its resistance and is faulty.

Scan Tool Commands That Help

• Mazda M-MDS / MDARS: CMDTC Self Test — This function is used to retrieve codes directly from the climate control module (EATC). While P1437 is a generic powertrain code, the climate module may store more specific body codes (B-codes) that can aid diagnosis, though none are commonly associated with P1437.
• Manual Procedure: Battery Reset — If the climate control unit is unresponsive or behaving erratically without setting a specific code, a battery reset can sometimes resolve temporary software glitches. Disconnect the negative battery terminal for at least 5 minutes to allow capacitors to discharge. This is a low-probability fix for P1437 but may be attempted before condemning the control module.

Wiring & Ground Locations

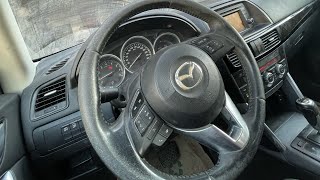

• Evaporator Temperature Sensor — Located on the right side of the HVAC unit, inserted between the evaporator fins. Access requires complete removal of the dashboard and HVAC assembly. 🎬 Watch this walkthrough of the dashboard and evaporator removal process.. This is the component being monitored. Its inaccessible location is the primary reason for the high labor cost of the repair.
• G09 — Main body ground point located behind the instrument cluster.. This is the primary ground point for the climate control unit. A poor connection here could cause erratic behavior or fault codes, although it would likely cause more issues than just the P1437 code.
• G10 — Ground point located on the lower right side of the dash.. This ground is associated with the blower motor circuit. While not directly tied to the sensor circuit, a fault here could cause broader HVAC electrical issues that might be investigated during diagnosis.

Real Owner Repair Stories

• r/CX5 on Reddit (Mazda CX-5 (year not specified, but within a generation where this is a known issue)) — Implied A/C failure leading to the need for sensor replacement.
  ✅ What actually fixed it The user successfully replaced the evaporator temperature sensor, noting it took an exceptionally fast 3 hours total to remove the dash, replace the part, and reinstall the dash.

OEM Part Supersession History

• KD45-61-J22 → KD45-61-J22 — No supersession found for the 2012-2016 generation. This part number appears to be stable throughout the production run.

Model Year Variations Within This Range

• 2016: The 2016 model year received a facelift with a redesigned center console, electronic parking brake, and the Mazda Connect infotainment system. The climate control layout was slightly altered. However, these changes did not affect the underlying HVAC hardware or the location/function of the evaporator temperature sensor related to code P1437. The repair procedure remains the same across the entire 2012-2016 range.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Failing LED Daytime Running Lights (DRL) 🟠 Medium — Common on 2016 models specifically. A sealing gasket releases sulfur, corroding the DRL circuit, causing flickering or total failure. (Ref: Safety Recall 4320A (NHTSA #20V06300)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this specific repair, using a used part is almost never a good idea. The only potential exception would be if the Climate Control Module is the confirmed failure, where a used module from a reputable salvage yard could offer significant cost savings over a new unit.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a Climate Control Module, ensure the part number matches exactly.
• Verify the donor vehicle was not in a flood or had fire damage.
• Check for any signs of corrosion on the connector pins.
• Be aware that the used module may require dealer programming (configuration) to work correctly with your vehicle's options.

OEM-only on this vehicle (don't cheap out):

• A/C Evaporator Temperature Sensor (KD45-61-J22)

Aftermarket brands forum-validated for this vehicle:

• Four Seasons and Uro Parts are commonly available aftermarket brands for the sensor, but given the low cost of the OEM part and the high cost of labor, using the genuine Mazda part is the safest choice.

Brands owners have reported issues with on this vehicle:

• No-name, unbranded sensors from online marketplaces should be avoided. The risk of premature failure far outweighs the minimal cost savings.
