P1326 on 2010-2017 Kia Forte: Knock Sensor Alert, Limp Mode, and Lifetime Warranty Guide

What's Unique About the 2010-2017 Kia FORTE

The Kia Forte, particularly models with the Nu 2.0L GDI and other related engines (Theta II, Gamma), is part of a massive group of Kia and Hyundai vehicles known for manufacturing defects that could leave metallic debris in the engine, leading to premature connecting rod bearing failure. 🎬 Watch: Understanding the Theta II bearing failure and P1326 code. In response to widespread issues and the 'In re: Hyundai and Kia Engine Litigation II' class-action lawsuit, Kia rolled out product improvement campaigns (e.g., PI1803, PI2002, SC200) to install the KSDS software. The appearance of code P1326 after this update is the specific trigger for a dealer to begin the diagnostic process for a potential engine replacement under a lifetime warranty extension.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Generation note: The 2010-2017 range covers two generations of the Kia Forte: the first generation (TD, 2010-2013) and the second generation (YD, 2014-2018). The engine issues and the P1326 code are relevant to both generations, particularly those equipped with GDI (Gasoline Direct Injection) and MPI engines like the 2.0L Nu and 2.4L Theta II. The specific campaigns and warranty extensions apply based on the vehicle's VIN and engine type, not just the generation.

Symptoms You May Notice

• Flashing Check Engine Light (MIL)
• Vehicle enters 'Limp Home Mode'
• Drastically reduced engine power and acceleration
• Engine RPM limited to approximately 1800-2000 RPM
• Inability to drive over a certain speed, such as 60 mph or even as low as 15 mph, as reported by one owner to the NHTSA.
• Engine knocking, rattling, or ticking noises, although some owners report no unusual sounds before limp mode activates.
• Stalling or engine seizure

Most Likely Causes

1. Excessive Connecting Rod Bearing Wear 🔴 High Probability A known manufacturing issue across several Kia/Hyundai engine families (Theta II, Nu, Gamma) could leave metallic debris from the manufacturing process within the engine, causing oil flow blockages and leading to premature bearing failure.

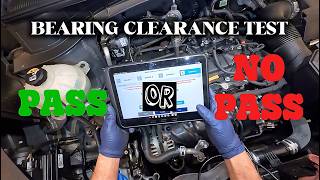

   How to confirm: This must be confirmed by a Kia dealership. They will follow specific TSBs like PI1805Y/Z or PI2106YZ_TSB. The process involves verifying the P1326 code is present, checking for wiring interference, and performing a mandatory bearing clearance test using a special tool (SST KQ231-2T110QQK) that measures clearance by applying air and vacuum to the cylinders.
   Typical fix: If bearing wear is confirmed by the dealer's tests, the fix is a complete engine long block replacement. This repair is typically covered under Kia's lifetime engine warranty for this specific issue, provided the KSDS software update (e.g., Campaign SC200) was previously performed on the vehicle.
   Est. part cost: $0 (if covered by warranty)

Rare But Worth Checking

• Faulty Knock Sensor or Wiring: While the code's primary purpose is to detect bearing failure, a malfunctioning knock sensor or a problem in its wiring harness (e.g., water intrusion, chafing) can, in rare cases, send an incorrect signal to the ECU, falsely triggering the P1326 code. A dealer will perform a 'Wiring Signal Interference Check' as outlined in TSB PI1803W/X to rule this out before condemning the engine.
• Outdated ECU Software: If the vehicle never received the mandatory KSDS software update (e.g., campaigns PI1803, PI2106, SC200), the system is not active and cannot generate this code. The presence of the code implies the software is present. A dealer can verify the vehicle's campaign history via its VIN, which is a critical step for warranty eligibility.

Diagnosis Steps

1. DO NOT clear the code. The active P1326 code is required for the dealer to initiate the warranty process.
2. Immediately stop driving the vehicle to prevent further damage or engine seizure.
3. Contact a Kia dealership, inform them your vehicle is displaying code P1326 and is in limp mode, and schedule service.
4. Have the vehicle towed to the dealership. Do not drive it there.
5. The dealer will verify the vehicle's VIN is covered by the warranty extension and that the KSDS software update was previously performed.
6. The dealer will follow Kia's official procedure outlined in TSBs like PI1803W/X or PI1805Y/Z. This includes a 'Wiring Signal Interference Check' and/or a physical 'Bearing Clearance Test' to confirm the root cause.
7. Based on the test results, the dealer will either repair the knock sensor wiring or proceed with an engine replacement under warranty. Be prepared for potential delays and to provide maintenance records if requested.

Parts You'll Likely Need

• Engine Long Block Assembly — This is the required fix when the P1326 code is triggered by confirmed connecting rod bearing failure, as determined by a Kia dealer.
  Trusted brands: Kia (OEM Remanufactured)
  OEM price range: $5000-$8000+
  Aftermarket price range: N/A
• Knock Sensor (OEM #39250-2E000) — In the rare event the sensor itself or its wiring is the cause, it will need to be replaced. This is diagnosed by a dealer after passing the bearing clearance test.
  Trusted brands: Kia (OEM), Bosch, Delphi
  OEM price range: $80-$150
  Aftermarket price range: $40-$90

Technical Service Bulletins (TSBs) & Recalls

• PI1803 / PI1803W/X: 'Knock Sensor Detection System ECU Logic Improvement' and subsequent instructions for checking wiring interference before engine replacement.
• PI2002A / PI2002B / PI2002Y/Z: KSDS update and engine replacement instructions for models including the Forte and Soul.
• PI2106 / PI2106YZ_TSB: KSDS update for 2017-2018 Forte with Nu 2.0L GDI and subsequent engine replacement instructions.
• PI1805Y/Z: Subsequent repair action detailing the engine replacement instructions after a P1326 code is confirmed.

Platform-Specific Known Issues

• Engine Class-Action Lawsuit & Settlement: Many Kia models, including the Forte, were part of the 'In re: Hyundai and Kia Engine Litigation II' lawsuit regarding failures in Theta II, Nu, and Gamma engines. This resulted in Kia extending the engine warranty to a lifetime warranty for the short block assembly for qualifying vehicles that experience this specific failure.
• KSDS Product Improvement Campaign (SC200, PI1803, etc.): Kia issued mandatory campaigns (e.g., PI1803, PI2106, SC200) to update the Engine Control Unit (ECU) with the Knock Sensor Detection System (KSDS). This software is what generates the P1326 code. Having this update is a prerequisite for the lifetime warranty coverage.
• Dealer Diagnosis is Mandatory: Owners cannot self-diagnose or bypass the dealership. The entire warranty process, from the specific bearing clearance test to engine replacement, is handled exclusively by authorized Kia service centers according to TSBs like PI1805Y/Z. Owners may be asked to provide maintenance records.
• Owner Experiences with Dealers: Forum users report mixed experiences. Some get engine replacements with a rental car provided. Others face long waits for diagnosis (weeks or months), requests for extensive maintenance histories, and initial denials of warranty coverage until escalated.
