P0740 on 2007-2014 Jeep Compass: Torque Converter Clutch Circuit Malfunction Causes and Fixes

What's Unique About the 2007-2014 Jeep COMPASS

The 2007-2014 Jeep Compass (first generation, or MK) primarily used a Jatco JF011E Continuously Variable Transmission (CVT), which is notoriously prone to issues that can manifest as code P0740. For the 2014 model year, a conventional 6-speed automatic (the PowerTech 6F24, also known as A6MF1) was introduced as an option. While the P0740 code points to the same fundamental issue on both—a TCC circuit fault—the specific internal components, like the TCC solenoid, valve body, and torque converter, are entirely different and not interchangeable. The fluid requirement is also critical and distinct: the CVT requires Mopar CVTF+4, while the 6-speed automatic uses Mopar SP-IV ATF. Using the wrong fluid can cause severe damage and similar symptoms.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice 🎬 Watch: Common symptoms of a failing torque converter in Jeeps

• Check Engine Light is on
• Vehicle shudders or vibrates at steady speeds, especially between 40-50 mph as the TCC tries to engage.
• Engine RPMs are higher than usual at highway speeds (failure to lock-up).
• Noticeable decrease in fuel economy.
• Harsh or delayed gear shifts.
• Engine may stall when coming to a stop (if the TCC is stuck engaged).
• Transmission may feel like it's slipping.
• A burning smell from overheated transmission fluid.

Most Likely Causes

1. Low or Dirty/Incorrect Transmission Fluid 🔴 High Probability The Jatco CVT is sensitive to fluid condition and type. Degraded or incorrect fluid (e.g., using ATF+4 in a CVT) cannot maintain the required hydraulic pressure and friction properties, leading to solenoid and clutch issues.
   How to confirm: Check the transmission fluid level and condition. For the CVT, the fluid should be Mopar CVTF+4 (or equivalent) and appear clean. For the 6-speed, it should be Mopar SP-IV. Dark, burnt-smelling fluid indicates a problem.
   Typical fix: Perform a transmission fluid and filter change with the correct OEM-spec fluid. Multiple drain-and-fills may be needed if the fluid is very dirty.
   Est. part cost: $75-$200
2. Failed Torque Converter Clutch (TCC) Solenoid 🟡 Medium Probability The TCC solenoid, located on the valve body, is an electro-mechanical part that can fail electrically or stick mechanically from contaminated fluid. It is a known failure point on the Jatco JF011E.
   How to confirm: A technician can use a scan tool to command the solenoid on/off while monitoring circuit voltage. The solenoid's resistance can also be tested with a multimeter (should be around 3-9 ohms for the TCC control solenoid on the JF011E) to see if it's within spec.
   Typical fix: Replace the TCC solenoid. This requires dropping the transmission pan and often the valve body.
   Est. part cost: $75-$200
3. Failed Torque Converter 🟡 Medium Probability The internal clutch inside the converter can wear out, especially in the CVT, causing slippage that the computer detects. Many technicians report that for this code, especially on Mopar vehicles, the torque converter is the ultimate culprit even after a solenoid replacement.
   How to confirm: This is often diagnosed after confirming the fluid, wiring, and solenoid are good. An advanced scan tool can monitor TCC slip RPM; if the solenoid is commanded on but slip remains high (e.g., 200-300 RPM), the converter clutch is failing.
   Typical fix: Replace the torque converter. This is a labor-intensive job that requires removing the entire transmission.
   Est. part cost: $300-$700
4. Damaged Wiring or Connectors ⚪ Low Probability The wiring harness to the transmission can be damaged by heat, debris, or corrosion, causing an open or short in the TCC solenoid circuit. 🎬 See this breakdown of P0740 causes and potential fixes
   How to confirm: Visually inspect the transmission wiring harness for any signs of damage. Test for continuity and shorts between the TCM and the transmission connector using a multimeter.
   Typical fix: Repair or replace the damaged section of the wiring harness.
   Est. part cost: $20-$100

Rare But Worth Checking

• Faulty Transmission Control Module (TCM) or Powertrain Control Module (PCM): This is very rare. The module should only be replaced after all other possibilities (fluid, wiring, solenoid, torque converter) have been exhaustively ruled out.

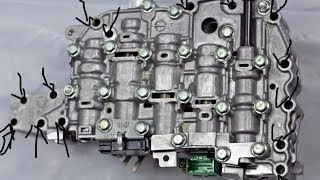

• Internal Transmission Failure (e.g., Valve Body): A clogged hydraulic passage or a sticking valve within the valve body can prevent the TCC from operating correctly. On the Jatco CVT, replacing the entire valve body 🎬 Watch: How to replace the CVT valve body assembly assembly with solenoids is a common repair strategy.

Diagnosis Steps

1. Check the transmission fluid level and condition. Ensure it is the correct type (Mopar CVTF+4 for CVT, SP-IV for 6-speed). Top off or replace if necessary.
2. Use an OBD-II scanner to confirm P0740 and check for any other related transmission codes like P0700.
3. With an advanced scan tool, monitor live data for Torque Converter Clutch Slip RPM while driving at steady speed (40-50 mph). If the TCC is commanded 'On' but slip RPM remains high, suspect a mechanical issue with the converter or solenoid.
4. Inspect the transmission wiring harness and connectors for any visible damage, corrosion, or loose connections.
5. Test the TCC solenoid circuit for proper voltage and resistance using a digital multimeter. Disconnect the harness and test the solenoid pins. Compare readings to the manufacturer's specifications (e.g., 3-9 ohms is the common range for the TCC control solenoid).
6. If possible, command the TCC solenoid on and off with a scan tool to verify its mechanical operation (listen for a click).
7. If the fluid, wiring, and solenoid all test good, the failure is most likely the torque converter itself. This is a common final diagnosis for this code.

Parts You'll Likely Need

• Torque Converter Clutch (TCC) Solenoid (OEM #For Jatco JF011E CVT, look for part numbers like D814425 or G7T23082. Often sold in a kit.) — This solenoid is a common failure point, either electrically or mechanically, that directly causes the P0740 code.
  Trusted brands: Mopar, Rostra, Sonnax, Jatco (OEM)
  OEM price range: $100-$200
  Aftermarket price range: $50-$120
• Torque Converter — If the solenoid and its circuit are functioning correctly, the internal clutch of the torque converter is the next likely failure point, a very common issue with this code.
  Trusted brands: Mopar, Transtar, Luk, Whatever
  OEM price range: $400-$700
  Aftermarket price range: $250-$500
• Automatic Transmission Fluid (OEM #Mopar CVTF+4 (P/N 05191184AB) for CVT; Mopar SP-IV for 6-Speed Automatic.) — Correct fluid level and condition are critical. Using the wrong fluid is a common cause of failure. CVTF+4 and ATF+4 are NOT interchangeable.
  Trusted brands: Mopar CVTF+4, Mopar SP-IV, Valvoline CVT Fluid, ENEOS Import ATF SP-IV
  OEM price range: $20-$30 per quart
  Aftermarket price range: $10-$20 per quart

Related Codes That Often Appear With This One

• P0700 — P0700 is a generic code that simply means the Transmission Control Module (TCM) has stored a fault code. It will almost always be present alongside a specific transmission code like P0740.
• P2764 — This code is also related to the TCC pressure control solenoid circuit. The manufacturer TSB #9004009 explicitly groups P0740 and P2764 together as pointing to the same potential failures (solenoid or torque converter). [TSB 9004009]

Technical Service Bulletins (TSBs) & Recalls

• 9004009: While this TSB is for the 62TE transmission (not found in the Compass), its diagnostic logic is relevant and often cited by technicians. It states that for codes P0740 or P2764, if the TCC solenoid is operating correctly, the torque converter has likely failed and should be replaced. [TSB 9004009, 18]

Platform-Specific Known Issues

• Jatco CVT Reliability: The Jatco JF011E CVT used in most 2007-2014 Compasses is known for a high failure rate. P0740 is often a precursor to more significant issues, including failure of the valve body, step motor, or the torque converter itself.

Mechanic-Grade Diagnostic Values

• TCC Control Solenoid Resistance (Jatco JF011E) — expected: 3 to 9 ohms. Failure: A reading outside this range (open or shorted) indicates a failed solenoid coil.
• TCC Lockup Select Switch Solenoid Resistance (Jatco JF011E) — expected: 15 to 30 ohms. Failure: A reading outside this range indicates a failure of this on/off style solenoid.
• TCC Solenoid Resistance (PowerTech 6F24 6-Speed) — expected: Approximately 10 ohms (for on/off solenoids). Failure: Significantly higher or lower resistance reading.
• TCM Ground Circuit Resistance — expected: Less than 1.0 Ohm. Failure: Resistance above 1.0 ohm indicates a poor ground connection that can cause erratic module behavior.
• TCC Solenoid Circuit Voltage (at TCM) — expected: The TCM expects to see ~12V on the control side of the circuit when the solenoid is off (not grounded).. Failure: No voltage drop when the solenoid is commanded on, or a constant lack of voltage, indicates an open or short in the circuit.

Scan Tool Commands That Help

• Professional Scan Tool (e.g., wiTECH, Autel, Snap-on): TCC Solenoid Actuation Test / Bidirectional Control — After checking fluid and wiring, this command manually activates the TCC solenoid. The technician can monitor live data (like TCC slip) or listen for an audible 'click' from the solenoid to confirm if it is responding to the command. This helps differentiate a failed solenoid from a wiring or TCM driver issue.
• wiTECH (Dealer Tool): PCM/TCM Reprogramming — If a Technical Service Bulletin (TSB) exists that addresses P0740 or related symptoms with a software update, the module must be reflashed. Outdated software can sometimes misinterpret sensor data and set false codes.

Wiring & Ground Locations

• G300 — Center of the body, below the instrument panel.. This is a major interior ground point that services multiple components, including potentially the shift lever assembly which communicates with the TCM. A poor ground here can cause various electrical issues.
• G108 — Right front of the engine compartment, on the inner fender, often near the power distribution block.. This ground point is critical as it serves the Transmission Control Module (TCM) and the transmission control relay. A corroded or loose G108 is a potential cause for P0740 and other transmission communication errors.
• Transmission Case Connector Pin 6 (for CVT) — The main electrical connector on the CVT transmission case.. On Dodge/Jeep applications of the JF011E, Pin 6 is the specific ground path for testing the TCC solenoid, line pressure, and secondary pressure solenoids. Using the case as a ground for testing (as on Nissan models) will yield incorrect results.

Real Owner Repair Stories

• Jeep Patriot Forum (jeeppatriot.com) (Jeep Patriot with Jatco CVT (sister vehicle to Compass)) — P0740 code present.
  ❌ Tried (didn't work) Initial diagnosis pointed towards common causes.
  ✅ What actually fixed it The user reported that replacing the entire valve body assembly, which includes all solenoids, finally resolved the code. This suggests the issue was either a solenoid that tested okay but failed under load, or a less-obvious hydraulic leak or blockage within the valve body itself.

OEM Part Supersession History

• Various → Solenoid Kits (e.g., 33420X) — Solenoids on the JF011E valve body are common failure points. It is often recommended to replace them as a set.
  Heads up: Solenoid kits often include the TCC Lock-Up Select Solenoid (LSS), TCC Lock-Up Control Solenoid (LCS), and pressure control solenoids. Ensure the kit is specified for the JF011E / RE0F10A transmission.

Model Year Variations Within This Range

• Pre-2010 vs. 2010-onward (Jatco CVT): On the Jatco JF011E valve body, models made before 2010 typically had two pressure switches (primary and secondary). In 2010, the primary pressure switch was eliminated. Swapping a newer valve body (with one switch) into an older vehicle that expects two will cause fault codes.
