P0734 on 2001-2005 GMC Sierra: Gear 4 Incorrect Ratio Causes and Fixes

What's Unique About the 2001-2005 Gmc SIERRA

The 2001-2005 GMC Sierra primarily uses the 4L60E or heavy-duty 4L80E automatic transmissions. These are robust units, but the 4L60E, in particular, is known for wear in the 3-4 clutch pack. This specific mechanical failure directly causes slipping in fourth gear, making P0734 a relatively common code on higher-mileage GMT800 platform trucks like the Sierra. The failure often stems from design weaknesses in the input drum seals or flexing of the clutch backing plate, which are addressed in many aftermarket rebuild kits.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Transmission slipping or failing to shift into 4th gear
• Engine RPMs are higher than usual at highway speeds
• RPM flare or engine revving up during the 3-4 shift attempt
• Delayed or harsh shifting
• Vehicle may enter "limp mode" (stuck in one gear)
• Decreased fuel efficiency

Most Likely Causes

1. Low or Contaminated Transmission Fluid 🔴 High Probability Over time, fluid can leak from aging seals or the pan gasket. Fluid also breaks down, and contamination with clutch material can clog the filter, valve body, and solenoids, leading to pressure loss.
   How to confirm: Check the transmission fluid dipstick for level and condition. The fluid should be bright red and clear, not brown, black, or smelling burnt. A poorly seated filter after a recent service can also cause aeration and pressure issues.
   Typical fix: Perform a transmission fluid and filter change. If the fluid is very dark or contains a significant amount of metal or clutch material, it indicates a severe internal problem that a fluid change alone will not fix.
   Est. part cost: $50-$150
2. Worn or Failed 3-4 Clutch Pack 🔴 High Probability This is a well-documented weak point in the 4L60E transmission. The friction material on the clutch plates wears out, preventing them from engaging 4th gear properly. This can be accelerated by issues with the 3-4 accumulator piston seals 🎬 Watch: How to perform a hot drum test for burnt clutches or a weak clutch apply plate.
   How to confirm: This requires internal inspection of the transmission. A large amount of dark gray or black clutch material in the pan is a strong indicator. A transmission pressure test may also show low pressure in the 4th gear circuit.

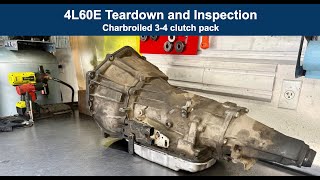

   Typical fix: The transmission must be removed and rebuilt, with specific attention to replacing the 3-4 clutch pack, steels, seals, and other worn components. Upgraded parts like a High-Energy clutch pack 🎬 Watch: Teardown and inspection of a smoked 3-4 clutch pack and a stronger apply plate are recommended.
   Est. part cost: $400-$800 for a rebuild kit
3. Faulty Shift Solenoid 🟡 Medium Probability Solenoids are electronic components that can fail over time due to heat and electrical issues, causing them to stick or fail to actuate. In the 4L60E, the 1-2 and 2-3 shift solenoids (often called A and B) work in a specific pattern to achieve 4th gear.
   How to confirm: A professional scan tool can command the solenoids on and off to test their function. The solenoid's electrical resistance can also be checked with a multimeter (should be 20-40 Ohms, with 20-25 Ohms being a more ideal range).
   Typical fix: Replace the faulty shift solenoid(s). They are located inside the transmission oil pan. 🎬 See this walkthrough on replacing all 4L60E shift solenoids It is common practice to replace both the 'A' and 'B' solenoids at the same time since they are sold as a set and require the same labor to access.
   Est. part cost: $40-$100
4. Worn or Sticking Valve Body 🟡 Medium Probability Debris in the fluid can cause valves within the valve body to stick, preventing correct hydraulic pressure from being routed to engage 4th gear. This can be exacerbated by a recent transmission flush on a high-mileage unit, which can dislodge built-up varnish and gum.
   How to confirm: Requires removing and inspecting the valve body for sticking valves or worn bores. This is typically done by a transmission specialist.
   Typical fix: The valve body may be cleaned and serviced, or replaced if wear is excessive. Aftermarket kits from brands like Sonnax are available to fix common wear areas.
   Est. part cost: $200-$500

Rare But Worth Checking

• Faulty Transmission Control Module (TCM): This is rare and should only be considered after all mechanical and hydraulic causes have been ruled out.
• Damaged Wiring Harness or Poor Ground: An open or short in the wiring to the transmission can cause various shifting issues. A missing or corroded engine-to-firewall ground strap or a poor PCM ground on the engine block has been documented on GMT800 forums to cause erratic voltage spikes and multiple transmission codes, including P0734.

Diagnosis Steps

1. Check the transmission fluid level and condition. If low, top it off and check for leaks. If dark or burnt, a fluid and filter change is a starting point, but be aware it may not solve the root cause.
2. Use an OBD-II scanner to check for any other pending or stored transmission codes.
3. With an advanced scan tool, monitor the transmission input and output speed sensors in real-time while driving to confirm the slip in 4th gear.
4. Perform a transmission line pressure test to check if the hydraulic pressure is within specification when 4th gear is commanded.
5. If pressure is low, drop the transmission pan to inspect for excessive metal debris and to access the shift solenoids and valve body. A layer of dark, muddy material in the pan confirms clutch failure.
6. Test the resistance and operation of the 1-2 and 2-3 shift solenoids. Resistance should be between 20-40 ohms.
7. Inspect the valve body for stuck valves or scored bores.
8. If solenoids and the valve body appear fine, and there is significant debris in the pan, the issue is an internal mechanical failure, such as the 3-4 clutch pack, requiring a transmission rebuild.

Parts You'll Likely Need

• Transmission Filter and Gasket Kit — Always replaced during a fluid change or any service requiring the oil pan to be removed.
  Trusted brands: ACDelco, Wix, ATP
  OEM price range: $40-$70
  Aftermarket price range: $20-$40
• Shift Solenoid Set (A & B) (OEM #24230298) — A common electrical failure point that can prevent the transmission from shifting into 4th gear. They are typically replaced as a pair.
  Trusted brands: ACDelco, Bosch, Rostra
  OEM price range: $50-$90
  Aftermarket price range: $30-$60
• Transmission Rebuild Kit — Required if internal components like the 3-4 clutch pack have failed. This contains all necessary clutches, steels, seals, and gaskets.
  Trusted brands: Transtar, Alto, Sonnax, Raybestos
  Aftermarket price range: $400-$800
• Remanufactured Transmission — A common solution when a full rebuild is needed, offering a faster turnaround time with an updated and tested unit.
  Trusted brands: Jasper, Moveras, ACDelco
  OEM price range: $2500-$4000
  Aftermarket price range: $1800-$3000
• 3-4 Clutch Apply Plate (OEM #2) — The OEM apply plate is known to flex, contributing to premature 3-4 clutch failure. Upgraded, stiffer plates are included in many rebuild kits.
  Trusted brands: Sonnax, TransGo
  Aftermarket price range: $20-$50

Related Codes That Often Appear With This One

• P0731, P0732, P0733 — These are incorrect ratio codes for 1st, 2nd, and 3rd gears, respectively. Seeing them together with P0734 points to a widespread internal transmission failure or a major hydraulic pressure loss.
• P0751, P0756 — These codes relate to shift solenoid 'A' and 'B' performance. Their presence can help pinpoint whether the issue is electrical (solenoid) or hydraulic/mechanical.
• P0894 — This code indicates 'Transmission Component Slipping'. It is a very common companion to incorrect gear ratio codes and confirms an internal slip is occurring, often pointing towards a failing torque converter clutch or internal clutches.

Technical Service Bulletins (TSBs) & Recalls

• PIP4379K: Mentions P0734 as part of a large group of diagnostic codes related to delayed engagement, no reverse, or range inhibit issues in GM trucks and SUVs. [⭐ MANUFACTURER TSB — highest authority]
• PIP4379N: An updated version of the previous TSB, which adds context that these issues can sometimes arise from a loss of pump prime after a fluid and filter change, causing air to be drawn into the system.

Platform-Specific Known Issues

• The 4L60E transmission used in many of these Sierras is known for failure of the 3-4 clutch pack, which directly causes a P0734 code.
• Technical Service Bulletin #PIP4379N (an update to PIP4379K) confirms that P0734 can be associated with a range of transmission engagement and shifting problems, sometimes caused by a loss of pump prime after a fluid service.
• A real-world owner experience documented on a GMT800 forum traced a P0734 code, along with other electrical issues, to a corroded engine-to-firewall ground strap, which was causing voltage spikes from the transmission solenoids.

Mechanic-Grade Diagnostic Values

• 1-2 (A) & 2-3 (B) Shift Solenoid Resistance — expected: 20 - 40 Ohms (20-25 Ohms is a preferred range). Failure: Resistance outside of this range, or an open/short circuit reading.
• Pressure Control (EPC) Solenoid Resistance — expected: 3.5 - 8.0 Ohms. Failure: Resistance outside of this range.
• 3-4 Clutch Pack Clearance (during rebuild) — expected: 0.025" - 0.040" (performance-oriented) or up to 0.065" depending on the kit.. Failure: Excessive clearance (e.g., >0.060") can lead to sloppy shifts and premature wear. Too little clearance can cause the clutch to drag and burn up. This is a critical build tolerance.

Scan Tool Commands That Help

• Tech2 / GDS2 or equivalent professional scanner: Solenoid Activation / Bidirectional Control — Used to manually command the 1-2 and 2-3 shift solenoids on and off with the key on, engine off. A technician can listen for an audible 'click' from within the transmission pan to verify the solenoid is mechanically actuating. This helps distinguish between a failed solenoid and a wiring or PCM driver issue.

Wiring & Ground Locations

• Main Transmission Connector (Pass-through) — Passenger side of the transmission case. It is a large, round, 20-way connector.. This is the primary electrical interface. For 4th gear, the PCM uses Pin A (1-2 Shift Solenoid) and Pin B (2-3 Shift Solenoid). Both solenoids are commanded 'On' (grounded by the PCM) to achieve 4th gear. A poor connection or corrosion at these pins can cause P0734.
• PCM Ground — A wire from the main engine harness that grounds to a bolt on the top rear of the driver's side engine block or cylinder head.. This is the most critical ground for the Powertrain Control Module. If this ground is corroded, loose, or broken, the PCM can receive erratic signals from sensors and may not be able to properly control the transmission solenoids, leading to various codes including P0734.
• Firewall / Body Ground Straps — Braided straps connecting the rear of the engine/cylinder heads to the vehicle's firewall/body.. These straps ensure the entire powertrain has a solid ground reference to the chassis. A broken or corroded strap can cause electrical noise and voltage potential differences, leading to unpredictable electronic behavior and fault codes.
• Frame Ground (Battery) — A primary ground cable from the battery negative terminal to the vehicle frame, typically on the passenger side near the radiator support or on the driver's side frame rail.. Provides the main ground path for the entire vehicle's electrical system. While less likely to cause a specific P0734 code on its own, a poor connection here can cause widespread electrical issues that affect the PCM and transmission.

Real Owner Repair Stories

• YouTube user video (GM Truck with P0734) — Check Engine Light with code P0734, shifting problems.
  ❌ Tried (didn't work) The owner's first attempt was to replace the easily accessible input and output speed sensors.
  ✅ What actually fixed it The owner claimed replacing the speed sensors fixed the issue. However, upon removing the old sensor, he noted it was covered in fine metallic particles ('looks like silver'). This is a classic sign of internal mechanical wear (likely from the clutch packs). While replacing the sensor may have temporarily cleared the code, the metallic debris indicates the root cause is a much more serious internal failure that will require a transmission rebuild. This story highlights a common misdiagnosis where a cheap fix masks a major problem.

Model Year Variations Within This Range

• 2001+: Some models, particularly those with the 6.0L V8, were equipped with the 4L65E instead of the 4L60E. The 4L65E features stronger internals, including a 5-pinion planetary gear set instead of a 4-pinion set, to handle higher torque. While diagnostically similar for P0734, rebuild kits must be specific to the model.
• 2005: In mid-2005, GM began introducing an Input Speed Sensor (ISS) into the 4L60E pump. A 2005+ truck's PCM may expect to see this signal. Swapping an earlier transmission (2001-2004) without an ISS into a late 2005 truck that requires it can cause shifting problems and codes, as the PCM will not receive the expected input.
