P0701 on 2001-2008 Chevrolet Silverado 2500: Transmission Control System Fault Guide

What's Unique About the 2001-2008 Chevrolet SILVERADO 2500

The 2001-2008 Silverado 2500, spanning the GMT800 and early GMT900 generations, primarily uses the robust Allison 1000 or heavy-duty 4L80-E automatic transmissions. For these trucks, a P0701 is often a serious flag. GM has issued Technical Service Bulletins (TSBs) indicating that low fluid levels are a primary trigger for this code, especially in cold weather or after a fluid change. Another known issue is a failing Transmission Control Module (TCM), which is mounted externally and can suffer from electrical failure, causing erratic behavior and setting this code. For earlier models (2001-2004), a failing Neutral Safety Back-Up (NSBU) switch is also a common culprit.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Generation note: This range covers the first generation (GMT800, 2001-2006 and 2007 "Classic") and the second generation (GMT900, 2007-2008). While both generations can experience this code, the GMT900 models have a more integrated electronic system where TCM failures can be more common. However, the fundamental causes like low fluid and internal issues apply to both. The Neutral Safety Back-Up (NSBU) switch is a more frequent issue on the 2001-2004 LB7 Duramax trucks with the 5-speed Allison. Starting in 2006, the external NSBU was replaced with an internal mode switch, which is less prone to failure.

Symptoms You May Notice

• Check Engine Light is on
• Harsh or erratic shifting
• Delayed engagement into Drive or Reverse
• Transmission slipping between gears
• Vehicle enters "limp mode" (stuck in one gear)
• "Shift Inhibited Select Neutral to Reset" message on the driver information center.
• Flashing gear selector indicator (PRNDL).
• No-start condition (if related to NSBU switch failure).
• Total loss of forward or reverse gear engagement.

Most Likely Causes

1. Low or Incorrect Transmission Fluid 🔴 High Probability TSBs from GM (like PIP4379L) specifically call out low fluid as a primary cause for P0701 and related codes, especially after a fluid service, during a cold start, or due to leaks. A loss of prime in the transmission pump due to low fluid can set this code.
   How to confirm: Check the transmission fluid level and condition using the manufacturer's specified 'Hot Check Procedure'. The fluid should be at the top of the hot band at 175°F. The fluid should be red and not smell burnt. Dipsticks can be hard to read; a low reading can be false if fluid sloshed onto the stick.
   Typical fix: Top off the fluid with the correct type (e.g., DEXRON-VI for most Allison transmissions in this range) or perform a fluid and filter change if the fluid is dirty or degraded.
   Est. part cost: $50-$150
2. Faulty Transmission Control Module (TCM) 🟡 Medium Probability The externally-mounted TCM on these trucks can fail internally due to heat and vibration, causing a variety of shifting problems and communication errors that trigger P0701.
   How to confirm: After ruling out fluid issues and other codes, a technician can monitor live data from the TCM. In one documented case, pressure switch data became erratic after about a minute of runtime, pointing to a failing TCM. If the module fails to communicate or data is nonsensical, it is likely faulty.
   Typical fix: Replace the TCM and program the new module to the vehicle's VIN. Some companies offer pre-programmed, plug-and-play modules.
   Est. part cost: $250-$600
3. Internal Transmission Mechanical Failure 🟡 Medium Probability High mileage and heavy use can lead to wear on internal components like clutch packs, solenoids, or the valve body. A cracked internal suction filter or a stuck lube regulator valve are also noted possibilities.
   How to confirm: This is diagnosed by analyzing the specific codes stored in the TCM (e.g., for specific solenoids or gear ratios) and performing pressure tests. Debris in the transmission pan is also a strong indicator. A user on DuramaxDiesels.com was advised to check for fluid gushing from the pressure port as a basic test for pump function.
   Typical fix: Requires transmission overhaul or replacement. This can range from replacing a specific shift solenoid to a full rebuild.
   Est. part cost: $100-$4000+
4. Wiring Harness or Connector Issues ⚪ Low Probability The wiring harness leading to the transmission is exposed to heat and debris. GM has noted specific chafe points on these truck platforms, such as against the ECM/TCM bracket, the upper control arm, and the shock tower, which can cause shorts.
   How to confirm: Visually inspect the entire wiring harness between the TCM and the transmission case connector, paying close attention to known chafe points. Check for continuity and shorts using a multimeter. Pay special attention to the ground points for the TCM and ECM, such as G103.
   Typical fix: Repair the damaged section of wiring or replace the affected connector. Protect the harness with sleeves or re-route it to prevent future damage.
   Est. part cost: $20-$200

Rare But Worth Checking

• Blocked Valve Body Orifice from Aftermarket Filter Debris: A GM TSB (#PIP5100) warns that protective shrink-wrap from aftermarket spin-on transmission filters can get into the transmission and block small orifices in the valve body, leading to P0701 and other codes like P0877.

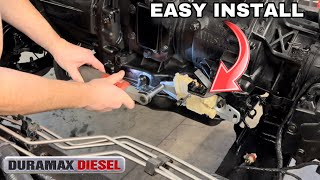

• Faulty Neutral Safety Back-Up (NSBU) Switch: Especially on 2001-2004 models with the Allison 1000, this externally mounted switch on the transmission selector shaft can fail due to water intrusion. This can cause a no-start, incorrect gear display, and limp mode, often setting P0701 because the TCM receives conflicting gear position data. A partially failed switch may not set a specific code like P0708, making diagnosis difficult.
• Cracked Internal Suction Filter Tube: The neck of the internal transmission filter can crack, allowing the pump to suck in air, especially when the fluid is cold or low. This causes a loss of line pressure and can trigger P0701 with symptoms of no-move after sitting overnight.

Diagnosis Steps

1. Check and correct the transmission fluid level and condition per the manufacturer's 'Hot Check' procedure, ensuring the level is at the top of the hot band at 175°F.
2. Use an advanced scan tool to read the diagnostic trouble codes from the Transmission Control Module (TCM), not just the PCM. P0701 is an indicator; the other codes are the real problem.
3. Prioritize diagnosis based on the specific codes found in the TCM (e.g., pressure switch codes, solenoid codes, gear ratio codes).
4. For 2001-2004 models, inspect the Neutral Safety Back-Up (NSBU) switch and its connector for corrosion or damage if symptoms include no-start or erratic gear indication. A diagnostic test involves checking for a short between pins C2-E and C2-G when in Park or Neutral.
5. Inspect the transmission wiring harness and connectors for any visible damage, corrosion, or loose connections, especially at known chafe points near the frame and suspension components.
6. Check main engine and chassis grounds, particularly G103 (cowl, above brake booster) and G104/G101 (engine block), as poor grounds can cause erratic module behavior.
7. If a specific solenoid or sensor code is present, test that component's circuit for proper voltage, ground, and resistance based on manufacturer specifications.
8. If no other codes are present, or if communication with the TCM is intermittent, monitor live TCM data for erratic readings (like pressure switches changing state without cause) which may indicate internal TCM failure.
9. If all wiring and sensor checks pass, the TCM is the most likely suspect.

Parts You'll Likely Need

• Transmission Control Module (TCM) (OEM #24256861 (Primarily for 2006-2010 LMM Duramax)) — A common failure point on these trucks that can cause a wide range of transmission faults, often manifesting as a P0701 code. Internal circuit failure is common.
  Trusted brands: ACDelco (OEM), Dorman (Remanufactured)
  OEM price range: $400-$600
  Aftermarket price range: $250-$450
• Automatic Transmission Fluid — Low or degraded fluid is a very common and simple cause for this code, as highlighted in multiple service bulletins.
  Trusted brands: ACDelco DEXRON-VI
  OEM price range: $10-$20 per quart
  Aftermarket price range: $8-$15 per quart
• Neutral Safety Back-Up (NSBU) Switch (OEM #29540479) — A very common failure on 2001-2005 Allison 1000 transmissions. Water intrusion and wear cause incorrect gear position signals, limp mode, and no-start conditions.
  Trusted brands: ACDelco (OEM), Merchant Automotive, Dorman
  OEM price range: $150-$250
  Aftermarket price range: $70-$150

Related Codes That Often Appear With This One

• P0731-P0736 — These codes indicate incorrect gear ratios, which are specific faults detected by the TCM that lead to the general P0701 code being set. They often point to slipping internal components or hydraulic pressure issues.
• P0751, P0756, P0761, P0776 — These codes point to performance or electrical issues with specific shift solenoids (A, B, C, E) inside the transmission. The TCM requests P0701 when it detects these solenoid faults.
• P0877 — This code relates to a fault in the transmission fluid pressure sensor/switch 'D' circuit. TSB PIP5100 notes this can be set along with P0701 if debris blocks the reverse pressure orifice in the valve body.
• P0894, P2723 — These codes indicate transmission component slipping or issues with pressure control solenoids. They are frequently listed alongside P0701 in GM service bulletins as being caused by low fluid levels.

Technical Service Bulletins (TSBs) & Recalls

• PIP4379L / PIP4379N: Details conditions (low fluid, cold starts, after service) that can cause P0701 and a host of other codes due to loss of transmission pump prime.
• PIP5100: Warns of aftermarket spin-on filter packaging blocking valve body orifices, leading to P0701 and no-move conditions.
• General Motors #21-NA-149 / #21-NA-232: While not specific to P0701, these bulletins detail common engine wiring harness chafe points on Silverado/Sierra platforms that can cause various electrical faults.

Platform-Specific Known Issues

• TSB #PIP4379L (superceding PIP4379N) notes that P0701, along with many other transmission codes, can be caused by low fluid levels, especially during cold starts or after a fluid change. It explicitly warns that TCM replacement is not a likely fix for this condition.
• TSB #PIP5100 warns that plastic debris from aftermarket spin-on filter packaging can clog valve body orifices, causing a no-move condition and setting P0701.
• On 2001-2004 models, the original NSBU switch is prone to failure from moisture. An updated, tan-colored switch with a better foam seal is available as a replacement.

Mechanic-Grade Diagnostic Values

• Allison 1000 (2001-2005) Shift Solenoid C, D, E Resistance — expected: 22 - 24.5 Ohms. Failure: A reading outside this range indicates a faulty solenoid coil.
• Allison 1000 (2001-2005) Trim Solenoid A & B Resistance — expected: 5.5 - 6.5 Ohms. Failure: A reading outside this range indicates a faulty solenoid coil.
• Allison 1000 (2001-2005) TCC Solenoid Resistance — expected: 10.5 - 11.5 Ohms. Failure: A reading outside this range indicates a faulty solenoid coil.
• NSBU Switch (2001-2005) Start Circuit Test — expected: Continuity (short circuit) between pins C2-E and C2-G on the switch itself when the lever is in Park or Neutral.. Failure: An open circuit in Park or Neutral indicates a faulty switch preventing the start signal.

Scan Tool Commands That Help

• GM Tech2: Transmission Fast Learn Adapts — This procedure is required after replacing the TCM or valve body to allow the new module to learn clutch apply pressures and shift timing. Failure to perform this can result in harsh shifting or persistent codes.
• GM Tech2 / Allison DOC®: Solenoid Actuation Test — To individually command each shift and pressure control solenoid on and off. This helps verify if a specific solenoid is mechanically stuck or if the wiring circuit is intact without removing the transmission pan.

Wiring & Ground Locations

• G103 — Located at the left rear of the engine compartment on the cowl, above the brake booster.. This is a major ground point for the Body Control Module (BCM) and Instrument Panel Cluster (IPC). A poor connection here can cause communication issues and erratic behavior that may be misinterpreted as a transmission fault.
• G101 / G104 — Bolted to the left front of the engine block, often as part of the main negative battery cable harness.. This is the primary ground for the Engine Control Module (ECM) and Transmission Control Module (TCM). Corrosion or a loose connection here is a critical failure point that can directly cause P0701 and other communication codes.
• Transmission Main Connector — Large, round twist-lock connector on the passenger side of the transmission case.. This is the single point of connection for all sensors and solenoids to the main vehicle harness. It is susceptible to corrosion, bent pins, and harness chafing against the frame or heat shields, causing intermittent faults.

Real Owner Repair Stories

• DuramaxDiesels.com forum user (Duramax with Allison 1000) — P0701 code, no fluid flow to the cooler, no gear engagement after reassembly.
  ❌ Tried (didn't work) Checking fluid level, Replacing internal filter, Cleaning valve body
  ✅ What actually fixed it The user had incorrectly installed the same valve body separator plate gasket on both sides of the plate. Correcting the gasket orientation restored hydraulic pressure and fixed the problem.
• AgTalk forum discussion (Duramax with Allison transmission) — Flashing PRNDL light, delayed engagement, possible limp mode.
  ❌ Tried (didn't work) Initial assumption of major transmission failure.
  ✅ What actually fixed it Multiple users reported the final fix was replacing the external Neutral Safety Back-Up (NSBU) switch. Another user found the issue was a cracked neck on the internal filter, which was resolved by overfilling the transmission by one quart to keep the crack submerged until a proper repair could be made.

Model Year Variations Within This Range

• 2001-2005: These models use a 5-speed Allison 1000 with an external Neutral Safety Back-Up (NSBU) switch mounted on the manual selector shaft. This switch is a very common failure point for P0701.
• 2006-2008: These models feature the 6-speed Allison 1000. The problematic external NSBU switch was replaced with an Internal Mode Switch (IMS) located inside the transmission oil pan, next to the valve body. While more reliable, an IMS failure requires removing the pan for service.
