P0645 on 2013-2016 Ford Fusion: A/C Clutch Relay Circuit Guide

What's Unique About the 2013-2016 Ford FUSION

For the second-generation Ford Fusion (2013-2020), this code is very straightforward and almost always tied to the A/C system not working, as confirmed by Ford's own Technical Service Bulletin (TSB) SSM-45815. Unlike some vehicles where this code can be part of a complex web of module communication issues, on the Fusion, the diagnostic path typically leads directly to a simple electrical component like a relay or its associated fuse located in the under-hood fuse box. However, it's worth noting that on platform mates like the Ford Escape, a similar code is often caused by wiring harness chafing, a less common but possible issue on the Fusion as well.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• A/C system does not blow cold air or is inoperative.
• Check Engine Light is on.
• A/C compressor clutch does not engage (no 'click' sound when turning on the A/C).
• A/C may work intermittently before failing completely.
• In some cases, the radiator fan may run on high speed when the A/C is commanded on, even if the engine is not at full operating temperature.

Most Likely Causes

1. Faulty A/C Clutch Relay 🔴 High Probability Relays are electromechanical switches that can wear out from heat cycles and the repeated electrical arcing of making and breaking the connection. It is the most common, simplest, and cheapest point of failure in the circuit for this vehicle.
   How to confirm: Locate the A/C clutch relay in the under-hood fuse box (often labeled R33 or just 'A/C Clutch Relay' on the diagram). Swap it with an identical relay from a non-essential system, like the horn. If the A/C now works and the horn does not, the relay is bad. This is the most definitive DIY test. 🎬 Watch: How to find and swap the A/C clutch relay.
   Typical fix: Replace the faulty relay with a new one. This is a plug-and-play part requiring no tools.
   Est. part cost: $10-$25
2. Blown Fuse 🟡 Medium Probability An electrical surge or a short circuit in the compressor clutch coil or its wiring can cause the protective fuse to blow. This is a designed failure point to protect more expensive components.
   How to confirm: Inspect the fuses associated with the A/C compressor clutch in the under-hood fuse box. On these models, check fuse F25 (10A) and F55 (7.5A or 10A) as noted in some guides, but be aware that fuse numbers can vary by year; a 2012 Fusion uses F25 and F47, while a 2014 points to a specific 10A fuse for the clutch. Use a fuse tester or visually check for a broken filament. 🎬 See this video to locate the exact A/C clutch fuse.
   Typical fix: Replace the blown fuse. If the new fuse blows immediately, there is an underlying short circuit in the wiring or the A/C clutch coil that needs to be diagnosed.
   Est. part cost: $1-$5
3. Damaged Wiring or Connectors ⚪ Low Probability Engine bay heat, vibration, or previous repairs can cause wires to fray or connectors to become corroded or loose, especially at the A/C compressor clutch connector or the main fuse box connections. Oil spillage in the engine bay, particularly around the fuse box, has been anecdotally linked to developing this and other electrical issues.
   How to confirm: Visually inspect the wiring harness leading to the A/C compressor and around the fuse box for any signs of damage, melting, chafing, or corrosion. Check that the A/C clutch relay fits snugly in its socket. Wiggle the harness while the system is on to see if it triggers the clutch to engage.
   Typical fix: Repair the damaged section of wiring or clean/replace the corroded connector. Ford specifies using specific tapes like Kendall polyken fiberglass tape for engine compartment repairs to resist heat and abrasion.
   Est. part cost: $5-$50

Rare But Worth Checking

• Failed A/C Compressor Clutch Coil: The clutch coil is an electromagnet. If its internal winding fails (shorts to ground or breaks open), the control circuit will register a fault and set P0645. This is less common than a relay failure but should be checked before replacing the entire compressor. Resistance can be tested with a multimeter; an open circuit (infinite resistance) or a short (very low resistance) indicates failure. A good coil should measure between 3.0 and 5.0 ohms.
• Faulty Powertrain Control Module (PCM): This is the least likely cause. The internal driver in the PCM that provides the ground signal to the relay can fail. TSB SSM-45815 specifically warns that if the A/C clutch can be commanded on using a diagnostic tool (like Ford's IDS), the PCM is NOT the problem and should not be replaced. All other causes must be exhaustively ruled out before considering PCM replacement.
• Low Refrigerant Pressure: While not a direct cause of P0645, the PCM will not attempt to engage the A/C clutch if the A/C pressure sensor indicates the refrigerant level is too low. This is a protective measure. In some cases, a faulty pressure sensor can incorrectly report low pressure, preventing clutch engagement even if the system is full. A scan tool can read the pressure sensor data to verify its reading.

Diagnosis Steps

1. Read the code with an OBD-II scanner to confirm P0645 is present.
2. Locate the under-hood fuse box (Battery Junction Box) next to the air filter housing.
3. Check the fuses for the A/C clutch circuit. Specifically inspect fuse F25 (10A) and F55 (7.5A/10A), but verify the correct fuse number for your specific model year as they can vary (e.g., a 2012 Fusion uses F25 and F47).
4. Identify the A/C clutch relay (position R33 in many diagrams).
5. As a simple test, swap the A/C relay with an identical, known-good relay (e.g., the horn relay). If the A/C starts working, the original relay is faulty and needs replacement.
6. If the relay and fuses are good, inspect the wiring and connector at the A/C compressor clutch for any visible damage, corrosion, or loose connections. The ground connection for the clutch, G103, is located on the right rear of the engine compartment and should also be inspected for corrosion.
7. With a multimeter, check for 12V at the A/C compressor clutch connector when the A/C is commanded on. If voltage is present but the clutch doesn't engage, the clutch coil is likely bad. 🎬 Watch a mechanic diagnose a Fusion clutch that won't engage. You can also test the coil's resistance, which should be between 3.0 and 5.0 ohms.
8. If no voltage is present at the clutch, and the relay/fuses are good, check for the control signal from the PCM at the relay socket. This requires a wiring diagram to identify the correct pin. Absence of this signal points towards a wiring issue from the PCM or a faulty PCM itself, though the latter is rare.
9. Use a scan tool to monitor the A/C pressure sensor PID. If it reads a very low value (e.g., under ~45 PSI), the PCM will not command the clutch on as a protective measure. Verify the actual system pressure with manifold gauges before proceeding with electrical diagnosis.

Parts You'll Likely Need

• A/C Clutch Relay (OEM #8T2T-14B192-BA) — This is the most frequent failure point for the P0645 code. It's an inexpensive and easy-to-replace part that controls power to the A/C clutch. An alternate OEM number is FOAZ-14N089-A, which is superseded by 5M5Z-14N089-A.
  Trusted brands: Motorcraft, Duralast (e.g., 19273), Standard Motor Products
  OEM price range: $15-$25
  Aftermarket price range: $10-$20

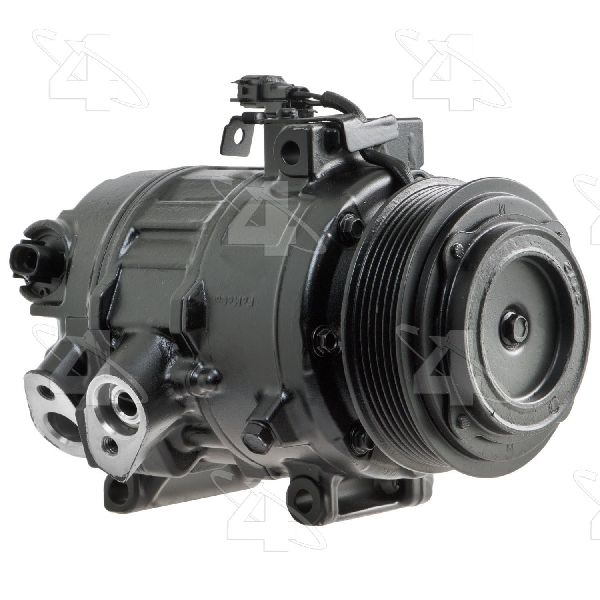

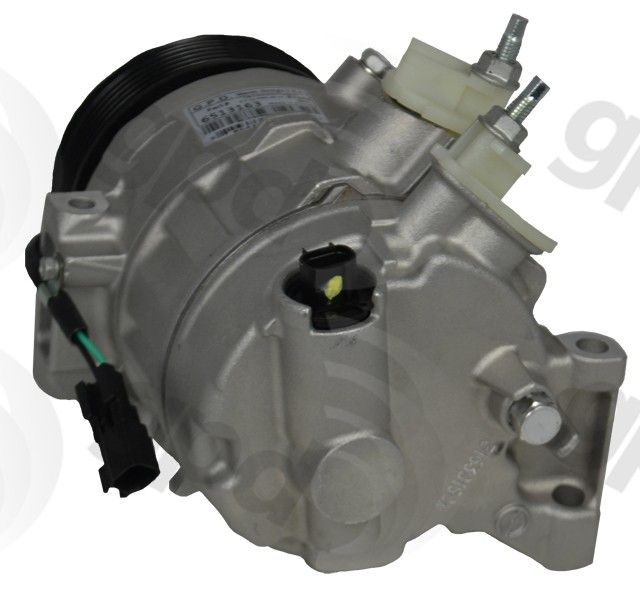

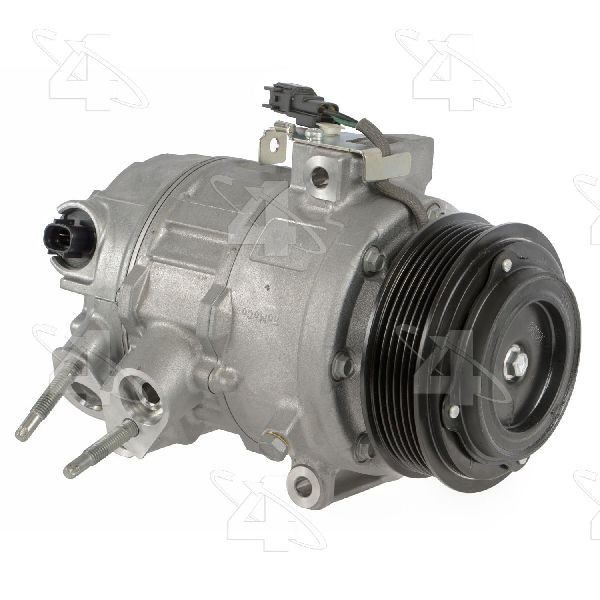

• A/C Compressor Clutch Assembly — If the relay and wiring are good but the clutch still doesn't engage when it receives power, the electromagnetic coil in the clutch has likely failed. In many cases, the clutch can be replaced without replacing the entire compressor, saving on cost and avoiding the need to evacuate the A/C system. This is particularly true for the 1.5L and 1.6L engines where clutch coils are sold separately.
  Trusted brands: Motorcraft, Four Seasons, Global Parts Distributors
  OEM price range: $100-$200
  Aftermarket price range: $70-$150

Technical Service Bulletins (TSBs) & Recalls

• SSM-45815: AIR CONDITIONING (A/C) INOPERATIVE - DIAGNOSTIC TROUBLE CODE (DTC) P0645

Platform-Specific Known Issues

• Ford issued Technical Service Bulletin #SSM-45815 for 2011-2017 vehicles, including the Fusion, which directly links an inoperative A/C and DTC P0645. It advises technicians to use a scan tool to command the A/C clutch on. If it engages, the bulletin states PCM replacement will not resolve the issue, pointing towards other circuit components.
• Owners on forums frequently report success with the simple relay swap test, confirming this as the primary failure point. One user on Reddit with a 2016 Explorer (similar electrical architecture) noted intermittent A/C operation that was temporarily affected by using the horn, which shared the same type of relay, pointing to a failing relay or poor connection in the fuse box.

Mechanic-Grade Diagnostic Values

• A/C Compressor Clutch Coil Resistance — expected: 3.0 to 5.0 Ohms (Ω) at room temperature.. Failure: A reading below 2.0 Ω (shorted) or an open circuit (infinite resistance) indicates a failed coil.
• Voltage at A/C Clutch Relay Power Feed Pin — expected: Greater than 10 Volts with ignition on.. Failure: Low or no voltage indicates an issue with the fuse or the power supply wiring to the relay.
• Voltage at A/C Clutch Relay Control Circuit Pin (at relay socket) — expected: Should be near battery voltage when A/C is off, and drop to near 0 Volts when the PCM commands the A/C on.. Failure: No voltage when off suggests an open in the circuit from the PCM; voltage that doesn't drop to zero when commanded on indicates a faulty PCM driver or an open in the control wire.

Hidden / Shadow Codes Worth Checking

• P0645-24: A sub-code format seen on a UK-spec Fusion (Mondeo). The '-24' suffix likely indicates a specific fault type (e.g., signal stuck high), but a definitive Ford-specific definition was not found in searches. (see via May be visible on more advanced diagnostic tools that can read manufacturer-specific DTCs.)

Scan Tool Commands That Help

• Ford IDS, FORScan, or other professional scan tool: A/C Clutch (ACCR) On/Off Command — This is a bidirectional test used to manually command the PCM to energize the A/C clutch relay. If the clutch engages with this command, it proves the PCM, relay, and clutch are capable of functioning, pointing the diagnosis toward an input issue (like a faulty sensor or HVAC control command) rather than a P0645 circuit fault. This is a critical step advised by TSB SSM-45815.
• Any OBD-II Scan Tool with Live Data: Monitor A/C Pressure Sensor PID (ACPT) — Use this before extensive electrical testing. If the pressure reads abnormally low (e.g., below 45 PSI), the PCM will inhibit the A/C clutch command to protect the compressor. This can trigger a P0645 but the root cause is a refrigerant leak or a bad pressure sensor, not a circuit failure.

Wiring & Ground Locations

• G103 — Right rear of the engine compartment.. This is the chassis ground point for the A/C compressor clutch. A corroded or loose connection at G103 will prevent the clutch from engaging even if it receives power from the relay, but may not set code P0645 directly. It's a critical point to check if the relay and wiring to the compressor test good.
• A/C Clutch Relay Socket (R33) — In the under-hood fuse box, also known as the Battery Junction Box (BJB).. This is the central point for testing. For a typical 4-pin relay on a Fusion, you can test for two separate power inputs (from fuses like F25 and F47), the control signal (ground) from the PCM, and the output to the clutch, all from this single location.

Real Owner Repair Stories

• YouTube channel 'ADVANCED LEVEL AUTO' (2012 Ford Fusion) — A/C clutch would not engage after a shop replaced the A/C compressor.
  ❌ Tried (didn't work) Replacing the A/C compressor.
  ✅ What actually fixed it The root cause was low refrigerant pressure. A scan tool initially showed 31 PSI from the sensor, but manifold gauges revealed the actual pressure was only 15 PSI. The PCM was correctly preventing the clutch from engaging due to the low pressure. The fix was to properly evacuate and recharge the A/C system, after which the clutch engaged normally. This highlights that P0645 can be a symptom of a non-electrical issue.
• Reddit user on r/Ford (2016 Ford Explorer 3.5 EcoBoost (similar electrical architecture)) — P0645 code present for a while, A/C intermittently stopped blowing cold. A/C clutch would not engage.
  ❌ Tried (didn't work) Swapping the A/C relay with the horn relay did not immediately fix the issue.
  ✅ What actually fixed it The issue was resolved by manipulating the horn, which shared an identical relay. Using the horn triggered the A/C clutch to engage. The user suspected a poor connection in the fuse box socket for the relay, or a failing relay that was sensitive to vibration/voltage changes. The user also noted a previous gear oil spill in the fuse box area, which may have contributed to the connection issue. The final fix pointed to a faulty relay or, more likely, a compromised connection at the relay socket in the fuse box.

When the Usual Fixes Don't Work

• While the most common cause of P0645 is a simple faulty relay, a significant counter-example exists where the electrical circuit is perfectly functional but the code is set because the PCM is inhibited from activating it. In a documented case on a 2012 Fusion, a shop replaced the A/C compressor but the clutch still wouldn't engage. The actual cause was a very low refrigerant charge (15 PSI). The A/C pressure sensor reported this to the PCM, which then correctly refused to send the 'on' signal to the relay to prevent compressor damage. This triggered the fault logic for the control circuit, but the root cause was a leak, not an electrical component failure. This proves the necessity of checking A/C system pressure via scan tool live data as a first step, before chasing electrical faults.

OEM Part Supersession History

• FOAZ-14N089-A → 5M5Z-14N089-A — Standard part number update and consolidation by Ford.
  Heads up: The part 8T2T-14B192-BA is also a common multi-function relay used in these vehicles, but 5M5Z-14N089-A is the most commonly cited direct replacement for A/C applications. Ensure the replacement relay has the same pin configuration and amperage rating.

Model Year Variations Within This Range

• 2013-2016: The specific fuse numbers powering the A/C clutch relay circuit can vary. While F25 is commonly mentioned, the secondary fuse has been cited as F55, F47, or others depending on the specific model year and diagram. Always verify with the vehicle's owner's manual or a diagram specific to the year of manufacture before replacing fuses.
