P0603 on 2007-2009 Saturn Aura: Keep Alive Memory (KAM) Error Causes and Fixes

What's Unique About the 2007-2009 Saturn AURA

For the Saturn Aura and its platform mates (Chevy Malibu, Pontiac G6), it's crucial to know that this code doesn't just point to the main engine computer. As highlighted in GM Technical Service Bulletin #PIP4653E, P0603 can commonly be stored specifically in the Transmission Control Module (TCM). The TSB advises technicians that if the code is *only* in the TCM, a simple reprogram may be necessary, but often it is just a normal consequence of a battery replacement or disconnection and does not indicate a faulty transmission module. Technicians are advised that this code, along with others like P0601 and P0604, can be shared across multiple modules and to identify which module set the code before starting diagnosis.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on.
• ABS or Traction Control light may be illuminated.
• Vehicle may run rough or stall, especially after starting.
• Transmission may shift harshly or erratically.
• Decreased fuel economy.
• In many cases, there are no noticeable symptoms other than the Check Engine Light, especially if the code is a historical fault from a past power loss.

Most Likely Causes

1. Weak or Failing Battery 🔴 High Probability Saturn Aura models from this era, and their GM Epsilon platform mates, are known to be sensitive to battery voltage. As the battery ages and weakens, especially during cold engine starts, the voltage can drop low enough to reset the KAM in various modules, triggering P0603.

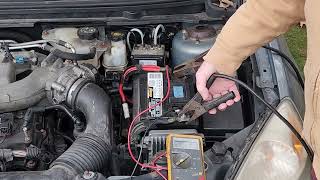

   How to confirm: Use a multimeter to test the battery voltage with the engine off (should be ~12.6V) and while running (should be ~13.7-14.7V). A load test at an auto parts store 🎬 See how to test your Aura's battery and alternator. is the most definitive way to confirm battery health, as a battery can show good voltage but fail under load.
   Typical fix: Replace the vehicle's battery.
   Est. part cost: $150-$250
2. Recent Battery Disconnection or Replacement 🔴 High Probability Any time the battery is disconnected for service, jump-starting, or replacement, the Keep Alive Memory is intentionally erased. This will reliably store a P0603 code as a historical or pending code and is considered normal in this context.
   How to confirm: Confirm if the battery has been disconnected recently. If so, this is the almost certain cause.
   Typical fix: Clear the code with an OBD-II scanner. If it does not return after a few drive cycles, no further action is needed. Using a 'memory saver' tool that plugs into the OBD-II port during a battery change can prevent this.
   Est. part cost: $0
3. Loose or Corroded Battery Terminals 🟡 Medium Probability Corrosion or looseness at the battery terminals can create intermittent power interruptions to the control modules, causing a momentary loss of memory and setting the code.
   How to confirm: Visually inspect the battery terminals and cable ends for white or greenish buildup (corrosion). Attempt to twist the terminals by hand; they should not move.
   Typical fix: Clean the battery terminals and cable clamps with a wire brush and battery terminal cleaner. Ensure clamps are securely tightened.
   Est. part cost: $5-$15
4. Faulty Charging System (Alternator) ⚪ Low Probability If the alternator fails, it cannot properly charge the battery, leading to a gradual drop in system voltage that will eventually trigger the P0603 code before the car fails to start.
   How to confirm: With the engine running, check the voltage at the battery terminals. A healthy alternator should produce between 13.7 and 14.7 volts. A reading below this range, or one that fluctuates wildly, suggests a failing alternator.
   Typical fix: Replace the alternator.
   Est. part cost: $200-$400

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM) or Transmission Control Module (TCM): This should be the last resort after all other possibilities (battery, connections, charging system) have been exhaustively ruled out. Unnecessary module replacement is a common misdiagnosis for this code.
• Wiring Issue in Power/Ground Circuit: A short or open in the wiring that supplies constant power to a control module can cause this code. This requires detailed electrical diagnostics to trace and repair, often starting with checking the main fuses and ground connections.
• Aftermarket Engine Tuning: While less common on this specific vehicle, installing aftermarket performance chips or programmers can sometimes interfere with the PCM's self-test procedures and cause a P0603 code to set.

Diagnosis Steps

1. Check if the battery has been recently disconnected or replaced. If so, clear the code and drive the vehicle for 15-20 minutes. If the code does not return, the issue is resolved.
2. Visually inspect the battery terminals and main ground cables for corrosion or looseness. Clean and tighten as needed.
3. Using a multimeter, test the battery voltage with the engine off. A reading below 12.4V indicates a weak or discharged battery that needs charging or replacement.
4. Start the engine and test the battery voltage again. It should be between 13.7V and 14.7V. If it's lower or significantly higher, suspect a faulty alternator.
5. Have the battery professionally load-tested at an auto parts store. A battery can show good voltage but still fail under the load of starting the engine.
6. If the battery and charging system are confirmed to be good, clear the code and perform several drive cycles. If the code returns, a more in-depth diagnosis of the module's power and ground circuits is needed, possibly starting with the fuses for the PCM and TCM.
7. As a final step, if all wiring and power inputs are verified as good, the issue may be an internal fault in the PCM or TCM, as noted in TSB #PIP4653E which suggests a reprogram as a potential fix.

Parts You'll Likely Need

• Automotive Battery (Group Size 90/T5) (OEM #ACDelco 90-6YR) — A weak or failing battery is the most frequent cause of the P0603 code on the Saturn Aura due to the voltage drop it creates for the control modules.
  Trusted brands: ACDelco, DieHard, Duralast
  OEM price range: $200-$250
  Aftermarket price range: $150-$200

Related Codes That Often Appear With This One

• P0601, P0602, P0604, P0606, P062F, P1621 — As noted in TSB #05-06-04-060A, these are all related to internal control module errors. Seeing them together often points to a widespread electrical or communication issue (like low voltage) rather than a single faulty module.

Technical Service Bulletins (TSBs) & Recalls

• Bulletin #05-06-04-060A: Informs technicians that DTCs P0601, P0602, P0603, P0604, P0606, P062F, and P1621 can be shared in multiple modules and to identify which module set the code before diagnosis.
• Bulletin #PIP4653E: Notes that DTCs P0601, P0603, P0604, P062F or P1621 may be found in the Transmission Control Module (TCM). It instructs technicians to verify the code is in the TCM and, if so, to reprogram the module.

Platform-Specific Known Issues

• The provided TSB #PIP4653E specifically notes that P0603 can be found in the Transmission Control Module (TCM) and advises technicians to ensure the code is set in the TCM before proceeding with diagnostics, implying it's a common and often benign finding.
• Owners on forums like SaturnForum.com report widespread, difficult-to-diagnose electrical issues that can be traced back to failing BCMs or poor ground connections, which can also manifest as a P0603 code among many others.

Mechanic-Grade Diagnostic Values

• TCM X1 Connector Voltage — expected: Greater than 11.5 volts. Failure: Voltage less than 11.5 volts indicates a power supply issue to the TCM.
• TCM X1 Connector Ground Resistance — expected: Less than 3.0 ohms. Failure: Resistance greater than 3.0 ohms between the specified ground pins and the negative battery post indicates a bad ground connection.

Scan Tool Commands That Help

• GM Tech2 / Techline Equipment: Reprogram TCM — As suggested by TSB #PIP4653E, if P0603 is stored in the TCM and other causes are ruled out, reprogramming the module with the latest software may be required. This is also necessary when a new TCM is installed.
• GM Tech2: Clear Radio Theft Information (VIN Relearn) — While not directly for P0603, this demonstrates a common 'relearn' procedure performed with a Tech2 after a power loss or module replacement, similar in principle to resetting adaptive memory. A power loss causing P0603 can also trigger radio theft-lock.

Wiring & Ground Locations

• TCM (Transmission Control Module) — On the driver's side frame rail, near the radiator.. This is the module specifically called out in TSB #PIP4653E as a common place for P0603 to be stored. Knowing its location is critical for checking connector integrity, power, and ground circuits.
• G105 — On the rear of the cylinder head, under the left intake manifold (3.5L) or center rear of the engine (3.6L).. This is a primary engine ground point. A loose or corroded G105 can cause a voltage differential, leading to intermittent power loss for various modules, including the ECM and TCM, triggering a P0603.
• G106 — Rear of the engine, above the oil filter (3.5L) or near the PNP switch (2.4L).. This ground is shared by the Engine Control Module (ECM) and Transmission Control Module (TCM). A poor connection here is a direct potential cause for P0603.
• G107 — Right front of the engine.. Another key engine-to-chassis ground point. All main grounds should be inspected for corrosion and tightness when diagnosing intermittent electrical codes like P0603.
• BCM (Body Control Module) — Inside the vehicle, in the center console on the left side, near the dash.. The BCM is a central hub for vehicle electronics. A failing BCM or poor BCM ground (G201/G203) can cause widespread, bizarre electrical issues, including intermittent power to other modules that could result in a P0603 code.

Real Owner Repair Stories

• YouTube channel 'Broken Cars with Johnnie Mic' (2008 Saturn Aura) — Intermittent issue where speedometer would stick at 20 mph and the vehicle required full throttle to accelerate. This points to a speed sensor circuit issue, often related to the TCM.
  ❌ Tried (didn't work) The speed sensor was replaced, but the problem returned.
  ✅ What actually fixed it A visual inspection revealed two key issues: 1) A corroded main ground connection on the transmission which was cleaned and repaired. 2) A section of the main wiring harness was rubbing against the cylinder head, damaging the conduit and exposing wires, creating a potential for grounding out. The final fix was to repair the corroded ground and inspect/repair the chafed wiring harness.
