P0602 on 2007-2014 Cadillac Escalade ESV: Control Module Programming Error Guide

What's Unique About the 2007-2014 Cadillac ESCALADE ESV

For this generation of Cadillac Escalade (GMT900 platform), the P0602 code is often related to voltage stability and the integrity of the E38 Engine Control Module (ECM) software. GM issued a Technical Service Bulletin (TSB #05-06-04-060A) acknowledging that P0602 and a family of similar codes (P0601, P0603, P0604, etc.) can occur across various modules, advising technicians on how to approach these electronic faults rather than pointing to a single part. The issue is common not just on Escalades but also on sibling vehicles like the Chevrolet Tahoe/Suburban and GMC Yukon from the same era. The root cause is frequently tied to a weak battery causing voltage drops during startup, a failed programming event, or poor ground connections.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Engine may not start (cranks but won't fire)
• Engine may stall while driving or at idle
• Reduced engine performance and poor acceleration, sometimes entering 'limp mode'
• Decreased fuel economy
• Rough or erratic idling
• Harsh or erratic automatic transmission shifting

Most Likely Causes

1. Powertrain Control Module (PCM) Software Corruption 🔴 High Probability Can be caused by voltage drops from a weak or dying battery, especially during engine cranking. An interrupted previous reflash attempt (e.g., a tool was disconnected, or a battery tender was not used) is a very common cause of corruption.
   How to confirm: A professional technician will attempt to communicate with the PCM using a GM-specific scan tool (like a Tech 2 or MDI). If communication is possible, they will verify the current software calibration and attempt to reflash the module with the latest factory software using the Service Programming System (SPS).
   Typical fix: Reprogramming (reflashing) the PCM with the correct, updated software. This must be done with a stable power supply connected to the vehicle.
   Est. part cost: $0
2. Defective Powertrain Control Module (PCM) 🟡 Medium Probability Internal hardware failure, such as a faulty memory chip (EEPROM), processor, or driver circuit, can prevent the PCM from holding its programming. This can happen due to age, heat cycles, or electrical surges from issues like a failing alternator.
   How to confirm: If a reflash attempt fails repeatedly, or if the scan tool cannot establish communication with the PCM at all (after verifying power and ground to the module), the module itself is condemned.
   Typical fix: Replacement of the PCM. The new unit must be programmed to the vehicle's specific VIN and configuration.
   Est. part cost: $350-$500
3. Weak or Failing Battery / Poor Electrical Connection 🟡 Medium Probability These trucks have high electrical demands. Low voltage during startup or key-on can cause the PCM to fail its internal self-check, logging a P0602 as a precaution. Corroded battery terminals or faulty/corroded main ground straps (battery-to-chassis, engine-to-firewall) are known weak points on the GMT900 platform that create unstable voltage.
   How to confirm: Test the battery voltage; it should be above 12.4 volts with the engine off. Perform a load test to confirm its health. Inspect all battery cables, terminals, and main engine/chassis ground straps for corrosion, looseness, and integrity.
   Typical fix: Replace the weak battery. Clean or replace corroded terminals and ground straps. Ensure all connections are tight.
   Est. part cost: $150-$250

Rare But Worth Checking

• Faulty Aftermarket Performance Tune: If the vehicle has an aftermarket performance tune (e.g., from a handheld tuner), it may have been installed incorrectly, or the software itself could be faulty. Reverting to the stock GM tune often resolves the issue, but sometimes a dealer reflash is needed to fully restore the original programming.
• Blown PCM/ECM Fuse or Faulty Power Relay: A loss of power from a blown fuse or a failing main relay can interrupt the PCM's operation and trigger this code. In one documented case on an Escalade, a no-start condition was traced to a missing ECM/throttle control fuse that was overlooked after an engine replacement.
• Faulty Fuel Pump Control Module (FPCM): On GMT900 trucks, a failing FPCM can sometimes cause communication errors on the CAN bus, leading to other modules, including the ECM, to log codes. A P0602 may be accompanied by a code like P069E, which specifically points to an FPCM issue.

Diagnosis Steps

1. Verify Battery Health: Check the battery voltage. It should be at least 12.4V. Perform a load test to ensure the battery is strong enough to crank the engine without a significant voltage drop. A simple voltage check is not sufficient.
2. Inspect Electrical Connections: Disconnect, clean, and tighten battery terminals. Inspect the main power and ground connections to the PCM, engine block, and chassis for any signs of corrosion or damage. These ground points are a common failure area.
3. Check Fuses and Relays: Inspect all fuses and relays related to the PCM/ECM in the underhood fuse block. A video for a 2010 Escalade showed a missing fuse caused a no-start after an engine swap.
4. Scan for All Codes in All Modules: Use a professional scan tool capable of reading codes from all modules (ECM, TCM, BCM, FPCM, etc.). Note which module set the P0602 and look for related communication (U-series) or module-specific codes.
5. Attempt to Reflash PCM: This step requires a professional. Using a J2534 Pass-Thru device and a subscription to GM's Technical Information System (TIS), a technician will attempt to reprogram the PCM with the latest factory calibration. A battery maintainer supplying stable voltage is mandatory during this process.
6. Test PCM Power and Ground Circuits: If the reflash fails, use a digital multimeter to verify that the PCM is receiving proper voltage and has a solid ground at its connector pins, according to the factory service manual wiring diagram.
7. Replace PCM: If all power/ground circuits are good and the module cannot be reprogrammed or communicate, the PCM is faulty and must be replaced. The new module must be programmed to the vehicle's VIN and specific options.

Parts You'll Likely Need

• Powertrain Control Module (PCM/ECM) (OEM #12597121) — This is the part that stores the programming. If it cannot be reprogrammed or has an internal hardware fault, it must be replaced. This is often an ACDelco E38 unit for this platform.
  Trusted brands: ACDelco (OEM), Cardone (Remanufactured), Dorman (Remanufactured), Flagship One (Programmed)
  OEM price range: $400-$500
  Aftermarket price range: $250-$400

Related Codes That Often Appear With This One

• P0601 — This code means 'Internal Control Module Memory Check Sum Error,' which is another type of internal PCM fault. Seeing them together strongly indicates a failed PCM that needs replacement.
• U-series codes (e.g., U0100, U0101) — U-codes indicate a loss of communication between modules. If the PCM is failing or un-programmed, it may stop communicating with other modules on the vehicle's network (CAN bus), such as the Transmission Control Module (TCM) or Body Control Module (BCM), triggering these codes.
• P069E — Indicates 'FPCM Requested MIL Illumination'. This means the Fuel Pump Control Module has detected a fault and asked the main ECM to turn on the Check Engine Light. It often appears with P0602 on these trucks, pointing towards a broader module communication or power supply issue.

Technical Service Bulletins (TSBs) & Recalls

• 05-06-04-060A: An informational bulletin from GM for technicians on how to handle a family of control module DTCs including P0602, P0601, P0603, and others.

Platform-Specific Known Issues

• Voltage Sensitivity During Programming: The GMT900 platform is notoriously sensitive to voltage fluctuations during any module programming. Many owners and technicians on forums stress the absolute necessity of connecting a high-quality battery maintainer (not just a charger) before attempting to reflash the PCM to prevent bricking the module and causing a P0602 code.
• Ground Strap Corrosion: Poor ground connections are a well-documented issue. The main ground strap from the engine to the firewall and the battery-to-chassis ground are common culprits. They can look visually okay but be corroded internally, causing intermittent and difficult-to-diagnose electrical gremlins, including control module errors like P0602.

Mechanic-Grade Diagnostic Values

• ECM Battery Positive Voltage — expected: 12.6V (or battery voltage) with Key On, Engine Off.. Failure: Voltage below 12.4V or significant deviation from battery voltage indicates a wiring or fuse block issue.
• ECM Ignition 1 Voltage — expected: 12.6V (or battery voltage) with Key On, Engine Off.. Failure: 0V or low voltage indicates a problem with the ignition switch circuit or related fuses.
• ECM Ground Circuit Resistance — expected: Less than 0.5 Ohms.. Failure: High resistance (Ohms) indicates a corroded, loose, or broken ground connection.

Scan Tool Commands That Help

• GM Tech 2 / GDS2 / Professional Scan Tool: Service Programming System (SPS) — This is the primary function used to reflash the ECM with updated factory software to fix corruption or to program a new module. It requires a J2534 pass-thru device and a subscription to GM's technical service website.
• GM Tech 2 / GDS2 / Professional Scan Tool: Crankshaft Position Variation Learn — This procedure is mandatory after replacing or reprogramming the ECM. Failure to perform the relearn can result in a P0315 code, rough running, and inaccurate misfire detection. The procedure involves warming the engine and then briefly accelerating to wide-open throttle until fuel cut-off occurs, allowing the PCM to learn the specific variations of the crankshaft reluctor wheel.

Wiring & Ground Locations

• G103 — On the front of the passenger-side cylinder head. It is a stud with one or more ground wires attached.. This is a primary ground point for the engine control system. Corrosion or looseness here can cause unstable voltage to the ECM, triggering various faults including P0602.
• G104 — On the rear of the driver's-side cylinder head.. Another critical engine ground. Due to its location near the firewall, it can be difficult to see and is often overlooked. A poor connection here can cause intermittent electrical issues.
• Engine to Firewall Ground Strap — A braided strap connecting the back of the engine block/cylinder head to the vehicle's firewall, often near the brake booster.. Ensures the engine and body have a solid common ground. If this strap is broken or corroded, the starter and other components may try to ground through smaller sensor wires, causing voltage fluctuations and module damage.
• E38 ECM X1 Connector — The main 73-pin connector for the Engine Control Module, typically black in color.. This is where all power, ground, and signal wires connect to the ECM. Verifying power and ground at specific pins (e.g., Pin 20 for power, Pin 73 for ground) is a key diagnostic step.

Real Owner Repair Stories

• Synthesized from multiple GMT900 owner reports (2009 Cadillac Escalade) — Vehicle would intermittently fail to start (crank-no-start). Sometimes, all electrical power would be lost and would only return after wiggling the battery cables. Eventually, it became a permanent no-start condition with a P0602 code stored.
  ❌ Tried (didn't work) Replacing the battery., Replacing the starter relay., Attempting to reflash the ECM (scan tool could not maintain communication).

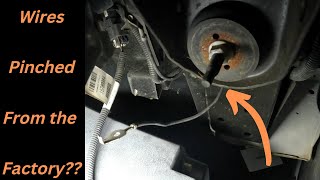

  ✅ What actually fixed it A thorough inspection revealed the main engine ground cable, which runs from the frame to the engine block, was completely broken off at the engine block connector. Although it was sometimes making intermittent contact, the high resistance and voltage drop prevented the ECM from operating correctly and eventually corrupted its programming state. Replacing the ground cable and then successfully reflashing the ECM resolved all issues.

"I Checked Everything" — The Actual Cause

• A common scenario for P0602 is a failed reflash attempt. A technician connects a programming tool, but the process fails repeatedly. The software and module are blamed, but the actual cause is an unstable voltage supply due to a weak battery or, more insidiously, a high-resistance ground connection (like a corroded G103) that only becomes problematic under electrical load. The fix is not a different programming tool, but identifying and repairing the poor ground connection first, then attempting the reflash again.

OEM Part Supersession History

• Varies (e.g., 12597121) → Multiple service numbers exist — Software updates and minor hardware revisions.
  Heads up: The critical factor for the E38 ECM is the software, not just the hardware part number. An ECM from another vehicle, even with a matching service number, is not plug-and-play. It must be completely reprogrammed using GM's Service Programming System (SPS) with the correct VIN and vehicle configuration. Using a used, unprogrammed module will result in a no-start condition and a P0602 code.

Model Year Variations Within This Range

• 2007-2014: While the fundamental hardware (E38 ECM) and wiring architecture remained consistent for the V8 engines in this range, the specific software calibrations changed nearly every model year. When reprogramming, it is essential to use the GM SPS which will automatically select the correct calibration file for the vehicle's specific VIN. The diagnostic procedure for P0602, however, does not change.
