P0601 on 2007-2011 Buick Lucerne: Internal Control Module Memory Error Fixes

What's Unique About the 2007-2011 Buick LUCERNE

For this generation of GM vehicles, including the Buick Lucerne built on the W-body platform, the manufacturer issued a technical service bulletin (TSB #05-06-04-060A) acknowledging that P0601 and similar internal fault codes can be set in multiple different control modules. While the PCM is the most common culprit, another TSB for similar platforms (PIP4653E) highlights that the Transmission Control Module (TCM) can also be the source of the fault, especially if erratic shifting is a primary symptom. This makes it crucial to use a scan tool that can identify exactly which module is reporting the error before replacing any parts.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Engine stalling or shutting off while driving, sometimes intermittently
• Vehicle will not start, or is very difficult to start
• Erratic or harsh transmission shifting
• Reduced engine power or vehicle entering 'limp mode'
• ABS or Traction Control lights may illuminate
• Service Charging System message on the dash, even with a new battery or alternator

Most Likely Causes

1. Failed Powertrain Control Module (PCM) 🔴 High Probability This code is a specific self-diagnostic failure of the module's internal memory or processor. It's the most common and direct cause, often due to age, heat, and vibration causing internal circuit failure.
   How to confirm: After ruling out all external electrical issues (power, ground, voltage), the module is condemned. A professional scan tool can confirm the fault is internal to the PCM. 🎬 See how a professional technician performs a PCM diagnostic test. An attempt to reflash the software may be made, but if the code returns immediately, the hardware is faulty.
   Typical fix: Replace the PCM with a new or remanufactured unit and program it to the vehicle. It's worth noting the PCM is part of the emissions system and may be covered under the Federal Emissions Warranty for up to 8 years or 80,000 miles.
   Est. part cost: $250-$800
2. Low or Unstable System Voltage 🟡 Medium Probability A weak battery, failing alternator, or poor battery cable connections can cause voltage drops or spikes that corrupt the PCM's memory during operation or startup, triggering a false P0601. Some owners have reported persistent "Service Charging System" warnings even after replacing the alternator, pointing to underlying electrical issues.
   How to confirm: Test the battery with a load tester. With the engine running, use a multimeter to check alternator output at the battery terminals; it should be stable between 13.7 and 14.7 volts. Ensure battery terminals are clean and tight.
   Typical fix: Replace the battery, alternator, or clean/replace battery terminals.
   Est. part cost: $150-$500
3. Poor Power or Ground Connections to the PCM ⚪ Low Probability Corroded or loose ground straps and power wires can create intermittent voltage supply to the PCM, mimicking an internal failure. On the Lucerne, key ground points to inspect are G101 (left front corner of engine compartment) and G114/G115 (lower left rear of engine). A bad ground for the Ignition Control Module (ICM) has also been cited as a cause for stalling. 🎬 Watch: How to diagnose and fix a faulty Ignition Control Module.
   How to confirm: Visually inspect the PCM connectors for corrosion or damage. Perform a voltage drop test on the main power and ground circuits for the PCM to ensure there is no excessive resistance (should be <0.1 Ω). Check the main engine-to-chassis ground straps 🎬 Watch: How to identify and fix common GM electrical ground issues. for tightness and corrosion.
   Typical fix: Clean, tighten, or repair the affected wiring, connectors, or ground points.
   Est. part cost: $0-$100

Rare But Worth Checking

• Failed Aftermarket Engine Tune: If the vehicle was recently programmed with non-OEM software, an improper or corrupted flash can cause this code.
• Water Intrusion: If water has leaked onto the PCM or its connectors, it can cause short circuits and permanent internal damage. The PCM is located in the engine bay, making it susceptible.
• Rodent Damage: In some cases, rodents can chew through the wiring harness leading to the PCM, causing shorts and communication errors that can potentially trigger a P0601 or a no-start condition. A visual inspection of the harness is warranted if there are signs of rodent activity.

Diagnosis Steps

1. Scan for all diagnostic trouble codes. Note if P0601 is the primary code and which module reported it.
2. Perform a complete battery and charging system test. Ensure the battery holds a charge (at least 12.4V) and the alternator provides stable voltage (typically 13.7-14.7V when running).
3. Inspect all battery cables and primary engine ground straps for corrosion and tightness. Key locations include the main battery ground, engine block to chassis, and specific grounds like G101 and G114/G115.

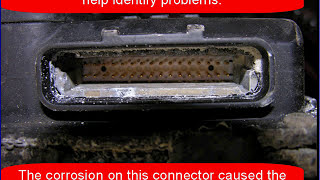

4. Locate the PCM in the engine bay and carefully inspect its electrical connectors for any signs of water damage, corrosion, pushed-out pins, or rodent damage to the harness.
5. If all external electrical inputs (power, ground, voltage) to the PCM are verified to be good, the fault is internal to the PCM.
6. As a final diagnostic step, a professional may attempt to reflash the PCM with the latest factory software using a J2534 tool. This is often unsuccessful for a hard P0601 fault but can rule out a pure software glitch.
7. If the code persists after checking all connections and attempting a reflash, the PCM must be replaced and programmed.

Parts You'll Likely Need

• Powertrain Control Module (PCM) (OEM #Varies by year/engine. Examples for 2008 3.8L include 12604963, 12616866, 12608263, 12616876, 12619811. The hardware family is often 12600930. Always verify with VIN.) — This code indicates a fatal, non-repairable error within the module's internal memory. Replacement is the only reliable fix.
  Trusted brands: ACDelco (OEM), Cardone (Remanufactured), Flagship One (Programmed)
  OEM price range: $400-$800
  Aftermarket price range: $250-$500

Related Codes That Often Appear With This One

• P0602 — Control Module Programming Error
• P0603 — Internal Control Module Keep Alive Memory (KAM) Error
• P0604 — Internal Control Module Random Access Memory (RAM) Error
• P0606 — ECM/PCM Processor Fault, often appears with P0601 indicating a severe internal failure
• U0107 — Lost Communication With Throttle Actuator Control Module, can be seen alongside PCM failures

Technical Service Bulletins (TSBs) & Recalls

• 05-06-04-060A: This informational bulletin communicates Information to technicians on control module Diagnostic Trouble Code(s) (DTC)(s) P0601, P0602, P0603, P0604, P0606, P062F, P06F3, P1621 which can be shared in multiple modules.

Platform-Specific Known Issues

• GM issued TSB #05-06-04-060A for multiple vehicles including the 2007 Lucerne, noting that P0601 and other internal processor codes can be shared across different modules, highlighting the need for careful diagnosis to pinpoint the failing component.
• Owners have reported intermittent stalling and no-start conditions that are difficult to diagnose, sometimes accompanied by codes P0606 and U0107, pointing towards a failing PCM.
• Persistent charging system warnings have been noted on the Lucerne, which can contribute to the voltage irregularities that may trigger a P0601 code.

Mechanic-Grade Diagnostic Values

• Battery Voltage (Engine Off) — expected: 12.4V or higher. Failure: Lower voltage indicates a weak or discharged battery that can cause false codes.
• Charging System Voltage (Engine Running) — expected: 13.5V - 14.7V. Failure: Voltage outside this range indicates a faulty alternator or charging system issue.
• GMLAN High Speed Bus Voltage (Idle/Recessive State) — expected: Approximately 2.5V. Failure: Significant deviation can indicate a bus communication problem or module failure.
• GMLAN High Speed Bus Voltage (Dominant State) — expected: Bus (+) wire increases by ~1V, Bus (-) wire decreases by ~1V from idle.. Failure: Incorrect voltage shift points to issues on the data bus.
• 5-Volt Reference Circuit (Northstar V8) — expected: 5V. Failure: A reading near 0V on one of the two reference circuits (DTC P0651 for Ref 2) indicates a short to ground in a sensor or wiring on that specific circuit, which can cause limp mode.

Scan Tool Commands That Help

• GM SPS2 (Service Programming System): Replace and Program ECU — This is the official GM software function used with a J2534 device to install a new or remanufactured PCM. It downloads the correct VIN-specific calibration to the module.
• Tech2 / GDS2: Security Relearn / Immobilizer Learn — After PCM replacement, the security system must be relearned to marry the new PCM to the vehicle's keys and anti-theft module. This can sometimes be done via a 30-minute key cycling procedure, but often requires a scan tool command.
• Tech2 / GDS2: Crankshaft Position Variation Learn — Required after PCM replacement if DTC P0315 or P1336 is set. This procedure calibrates the PCM to minor variations in the crankshaft position sensor reluctor wheel for accurate misfire detection.

Wiring & Ground Locations

• PCM/ECM — Located in the engine bay. For the 3.8L V6, it is mounted to the air filter box assembly.. This is the module that sets the code. All power, ground, and sensor connections to it must be perfect.
• G100 (4.6L) — Below the exhaust gas recirculation (EGR) valve.. A key ground point for V8 models.
• G101 — Left front corner of the engine compartment. On some models, this is the primary ground for the ECM/PCM.. This is a critical ground for the Engine Control Module and Transmission Control Module. A poor connection here can directly cause PCM voltage issues.
• G110 — Left front of the engine.. Provides a ground path for various engine components.
• G111 — Right front of the engine.. Provides a ground path for various engine components.
• G112 (4.6L) — Lower left rear of the engine.. An additional ground point specific to the V8 engine.
• G114 / G115 — Lower left rear of the engine.. Important engine ground points that ensure the PCM has a stable ground reference.
• Underhood Fuse Block — On the right front of the engine compartment, forward of the strut tower.. Contains critical fuses and relays for the PCM, including 'Ecm/ pcm fuse 9 10a' and the 'Pwr/train relay 29'.

Real Owner Repair Stories

• RepairPal User Report (Buick Lucerne, unspecified year) — Intermittent engine shutdown while idling and driving. Would not restart for 5-10 minutes. Codes P0601, P0606, and U0107 were present.
  ✅ What actually fixed it The report suggests potential causes are a faulty ECU, ignition switch, alternator, or issues with the Ignition Control Module (ICM) ground wire causing shorts and stalls. This highlights that intermittent stalling is a key symptom associated with P0601 on this car.
• YouTube User Report (2007 Buick Lucerne) — Initially, turn signal and door chimes were very quiet. Later, the car would crank but not start. The battery was low (11.1V), but charging it did not help. The scanner was full of codes.
  ❌ Tried (didn't work) Charging the battery.
  ✅ What actually fixed it The owner discovered rodent damage. A rodent had chewed through multiple wires in the main engine wiring harness, causing widespread electrical chaos and a no-start condition.
• Buick Forum User Post (2009 Buick Lucerne 3.9L V6) — After draining the battery, the car would crank but not start. A new battery did not fix the issue. The starter could be jumped at the solenoid to turn the engine over, but it would not fire.
  ❌ Tried (didn't work) Replacing the battery., Replacing the PCM with a pre-programmed unit.
  ✅ What actually fixed it The user did not post a final resolution, but their diagnostic process is valuable. After a new PCM failed to fix the issue, they began verifying power and ground pins directly at the PCM connectors, suspecting a wiring or power delivery problem rather than a second faulty module. They confirmed power at the fuses but could not get the ECM to ground the powertrain relay coil.

OEM Part Supersession History

• Varies → Varies — This list represents numerous hardware and software updates over the years for the PCM used in the 2008 Buick Lucerne. A replacement module may have any of these numbers but must be programmed with the correct VIN-specific software.
  Heads up: A PCM for a 2008 Lucerne may be physically identical to one from another GM vehicle but will not work without being programmed. The hardware family for the 3.8L V6 is often 12600930. Compatible service numbers include: 12603213, 12604963, 12608263, 12616866, 12619811, and dozens more.

Model Year Variations Within This Range

• 2006-2008: The standard V6 engine was the 3.8L L26 (197 hp). The PCM for this engine is often from the 12600930 hardware family.
• 2009-2011: The standard V6 engine was updated to the 3.9L LZ9 (227 hp), which is FlexFuel capable. This engine uses a different calibration and potentially a different PCM.
• 2006-2011: The optional V8 was the 4.6L Northstar LD8 (275 hp). For model years 2006-2007, this engine used the E67 ECM, a common controller across many GM platforms.
• 2008-2010: The Lucerne 'Super' trim used a higher-output 4.6L Northstar L37 V8 (292 hp), requiring a specific tune in its E67 ECM.
