P0524 on 2012-2013 Mazda MAZDA3: Engine Oil Pressure Too Low Causes and Fixes

What's Unique About the 2012-2013 Mazda MAZDA3

For the 2012-2013 Mazda3, particularly those with the then-new 2.0L SkyActiv-G engine, the P0524 code is well-documented in manufacturer TSBs. These bulletins link the low pressure issue directly to a "piece of foreign object" contaminating the oil system, which can cause the oil pump's pressure relief valve or the Oil Control Valve (OCV) to stick. This connection to the OCV explains why it frequently appears with the P0015 timing code, as the variable valve timing system relies on clean oil at the correct pressure to function.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Low oil pressure warning light may be illuminated
• Rough idle
• Engine noise (ticking, knocking, rattling)
• Reduced engine performance or limp mode (may not rev above ~2000 RPM)
• Engine may stall

Most Likely Causes

1. Debris in Oil Pump Relief Valve or Oil Control Valve (OCV) 🔴 High Probability Mazda has issued multiple TSBs (e.g., 01-023/15) stating that foreign objects or contamination in the oil can cause the oil pump pressure relief valve or the OCV to stick, leading to a drop in oil pressure. This is the most documented cause for the P0524/P0015 combination on this platform.
   How to confirm: Diagnosis requires checking actual oil pressure with a mechanical gauge at multiple RPMs (650, 1,500, 4,500) as per TSB procedures. If pressure is low, debris is the presumed cause. If pressure is normal, further diagnosis of the VVT system is needed.
   Typical fix: Per TSB #01-023/15, if oil pressure is confirmed low, the fix involves replacing the oil pump and cleaning the oil pan and oil strainer. If pressure is normal but other symptoms persist, cleaning the pan/strainer and replacing the OCV may be sufficient. 🎬 See how to replace the oil control valve gasket.
   Est. part cost: $50-$350
2. Low Engine Oil Level 🟡 Medium Probability
   How to confirm: Check the engine oil level using the dipstick. Ensure the vehicle is on level ground and the engine has been off for several minutes.
   Typical fix: Top up the engine oil to the correct level using the manufacturer-specified oil type (SAE 0W-20 for SkyActiv). Investigate the cause of the oil loss (e.g., leaks, oil consumption).
   Est. part cost: $10-$50
3. Faulty Oil Pressure Sensor/Switch ⚪ Low Probability
   How to confirm: If the oil level is correct and the engine is running smoothly without noise, the sensor may be faulty. The definitive test is to measure the actual oil pressure with a mechanical gauge and compare it to the sensor's reading. The sensor can also leak oil externally.
   Typical fix: Replace the oil pressure sensor. The OEM part for SkyActiv engines is PE01-18-501B.
   Est. part cost: $40-$100
4. Clogged Oil Filter or Oil Strainer ⚪ Low Probability
   How to confirm: This is often found during other diagnostic steps. If an oil change was recently performed with a low-quality filter, or if maintenance has been neglected, the filter can become clogged. The oil strainer (pickup tube screen) can be inspected when the oil pan is removed as part of the TSB procedure.
   Typical fix: Replace the oil filter with a high-quality OEM or equivalent part. Clean or replace the oil strainer if the oil pan is removed.
   Est. part cost: $10-$70

Rare But Worth Checking

• Worn Internal Engine Components: In high-mileage engines or those with poor maintenance history, worn main bearings or camshaft bearings can cause a loss of oil pressure. This is a worst-case scenario and usually presents with significant engine noise.
• Failing Oil Pump: While the TSBs point to debris causing the relief valve to stick, the pump itself can fail mechanically. TSB #01-023/15 lists oil pump replacement as the primary repair step if low pressure is confirmed with a mechanical gauge.

Diagnosis Steps

1. DO NOT START THE ENGINE if possible. Check the engine oil level and condition on the dipstick.
2. If the oil level is extremely low, top it up. If the oil is milky or smells of fuel, suspect a more serious internal issue.
3. If the oil level is okay, connect a scan tool to verify P0524 and check for other codes, especially P0015.
4. CRITICAL STEP (per TSB 01-023/15): Connect a mechanical oil pressure gauge. Clear the DTCs, then depress the throttle pedal and momentarily rev the engine to 4,000 RPM or more, 10 times. Let the engine warm up and stabilize at idle.
5. Measure and record the actual oil pressure at idle (650 RPM), 1,500 RPM, and 4,500 RPM. Compare readings to manufacturer specifications (e.g., >7 psi at idle, 43-62 psi at 4,500 RPM).
6. If mechanical pressure is GOOD: The problem is likely the oil pressure sensor or its wiring. Inspect the sensor (Part #PE01-18-501B) and connector for damage or oil leaks and replace if necessary. If the P0015 code is also present, proceed to check VVT system performance as per the TSB.
7. If mechanical pressure is LOW: The P0524 code indicates a true low-pressure state. Follow the Mazda TSB #01-023/15 repair procedure for the 2012-13 Mazda3, which directs the replacement of the oil pump and cleaning of the oil pan and oil strainer.
8. After repairs, change the engine oil and filter, clear the codes, and perform a test drive to verify the fix.

Parts You'll Likely Need

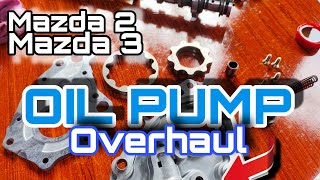

• Engine Oil Pump (SkyActiv-G 2.0L) (OEM #PE01-14-100A) — If actual oil pressure is confirmed to be low, the TSB repair procedure for the 2012-2013 Mazda3 SkyActiv calls for the replacement of the oil pump. 🎬 Watch this detailed oil pump teardown and rebuild guide. This part number supersedes PE01-14-100 and PEDD-14-100.
  Trusted brands: Mazda OE
  OEM price range: $280-$400
  Aftermarket price range: $150-$250
• Oil Control Valve (OCV) (OEM #PE01-14-420A (for SkyActiv) / L3K9-14-420A (for MZR)) — Often gets stuck due to debris, causing both P0524 and P0015 codes. Replacement is a key step in the TSB repair process if oil pressure is normal but codes persist.
  Trusted brands: Mazda OE, Denso, Dorman
  OEM price range: $100-$150
  Aftermarket price range: $50-$100
• Engine Oil Pressure Sensor (SkyActiv-G) (OEM #PE01-18-501B) — Replaced only if actual oil pressure is confirmed to be good with a mechanical gauge, indicating a false reading from the sensor. This part number supersedes PE01-18-501 and PE01-18-501A.
  Trusted brands: Mazda OE, Bosch, Standard Motor Products
  OEM price range: $70-$120
  Aftermarket price range: $40-$80

Related Codes That Often Appear With This One

• P0015 — Stands for 'Exhaust CMP Timing Over-Retarded'. The variable valve timing (VVT) system is hydraulically operated by engine oil. Low oil pressure directly impacts the system's ability to control cam timing, causing this code to appear alongside P0524. This is explicitly mentioned in multiple TSBs as a hallmark of this specific issue.

Technical Service Bulletins (TSBs) & Recalls

• Bulletin #01-023/15 (and its revisions like 3084B): 🎬 Watch: Diagnostic walkthrough for P055F and P0524 codes. The primary TSB covering this issue. It provides a detailed diagnostic flowchart for the P0015/P0524 combination, specifying different repair paths based on mechanical oil pressure tests. It explicitly names 'foreign object' contamination as the cause.
• Bulletin #01-016-19-3627: Later TSB that reiterates the link between rough idle and codes P0015 / P0524 due to a drop in engine oil pressure.
• Bulletin #01-009-14-2909A: An earlier version of the TSB, also connecting rough idle, MIL on, and codes P0015/P0524 to low oil pressure from debris.
• Bulletin #01-028/12: One of the earliest TSBs for the 2012-2013 Mazda3 and 2013 CX-5, establishing the link between the codes and debris in the oil system.

Platform-Specific Known Issues

• Per TSB #01-023/15, the diagnostic and repair steps for the 2012-13 Mazda3 2.0L SkyActiv engine are very specific. If a mechanical gauge test confirms LOW oil pressure, the oil pump must be replaced and the oil strainer must be cleaned (not replaced). If the mechanical pressure is NORMAL but VVT performance is poor, the OCV is replaced and the oil strainer is cleaned. This differs from other SkyActiv models where the strainer is often replaced with a modified part.

Mechanic-Grade Diagnostic Values

• Mechanical Engine Oil Pressure (Hot Engine) — expected: At 650 RPM: > 7 psi (50 kPa). At 1,500 RPM: 16.0 - 25.3 psi (110-175 kPa). At 4,500 RPM: 43.6 - 62.3 psi (300-430 kPa).. Failure: Readings below these specifications indicate a true low oil pressure condition.
• Oil Control Valve (OCV) Solenoid Resistance — expected: 6.9 – 7.5 ohms at 20°C (68°F) between the two terminals.. Failure: A reading significantly outside this range, or an open circuit (infinite resistance), indicates a faulty solenoid.

Scan Tool Commands That Help

• Mazda M-MDS / IDS or equivalent: Monitor PIDs: OIL_TEMP and ECT — Per TSB #01-028/12, this is required to ensure the engine is fully warmed up (oil temp > 90°C / 194°F) before performing the official mechanical oil pressure test for an accurate diagnosis.
• Manual Procedure (No Scan Tool Needed): Debris Dislodging Procedure — As a preliminary step outlined in TSBs, after clearing codes, revving the engine to 4,000+ RPM ten times can sometimes dislodge a temporary piece of debris from the OCV or oil pump relief valve, which may resolve the issue if the contamination is minor.

Wiring & Ground Locations

• PCM Pin 2E — At the Powertrain Control Module (PCM) connector.. This is the terminal for the Oil Control Valve (OCV) signal. A technician can use this pin to test for voltage and continuity between the PCM and the OCV when diagnosing a persistent P0015 code that accompanies P0524.
• Engine/Transmission Grounds — Common locations include a ground on top of the transmission, on the passenger side motor mount, and on the driver's side fender area connected to the negative battery terminal.. While not a primary cause for P0524, poor engine grounds can cause a variety of erratic sensor and solenoid behaviors. Verifying these grounds are clean and tight is a good practice during any complex electrical diagnosis.

Real Owner Repair Stories

• Mazdas247 Forum User 'rjdee' (Mazda CX-5 with 2.0L Skyactiv engine at 112,000 miles (engine and TSB are shared with the 2012-2013 Mazda3)) — P0524 code, triggering dealer diagnosis.
  ❌ Tried (didn't work) Dealer quoted an expensive oil pump replacement based on their findings, but the owner sought a second opinion.
  ✅ What actually fixed it An independent shop confirmed the oil pressure readings. At 4,500 RPM, pressure was 58 psi but would then drop to 38 psi, which is below the TSB minimum of 43.6 psi. This confirmed a mechanical issue under load, validating the TSB's diagnostic path which points to replacing the oil pump when pressure is low.
• Mazdas247 Forum User 'ferro_sk' (2018 Mazda CX-5 (later model, but illustrates a severe case)) — Check Engine Light with P0524 at only 1,800km.
  ❌ Tried (didn't work) The dealer initially just reset the error code, but the light came back on after about 100km.
  ✅ What actually fixed it After the code returned, the dealer, in consultation with Mazda support, performed a comprehensive repair by replacing the oil control solenoid valve, the oil pump, the oil pressure sensor, and the connecting rod bearings. This fixed the issue, highlighting that a combination of parts may be required in persistent cases.

Model Year Variations Within This Range

• 2012-2013: TSB #01-023/15 specifies a unique repair procedure for the 2012-2013 Mazda3 2.0L Skyactiv. If low oil pressure is confirmed, the instruction is to replace the oil pump but only *clean* the existing oil strainer. For later model years and other Skyactiv engines covered by the same TSB, the instruction is to *replace* the oil strainer, often with a modified part. This distinction is critical for performing the correct TSB repair.
