P0521 on 2005-2012 Chevrolet Malibu: Oil Pressure Sensor Causes and Fixes

What's Unique About the 2005-2012 Chevrolet MALIBU

The 2005-2012 Chevrolet Malibu spans two generations (6th and 7th) with different engines, primarily various Ecotec 4-cylinders and V6s. A common issue across these GM engines is not just the sensor failing, but a small, inexpensive filter screen located underneath the sensor becoming clogged with sludge. This blockage can cause false pressure readings, triggering the P0521 code even if the sensor is functional. Technicians and experienced DIYers often replace this screen as a preventative measure whenever the sensor is replaced. This issue is so prevalent that it also affects numerous platform mates with the same engines.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Generation note: This range covers the end of the 6th generation (2005-2008 Malibu/Malibu Classic) and the entire 7th generation (2008-2012). The location of the oil pressure sensor varies by engine. On many 2.4L 4-cylinder models, it's on the front of the engine near the oil filter housing, 🎬 Watch: Step-by-step oil pressure sensor replacement on the 2.4L Ecotec engine. making it relatively accessible. On V6 models (like the 3.5L and 3.6L), it is often located in a tighter spot, sometimes on the back of the engine near the starter, which may 🎬 See this walkthrough for replacing the sensor on 3.5L V6 models. need to be removed for access.

Symptoms You May Notice

• Check Engine Light is on
• Low Oil Pressure warning light or message on the instrument cluster.
• Oil pressure gauge (if equipped) reads zero, too high, or fluctuates erratically.
• Visible oil leak from the sensor itself.
• In rare cases of actual low pressure, engine ticking or knocking noises.

Most Likely Causes

1. Faulty Engine Oil Pressure Sensor 🔴 High Probability The sensor is a common failure point on many GM vehicles of this era. Internal electronics can fail, or the diaphragm can develop leaks, leading to incorrect readings or oil leaks. Owners often report replacing the sensor to fix the issue.

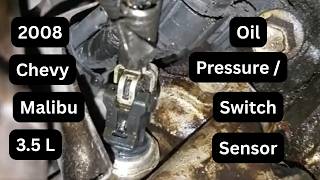

   How to confirm: After verifying the actual oil pressure with a mechanical gauge is correct, if the scan tool still shows an erratic or incorrect reading (e.g., stuck at 0 or maxed out), the sensor is the primary suspect. 🎬 Watch: How to diagnose a P0521 code using a scan tool. If disconnecting the sensor with the key on causes the gauge to drop to zero from a high reading, the sensor is likely internally shorted.
   Typical fix: Replace the engine oil pressure sensor and the filter screen beneath it.
   Est. part cost: $25-$90
2. Clogged Oil Pressure Sensor Filter Screen 🔴 High Probability Sludge and debris from engine oil can accumulate in the small filter screen located in the block, just below the sensor. This restricts oil flow to the sensor, causing it to report low pressure even when the engine is healthy. This is a very common point of failure across many GM platforms.
   How to confirm: This is typically found during the sensor replacement. When the old sensor is removed, the screen can be inspected and is often visibly clogged with dark debris. A special pick or even a coarse-threaded screw can be used to gently thread into and extract the old screen for inspection.
   Typical fix: Remove and replace the small filter screen. This is almost always done at the same time as the sensor replacement to prevent the code from returning.
   Est. part cost: $5-$15
3. Wiring or Connector Issue 🟡 Medium Probability The sensor's location can expose its connector to oil, dirt, and heat, leading to corrosion or loose connections over time. The plastic connector can become brittle and the terminals can get 'green crusties'.
   How to confirm: Visually inspect the sensor's electrical connector and wiring for signs of corrosion, damage, or oil saturation. In one documented case on a 2013 Malibu, the issue was solved by replacing the pigtail connector after finding the wires had been previously tampered with and were making a poor connection. Wiggling the connector while monitoring live data can also reveal an intermittent connection.
   Typical fix: Clean the connector terminals with contact cleaner or, if damaged, replace the connector pigtail. This can be a tight job depending on sensor location.
   Est. part cost: $15-$50
4. Low Engine Oil Level or Incorrect Oil/Filter 🟡 Medium Probability
   How to confirm: Physically check the engine oil dipstick to verify the level and condition of the oil. This should always be the first step. Some owners on forums have noted that using a high-quality OEM-spec oil filter (e.g., ACDelco or specific Mobil 1 models) resolved their recurring P0521 code.
   Typical fix: Top off or change the engine oil and replace the oil filter with a high-quality, correct type for your vehicle.
   Est. part cost: $30-$70

Rare But Worth Checking

• Failing Oil Pump or Sticking Relief Valve: If a mechanical gauge confirms that the engine's oil pressure is actually low, the oil pump may be failing. This is a serious mechanical issue. GM has also issued TSB 20-NA-161 for other vehicles, noting that a P0521 code can sometimes be caused by a sticking oil pressure relief valve within the oil pump, which is a less severe mechanical failure but still requires significant repair.
• Worn Internal Engine Components: High mileage engines can have worn bearings or other internal parts that cause a genuine loss of oil pressure. This is a worst-case scenario and would likely be accompanied by significant engine noise, such as knocking or ticking.

Diagnosis Steps

1. Check the engine oil level and condition using the dipstick. Top off if low. Ensure a quality, OEM-spec oil filter is being used.
2. Connect an OBD-II scanner to read the live data for the oil pressure sensor. Note the reading with the engine off (should be 0 PSI) and running.
3. CRITICAL STEP: Connect a mechanical oil pressure gauge to the engine. This usually involves removing the existing electronic sensor and threading the gauge in its place. Compare the mechanical reading to the scanner's reading. This determines if you have a real pressure problem or a sensor circuit problem.
4. If mechanical pressure is good but the scanner reading is bad, the problem is in the sensor circuit. Proceed to the next step.
5. If mechanical pressure is low, stop and diagnose the mechanical cause (e.g., clogged oil pickup tube, sticking pressure relief valve, failing oil pump, worn bearings).
6. Inspect the oil pressure sensor's electrical connector and wiring for damage, corrosion (green crust), or oil contamination. Wiggle the harness to check for intermittent faults.
7. If wiring is okay, replace the engine oil pressure sensor. It is highly recommended to also replace the small filter screen located in the port underneath the sensor.
8. To remove the old screen, a small pick or a coarse-threaded screw can be gently inserted to grip and pull it out.
9. Clear the trouble codes with a scan tool and perform a test drive to ensure the code does not return.

Parts You'll Likely Need

• Engine Oil Pressure Sensor / Switch (OEM #12673134) — This is the most common part to fail, causing incorrect readings to be sent to the ECM. The original part number 12621234 has been superseded by 12673134 for many applications.
  Trusted brands: ACDelco, Delphi, Dorman
  OEM price range: $55-$90
  Aftermarket price range: $25-$60
• Engine Oil Pressure Sensor Filter Screen — This small screen often becomes clogged with sludge, restricting oil flow to the sensor and causing a false low-pressure reading. It should be replaced whenever the sensor is changed. While a specific GM part number for this application is elusive, the Dorman 917-143 is a widely available aftermarket replacement.
  Trusted brands: ACDelco, Dorman (p/n 917-143)
  OEM price range: $5-$15
  Aftermarket price range: $5-$10

Related Codes That Often Appear With This One

• P0522 — This code indicates 'Engine Oil Pressure Sensor/Switch Circuit Low Voltage.' It can be triggered by the same faults, such as a bad sensor or a wiring short, that cause P0521.
• P0523 — This code means 'Engine Oil Pressure Sensor/Switch Circuit High Voltage.' A sensor that is failing erratically can send signals that are both too high and out of the expected performance range, triggering both codes.

Technical Service Bulletins (TSBs) & Recalls

• PIP4786C: While often mentioned in relation to P0521, this TSB specifically addresses a 'Valve Lifter Oil Filter' on V8 engines with Active Fuel Management (AFM), not the sensor screen on Malibu engines. It shows a pattern of oil restriction causing this code but is not directly applicable.
• 20-NA-161: Mentioned for other GM vehicles, this TSB notes that a P0521 code can sometimes be caused by a sticking oil pressure relief valve in the oil pump, indicating a potential mechanical issue beyond the sensor.

Platform-Specific Known Issues

• A known issue for this code is a clogged oil pressure sensor screen, which can mimic the symptoms of a failed sensor. It is highly recommended to replace this screen during sensor replacement.

Mechanic-Grade Diagnostic Values

• 5-Volt Reference Circuit Voltage — expected: 4.8-5.2 Volts (Ignition ON, sensor connector unplugged, measured between 5V reference pin and ground). Failure: Voltage below 4.8V or above 5.2V points to a wiring short or an issue with the ECM.
• Low Reference Circuit Resistance — expected: Less than 10 Ohms (Ignition OFF, sensor connector unplugged, measured between the low reference circuit pin and ground). Failure: Resistance higher than 10 Ohms indicates a bad ground connection or an open in the wiring.
• Mechanical Oil Pressure (General GM V8 Spec) — expected: Minimum 24 PSI @ 1000 RPM, 35 PSI @ 2000 RPM, and 38 PSI @ 3000 RPM (Engine at operating temperature). Failure: Pressure significantly below these values indicates a mechanical engine issue, not a sensor problem.
• Scan Tool Oil Pressure (Healthy) — expected: Around 38-45 PSI at idle, increasing with RPM.. Failure: Reading of 0 PSI or a fixed high value (e.g., 70 PSI) with the engine running indicates a sensor or circuit fault.

Wiring & Ground Locations

• G106 — On the 2.4L engine, this ground is on the left rear of the engine. On the 3.6L V6, it is on the right front of the engine.. This is a primary engine block ground for the ECM. A loose or corroded connection here can cause erratic signals from various engine sensors, including the oil pressure sensor.
• G107 — On the 2.4L engine, this ground is on the lower left side of the engine. On the 3.6L V6, it is at the center rear of the engine.. This is another critical engine ground point. A fault here can disrupt sensor readings and contribute to false P0521 codes.
• Oil Pressure Sensor Connector — Varies by engine. On many V6 models, it is near the starter motor. On 2.4L models, it is often on the front of the engine near the oil filter housing.. This 3-wire connector (5V reference, signal, ground) is prone to corrosion and oil contamination, which can cause a short or open circuit, leading to P0521, P0522, and P0523 codes.

Real Owner Repair Stories

• YouTube user Señorial Equizio (2013 Chevrolet Malibu 2.5L) — Recurring P0521 code, incorrect oil pressure readings on scan tool.
  ❌ Tried (didn't work) Replacing the oil pressure sensor multiple times (three sensors were tried).
  ✅ What actually fixed it The owner discovered three wires leading to the PCM had been previously separated or tampered with. Re-establishing a proper connection for these three wires at the computer resolved the P0521 code and restored correct oil pressure readings.
• Reddit user BrettBerger3 (Chevy Truck (specific year/model not mentioned, but issue is common across GM platforms)) — P0521 code kept returning after 100+ miles.
  ❌ Tried (didn't work) Replacing the oil pressure sensor., Noting the sensor screen had already been removed by a previous owner.
  ✅ What actually fixed it The owner found that using a specific high-quality oil filter (Mobil 1 M1-113A) and ensuring the oil level was always correct solved the recurring code. This highlights the system's sensitivity to both oil filter type and proper oil level.

OEM Part Supersession History

• 12621234 → 12673134 — Standard part update and consolidation by the manufacturer.
  Heads up: The new part number 12673134 is the correct replacement for 12621234 and 12596951. Using an OEM or equivalent quality sensor is often recommended to avoid persistent issues.
