P0513 on 2013-2022 Ram 1500 Classic: Invalid Immobilizer Key Causes and Fixes

What's Unique About the 2013-2022 Ram 1500 Classic

On these Ram trucks, the P0513 code is frequently triggered by a software synchronization issue, not just a simple hardware failure. As noted in manufacturer Technical Service Bulletin (TSB) S2208000073, the code can appear after the PCM is replaced or has its software updated ('flashed'). This is because the PCM defaults and loses the vehicle's specific security code. It requires a specific dealer procedure called 'Proxy Configuration Alignment' to re-sync the security modules, a step not common on all vehicles.

Generation note: This range covers the fourth-generation Ram 1500. Models from 2019-2022 are branded as the 'Ram 1500 Classic' and were sold alongside the redesigned fifth-generation Ram. The immobilizer system and causes for this code are consistent for the 'Classic' models across this entire year range.

Symptoms You May Notice

• Engine cranks but will not start
• Engine starts and immediately stalls (within 2 seconds)
• Flashing red security light on the dashboard
• Key fob does not lock or unlock the doors
• Message on the dash such as 'Key Not Recognized' or 'Invalid SKIM Key'

Most Likely Causes

1. Dead or Weak Key Fob Battery 🔴 High Probability The key fob's battery is a consumable item that wears out over time. It is required for the push-to-start system to recognize the key's presence before starting.
   How to confirm: Try starting the truck with your spare key fob. If the spare key works, the issue is with the primary key. For push-to-start models, you can try holding the 'nose' of the dead key fob directly against the start button and pressing it; this can sometimes allow an emergency start.

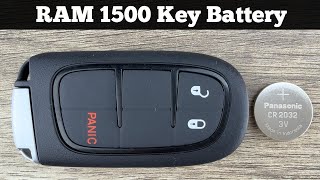

   Typical fix: Replace the battery inside the key fob. The 2013-2018 models typically use a CR2032 battery. 🎬 Watch how to replace the battery in a 2013-2018 key fob The 2019+ 'Classic' models with the newer fob design often use a CR2450. Always open the fob to confirm before buying a replacement.
   Est. part cost: $5-$15
2. PCM/RF Hub Programming Mismatch 🟡 Medium Probability As documented in TSB S2208000073, replacing or flashing the PCM can cause it to lose its security code, resulting in a mismatch with the RF Hub and BCM. This is a very common trigger for P0513 after the truck has been serviced.
   How to confirm: This is the most likely cause if the P0513 code appeared immediately after the PCM was serviced or replaced. A dealer-level scan tool is needed to verify the communication status and security data mismatch between modules.
   Typical fix: A dealer or qualified shop must perform the 'PCM Replaced Procedure' or 'Proxy Configuration Alignment' using a wiTECH scan tool 🎬 See how a wiTECH tool performs a Proxi Alignment to re-synchronize the modules and restore the security code in the PCM.
   Est. part cost: $0 (if part of other service), $100-$250 (for programming alone)
3. Faulty Key Fob 🟡 Medium Probability The internal transponder chip in the key can fail from being dropped, water damage, or age, sending an unreadable signal.
   How to confirm: If a new battery doesn't fix the key and the spare key works perfectly, the key fob itself has likely failed. A locksmith or dealer can test the transponder's signal.
   Typical fix: Purchase a new key fob from the dealer or a licensed automotive locksmith and have it professionally programmed to the truck.
   Est. part cost: $150-$400
4. Faulty Radio Frequency Hub (RFH) ⚪ Low Probability The RFH module (also called the Wireless Control Module or WCM) can fail electronically, preventing it from reading any key signal. While less common on the 4th Gen 'Classic', it is a known failure point across the FCA lineup.
   How to confirm: If neither the primary nor the spare key works, and a PCM proxy alignment doesn't solve the issue, the RFH is the next likely suspect. A scan tool may show communication errors specifically with the RFH module.
   Typical fix: Replace the RFH module and have it programmed by a dealer or specialist. This involves programming the new module to the vehicle and then programming all keys to the new module.
   Est. part cost: $200-$500

Rare But Worth Checking

• Wiring Harness Issue: Corroded or damaged wiring between the RF Hub, BCM, and PCM can interrupt the security signal. One owner on RamForum.com traced an intermittent P0513 on his 2007 Ram to a corroded battery cable connection at the fuse panel, which resolved after cleaning. Checking grounds and main power connections is a valid diagnostic step.
• Radio Frequency Interference: Strong RF signals from other devices or having multiple transponder keys (like an office access card) on the same keychain can occasionally interfere with the key's signal. Try starting the vehicle with all other electronic devices removed from the keychain.
• Low Vehicle Battery Voltage: A weak main vehicle battery can cause data corruption or communication errors between security modules during startup, leading to a P0513 code. This is a common trigger on many FCA platforms.
• Faulty Powertrain Control Module (PCM): While a programming error is more common, the PCM itself can fail internally, causing it to lose its security data or become unable to accept new programming. This is typically a last resort after all other possibilities are exhausted.

Diagnosis Steps

1. Check the dashboard for a flashing red security light, which confirms an active immobilizer issue.
2. Attempt to start the vehicle with a known-good spare key. If it starts, the problem is isolated to the first key fob.
3. If only one key is failing, replace its battery (CR2032 for 2013-18, CR2450 for 2019+).
4. If the key fob battery is dead on a push-to-start model, press the Start/Stop button with the nose of the key fob. This uses a low-frequency antenna to read the chip without battery power.
5. If a battery change does not work, the key fob itself is likely faulty and needs replacement and programming.
6. If neither key works, the issue is with the vehicle. Check if the code appeared after a recent PCM software update or replacement. If so, the vehicle needs a 'Proxy Configuration Alignment' at the dealer per TSB S2208000073.
7. Inspect wiring and connectors for the RF Hub (often located in the dash or on the rear cab wall on newer trucks) 🎬 Watch this step-by-step video on removing the RF Hub module, BCM, and PCM for any visible damage or corrosion.
8. If all else fails and programming alignment is unsuccessful, the RF Hub module is the next most likely point of failure and may need to be replaced and programmed.

Parts You'll Likely Need

• Key Fob Battery — This is the most common and simplest fix when a single key stops working.
  Trusted brands: Energizer, Duracell
  OEM price range: $5-$15
  Aftermarket price range: $5-$10
• Key Fob (FOBIK) (OEM #68291689AD (example, verify by VIN)) — The internal transponder can fail, requiring a complete key replacement. Must be programmed by a dealer or locksmith.
  Trusted brands: Mopar
  OEM price range: $150-$400
  Aftermarket price range: $80-$200
• Radio Frequency Hub (RFH) (OEM #68441616AA (supersedes 68363199AC, 68363202AC; always verify with VIN)) — This module reads the key signal. It can fail electronically, preventing any key from being recognized. Requires professional programming.
  Trusted brands: Mopar
  OEM price range: $200-$500
  Aftermarket price range: $150-$350

Related Codes That Often Appear With This One

• U0426-62 — TSB S2208000073 specifically mentions this code (Invalid Data Received From Vehicle Immobilizer Control Module) can appear with P0513 after a PCM flash, indicating a signal compare error between modules.
• B1A25 — This code, 'Invalid SKIM Key', is often found in the RF Hub or BCM. It directly supports P0513 by pointing to a failure in the key-reading process from the perspective of the body modules.
• B2205-00 — This code for 'Original VIN Missing/Mismatch' will set in a security module like the RF Hub if it's taken from another vehicle and not properly programmed. It's a definitive sign of a module programming or compatibility problem.

Technical Service Bulletins (TSBs) & Recalls

• S2208000073

Platform-Specific Known Issues

• TSB S2208000073 explicitly documents that a no-start condition with code P0513 can occur after replacing or reflashing the PCM. The official fix is to perform the 'PCM Replaced Procedure' or 'Proxy Configuration Alignment' with a dealer-level scan tool (like wiTECH) to re-sync security data between the PCM, BCM, and RF Hub.

Mechanic-Grade Diagnostic Values

• RF Hub Module Power Supply — expected: 10.0V - 16.0V (Battery Voltage). Failure: No voltage or low voltage at the module connector can prevent communication.
• RF Hub Module Ground — expected: Good continuity to chassis ground (<1.0 Ohm). Failure: High resistance or an open circuit indicates a bad ground, which can cause intermittent issues.

Hidden / Shadow Codes Worth Checking

• B2205-00: Original VIN Missing/Mismatch. This code is set in a security module (like the RF Hub) when it detects a VIN that does not match what is stored in its memory, confirming a part was swapped without correct programming. (see via A dealer-level scan tool like wiTECH or a high-end aftermarket scanner capable of reading Body Control Module (BCM) or RF Hub (RFH) fault codes.)
• B1A25: Invalid SKIM Key. This is the code set by the RF Hub or BCM when it determines the key's transponder signal is not valid. It is the direct partner to the P0513 code set in the PCM. (see via A scan tool capable of reading BCM or RFH fault codes.)

Scan Tool Commands That Help

• wiTECH: Proxy Configuration Alignment — This is the most critical function. It must be run after a PCM flash or after replacing the PCM, BCM, or RF Hub to synchronize the security configuration data across all modules. Running this is the primary fix for P0513 as described in TSB S2208000073.
• wiTECH: PCM/ECM/ESL replace — This routine, found under the BCM 'Misc. Functions' menu, must be run *before* the Proxy Alignment when the PCM has been physically replaced. It transfers the immobilizer data to the new PCM.
• wiTECH: Learn Electronic Throttle Control (ETC) — This routine is performed under PCM Misc. Functions after a successful PCM flash and Proxy Alignment to ensure proper throttle response.

Wiring & Ground Locations

• RF Hub Location (2019+ Classic) — Mounted on the rear cab wall, below the rear window. This location makes it susceptible to water damage from a leaking third brake light or rear window seal, an issue more common on the redesigned 5th Gen (DT) but possible on late-model Classics (DS).. This is the module that reads the key fob signal. Physical damage from water intrusion is a known cause of failure, leading directly to P0513.
• Battery Cable to Fuse Panel — Under the hood, the main power feed from the battery to the primary fuse panel (Totally Integrated Power Module - TIPM).. Corrosion at this connection can cause low voltage or intermittent power to all modules, including the security system, triggering a false P0513. A real-world repair story noted cleaning this connection temporarily resolved the issue.

Real Owner Repair Stories

• RamForum.com user (2007 Ram 3500 5.9L (similar SKIM system logic)) — Intermittent no-start with P0513. Key fob would not lock/unlock doors, and the engine would shut off after a few seconds. The problem would disappear and reappear over weeks.
  ❌ Tried (didn't work) Replacing the key fob battery., Having a locksmith reprogram both keys (which worked for 6 months before the problem returned)., Disconnecting the vehicle battery for several hours.
  ✅ What actually fixed it The user found a corroded battery cable connection at the fuse panel. Cleaning this connection made the truck work perfectly for several days, indicating a power supply or grounding issue was the likely root cause of the intermittent security module failure. The final resolution was not posted, but it highlights that intermittent electrical faults can mimic module failure.

OEM Part Supersession History

• 68363199AA, 68363199AB → 68363199AC (and potentially newer revisions like 68441616AA) — Standard part revision for reliability or component updates.
  Heads up: While later part numbers are generally backward compatible, it is critical to order by VIN. Some vendors sell these modules pre-programmed to the vehicle's VIN, which can avoid dealer programming fees.

Model Year Variations Within This Range

• 2013-2018 vs 2019-2022 Classic: The key fob design changed, and with it, the battery type. Earlier models typically use a CR2032, while the 2019+ models often use a CR2450. Additionally, the RF Hub location may have moved to the rear cab wall on later models in this range, mirroring the 5th Gen (DT) design.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• 5.7L HEMI Exhaust Manifold Bolt Failure ('Hemi Tick') 🔴 High — Very common, especially on trucks over 75,000 miles. The rear-most bolts on the manifolds are prone to shearing off due to heat cycles, causing an exhaust leak that presents as a ticking noise, particularly when the engine is cold.
• Active-Level Four-Corner Air Suspension Leaks 🔴 High — A frequent point of failure. The rubber air springs develop leaks, causing the truck to sag overnight or the compressor to run excessively. Cold weather can exacerbate the problem. Failures can be intermittent depending on the ride height setting. (Ref: S1723000007 Rev)
• Uconnect 8.4-inch Screen Delamination 🟠 Medium — Widespread on 2017 and newer models. The adhesive behind the digitizer fails, causing bubbles and 'ghost touches' that can randomly change radio stations, climate settings, or make calls. It is a repairable issue by replacing the digitizer.
• 5.7L HEMI Lifter/Camshaft Failure 🔴 High — A well-documented issue, often starting as the 'Hemi Tick' but progressing to a misfire and eventual engine failure if not addressed. It is attributed to lifter roller seizure, which damages the camshaft lobes. It is most common on engines with extended oil change intervals or significant idling time.
• ZF 8-Speed Transmission Shifting Issues 🟡 Low — Some owners, particularly in the 2013-2015 model years, report rough shifting, shuddering, or delayed engagement. These issues can often be resolved with a software update or fluid service, but are a common complaint.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this repair, a used part from a traditional junkyard is almost never a smart choice. Security modules like the PCM and RF Hub are VIN-locked to the original vehicle. Installing a used one will cause a mismatch and guarantee a P0513 code. The only viable 'used' option is from a specialist rebuilder who can 'virginize' the module or pre-program it with your truck's VIN before shipping.

Donor-vehicle mileage cap: roughly under 150000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a pre-programmed module, verify the seller is reputable and offers a warranty.
• Ensure the seller is programming the module with the latest software updates, not just your VIN.
• Confirm that the part number being sent is a compatible supersession of your original part.

OEM-only on this vehicle (don't cheap out):

• Radio Frequency Hub (RFH)
• Powertrain Control Module (PCM)
• Key Fobs

Aftermarket brands forum-validated for this vehicle:

• For this specific issue, sticking to Mopar OEM parts is highly recommended. However, services that remanufacture and pre-program OEM Mopar modules (like All Computer Resources) are a known-good alternative to buying a new module and paying for dealer programming separately.

Brands owners have reported issues with on this vehicle:

• Unbranded, 'plug and play' security modules from marketplaces like Amazon or eBay that do not explicitly offer VIN programming service before shipment.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• U110E — Often related to communication errors between the RF Hub (Wireless Control Module) and other modules like the PCM or BCM.
• B2204 — An ECU configuration mismatch code that can appear alongside P0513 when a 'Proxy Configuration Alignment' is required after module replacement.
• B1A25 — An invalid key code that may trigger if the RF Hub cannot read the transponder chip inside the key fob.

Frequently Asked Questions
