P0496 on 2016-2020 Jaguar XF: Understanding EVAP High Purge Flow Causes and Fixes

What's Unique About the 2016-2020 Jaguar XF

What's particularly unique to this Jaguar platform is a documented sensitivity in the engine control software. According to Jaguar's own Technical Service Bulletin (TSB H422), the P0496 code can be triggered simply by refueling the vehicle within 15 seconds of turning the engine off. This specific software quirk means that unlike in many other cars, the first diagnostic step for a P0496 on an XF isn't necessarily mechanical, but rather related to user behavior and a potential software calibration update performed by a dealer.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light (Malfunction Indicator Lamp) is illuminated. [SSM74280, JTB00697NAS1]
• No loss of power or restricted performance. [JTB00697NAS1]
• Difficulty starting the engine, especially right after refueling.
• Slightly rough idle.
• A faint smell of fuel.
• Engine may crank for an extended period before starting after getting gas.

Most Likely Causes

1. Refueling Too Soon After Engine Shutdown 🔴 High Probability A specific software logic issue documented by Jaguar in TSB H422. The PCM can misinterpret the pressure changes during a quick refuel as a system fault.
   How to confirm: The code appears shortly after refueling. Clear the code and see if it returns after refueling again, but this time wait at least 30 seconds after engine-off before opening the gas cap. If the code does not return, this was the cause.
   Typical fix: If changing refueling habits resolves the issue, no parts are needed. If the code persists despite waiting, a dealer may need to perform a Powertrain Control Module (PCM) software update as per TSB #Jaguar_H422_19JUL24.
   Est. part cost: $0-$250 (for dealer software update)
2. Faulty Canister Purge Valve/Solenoid 🟡 Medium Probability This is the most common mechanical failure for P0496 across all makes. The valve, often a Bosch unit on these cars, can get stuck open, allowing fuel vapors to be drawn into the engine constantly.
   How to confirm: Disconnect the purge valve's electrical connector and the hose leading to the intake manifold. Start the engine. If you can feel vacuum suction from the valve's port, it is stuck open and needs to be replaced. Alternatively, with the engine off, remove the valve and try to blow through it; if air passes, it's faulty.

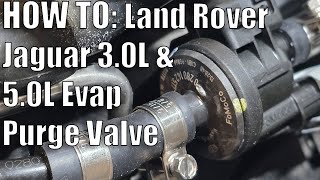

   Typical fix: Replace the canister purge valve. The OEM part number is AJ814246, which supersedes AJ811695. 🎬 See this walkthrough for replacing the Jaguar purge valve.
   Est. part cost: $50-$150

Rare But Worth Checking

• Faulty Fuel Tank Pressure Sensor: The sensor that detects the unwanted vacuum flow can fail, sending incorrect data to the PCM. If the purge valve tests good, this sensor is the next logical part to investigate.
• Leaking or Damaged EVAP Hoses: A crack or break in one of the EVAP system hoses, particularly between the purge valve and the intake manifold, could cause an incorrect flow, though this is less common for a high-flow code than for a leak code (like P0455).
• Saturated Charcoal Canister: Habitually overfilling the fuel tank can force liquid gasoline into the charcoal canister, damaging it and causing various EVAP codes, including P0496.

Diagnosis Steps

1. Read the code with an OBD-II scanner to confirm P0496 is present.
🎬 Watch: Understanding what P0496 means for your EVAP system.
2. Recall if the Check Engine Light appeared immediately after refueling. If so, clear the code.
3. On your next refuel, wait at least 30 seconds after turning the engine off before opening the fuel cap. If the code does not return, the issue was refueling timing.
4. If the code returns, locate the canister purge valve on the engine. It will have two hoses and an electrical connector.
5. With the engine off, disconnect the electrical connector and the vacuum lines from the purge valve.
6. Attempt to blow through the valve. If air passes through, the valve is stuck open and must be replaced. It should be closed by default.
7. If the valve is closed, you can test its operation by applying 12V to its electrical pins; it should click open. (Use caution with this step).
🎬 Watch: How to replace your purge valve like a pro.
8. A more definitive test is to disconnect the intake-side hose from the valve, leave the electrical connector plugged in, start the engine, and feel for suction from the valve's port. There should be no vacuum at idle. If there is, the valve is stuck open.
9. If the valve appears to be working correctly, visually inspect all visible EVAP hoses for cracks, brittleness, or disconnection.
10. If no mechanical fault is found, the issue may lie with the Fuel Tank Pressure sensor or require a PCM software update from a Jaguar dealer, referencing TSB H422.

Parts You'll Likely Need

• Canister Purge Valve / Solenoid (OEM #AJ814246 (replaces AJ811695)) — This is the most common mechanical part to fail for a P0496 code. It gets stuck in the open position, causing the uncontrolled vapor flow that the PCM detects.
  Trusted brands: Jaguar (OEM), Bosch (Often the original equipment manufacturer), Duralast (Aftermarket)
  OEM price range: $100-$200
  Aftermarket price range: $40-$90

Technical Service Bulletins (TSBs) & Recalls

• Jaguar_H422_19JUL24: Notes that refueling within 15 seconds of engine-off can cause P0496-00. This is a known service campaign.
• SSM74280: Confirms that the Check Engine Light illuminates and DTC P0496-00 is stored in the PCM.
• JTB00697NAS1: States the MIL is on with P0496-00 stored, but with no restricted performance or loss of power.

Platform-Specific Known Issues

• A Technical Service Bulletin (H422) explicitly states that the Malfunction Indicator Lamp (MIL) may illuminate with DTC P0496-00 if the vehicle is refueled within 15 seconds of turning the engine off. This points to a software sensitivity issue that can be mistaken for a hardware fault.
• Owners on forums for the F-Pace, which shares engines with the XF, have confirmed receiving notices for the H422 campaign and that the software update is the prescribed fix for the refueling-related trigger.

Mechanic-Grade Diagnostic Values

• Canister Purge Valve Coil Resistance — expected: While a specific resistance value for AJ814246 is not published in general documentation, a typical value for a similar Bosch-style purge valve is between 15 and 30 Ohms. A reading of infinity (open circuit) or near zero (short circuit) indicates a failed coil.. Failure: Resistance reading is infinite (open) or near-zero (shorted).
• Fuel Tank Pressure (FTP) Sensor Voltage at Atmospheric Pressure — expected: Approximately 1.5 Volts with the gas cap off (engine running). This indicates the sensor is reading atmospheric pressure correctly.. Failure: Voltage is significantly different from 1.5V with the system open to the atmosphere, suggesting a biased or failed sensor.

Hidden / Shadow Codes Worth Checking

• P0496-00: The '-00' suffix is used by Jaguar/Land Rover (and Ford) to indicate no additional subtype information for the DTC. It essentially confirms the base code's definition, 'EVAP Flow During a Non-Purge Condition', is the specific fault detected without further qualifiers. (see via Visible on Jaguar-specific diagnostic tools like SDD/Pathfinder and some advanced generic OBD-II scanners.)

Scan Tool Commands That Help

• Jaguar SDD/Pathfinder or advanced bidirectional scanner: EVAP System Leak Test / Purge & Seal Test — This function allows a technician to command the canister vent solenoid closed and then command the purge valve to open, applying engine vacuum to the entire EVAP system. By monitoring the Fuel Tank Pressure (FTP) sensor, the technician can verify if the system holds a vacuum, confirming the function of both the purge and vent valves and checking for leaks without a smoke machine.
• Jaguar SDD/Pathfinder or advanced bidirectional scanner: Purge Valve Duty Cycle Control — This allows for manually commanding the purge valve to open at various percentages. It's used to confirm the valve physically responds to commands from the PCM and isn't mechanically stuck. A technician can command it closed (0%) and check for vacuum flow; if flow exists, the valve is confirmed stuck open.

Wiring & Ground Locations

• PI304 — On V8 Supercharged models, the connector for the purge control valve is located on the top left-hand side of the engine.. This is the electrical connector for the canister purge valve. Technicians need to access this connector to test for power, ground, and signal from the PCM, and to measure the resistance of the valve's coil.

Real Owner Repair Stories

• JaguarForums.com user 'DJS' (Jaguar F-Type (platform-mate with shared engine/EVAP components)) — Check Engine Light with code P0496.
  ❌ Tried (didn't work) The user did not report trying other fixes first.
  ✅ What actually fixed it The canister purge valve was replaced under warranty by the dealer, which resolved the code.

OEM Part Supersession History

• AJ811695 → AJ814246 — The reason for the supersession is not officially documented, but it is common for manufacturers to update parts to improve reliability, change materials, or consolidate parts across different models. The new part number is confirmed to fit a wide range of Jaguar models and engines.

Model Year Variations Within This Range

• 2016-2020: The same canister purge valve (AJ814246) is used across the 2.0L 4-cylinder, 3.0L V6 Supercharged, and 5.0L V8 Supercharged engines found in the XF during this period, indicating no significant variation in this specific component for the P0496 code.
