P0480 on 2015-2017 Jeep Cherokee: Cooling Fan Circuit Fault Causes and Fixes

What's Unique About the 2015-2017 Jeep CHEROKEE

The 2015-2017 Jeep Cherokee (KL generation) has a known high failure rate of the cooling fan assembly, which includes the fan motors and the integrated control module. A manufacturer Technical Service Bulletin (TSB #9003826) was issued specifically for a P0480 fault on 2015 models, instructing technicians to call a specific FCA engineer before replacing the fan. This suggests an active investigation and data collection effort by the manufacturer into the root cause of these failures, making the fan assembly the primary suspect, far more so than on other vehicles where a simple relay or wiring might be the first guess. Unlike many vehicles, the Cherokee KL does not use a simple, swappable relay in the fuse box; fan control is integrated into the fan assembly and commanded by the PCM.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Engine overheating, especially at idle or in slow traffic
• Temperature gauge rising higher than normal
• Air conditioning (A/C) does not blow cold or is weak (the fan is required to cool the A/C condenser)
• Cooling fan does not turn on when the engine is hot or when the A/C is activated
• Cooling fan runs constantly at high speed, even when the engine is cold (a common fail-safe mode)
• Erratic fan speed, cycling up and down randomly.

Most Likely Causes

1. Failed Cooling Fan Assembly 🔴 High Probability A manufacturer TSB (#9003826) exists for this specific issue, indicating a known problem with the fan assembly on these vehicles. The integrated fan control module, which receives a PWM signal from the PCM, is the most common point of failure. The motor itself can also fail or seize.
   How to confirm: With the engine running and A/C on high, check for power (large red wire) and ground (large black wire) at the fan connector. Use a multimeter or test light. 🎬 See this step-by-step diagnosis of the cooling fan circuit. If power and ground are present but the fan isn't spinning, the assembly is faulty. Advanced diagnosis involves checking for the PWM signal from the PCM on the control wire with an oscilloscope.
   Typical fix: Replace the entire cooling fan assembly. This includes the fan(s), shroud, and the integrated control module, which is not typically sold separately.
   Est. part cost: $200-$800
2. Damaged Wiring or Connectors 🟡 Medium Probability Wiring to the fan assembly is located in the engine bay where it's exposed to heat and vibration, which can lead to chafing, breaks, or corrosion over time. The main connector at the fan shroud is a common spot for inspection due to heat and potential melting.
   How to confirm: Visually inspect the entire wiring harness leading to the cooling fan assembly for any signs of melting, corrosion, or breaks. Pay close attention to the large 4-pin connector. Use a multimeter to check for continuity from the power distribution center (Fuse F05) and PCM to the fan connector.
   Typical fix: Repair the damaged section of the wire or replace the faulty connector pigtail.
   Est. part cost: $10-$50
3. Blown Fuse ⚪ Low Probability While less common than the fan assembly itself, a short in the fan motor can cause the main fuse to blow as a protective measure. This is usually a symptom of a failing fan, not the root cause.
   How to confirm: Locate the cooling fan fuses in the under-hood power distribution center (fuse box). Check fuse F05 (a large 60A mega fuse) and fuse F22 (a 5A mini fuse). Visually inspect the fuses and test for continuity with a multimeter.
   Typical fix: Replace the blown fuse. If the new fuse blows immediately, it confirms a short circuit in the fan assembly or its wiring.
   Est. part cost: $5-$30

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): This is very rare. The PCM is the last component to suspect. All other possibilities, including the fan assembly, fuses, and wiring, should be exhaustively tested before considering PCM replacement. A scan tool can be used to command the fan on; if the command is sent but the signal is absent at the fan connector (and wiring is good), the PCM driver may be at fault.

Diagnosis Steps

1. Read the code with an OBD-II scanner to confirm P0480 is the active fault.
2. Perform a visual inspection of the cooling fan assembly. Check if anything is physically obstructing the fan blades.
3. Inspect the wiring harness and the 4-pin connector at the fan assembly for any signs of damage, melting, or corrosion.
4. Check the main cooling fan fuse (Fuse F05, a 60A mega fuse) and the control fuse (F22, a 5A mini fuse) in the under-hood fuse box (Power Distribution Center).
5. Note: This vehicle does not have a traditional swappable fan relay in the fuse box. The function is performed by the fan control module integrated into the fan assembly.
6. Start the engine and turn the A/C on its highest setting. This should command the cooling fan to turn on.
7. If the fan does not run, carefully use a multimeter to test for battery voltage at the large power wire and a good ground at the large ground wire in the fan's electrical connector. A headlight bulb can be used to load the circuit and ensure the power/ground is robust.
8. If both power and ground are present at the connector but the fan is not working, the cooling fan assembly has failed and needs to be replaced.
9. If power is missing, trace the circuit back from the fuse box to diagnose the wiring fault. If the PWM control signal is missing (requires an oscilloscope to verify), the issue may be in the wiring from the PCM or the PCM itself (rare).

Parts You'll Likely Need

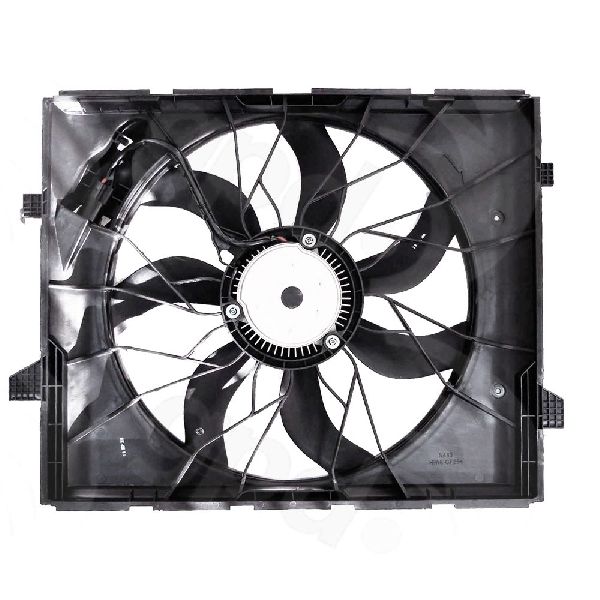

• Engine Cooling Fan Assembly (OEM #68164091AI) — This is the most common failure for code P0480 on this vehicle, as supported by owner experiences and a manufacturer TSB. The assembly includes the fan motor(s) and the integrated control module, which is often the point of failure. The OEM part number 68164091AI is for the 3.2L V6 and supersedes multiple previous versions (68164091ac, ad, ae, af, ag, ah), indicating revisions to the part over time.
  Trusted brands: Mopar, Dorman (e.g., 621-383, 621-384), TYC, Four Seasons
  OEM price range: $700-$1000
  Aftermarket price range: $200-$450

Related Codes That Often Appear With This One

• P0481 — P0481 refers to the 'Fan 2 Control Circuit'. Since the fans are part of the same assembly with a single control module, a failure in the module or its power/ground wiring can trigger both codes simultaneously.
• U0121 — This code indicates a 'Lost Communication With Anti-Lock Brake System (ABS) Control Module'. While not directly related, complex electrical issues, voltage drops, or harness damage can sometimes cause multiple communication codes to appear alongside the primary fault.

Technical Service Bulletins (TSBs) & Recalls

• Bulletin #9003826: Addresses a P0480 fault on 2015 KL Cherokees with the 2.4L engine. Crucially, it asks technicians to call a specific contact at the manufacturer before replacing parts, confirming this is a known issue under investigation by FCA.

Platform-Specific Known Issues

• TSB #9003826 - Manufacturer Investigation: A Technical Service Bulletin (TSB #9003826) was issued for 2015 models with the 2.4L engine regarding P0480. It instructs dealers to call a specific engineer at FCA before removing or replacing the fan assembly. This strongly indicates a known high failure rate that the manufacturer was actively investigating to understand the root cause, making the fan assembly the primary suspect by a large margin.
• Real-World Repair Story: In a YouTube video, a user with a 2015 Jeep Cherokee KL documents troubleshooting P0480. After confirming good power and signal from the fuse box to the fan module connector, he determined one of the fan motors was seized due to accumulated desert sand. He replaced the entire assembly with a Dorman unit from RockAuto, which resolved the code. This repair took approximately 6 hours and did not require disconnecting coolant or A/C lines.

Mechanic-Grade Diagnostic Values

• Voltage at Fan Connector - Main Power — expected: Battery Voltage (approx. 12.6V with key off, 14V+ with engine running). Failure: Low or no voltage indicates a problem with the main power feed from fuse F05 or the wiring.
• Voltage at Fan Connector - Ground — expected: Near 0V, with good continuity to chassis ground.. Failure: Voltage above 0.1V or high resistance to ground indicates a poor ground connection, a common source of electrical issues.
• PCM Control Signal (PWM) — expected: A square wave signal that varies in duty cycle based on cooling demand. This can be commanded with a capable scan tool. For example, commanding 80% duty cycle should show a corresponding signal on an oscilloscope.. Failure: A flat line, a signal that is shorted to ground/power, or a signal that is erratic/interrupted when the fan module is connected points to a fault in the PCM, wiring, or the fan module itself.

Scan Tool Commands That Help

• wiTECH (Dealer Tool), AlfaOBD, Autel, etc.: Cooling Fan Actuation Test / Fan Speed Control / Power Cooling Fan Power Duty Cycle — This bidirectional command allows the technician to manually turn the fan on and set its speed (e.g., 16%, 80%). If the fan responds correctly to the scan tool command, it confirms the integrity of the PCM, wiring, and fan assembly, suggesting the issue may be with an input sensor (like the ECT) or its circuit. If the fan does not respond, it confirms the fault lies within the fan control circuit (wiring, module, or motor).

Wiring & Ground Locations

• Cooling Fan Connector (4-Pin) — On the cooling fan shroud, where the main harness connects to the fan assembly.. This is the primary test point. Pin 1: Main Ground (Large Black wire). Pin 2: PWM Control Signal from PCM (often a Red wire). Pin 3: Enable Signal from fuse F22 (often a Blue wire). Pin 4: Main Power from fuse F05 (Large Red wire).
• PCM Connector C4, Pin 29 — At the Powertrain Control Module (PCM).. This is the specific pin on the PCM that sends the PWM control signal to the fan module. Checking for a signal here can isolate a faulty PCM from a wiring issue.
• G108 — On the passenger side inner fender, towards the back of the power distribution block.. This ground point serves various components on the right side of the engine bay, including the cooling system. A corroded or loose G108 can cause intermittent or persistent electrical faults for the fan circuit.
• Main Engine Block Ground — A stud on the side of the engine block, often near the thermostat housing or behind the motor mount. The main negative battery cable often connects here.. This is a critical ground path for the entire engine management system. While not specific to the fan, a poor connection here can cause a wide range of electrical issues, including P0480.

Real Owner Repair Stories

• YouTube - Brazilian Geek in Abu Dhabi (2015 Jeep Cherokee KL) — P0480, one of the two fans was not working.
  ❌ Tried (didn't work) Replacing the TIPM (fuse box) had no effect.
  ✅ What actually fixed it The final cause was one of the fan motors being physically seized by accumulated desert sand. The entire fan assembly was replaced with a Dorman unit, which resolved the code. The wiring and control module were tested and found to be working correctly using an AlfaOBD scanner to actuate the fan circuit.
• YouTube - P0480 2015-21 Jeep Cherokee, Compass, cooling fan 1 control circuit open (2017 Jeep Cherokee) — Check engine light on, fan runs at high speed constantly after starting.
  ❌ Tried (didn't work) Initial diagnosis confirmed power and ground were present at the fan connector.
  ✅ What actually fixed it After testing continuity of the control wires from the fan connector back to the PCM (Pin 29) and the fuse box, a problem was found in the wiring. The video states 'we found a problem in the wiring and we have fixed that,' which resolved the code and returned fan operation to normal.

OEM Part Supersession History

• 68164091AC, 68164091AD, 68164091AE, 68164091AF, 68164091AG, 68164091AH → 68164091AI — These part numbers apply to the cooling fan assembly for the 3.2L V6 engine. The multiple revisions suggest ongoing improvements by the manufacturer to address the high failure rate of the integrated control module or fan motors.
