P0463 on 2017-2019 Nissan Versa Note: Fuel Level Sensor Causes and Fixes

What's Unique About the 2017-2019 Nissan VERSA NOTE

For the 2017-2019 Versa Note, Nissan has explicitly acknowledged issues with the fuel level sensor by issuing Technical Service Bulletin NTB22-026. [⭐ MANUFACTURER TSB — highest authority] The TSB applies to a range of 2016-2022 Nissan models and specifically points out that for a P0463 code, the fuel level sensor can and should be replaced as a separate component, rather than requiring the replacement of the entire fuel pump assembly. [⭐ MANUFACTURER TSB — highest authority] The bulletin warns that warranty claims for replacing the whole assembly for this issue will be charged back, underscoring that only the sensor is the intended fix. [⭐ MANUFACTURER TSB — highest authority] This is a key piece of information that can save owners significant money on parts and repairs.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on

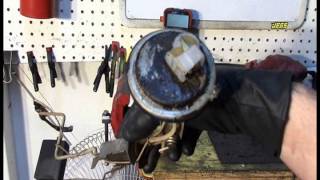

🎬 Watch: A quick overview of P0463 causes and solutions.
• Fuel gauge is stuck on full or empty
• Fuel gauge fluctuates erratically
• Low fuel warning light is on despite having fuel in the tank

Most Likely Causes

1. Faulty Fuel Level Sensor (Sending Unit) 🔴 High Probability Nissan issued TSB #NTB22-026 for this issue, indicating it's a known, widespread problem across multiple models. [⭐ MANUFACTURER TSB — highest authority] The internal resistor strip on the sensor wears out or breaks, causing an open circuit.
   How to confirm: Access the sensor and test its resistance with a multimeter while moving the float arm. The resistance should change smoothly. An infinite reading (OL) indicates an open circuit within the sensor. You can also check the signal wire voltage with the key on; a constant 5 volts points to an open circuit or bad sensor.

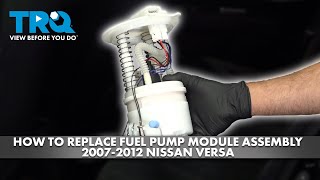

   Typical fix: Replace the fuel level sensor inside the fuel tank. This requires accessing the top of the fuel tank 🎬 Watch: Easy walkthrough for replacing just the fuel level sensor., which is usually located under the rear seat cushion.
   Est. part cost: $100-$200
2. Damaged Wiring or Connectors 🟡 Medium Probability
   How to confirm: Visually inspect the wiring harness from the fuel tank to the instrument cluster for any breaks, corrosion, or loose connections, especially at the connector on top of the fuel tank assembly. A voltage drop test can also identify high resistance in the circuit.
   Typical fix: Repair the damaged section of the wire or clean/replace the corroded connector.
   Est. part cost: $5-$50
3. Poor Ground Connection ⚪ Low Probability
   How to confirm: Locate the ground strap for the fuel tank and sensor circuit. Check for rust, corrosion, or looseness. Test the ground circuit with a multimeter for high resistance back to a known good ground on the chassis.
   Typical fix: Clean the ground connection point to bare metal and secure the ground wire.
   Est. part cost: $1-$10

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): This is very rare. All other possibilities, especially the sensor and wiring, should be exhaustively ruled out before considering the PCM as the cause.
• Faulty Instrument Cluster (Combination Meter): On this vehicle, the fuel level signal goes to the instrument cluster before being relayed to the PCM. A fault in the cluster's internal circuitry can mimic a sensor issue. This is rare and should be diagnosed after confirming the sensor and wiring are good.

Diagnosis Steps

1. Read the code with an OBD-II scanner to confirm P0463 is present and check for any other related codes.
2. Observe the fuel gauge behavior. Note if it is stuck on full, empty, or fluctuating. A gauge stuck on full is the most common symptom for P0463.
3. Gain access to the fuel pump assembly, which is typically under the rear seat cushion in the Versa Note.
4. Inspect the electrical connector on top of the fuel pump assembly for corrosion, damage, or loose pins.
5. With the key on, use a multimeter or scan tool to check the voltage on the fuel level sensor signal wire. A reading stuck at the reference voltage (typically 5 volts) indicates an open circuit or a bad sensor.
6. Disconnect the sensor and test its resistance with a multimeter. Move the float arm by hand and watch for a smooth change in resistance. If the reading is erratic or shows an open circuit (OL - Over Limit), the sensor is bad.
7. If the sensor tests good, check for continuity and high resistance in the signal and ground wires between the sensor connector and the instrument cluster.

Parts You'll Likely Need

• Fuel Level Sensor (OEM #25060-3AN0A) — This is the most common failure point for the P0463 code on this vehicle, as identified by Nissan's own service bulletin. [⭐ MANUFACTURER TSB — highest authority] Parts listings confirm this part fits 2012-2019 Versa and Versa Note models.
  Trusted brands: Nissan OE, Bosch, Delphi, Spectra Premium
  OEM price range: $120-$160
  Aftermarket price range: $80-$150

Related Codes That Often Appear With This One

• P0460 — Relates to a general fuel level sensor circuit fault. [⭐ MANUFACTURER TSB — highest authority]
• P0461 — Indicates the sensor's performance is out of range. [⭐ MANUFACTURER TSB — highest authority]
• P0462 — Indicates a low input from the sensor, the opposite of P0463. [⭐ MANUFACTURER TSB — highest authority]

Technical Service Bulletins (TSBs) & Recalls

• NTB22-026: Addresses fuel level sensor codes and confirms the sensor can be replaced separately. It warns dealers that replacing the entire fuel pump assembly for this issue will result in a warranty chargeback. [⭐ MANUFACTURER TSB — highest authority]

Platform-Specific Known Issues

• Nissan Technical Service Bulletin NTB22-026 was issued for 2016-2022 Nissan models, including the 2017 Versa, for codes P0460, P0461, P0462, and P0463, advising that the fuel level sensor can be replaced separately from the fuel pump assembly to resolve the issue. [⭐ MANUFACTURER TSB — highest authority]
• Owner Experience: On forums, owners of Versas with P0463 frequently report the fuel gauge being stuck on full. One user on a Nissan forum with a similar vehicle noted the dealer would need to diagnose if it was the sending unit or the ECM, referencing TSBs for other models with the same code. This aligns with the known failure of the sending unit being the primary cause.

Mechanic-Grade Diagnostic Values

• Fuel Level Sensor Resistance — expected: Approximately 4-6 Ohms at Full, and 80-85 Ohms at Empty. Resistance should change smoothly as the float moves.. Failure: An infinite resistance reading (OL) indicates an open circuit in the sensor, which is a direct cause of P0463.
• Fuel Level Sensor Signal Wire Voltage — expected: Voltage should vary between approximately 0.5V (Empty) and 4.5V (Full) with key on, engine off.. Failure: A constant voltage reading at or near 5V indicates an open in the sensor or signal circuit.
• Sensor Ground Wire Voltage — expected: Near 0.0V when tested against a known good chassis ground with the circuit connected and key on.. Failure: Voltage significantly above 0V (e.g., reading the same as the signal wire) indicates a bad ground connection.

Scan Tool Commands That Help

• Nissan CONSULT: Active Test for Combination Meter (Fuel Gauge) — After confirming the sensor and wiring are good, this test can command the fuel gauge needle to specific positions (Empty, 1/4, 1/2, Full). If the needle moves correctly during the test, the gauge itself is functional, pointing back to a problem with the signal it's receiving. If it fails to move, the instrument cluster may be faulty.
• Nissan CONSULT: Data Monitor for Fuel Level Sensor — To view the raw voltage or resistance value the Combination Meter is receiving from the sensor. This helps confirm if the cluster is seeing the same high voltage/open circuit that the multimeter test shows at the tank connector.

Wiring & Ground Locations

• Fuel Pump/Sensor Connector (M71) — On top of the fuel pump assembly, accessible by removing the rear seat cushion and the metal access plate.. This is the primary access point for testing sensor voltage, resistance, and ground integrity without dropping the fuel tank.
• Fuel System Ground — Typically located on the chassis under the rear seat area, near the fuel tank. It serves as the ground point for the fuel pump and sending unit.. A corroded or loose ground at this location can cause high resistance in the sensor circuit, leading to a P0463 code.
• Instrument Cluster (Combination Meter) — In the dashboard, behind the steering wheel.. The fuel level sensor signal wire runs directly to the instrument cluster, not the PCM. The cluster processes the signal and sends the information to the PCM via CAN bus. A fault must be diagnosed all the way to this component.

Real Owner Repair Stories

• Reddit user on r/MechanicAdvice (2012 Nissan Versa (same generation and part)) — Fuel gauge fluctuates by about a quarter tank every time the car is started; sometimes reads completely empty when it has fuel.
  ❌ Tried (didn't work) Owner did not attempt repairs but was living with the issue.
  ✅ What actually fixed it A mechanic in the comments confirmed the issue is the fuel level sensor on the pump assembly and that it can be replaced separately.
• Various Nissan forum discussions (Nissan Versa, various years) — Fuel gauge reads incorrectly after replacing the fuel level sensor.
  ❌ Tried (didn't work) Replacing the fuel level sensor.
  ✅ What actually fixed it Performing an instrument cluster self-test. On some Nissan models, after a sensor replacement or battery disconnect, the cluster needs to be run through its self-diagnostic mode to re-calibrate or reset the gauge logic. The procedure typically involves a sequence of turning the key and pressing the trip odometer button.

OEM Part Supersession History

• 25060-3AN0A → 25060-3AN0B — Likely a revision to improve durability and address the known failure issues leading to codes like P0463.
