P0463 on 2002-2005 Ford Explorer: Fuel Gauge Problems and Fixes

What's Unique About the 2002-2005 Ford Explorer

Ford issued a Technical Service Bulletin (TSB 06-17-10) for 2002-2006 Explorers and platform-mate Mercury Mountaineers specifically for code P0463 and erratic fuel gauge behavior. The bulletin suggests that sulfur contamination from fuel can build up on the fuel sender's resistor card, causing high resistance or an open circuit that triggers the code. This makes the fuel sending unit itself the most probable cause of failure on this specific generation of Explorer, more so than simple wiring issues. Some owners have had temporary success using a fuel system cleaner with Techron 🎬 Watch: A quick fix for sulfur buildup and erratic gauges., which is designed to clean sulfur deposits.

Symptoms You May Notice

• Check Engine Light is on
• Fuel gauge is inaccurate, stuck on empty, or stuck on full.
• Fuel gauge fluctuates erratically.
• Low fuel warning light may stay on.
• After refueling, the gauge is very slow to update to 'Full'.
• Trip computer's 'Distance to Empty' calculation is unreliable.

Most Likely Causes

1. Faulty Fuel Level Sending Unit 🔴 High Probability As noted in Ford TSB 06-17-10, the contacts on the sender's resistor card are susceptible to sulfur contamination from fuel, which causes a high-resistance or open circuit. This is a widely documented failure among owners of this platform.
   How to confirm: Access the fuel pump module connector and measure the resistance of the sending unit circuit. 🎬 See how to test the fuel level sensor without removal. On these Ford models, the resistance should be approximately 10-15 Ohms when the tank is full and around 180 Ohms when empty. An open circuit (infinite resistance) or a reading that doesn't change smoothly as the float arm is moved confirms a bad sender.
   Typical fix: Replace the fuel level sending unit. The sender is attached to the fuel pump module inside the fuel tank, so the tank must be dropped for access. Depending on the model year and part availability, you may replace just the sender or the entire fuel pump module assembly. Some owners have created an access panel in the floor behind the driver's seat to avoid dropping the tank, though this is not an official repair method. 🎬 Watch: How to create an easy access door for the pump.
   Est. part cost: $80-$350
2. Damaged Wiring or Corroded Connector 🟡 Medium Probability The wiring harness running to the fuel tank is exposed to the elements, making it susceptible to corrosion or physical damage over time. The main connector on top of the fuel pump module is a common point for moisture intrusion and corrosion.
   How to confirm: Visually inspect the wiring harness and the connector on top of the fuel pump module for any signs of corrosion, frayed wires, or loose pins. Use a multimeter to check for continuity and proper ground at the connector. A poor ground connection can also cause intermittent issues.
   Typical fix: Repair the damaged section of the wire or clean/replace the corroded connector. Ensure the ground connection for the fuel pump assembly is clean and secure.
   Est. part cost: $10-$50

Rare But Worth Checking

• Faulty Instrument Cluster: While rare, a fault within the instrument cluster itself can cause incorrect gauge readings. TSB 05-21-3 mentions cluster diagnostics for fuel gauge issues. This is usually accompanied by other gauge or warning light problems and should only be considered after the sending unit and its circuit have been ruled out.
• Stuck Sender Float Arm: The mechanical float arm can become stuck due to debris in the tank or if the vehicle has sat for a very long time, causing rust or deposits to form. This is less common than electrical failure of the sender card.

Diagnosis Steps

1. Scan for codes to confirm P0463 is present. Check for other related codes like B1201 or P0460.
2. Use a scan tool with live data to observe the fuel level percentage (FLP) or voltage reported by the PCM. A fixed high-voltage reading (often >4.5V) or an erratic signal points to a circuit issue.
3. Visually inspect the wiring harness leading to the fuel tank and the main connector on top of the fuel pump module. Look for obvious signs of damage, corrosion, or loose connections.
4. If wiring appears okay, test the sending unit circuit. This requires accessing the connector on the fuel pump module. You may need to lower the fuel tank to do this.
5. Disconnect the harness and use a multimeter set to Ohms to measure the resistance across the two pins for the fuel level sender. For this platform, a good sender should read between ~15 Ohms (Full) and ~180 Ohms (Empty). An open circuit (infinite resistance, or 'O.L.') indicates a failed sender.
6. If the sender tests bad, the fuel tank must be removed to replace either the sending unit or the complete fuel pump module. Some DIYers opt to cut an access hole in the floor pan above the pump to avoid dropping the tank.
7. If the sender's resistance is within spec and changes smoothly when rocking the vehicle, the problem is likely in the wiring between the tank and the PCM or, rarely, the instrument cluster or PCM itself.

Parts You'll Likely Need

• Fuel Pump and Sender Assembly (OEM #Motorcraft PFS-377 (for 2004-2005 4.0L V6), Motorcraft PFS-1014 / 1L2Z-9H307-KF (for 2002-2003).) — This is the most common failure point. The sending unit is integrated with the fuel pump module, and replacing the entire assembly ensures all related components are new. Many owners on forums report success with this complete replacement.
  Trusted brands: Motorcraft (OEM), Delphi, Spectra Premium, Bosch
  OEM price range: $250-$350
  Aftermarket price range: $150-$250
• Fuel Level Sensor (Sender Only) (OEM #6U9Z-9A299-A (service kit part number mentioned in TSB 06-17-10)) — If the fuel pump itself is working correctly, replacing only the failed sending unit is a more economical repair. TSB 06-17-10 provides instructions for this specific repair using a service kit.
  Trusted brands: Motorcraft
  OEM price range: $80-$120
  Aftermarket price range: N/A

Related Codes That Often Appear With This One

• B1201 — This is an instrument cluster code for 'Fuel Sender Circuit Failure'. Ford's TSB 05-21-3 for this issue lists P0463 and B1201 together as common related codes for fuel gauge problems.
• P0460 — This code means 'Fuel Level Sensor 'A' Circuit Malfunction'. It's a more general code that can be set alongside P0463 when the PCM detects that the fuel level isn't changing as expected over a certain distance driven.

Technical Service Bulletins (TSBs) & Recalls

• 06-17-10: MIL ON with DTC P0463 or Erratic Fuel Gauge Operation. This TSB directly addresses the cause (sulfur contamination), diagnosis, and repair for this code on this vehicle, including instructions for replacing only the sender unit.
• 05-21-3: MIL ON with PCM DTC P0463 and/or IC DTC B1201—Fuel Gauge Drops to Empty or is Slow to Read Full After Refueling. This earlier TSB describes the gauge's modes of operation and provides diagnostic steps for both the sender and the instrument cluster.

Platform-Specific Known Issues

• Ford TSB 06-17-10 was issued for this problem, identifying sulfur contamination on the fuel sender card as a primary cause of P0463 and erratic gauge readings on 2002-2006 Explorers.
• A common owner complaint on forums is the fuel gauge being slow to update after filling the tank, which is also addressed in TSB 05-21-3.
• Several owners have documented the repair process, with some choosing to drop the tank partially and others cutting an access hatch in the floor pan to reach the fuel pump module.

Mechanic-Grade Diagnostic Values

• Fuel Level Sensor Resistance — expected: ~15 Ohms (Full) to ~180 Ohms (Empty). Failure: Open circuit ('O.L.' on multimeter) or resistance outside the expected range.
• Fuel Level Sensor Signal Voltage at PCM — expected: Below 2.9V (Varies with fuel level). Failure: A sustained voltage reading above 2.9V, often approaching 5.0V, indicates a high input fault.

Scan Tool Commands That Help

• Generic OBD-II Scanner with Live Data: Monitor Fuel Level Percentage (FLP) PID — Use this to observe if the PCM is receiving a static, erratic, or incorrect fuel level reading, which helps confirm the symptom before performing physical tests.

Wiring & Ground Locations

• G400 — Rear of the vehicle, left-hand side.. This is a primary chassis ground point near the fuel tank. A corroded or loose G400 can cause an improper ground for the fuel pump module, leading to high resistance in the sender circuit.
• G401 — Right D-pillar, near the Fuel Pump Driver Module.. This ground is critical for the Fuel Pump Driver Module, which controls the fuel pump. While not directly the sender circuit, electrical issues in this area can sometimes affect related systems.
• Fuel Pump Module Connector (C440) — On top of the fuel pump assembly, accessed by lowering the fuel tank.. This is the main connection point for the fuel pump and sending unit. The sender signal wire is typically Yellow/White, and the sender ground is Black/Orange or Black/Yellow. TSB 06-17-10 advises wrapping the new ground wire around the signal wire during repair to prevent electrical interference.

Real Owner Repair Stories

• YouTube video '2005 Ford Explorer fuel pump hack. P0463' (2005 Ford Explorer 4.0L AWD) — P0463 code, fuel gauge not working.
  ❌ Tried (didn't work) The video focuses on the repair itself, not prior failed attempts.

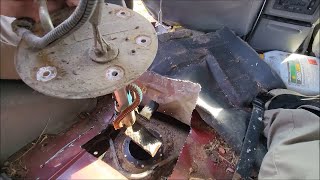

  ✅ What actually fixed it The owner replaced the fuel pump module assembly. The key takeaway was the repair method: instead of completely dropping the fuel tank (which requires disconnecting difficult front connections), they only lowered the rear of the tank enough to access and replace the pump module.

OEM Part Supersession History

• 1L2Z-9H307-KA, KB, KC, KD, KE → 1L2Z-9H307-KF (also sold as Motorcraft PFS-1014) — Incremental revisions to address reliability issues.
  Heads up: These part numbers apply to the 2002-2003 model years. The 2004-2005 models use a different assembly, such as Motorcraft PFS-377. Using the wrong assembly can result in incorrect fuel level readings or fitment issues.

Model Year Variations Within This Range

• 2002-2003: These models primarily use the fuel pump assembly part number 1L2Z-9H307-KF (Motorcraft PFS-1014).
• 2004-2005: These models use a different fuel pump assembly, commonly Motorcraft PFS-377. While the failure mode (sulfur contamination) is the same and covered by TSBs, the physical part is different from the earlier models.

Diagnostic Flowchart

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used part is NOT recommended for the fuel level sending unit or the complete fuel pump assembly. The primary failure mode is contamination and wear on the sender's resistor card, a problem that a used part is just as likely, if not more likely, to have.

What to inspect on the donor part:

• Not applicable due to the high risk of the sending unit being faulty.

OEM-only on this vehicle (don't cheap out):

• While not strictly OEM-only, using a Motorcraft sending unit (either the full assembly or the TSB service kit) has the highest rate of success. This is a repair you only want to do once due to the labor involved in dropping the fuel tank.

Aftermarket brands forum-validated for this vehicle:

• Delphi is a frequently cited alternative that owners have used with success.
• Bosch and Spectra Premium are also reputable brands in the fuel system space.

Brands owners have reported issues with on this vehicle:

• Avoid generic, unbranded, or 'white-box' parts from online marketplaces. The failure rate is high, and the labor to replace it again negates any initial cost savings.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.
