P0461 on 2016 Jeep Wrangler: Fuel Level Sensor Performance Issues and Fixes

What's Unique About the 2016-2016 Jeep WRANGLER

For the 2016 Jeep Wrangler (JK generation), this code is frequently tied to the fuel pump module itself. A specific Technical Service Bulletin (TSB) for this model year highlights that the orientation and alignment of the fuel pump module within the tank can cause this fault. This is a unique diagnostic point for this vehicle, as it points to a mechanical installation error, not just an electronic failure of the sensor. The off-road nature of the Wrangler also makes the wiring harness above the fuel tank more susceptible to damage from debris and flexing. Additionally, the factory fuel tank skid plate is prone to rust, which can deform and damage the plastic tank and the sending unit within.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Generation note: This issue is common across the entire Jeep Wrangler JK generation (2007-2018) as they share a similar fuel tank and pump module design. The TSB regarding module alignment is specifically noted for later models but the principle can apply to earlier JKs if the fuel pump has been replaced.

Symptoms You May Notice

• Check Engine Light is on
• Fuel gauge behaves erratically, such as jumping between full and empty
• Fuel gauge is stuck on empty or full, regardless of the actual fuel level
• Inaccurate 'Distance to Empty' reading
• Low fuel warning light illuminates or flashes even with a full tank

Most Likely Causes

1. Faulty Fuel Level Sending Unit 🔴 High Probability The sending unit is a moving part (a float on a variable resistor) that wears out over time. The resistor strip can develop dead spots from constant fuel sloshing and vibration. On the Wrangler, it is integrated into the fuel pump module, meaning the entire assembly must be replaced.
   How to confirm: Use a scan tool to monitor the fuel level sensor voltage. If the reading is stuck or jumps erratically while rocking the vehicle or adding fuel, the sensor is likely bad. You can also test the sensor's resistance with a multimeter after removing it from the tank; it should change smoothly as the float arm is moved. An open circuit (infinite resistance) or erratic jumps in the reading confirm failure.
   Typical fix: Replace the entire fuel pump module assembly.
   Est. part cost: $150-$400
2. Improper Fuel Pump Module Alignment 🟡 Medium Probability A manufacturer TSB (#68065575A) specifically calls out this issue for the 2016 Wrangler, indicating that if the module is not correctly oriented in the tank, it can cause the P0461 code. This often happens after a fuel pump replacement if the technician is not aware of the specific alignment tabs.
   How to confirm: This can only be confirmed by visually inspecting the fuel pump module's orientation after removing it from the fuel tank. There are alignment tabs on the module that must correspond with notches on the fuel tank flange. Compare its position to service manual specifications.
   Typical fix: Re-align the fuel pump module correctly within the fuel tank. If the code was set after a recent fuel pump replacement, this is a very likely cause.
   Est. part cost: $0 (if no parts are broken)
3. Wiring or Connector Issues ⚪ Low Probability As a vehicle often used off-road, the wiring harness leading to the fuel tank is susceptible to damage from debris or corrosion. The main connector on top of the fuel tank can accumulate dirt and moisture, leading to corroded pins. Wires can also chafe against the frame.
   How to confirm: Visually inspect the wiring harness and connector at the top of the fuel tank for any signs of damage, corrosion, or loose pins. Perform a continuity test on the signal and ground wires from the module to the PCM. Check the ground strap for the fuel tank to ensure it is clean and secure.
   Typical fix: Repair the damaged section of the wiring harness or clean/replace the connector.
   Est. part cost: $10-$50

Rare But Worth Checking

• Stuck Fuel Level Float Arm: The float arm itself could be physically stuck or obstructed by debris inside the tank, preventing it from moving with the fuel level. This would be discovered during the visual inspection when the fuel pump module is removed. The float can also become saturated with fuel and fail to float properly.
• Faulty Powertrain Control Module (PCM): While extremely rare for this specific code on this vehicle, the PCM's internal circuit for reading the fuel level sensor could fail. This should only be considered after all other possibilities, including the sensor and wiring, have been exhaustively tested and ruled out.

Diagnosis Steps

1. Verify the P0461 code is active using a scan tool. Check for any other related codes like P0462 or P0463 and diagnose them first.
2. With the scan tool, monitor the live data for the fuel level sensor voltage or percentage. Note the reading.
3. Gently rock the vehicle side-to-side to slosh fuel in the tank. Observe the scan tool data to see if the fuel level reading changes. No change or erratic jumps suggest a problem with the sending unit.
4. If possible, add a few gallons of fuel and see if the reading changes appropriately after driving a short distance.
5. Visually inspect the wiring harness and connector leading to the fuel tank for any obvious signs of damage, corrosion, or loose connections. Pay close attention to the ground strap for the tank.
6. If the sensor reading is unresponsive, the next step is to gain access to the fuel pump module, which requires lowering the fuel tank.
7. Once the tank is lowered, disconnect the fuel pump module connector and test the resistance (ohms) of the sending unit terminals while manually moving the float arm. The resistance should change smoothly without any dropouts or spikes. Compare readings to the factory service manual (a typical Chrysler range is ~20 ohms full to ~250 ohms empty).
8. While the module is out, check its alignment in the tank per TSB #68065575A. Ensure the alignment tabs on the module are correctly seated in the tank's notches.
9. If the sensor tests good, check for continuity and shorts in the wiring between the module connector and the PCM.

Parts You'll Likely Need

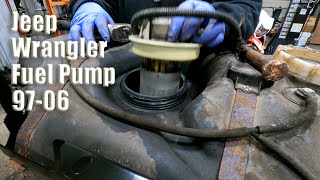

• Fuel Pump and Sending Unit Assembly (OEM #68194971AA (Verify with VIN, may be superseded)) — This is the most common failure. The fuel level sending unit is integrated into the fuel pump module, and they are replaced as a single unit. 🎬 Watch: Step-by-step guide to replacing the fuel pump assembly.
  Trusted brands: Mopar, Delphi, Bosch, Spectra Premium
  OEM price range: $300-$450
  Aftermarket price range: $150-$300

Related Codes That Often Appear With This One

• P0462 — This code indicates 'Fuel Level Sensor Circuit Low Input', suggesting a short in the circuit. It can appear with P0461 if the sensor's failure involves a short.
• P0463 — This code indicates 'Fuel Level Sensor Circuit High Input', suggesting an open circuit. It can appear with P0461 if the sensor's failure involves a break in the circuit or a bad ground.

Technical Service Bulletins (TSBs) & Recalls

• 68065575A: 'JK ONLY: If a customer has a P0461 fault code (Fuel level sensor 1 performance) please take a picture of the fuel module orientation / alignment to the fuel tank flange as it is receiv…'

Platform-Specific Known Issues

• TSB #68065575A notes that for the 2016 JK Wrangler, a P0461 code may be caused by incorrect orientation/alignment of the fuel module within the fuel tank.
• Owner forums frequently cite this code as a common failure point on JK Wranglers, with the overwhelming consensus being that the entire fuel pump module needs replacement. DIY repairs are well-documented but considered difficult due to the need to drop the fuel tank.

Mechanic-Grade Diagnostic Values

• Fuel Level Sensor Resistance — expected: Approximately 20 Ohms (Full) to 250 Ohms (Empty). The reading should change smoothly as the float arm is moved.. Failure: Infinite resistance (open circuit), zero resistance (short), or erratic jumps in the reading indicate a faulty sensor.
• Fuel Level Sensor Voltage (Live Data) — expected: Approximately 0.5V (Empty) to 4.5V (Full).. Failure: Voltage is stuck at a specific value, or is outside the expected range, indicating a circuit or sensor fault.
• Fuel Level Signal Circuit Resistance (to TIPM) — expected: Less than 5.0 Ohms.. Failure: Resistance above 5.0 Ohms indicates excessive resistance in the wiring harness between the fuel pump module and the TIPM.

Scan Tool Commands That Help

• wiTECH (Dealer Tool): View DTCs and Freeze Frame Data — To confirm the P0461 code is active and to review the conditions under which the fault was set. This is the first step in diagnosis.
• wiTECH (Dealer Tool): ECU View / Data Display — To monitor live data from the fuel level sensor (voltage, percentage) to observe for erratic or stuck readings while sloshing fuel in the tank.
• wiTECH (Dealer Tool): Proxy Configuration Alignment — This routine may be necessary after replacing certain modules to ensure all vehicle systems communicate correctly. While not a direct fix for P0461, it's a standard procedure after module replacement.

Wiring & Ground Locations

• Fuel Pump Module Connector — On top of the fuel pump module, accessible after lowering the fuel tank.. This is the primary connection point for the fuel level sensor. Pin 1 is the Ground (Black wire) and Pin 2 is the Fuel Level Signal (Dark Blue wire). Corrosion or damage here will directly cause the P0461 code.
• G302 / G303 — Behind the spare tire, under the interior plastic panel. Two ground wires share a single sheet metal screw into the body.. These are the primary chassis grounds for the rear of the vehicle, including the fuel pump and sending unit. A poor connection here can cause an open or high resistance in the sensor's ground circuit, leading to P0463 or P0461.

Real Owner Repair Stories

• JK-Forum.com user (2016 Jeep Wrangler Unlimited) — Check engine light on with code P0461, fuel gauge dropping to empty and then returning to normal intermittently.
  ❌ Tried (didn't work) Initially hoped it was a loose connection, but symptoms persisted.
  ✅ What actually fixed it The owner replaced the entire fuel pump assembly. The problem was resolved immediately after the replacement.

OEM Part Supersession History

• 68194971AA → Check with a Mopar dealer using the vehicle's VIN. Part numbers are frequently updated or superseded by newer revisions. — Often due to minor design improvements, supplier changes, or consolidation of parts.
  Heads up: When replacing the fuel pump module, it is critical to use a part specified for your exact model year. While connectors may look similar across different years, the resistance range of the sending unit can vary, leading to incorrect gauge readings even with a new part.
