P0456 on 2011-2017 Nissan Quest: EVAP Very Small Leak Causes and Fixes

What's Unique About the 2011-2017 Nissan QUEST

On this generation of Nissan Quest (RE52) and many other Nissan vehicles, the P0456 code is very frequently linked to a specific, well-documented failure point: the O-ring that seals the EVAP vent control valve to the charcoal canister. Nissan has issued multiple Technical Service Bulletins (TSBs) about this exact problem, acknowledging that the O-ring can dry out, crack, and cause a small leak. While early TSBs advised replacing just the O-ring, the latest official procedure (TSB NTB17-082E) instructs technicians to replace the entire vent control valve assembly, as the O-ring is no longer sold as a separate service part. This makes the vent valve the primary suspect after the gas cap has been ruled out.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• A faint smell of gasoline, particularly around the rear of the vehicle after it has been parked.
• Difficulty starting the engine immediately after refueling (less common with this specific code, but possible if the valve is failing).

Most Likely Causes

1. Loose or Worn Gas Cap 🔴 High Probability This is the most common cause for a P0456 code on any vehicle. The rubber seal on the cap can degrade over time, or the cap may simply not have been tightened properly after refueling, breaking the EVAP system's seal.
   How to confirm: Remove the gas cap, inspect the rubber seal for cracks, stiffness, or damage, and clean the sealing surface on the filler neck. Reinstall the cap, ensuring it clicks at least once. Clear the code and drive for a few days. The EVAP monitor runs under specific conditions, so it may take several drive cycles for the light to come back on if the problem isn't fixed.
   Typical fix: Replace the fuel filler cap. It is highly recommended to use a genuine OEM cap from Nissan, as aftermarket caps are known to cause sealing issues. The OEM part number is typically 17251-ZX60A or a superseding number.
   Est. part cost: $25-$45
2. Failed EVAP Vent Control Valve or O-Ring 🔴 High Probability Nissan has issued multiple TSBs (e.g., NTB17-082E) specifically identifying a leak at the vent control valve O-ring as a primary cause for P0456 on the Quest and other models. The rubber O-ring dries out and cracks, creating the very small leak the system detects. This is a known pattern failure.
   How to confirm: The most reliable method is a smoke test. A mechanic will introduce low-pressure smoke into the EVAP system and look for it leaking from the area where the vent valve mounts to the charcoal canister. The canister is located at the rear of the vehicle, generally above the rear subframe. You can also visually inspect the O-ring for cracks if you remove the valve. A resistance check across the valve's terminals should typically read between 20-50 ohms.
   Typical fix: Replace the entire vent control valve assembly. While early TSBs suggested replacing only the O-ring, Nissan's updated procedure (TSB NTB17-082E) is to replace the valve as a unit. The valve is mounted on the charcoal canister with a simple twist-lock mechanism, making it a feasible DIY repair. 🎬 See this walkthrough on how to test and replace the valve.
   Est. part cost: $60-$150
3. Cracked or Disconnected EVAP Hose 🟡 Medium Probability The rubber and plastic hoses in the EVAP system can become brittle and crack due to age and exposure to heat and elements, especially at connection points and bends.
   How to confirm: Visually inspect all accessible EVAP lines running from the fuel tank, to the charcoal canister, and to the purge valve in the engine bay. A smoke test is the definitive way to find a small crack that isn't visible to the naked eye.
   Typical fix: Replace the damaged section of hose. In some cases, you can trim the cracked end and re-secure it if there is enough slack.
   Est. part cost: $10-$50
4. Faulty EVAP Purge Valve ⚪ Low Probability The purge valve, usually located in the engine bay, is normally closed and can sometimes fail by getting stuck slightly open, creating a leak path that the system detects during its self-test.

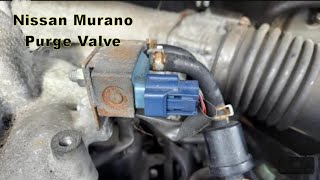

   How to confirm: With the engine off, disconnect the valve and try to blow through it; it should be closed and not allow air to pass. A scan tool can also be used to command the valve open and closed to check its function. A failing purge valve often causes other codes like P0441 or P0443. 🎬 Watch: This video shows you where to find the purge valve.
   Typical fix: Replace the purge valve.
   Est. part cost: $50-$100

Rare But Worth Checking

• Cracked Charcoal Canister: While the canister itself is durable, a hairline crack in the plastic housing can develop from road debris impact or stress, causing a small leak. This is almost always found during a smoke test as smoke will emerge directly from the canister body.
• Leaking Fuel Tank Pressure Sensor: The sensor that monitors system pressure can develop a leak through its own seal or housing, though this is uncommon and would likely be found with a smoke test.

Diagnosis Steps

1. Check the gas cap. Remove, inspect the seal, and retighten until it clicks. If the seal is cracked or worn, replace it with an OEM cap (Part # 17251-ZX60A or similar), clear the code, and drive for a few days.
2. If the code returns, perform a visual inspection of all accessible EVAP hoses and components for obvious cracks, damage, or loose connections, particularly around the engine bay and near the rear of the vehicle.
3. The definitive next step is a professional smoke test. A technician will inject low-pressure smoke into the EVAP system's service port.
4. Using a bidirectional scan tool like Nissan's CONSULT, command the EVAP vent control valve closed to seal the system for the test.
5. Observe where the smoke escapes. Pay close attention to the EVAP vent control valve mounted on the charcoal canister. The canister on the Quest is located at the rear of the vehicle, above the subframe. This valve is the most likely leak point according to Nissan TSBs.
6. Also check the purge valve in the engine bay, all hose connections, and the fuel filler neck for any signs of smoke.
7. Once the leak is located, replace the faulty component. If smoke leaks from the vent valve area, replace the entire valve assembly per TSB NTB17-082E.

Parts You'll Likely Need

• EVAP Vent Control Valve (OEM #14935-JF02C (supersedes 14935-JF00A, 14935-JF00B, etc.)) — This is a known high-failure item on the 2011-2017 Quest for code P0456, specifically due to its sealing O-ring. Nissan TSB NTB17-082E points directly to replacing this part as an assembly.
  Trusted brands: Nissan (OEM), Dorman (911-504), Hitachi
  OEM price range: $60-$90
  Aftermarket price range: $40-$80
• Fuel Filler Cap (OEM #17251-ZX60A) — A loose or worn gas cap is the simplest and most common cause of any small EVAP leak code. Always check this first. Using an OEM cap is critical for a proper seal.
  Trusted brands: Nissan (OEM), Stant, Gates
  OEM price range: $25-$45
  Aftermarket price range: $15-$25

Technical Service Bulletins (TSBs) & Recalls

• NTB17-082E: 'DTC P0456 CAUSED BY EVAP LEAK AT VENT CONTROL VALVE O-RING'. This is the primary, most current TSB. It mandates replacing the entire vent control valve assembly.
• NTB17-082 / NTB17-082b: Earlier versions of the TSB that advised replacing only the O-ring. This advice is now outdated but confirms the long-standing nature of the problem.
• NTB13-097J / NTB13-097g: 'EVAP LEAK DTC P0442, P0455, P0456 INFORMATION'. This is a more general EVAP diagnostic bulletin that provides context for troubleshooting these codes.

Platform-Specific Known Issues

• Nissan Technical Service Bulletin NTB17-082E is the most current and relevant document for this issue. It explicitly states that for a P0456 code where the leak is traced to the vent control valve O-ring, the official repair is to 'Replace the vent control valve as an assembly.' It also notes that the O-ring is no longer available as a separate service part, superseding advice from older TSBs like NTB17-082 and NTB17-082b which instructed technicians to replace only the O-ring.

Mechanic-Grade Diagnostic Values

• EVAP Canister Vent Control Valve Solenoid Resistance — expected: 20 - 50 Ohms. Failure: A reading of infinity (open circuit) or zero (short circuit) indicates a failed solenoid coil.
• EVAP Fuel Tank Pressure (FTP) Sensor Voltage — expected: 0.5 - 4.5 Volts during self-test. Failure: Voltage that is stuck high, low, or does not change when pressure is applied (e.g., during a smoke test) indicates a faulty sensor.

Scan Tool Commands That Help

• Nissan CONSULT-III plus: EVAP System Leak Test (Active Test) — This command is used to manually initiate the EVAP system's self-test. It closes the vent control valve and allows the technician to pressurize the system with an external tool (like J-42909 or a smoke machine) to check for leaks without waiting for the automatic monitor to run.
• Bidirectional Scan Tool (General): Vent Valve Control / Canister Close Valve — This command manually closes the normally-open vent valve to seal the EVAP system. This is a required first step before performing a smoke test to ensure the smoke doesn't just exit through the vent.

Wiring & Ground Locations

• EVAP Canister Vent Control Valve — Under the rear of the vehicle, mounted on the EVAP charcoal canister.. This is the physical location of the most common failure part for P0456 on this vehicle. A wiring diagram confirms it is controlled by the ECM and is a common point for diagnosis via resistance checks or visual inspection during a smoke test.
• EVAP Canister Vent Control Valve Connector — Plugs directly into the vent control valve at the rear of the vehicle. It is a 2-wire rectangular connector.. Corrosion or damage to this connector or its 18-gauge wires can prevent the vent valve from closing, causing the leak test to fail and triggering a P0456 code. One wire typically receives 12V with the key on, and the other is a ground controlled by the ECM.

Real Owner Repair Stories

• Reddit user in r/Nissan (2015 Nissan Sentra (similar EVAP system design)) — Permanent P0456 code.
  ❌ Tried (didn't work) Replaced EVAP purge valve (multiple times), Replaced fuel tank pressure sensor, Replaced vent control valve, Replaced a collapsed fuel tank
  ✅ What actually fixed it A crack on the top of the fuel sending unit (fuel pump assembly). This leak was only found after pulling up the back seat and removing the access cover, as it was not easily visible from underneath and was missed by a smoke test.

"I Checked Everything" — The Actual Cause

• In some Nissans with similar EVAP systems, a P0456 code can be present even if a smoke test comes back clean. A known, hard-to-find cause is a hairline crack in the top of the plastic fuel pump/sending unit assembly, located under the rear seat. Smoke may not be visible here during a standard test, but the crack is enough to cause a very small leak under specific pressure conditions.

OEM Part Supersession History

• 14935-JF00A, 14935-JF00B, 14935-JF00C, 14935-JF00D, 14935-JF00E, 14935-JF01B, 14935-JF01C → 14935-JF02C — Part has been revised multiple times by Nissan to improve reliability and address the known O-ring sealing issue.
  Heads up: The newest part number, 14935-JF02C, is the correct replacement for all previous versions and should be used for the repair.
• 22365-JA10B (for models up to 10/2011) → 22365-1TV1D — Part revision for the EVAP Control System Pressure Sensor.
  Heads up: Early 2011-2012 models may have a different pressure sensor than later models. It is important to verify the production date or use the VIN to get the correct part.

Model Year Variations Within This Range

• 2011-2012 (up to 10/2011 production): The EVAP Control System Pressure Sensor part number is different for early production models (22365-JA10B) compared to later models (22365-AM60A, eventually superseded by 22365-1TV1D). While not the most common cause, using the wrong sensor could cause issues if it needs replacement.
