P0456 on 2011-2016 Kia Soul: Causes and Fixes for Small EVAP Leaks

What's Unique About the 2011-2016 Kia SOUL

The 2011-2016 Kia Soul spans two vehicle generations (2011-2013 and 2014-2016), but the causes for P0456 are largely similar. A key issue for 2012-2014 models is that this code can be triggered by a software glitch. Kia released Technical Service Bulletins (TSBs) recommending an ECM software upgrade to resolve false P0456 codes. Beyond that, owners frequently report issues with both aftermarket gas caps failing to seal properly and failures of the canister purge and close valves. One owner went through two different aftermarket caps before an inexpensive one that resembled the OEM design finally 🎬 Watch this owner's walkthrough of fixing the P0456 code. fixed the code.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Generation note: This range covers the end of the first generation (2011-2013) and the start of the second generation (2014-2016) Kia Soul. While the EVAP system components are similar, Kia issued specific TSBs for an ECM software update affecting 2012-2014 models, which bridges both generations. [TSB-ENG118R2, TSBENG146R1]

Symptoms You May Notice

• Check Engine Light is on
• A faint fuel smell, particularly around the rear of the vehicle or after refueling.
• Vehicle will fail an emissions inspection.
• Difficulty starting the engine immediately after filling the gas tank (this often points to a faulty canister purge valve stuck open).

Most Likely Causes

1. Loose or Faulty Gas Cap 🔴 High Probability The gas cap seal can wear out or get dirty over time. Many owners report that aftermarket gas caps do not seal correctly, making an OEM replacement the most reliable option. One owner documented trying a Duralast cap from AutoZone which failed, but a cheap, OEM-style cap from Amazon resolved the issue. The internal mechanism of the cap can fail even if the outer seal looks good.
   How to confirm: Ensure the cap is tightened until it clicks at least once. Inspect the cap's rubber O-ring for cracks, dirt, or stiffness. Clean the fuel filler neck to ensure a smooth sealing surface. A mechanic can confirm a leaking cap with a smoke/pressure tester.
   Typical fix: First, try cleaning and re-tightening the existing cap. If the code returns, replace the gas cap with a new OEM part (Part No. 31010-3L600U).
   Est. part cost: $15-$40
2. Faulty Canister Purge Valve (CPV / PCSV) 🟡 Medium Probability The purge valve, located in the engine bay, can get stuck open or become clogged with debris, creating a constant vacuum leak within the EVAP system. This is a common failure on the shared 1.6L Gamma engine platform.
   How to confirm: With the engine warmed up and running, disconnect the vapor hose from the valve. There should be no suction at idle. If you feel a vacuum with your finger, the valve is stuck open and needs replacement. A professional scan tool can also command the valve to open and close to test its function.
   Typical fix: Replacement of the canister purge valve. It is typically mounted on or near the intake manifold and is relatively easy to access by removing the engine cover.
   Est. part cost: $25-$65
3. ECM Software Update Required 🟡 Medium Probability Kia issued TSBs #TSB-ENG118R2 and #TSBENG146R1 for 2012-2014 Soul models, indicating the ECM's leak detection logic was too sensitive and could incorrectly trigger P0456. This is a known issue specifically for these model years.
   How to confirm: A Kia dealership or a qualified shop with access to Kia's service database can check your vehicle's VIN to see if this software update has been performed.
   Typical fix: The dealership reprograms the Engine Control Module (ECM) with the updated software.
   Est. part cost: $0-$150 (May be covered under warranty or as a courtesy)
4. Faulty Canister Close Valve (CCV) ⚪ Low Probability The canister close valve, located near the charcoal canister at the rear of the car, can fail to seal properly during the EVAP system's self-test. This is a known issue on the sister-platform Kia Rio.
   How to confirm: This part is harder to test without a diagnostic scan tool that can command it to close. A smoke test is the most reliable way to confirm a leak at the CCV.
   Typical fix: Replacement of the canister close valve. For the 2014-2019 Soul, a possible OEM part number is 314301Y000.
   Est. part cost: $30-$70
5. Cracked or Disconnected EVAP Hose ⚪ Low Probability Rubber hoses can become brittle and crack over time due to heat and age, creating small leaks. Hose clamps can also rust through and fail.
   How to confirm: A visual inspection may reveal obvious cracks or rusted clamps, but a professional smoke test is the most effective method to find tiny leaks in the hose network.
   Typical fix: Replace the damaged section of the hose or the failed clamp.
   Est. part cost: $10-$50

Rare But Worth Checking

• Cracked Charcoal Canister: Physical damage from road debris can crack the plastic housing of the charcoal canister, located under the car near the fuel tank on the driver's side. This is usually found during a smoke test.
• Faulty Fuel Tank Pressure Sensor (FTPS): In some cases, the sensor itself can fail internally, causing it to report a leak to the ECM even when the system is perfectly sealed. This is often a last resort after a smoke test finds no leaks.
• Rusted EVAP Hose Clamps: On platform-mate vehicles, owners have found that the original spring clamps on the EVAP hoses near the charcoal canister can rust completely through, causing a small leak. This was discovered after a gas cap replacement did not fix the code.

Diagnosis Steps

1. Read the code with an OBD-II scanner to confirm P0456 is present.
2. Inspect the gas cap for damage and ensure it is tightened until it clicks. Clean the seal and the fuel filler neck.
3. Clear the code and drive for a few days to see if it returns. Many EVAP tests run only under specific conditions, sometimes taking several drive cycles.
4. If the code returns, replace the gas cap with a genuine OEM part (31010-3L600U), as aftermarket caps are a known and frequent cause of this code.
5. If you own a 2012-2014 model, contact a Kia dealer to check if TSB-ENG118R2 or TSBENG146R1 (ECM software update) applies to your VIN and has been performed.
6. Visually inspect the canister purge valve and its hoses in the engine bay. To test the valve, warm the engine, leave it running, and disconnect the hose leading away from the valve. Place your finger over the port on the valve; if you feel suction, the valve is stuck open and must be replaced.

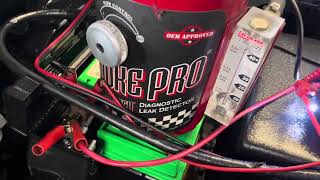

7. If the leak source is still not found, a smoke test is the most reliable next step. This involves injecting vaporized smoke into the EVAP system to visually pinpoint the location of the leak.
8. Based on the smoke test results, replace the leaking component, which could be the purge valve, canister close valve, a hose, or the charcoal canister.

Parts You'll Likely Need

• Fuel Cap (OEM #31010-3L600U (replaces 31010-3L600)) — This is the most frequent cause of a P0456 code. The seal wears out, or an aftermarket cap fails to provide a proper seal. Owner experiences strongly suggest using an OEM part is critical.
  Trusted brands: Kia (OEM)
  OEM price range: $25-$40
  Aftermarket price range: $15-$25
• Canister Purge Valve / Purge Control Solenoid Valve (OEM #290102B000) — A common failure point that gets stuck open, causing a persistent small leak and sometimes hard starting after refueling. It's relatively inexpensive and easy to replace.
  Trusted brands: Kia (OEM), Dorman, Standard Motor Products
  OEM price range: $50-$70
  Aftermarket price range: $25-$50

Related Codes That Often Appear With This One

• P0442 — This code indicates a medium-sized EVAP leak. If a small leak (P0456) worsens, it can trigger P0442. Some owners report both codes appearing together.
• P0455 — This code indicates a large EVAP leak. It often appears with P0456 if the gas cap is left off completely or another major component has failed.

Technical Service Bulletins (TSBs) & Recalls

• TSB-ENG118R2: Recommends an ECM software upgrade for some 2012-2013 Soul and Rio models with the 1.6L GDI engine to correct faulty logic

Platform-Specific Known Issues

• For 2012-2014 models, the P0456 code may be triggered erroneously by the ECM software. Kia issued Technical Service Bulletins TSB-ENG118R2 and TSBENG146R1 to address this with a software update.
• Owners repeatedly find that non-OEM gas caps are a primary cause of persistent P0456 codes, even after passing a smoke test. A 2016 Soul owner fixed their issue with a $13 Amazon cap that mimicked the OEM design after a Duralast cap failed to solve the problem.

Mechanic-Grade Diagnostic Values

• Canister Purge Solenoid Valve (PCSV) Coil Resistance — expected: 15 - 30 Ohms. Failure: A reading significantly outside this range, or an open circuit, indicates a failed solenoid coil. A 2015 Soul with a good valve measured 26.2 Ohms.
• Fuel Tank Pressure Sensor (FTPS) Voltage during vacuum test — expected: Should rise to ~3.0 Volts as vacuum is applied, then hold steady or fall no lower than 1.5 Volts after the purge valve is closed.. Failure: If the voltage falls below 1.5 Volts, it indicates a leak in the system.

Scan Tool Commands That Help

• GDS or advanced OBD-II Scanner: EVAP System Test / Canister Close Valve (CCV) Actuation — This command forces the CCV to close, sealing the EVAP system. It is used as the first step before performing a smoke test or a vacuum decay test to ensure the system is properly sealed for diagnosis.
• GDS or advanced OBD-II Scanner: Purge Control Solenoid Valve (PCSV) Actuation — This command cycles the purge valve open and closed. A technician can use this to verify the valve is not seized and is responding to the ECM's commands, often while listening for an audible click.

Wiring & Ground Locations

• Canister Close Valve (CCV) wiring — At the CCV connector, located near the charcoal canister at the rear of the vehicle.. To manually test the CCV and simulate the system being sealed, a technician can ground the blue wire at the CCV connector. This forces the valve closed, allowing for a vacuum test to be performed by running the engine and opening the purge valve.

Real Owner Repair Stories

• Reddit user LocoTacoTruk, self-identified Kia Master Tech (2011 Kia Soul (and related Rios, Fortes)) — P0456 (very small leak)
  ✅ What actually fixed it The user states that the Purge Control Valve (PCSV) is a very common failure. After numerous cycles, the valve fails to seal properly, causing a very small leak that triggers the code. They recommend this as a primary suspect.
• YouTube user comment on H.A.B garage video (2014 Kia Soul) — Persistent EVAP code for months.
  ❌ Tried (didn't work) Mechanic replaced the gas cap multiple times ($60 worth).
  ✅ What actually fixed it The owner identified the purge valve as the likely culprit, replaced it themselves, and the code was resolved, saving an estimated $200.

"I Checked Everything" — The Actual Cause

• On a related Kia Carnival with a persistent P0456 code, a dealer smoke test came back clean. The actual cause was an internally malfunctioning Fuel Tank Pressure Sensor (FTPS). The sensor's internal one-way check valve was bleeding off pressure, but the sensor itself was not leaking externally, so a smoke test could not find the fault. Replacing the FTPS (P/N 31435-2J000) resolved the issue. This should be considered a possibility on a Soul if a smoke test finds no leaks.

OEM Part Supersession History

• 31010-3L600, 31010-2F500, 31010-2D600, 31010-2C800 → 31010-3L600U — Standard part revision and consolidation over many model years.
  Heads up: Using the latest OEM part number (31010-3L600U) is highly recommended, as owner reports frequently cite issues with aftermarket caps failing to seal correctly and resolve the P0456 code.

Model Year Variations Within This Range

• 2014-2016: For related EVAP codes P0449/P0451 on 2014-2018 Souls, Kia issued TSB FUE038 (SA421). It specifically advises technicians NOT to replace the Canister Close Valve (CCV), but to instead replace a part called the 'Air Drain Case' located near the fuel filler neck. While this TSB isn't for P0456, it points to a known issue in the filler neck area on second-generation Souls that could be relevant.
