P0455 on 2021 Ram ProMaster: EVAP Large Leak Causes and Fixes

What's Unique About the 2021-2021 Ram PROMASTER

On Ram ProMaster vans, a common point of failure that triggers EVAP codes is the EVAP Leak Detection Pump (LDP), also known as an Evaporative System Integrity Module (ESIM). This component is mounted directly on the charcoal canister near the fuel tank. Owners often report getting a "Check Gas Cap" message on the dashboard even when the cap is secure, and the underlying issue is frequently this pump. 🎬 Watch: Why your gas cap light might be lying to you. The ESIM on these vehicles uses a gravity-based system with internal weights to detect leaks, and its proper rotational orientation during installation is critical for it to function correctly.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on.

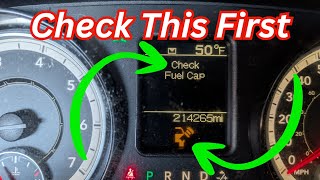

• A message on the dashboard may say "Check Gas Cap".
• A faint smell of gasoline, especially near the rear of the vehicle.
• The vehicle will fail an emissions test.
• A slight decrease in fuel economy may be noticeable.

Most Likely Causes

1. Loose, Damaged, or Incorrect Gas Cap 🔴 High Probability This is the most common cause for a P0455 code on any vehicle, as the cap is frequently removed and its seal can wear out over time or be improperly tightened.
   How to confirm: Inspect the gas cap for cracks or damage to the rubber seal. Ensure it is tightened until it clicks at least once. If the cap appears worn, replacement is a cheap and effective first step.
   Typical fix: Tighten or replace the gas cap. After replacement, the code may need to be cleared with a scan tool, or it may clear on its own after several drive cycles.
   Est. part cost: $15-$40
2. Faulty EVAP Purge Valve/Solenoid 🟡 Medium Probability The purge valve is an electromechanical part that cycles frequently and can get stuck open, creating a constant leak path from the EVAP system to the engine intake. This is a common failure item on many vehicles, including the ProMaster.
   How to confirm: The purge valve is typically located on the engine. A YouTube video for ProMaster models shows it is easily accessible in the engine bay. You can disconnect it and try to blow through it; if air passes through when the vehicle is off, it is stuck open and faulty. A scan tool can also be used to command the valve to open and close to listen for a clicking sound.
   Typical fix: Replace the purge valve. This is often a simple DIY job requiring no special tools, involving disconnecting two hoses and an electrical connector. 🎬 See this quick walkthrough for replacing the purge valve.
   Est. part cost: $30-$70
3. Faulty EVAP Leak Detection Pump (LDP) / Vent Valve 🟡 Medium Probability On many Ram vehicles, including the ProMaster, the vent valve and leak detection pump are integrated into a single unit called an ESIM, mounted on the charcoal canister. This component is a known failure point and can get stuck open or fail its internal test, causing a large leak code.
   How to confirm: This part is located near the fuel tank on the charcoal canister. Visual inspection may not reveal a fault. The most reliable way to confirm a failure is through a smoke test or by replacing it after confirming the gas cap and purge valve are good. Given its high failure rate, it's a common part to replace when other simple fixes fail.
   Typical fix: Replace the leak detection pump/vent valve assembly. This usually involves lowering the spare tire for access, disconnecting a hose and electrical connector, and twisting the pump a quarter-turn to remove it from the canister. It is critical to install the new pump in the correct orientation. 🎬 Watch: Essential tips for installing the ESIM correctly.
   Est. part cost: $50-$120
4. Cracked or Disconnected EVAP Hose ⚪ Low Probability Rubber and plastic hoses can become brittle and crack over time due to heat and age, especially at connection points near the engine or on the canister itself.
   How to confirm: Visually inspect all accessible EVAP lines running from the fuel tank, to the charcoal canister, and up to the purge valve in the engine bay. The most definitive method is to use a smoke machine, which fills the system with vapor and makes any leaks visible.
   Typical fix: Replace the cracked section of hose or reconnect a loose line.
   Est. part cost: $10-$50

Rare But Worth Checking

• Cracked Charcoal Canister: The plastic housing of the charcoal canister can crack from road debris or impact, creating a large leak. This is usually found during a smoke test.
• Damaged Fuel Filler Neck: Rust or damage to the metal filler neck where the gas cap seals can prevent a proper seal, even with a new cap. This is a known issue on various vehicles that can trigger a P0455.
• Leaking Fuel Pump Module Seal: A user on RamForum.com traced a persistent P0455/P0440 code to a rotted plastic top of the fuel pump module, which was leaking vapors from under its retaining ring. This was only discoverable with a smoke test and required dropping the tank or lifting the bed for access.

Diagnosis Steps

1. Check the gas cap. Remove it, inspect the seal for cracks, and reinstall it, making sure it clicks several times. Clear the code and drive for a few days to see if it returns.
2. If the code returns, visually inspect all accessible EVAP hoses under the hood and around the fuel tank for obvious cracks, disconnections, or damage.
3. Locate the EVAP purge valve in the engine bay. With the engine off, disconnect the hose and try to blow through it. If air passes, the valve is stuck open and needs replacement.
4. If the above steps don't reveal the issue, the most effective next step is a smoke test. A mechanic will inject pressurized smoke into the EVAP system. Smoke will exit from the point of the leak, making it easy to identify.
5. During the smoke test, pay close attention to the leak detection pump (ESIM) on the charcoal canister, the fuel filler neck, and the lines connected to the canister, as these are common failure points.
6. If no leak is found but the code persists, the fuel tank pressure sensor itself could be faulty, providing incorrect readings to the computer, though this is less common.

Parts You'll Likely Need

• Fuel Cap — This is the most common cause of a P0455 code. The seal wears out or the cap is not tightened properly.
  Trusted brands: Mopar, Stant
  OEM price range: $25-$40
  Aftermarket price range: $15-$30
• EVAP Canister Purge Valve (OEM #4627182AA) — This valve can get stuck open, creating a large, permanent vacuum leak in the EVAP system. It's a frequent failure point and a relatively easy DIY replacement.
  Trusted brands: Mopar, Bosch, Dorman
  OEM price range: $60-$90
  Aftermarket price range: $30-$60
• EVAP Leak Detection Pump (ESIM) (OEM #4861959AC) — This component, mounted on the charcoal canister, is responsible for testing the system's integrity and is a known weak point on Ram vehicles, often causing false 'gas cap' warnings. Aftermarket part sellers cross-reference Mopar part 4861959AC for this application.
  Trusted brands: Mopar, Standard Motor Products, Dorman
  OEM price range: $80-$150
  Aftermarket price range: $50-$100

Related Codes That Often Appear With This One

• P0456 — This code is for a 'small' EVAP leak. It can appear alongside P0455 if the system's self-test detects different leak sizes under varying conditions, or if a failing component is intermittent. The provided TSB lists them together. [Bulletin #1400522REVB]
• P0457 — This code specifically indicates a leak detected due to a loose or missing fuel cap. It's very common to see this with P0455 as it's a primary cause.
• P04EC — This code for 'EVAP System Large Leak Detected - Fuel Tank Side' is also mentioned in the same TSB as P0455 for the ProMaster, indicating they are related and can be triggered by the same fault. [Bulletin #1400522REVB]

Technical Service Bulletins (TSBs) & Recalls

• 1400522REVB: Mentions that P0455 - EVAP System Large Leak is a possible DTC that may be found when investigating a check engine light on 2021 ProMaster vehicles. It is listed alongside small leak codes (P0456) and fuel tank side leak codes (P04EC), suggesting a common diagnostic path for these related issues. [Bulletin #1400522REVB]

Platform-Specific Known Issues

• A Technical Service Bulletin (TSB #1400522REVB) was issued for the 2021 Ram ProMaster that lists P0455 as a potential diagnostic trouble code that may set, indicating a known issue recognized by the manufacturer. [Bulletin #1400522REVB]
• The ESIM (Leak Detection Pump) is a particularly common failure point on ProMaster vans and other vehicles with the Pentastar V6, often triggering EVAP codes even when the gas cap is fine.

Mechanic-Grade Diagnostic Values

• EVAP Purge Valve Solenoid Resistance — expected: 12 to 130 ohms, with many Chrysler/Dodge/Ram vehicles falling in the 14-30 ohm range.. Failure: A reading of 0 ohms (short circuit) or infinite/OL (open circuit) indicates a failed solenoid coil.
• Fuel Tank Pressure (FTP) Sensor Voltage (Key On, Engine Off) — expected: Approximately 8.9-9.0 volts.. Failure: A significantly different voltage reading at atmospheric pressure could indicate a faulty sensor.

Scan Tool Commands That Help

• wiTECH (Chrysler/Dodge/Ram Dealer Tool): EVAP System Test — This is a guided test that commands the various EVAP solenoids and monitors the system's ability to build and hold pressure, helping to pinpoint the leak size and location without manual testing.
• High-End Bidirectional Scan Tool: EVAP Vent Solenoid Open/Close Command — This command is essential during a smoke test. The technician manually commands the vent solenoid closed to seal the EVAP system, allowing the smoke machine to build pressure and reveal leaks.

Wiring & Ground Locations

• ESIM / Leak Detection Pump Connector — On the charcoal canister, located near the fuel tank, typically accessible from underneath the driver's side of the van.. This 3-pin connector provides power and ground to the pump and transmits the switch signal back to the PCM. Corrosion or damage to these wires can prevent the pump from running its test, potentially setting a P0455 code.
• Purge Valve Connector — In the engine bay, mounted near the intake manifold.. This 2-pin connector powers the purge solenoid. A loose connection or damaged wire here will prevent the valve from operating, which can cause various EVAP codes.

Real Owner Repair Stories

• YouTube user Harvey Hamilton (2017 Ram ProMaster 3500 V6) — Persistent 'Check Gas Cap' light on the dashboard.
  ❌ Tried (didn't work) The owner first replaced the EVAP purge solenoid valve located on the engine.
  ✅ What actually fixed it The owner then replaced the Leak Detection Pump (ESIM) on the charcoal canister to resolve the issue.
• YouTube user 'Ram Promaster (Gasoline) ESIM Module' (Ram ProMaster (2014+)) — Fuel pump at gas stations would constantly click off, making it very difficult to refuel.
  ❌ Tried (didn't work) The video does not mention other failed attempts, focusing directly on the successful repair.
  ✅ What actually fixed it Replacing the ESIM (Evaporative System Integrity Module), part number 4861959AC, solved the fueling problem. The video demonstrates the quarter-turn removal and replacement process.

"I Checked Everything" — The Actual Cause

• In some cases, a smoke test may not reveal a leak, but the code persists. This can happen if the ESIM (Leak Detection Pump) itself is faulty. The ESIM contains internal weights and a switch; if this internal mechanism fails, it can incorrectly report a leak to the computer even when the system is perfectly sealed. The failure is electronic or mechanical within the pump, not a physical leak in a hose, which is why a smoke test would pass.

OEM Part Supersession History

• 4861959AC → 04861959AD — Standard part revision and consolidation by the manufacturer.
  Heads up: The new part number 04861959AD replaces previous versions including 4861959AA, 4861959AB, and 4861959AC. They are interchangeable.
• 4593949AA, 4593949AB → 68525698AA — Part revision for the Fuel Tank Pressure Sensor assembly.
  Heads up: Part number 68525698AA is listed for the ProMaster 3.6L and replaces older versions.
