P0455 on 2012-2019 Chevrolet Sonic: EVAP Large Leak Causes and Fixes

What's Unique About the 2012-2019 Chevrolet SONIC

While many P0455 causes are universal, the Chevy Sonic and its platform mates (Cruze, Trax, Encore) have a very high failure rate for the EVAP purge valve solenoid. 🎬 Watch: Step-by-step guide to replacing the Sonic purge valve. A Sonic Owners Forum member detailed their experience, noting the part was redesigned and required a new wiring harness adapter for their 2012 model, a strong indicator of a known flaw with the original component. Additionally, a specific Technical Service Bulletin (TSB #17-NA-383) documents an unusual issue where spiders can build nests inside the EVAP canister vent hose, causing a blockage that the system interprets as a large leak.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• A faint smell of gasoline, especially around the rear of the car or near the gas cap.
• Remote start may be disabled when the Check Engine Light is active.
• Rough idle or difficulty starting the engine right after refueling (strong indicator of a stuck-open purge valve).
• Slight decrease in fuel economy.

Most Likely Causes

1. Loose, Damaged, or Incorrect Gas Cap 🔴 High Probability This is the most common cause for a P0455 on any vehicle. The gas cap seal can wear out, crack, or simply not be tightened enough after refueling.
   How to confirm: Inspect the gas cap for any visible cracks or damage to the rubber O-ring. Ensure it is tightened until it clicks at least three times. If the cap looks worn, replacement is an inexpensive first step.
   Typical fix: Tighten or replace the gas cap. Using a genuine OEM cap is recommended as some aftermarket caps may not seal properly.
   Est. part cost: $15-$30

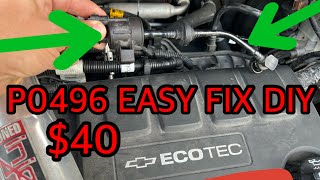

2. Faulty EVAP Purge Valve Solenoid 🔴 High Probability This is a very common failure item on both the 1.4L and 1.8L Chevy Sonic engines. The valve can get stuck open, causing a constant vacuum leak and often triggering a P0496 code as well. Some early replacement parts were redesigned, requiring a new wiring harness adapter.
   How to confirm: The purge valve is located on the intake manifold. A simple test is to remove it and try to blow through it; when unpowered, it should be closed and not allow air to pass. If you can blow through it, it's stuck open and needs replacement.
   Typical fix: Replace the EVAP purge valve solenoid. On some early models, a new wiring harness adapter may also be required if replacing with an updated part.
   Est. part cost: $25-$50
3. Faulty EVAP Vent Valve Solenoid 🟡 Medium Probability This valve, located near the charcoal canister at the rear of the vehicle by the fuel tank, can get stuck open, preventing the system from sealing for its pressure test.
   How to confirm: The valve can be tested with a scan tool that can command it to close. A smoke test is the most effective way to confirm it's leaking when it should be sealed. Visually inspect for cracks or damage. You can also test the coil's resistance with a multimeter.
   Typical fix: Replace the EVAP vent valve solenoid. Sometimes the wiring harness connector can also be a point of failure.
   Est. part cost: $30-$60
4. Spider Nest in EVAP Canister Vent ⚪ Low Probability A specific GM Technical Service Bulletin (#17-NA-383) identifies that spiders can lay nests within the EVAP canister's fresh air inlet port, causing a restriction that triggers code P0455 or P0446. This TSB applies to the Sonic, Trax, and Encore.
   How to confirm: Visual inspection of the EVAP canister and its vent lines for foreign material or blockages. This requires removing the vent cap to inspect the inlet port.
   Typical fix: Replace the EVAP canister assembly as per the procedure in TSB #17-NA-383.
   Est. part cost: $100-$200
5. Cracked or Disconnected EVAP Hose ⚪ Low Probability Rubber hoses can become brittle and crack over time due to heat and age, creating a leak in the system. The hoses connected to the purge valve in the engine bay are common points of failure.
   How to confirm: Perform a thorough visual inspection of all EVAP lines between the engine, charcoal canister, and fuel tank. A smoke test is the most reliable method to find a cracked hose.
   Typical fix: Replace the damaged section of hose.
   Est. part cost: $10-$40

Rare But Worth Checking

• Cracked Charcoal Canister: The canister body itself can be damaged by road debris or become saturated with fuel if the gas tank is habitually overfilled, causing a large leak. This is uncommon but should be checked with a visual inspection.
• Leaking Fuel Tank Filler Neck: The metal tube leading from the gas cap to the tank can rust and develop holes, especially in regions that use road salt. This will cause a persistent EVAP leak that a new gas cap cannot fix. A smoke test will quickly reveal a leak in this area.

Diagnosis Steps

1. Read the code with an OBD-II scanner to confirm P0455 is the primary code. Note any other codes like P0496 or P0442.
2. Inspect the gas cap. Remove it, check the seal for cracks, and retighten it until it clicks several times. Clear the code and drive for a few days to see if it returns.
3. If the code returns, perform a visual inspection of the EVAP purge valve and its hoses in the engine bay, located on the intake manifold. Look for obvious cracks or disconnected lines.
4. Test the purge valve. Disconnect it and try to blow through the ports. If air passes through, the valve is stuck open and must be replaced. This is a very common failure.
5. Visually inspect the EVAP canister, vent solenoid, and associated hoses under the rear of the vehicle, near the fuel tank. Look for damage, cracks, or blockages, paying attention to the canister vent port for spider webs per TSB #17-NA-383.
6. If the cause is still not found, a professional smoke test is the most effective way to find the exact location of the leak. This involves injecting vaporized smoke into the EVAP system and looking for where it escapes.

Parts You'll Likely Need

• Gas Cap (OEM #ACDelco GT334 (replaces GT296), GM 22921366) — This is the simplest and most frequent cause of a large EVAP leak code. The seal fails over time or the cap is not tightened correctly.
  Trusted brands: ACDelco, Stant, Duralast
  OEM price range: $20-$30
  Aftermarket price range: $15-$25
• EVAP Canister Purge Valve Solenoid (OEM #ACDelco 55573017 (for 1.4L Turbo), ACDelco 55567453 (for 1.8L)) — A very common failure point on the Chevy Sonic that causes P0455 and P0496 codes. It gets stuck open or fails electronically.
  Trusted brands: ACDelco, Dorman (911-409 for 1.4L, 911-388 for 1.8L), Standard Motor Products (CP781 for 1.4L, CP780 for 1.8L)
  OEM price range: $35-$50
  Aftermarket price range: $25-$45
• EVAP Canister Vent Valve Solenoid (OEM #ACDelco 23481275 (check VIN, multiple parts exist)) — Located near the fuel tank, this valve can stick open, preventing the system from sealing during its self-test.
  Trusted brands: ACDelco, Dorman, Standard Motor Products
  OEM price range: $40-$60
  Aftermarket price range: $30-$50

Related Codes That Often Appear With This One

• P0442 — P0442 indicates a small EVAP leak. Sometimes a component is beginning to fail and may initially set a small leak code before it worsens and triggers the large leak code P0455. A TSB also groups these codes together for diagnosis. [TSB #21-NA-124]
• P0496 — This code means 'EVAP Flow During a Non-Purge Condition' and almost always points directly to a faulty purge valve that is stuck open. It is extremely common to see P0496 alongside P0455 on the Sonic and its platform mates.
• P0446 — P0446 indicates an issue with the EVAP vent control circuit. The TSB regarding spider nests specifically mentions P0446 and P0455 occurring together.

Technical Service Bulletins (TSBs) & Recalls

• 21-NA-124: Diagnostic tips on testing for possible EVAP leaks for DTCs P0442 and/or P0455.
• 17-NA-383: Procedure to replace the EVAP canister for a P0455 due to spiders laying a nest within the canister.

Platform-Specific Known Issues

• TSB #17-NA-383: Spider Nests in EVAP Canister: Documents a specific issue where spiders can build nests inside the EVAP canister's fresh air inlet, causing a restriction that triggers code P0455 or P0446. The fix is to inspect and, if blocked, replace the canister.
• TSB #21-NA-124: EVAP Leak Diagnostic Tips: Provides diagnostic tips for finding EVAP leaks related to codes P0442 (small leak) and P0455 (large leak), guiding technicians on a systematic approach to testing.
• Forum-Documented Purge Valve Redesign: Owners on forums have noted that the original purge valve on early models was prone to failure and was later redesigned. Replacing the original part with the updated version sometimes requires a new wiring harness adapter, indicating a known manufacturer flaw.

Mechanic-Grade Diagnostic Values

• EVAP Purge or Vent Valve Solenoid Coil Resistance — expected: 15 to 30 Ohms. Failure: A reading that is too high, too low, or infinite (open circuit) indicates a faulty solenoid coil.
• Fuel Tank Pressure (FTP) Sensor Voltage (Key On, Engine Off) — expected: Approximately 1.5 Volts. Failure: A significantly different voltage at rest can indicate a faulty sensor or a system that is not at atmospheric pressure.
• EVAP Vent Solenoid Resistance (2017 1.8L) — expected: ~23 Ohms. Failure: A user on a forum tested a functioning vent solenoid and found it to be 23 Ohms. An open circuit would indicate failure.

Scan Tool Commands That Help

• GDS2 / Tech 2 / Professional Scan Tool: EVAP Service Bay Test — This is a guided diagnostic test that commands the EVAP system through a full self-test cycle, including closing the vent valve and opening the purge valve to create a vacuum. It allows a technician to verify a leak exists and confirm a repair has been successful without waiting for a full drive cycle. The test requires the fuel level to be between 15% and 85%.
• GDS2 / Professional Scan Tool: EVAP Purge/Seal — This function allows for manual control of the EVAP solenoids. A technician can command the vent valve closed and then command the purge valve open to draw a vacuum in the tank, then seal the system to watch the Fuel Tank Pressure (FTP) sensor data. A rapid drop in vacuum (voltage returning to 1.5V) confirms a leak.

Wiring & Ground Locations

• EVAP Purge Solenoid — On the intake manifold, at the right rear of the engine (1.8L) or right front of the engine (1.4L).. This is the location for visual inspection, testing, and replacement of the most common failing component for this code.
• EVAP Vent Solenoid — On or near the EVAP charcoal canister, which is located near the fuel tank at the rear of the vehicle.. This is the location for inspecting the vent valve, its connector, and nearby hoses for damage or blockage (like spider nests).
• G104 — Lower right rear of the engine.. This is a primary engine ground point. A poor connection here could potentially affect various engine control components, including those in the EVAP system.
• Fuel Tank Pressure (FTP) Sensor — On top of the fuel tank, as part of the fuel pump module.. This sensor provides the pressure readings that the ECM uses to detect the P0455 leak. Accessing it requires removing the fuel tank.

Real Owner Repair Stories

• Reddit user in r/ChevySonic (2012 Chevrolet Sonic) — Persistent P0455 code, reduced MPG.
  ❌ Tried (didn't work) Dealership replaced the EVAP vent valve solenoid (on the tank).
  ✅ What actually fixed it The code returned the next day. The issue was finally resolved by replacing the EVAP purge valve solenoid located under the hood.
• Sonic Owners Forum user (2014 Chevrolet Sonic 1.8L, 73,000 miles) — Check Engine Light with codes P0496 (EVAP High Purge Flow) and P0171 (System Too Lean).
  ❌ Tried (didn't work) Dealer reset code, claiming it was a 'loose oil cap', but the light returned.
  ✅ What actually fixed it The owner suspected the purge valve was stuck open, causing both the EVAP code and the lean condition due to the unmetered air leak. The discussion points to the purge valve as the definitive cause for this combination of codes.

When the Usual Fixes Don't Work

• In one documented case on Reddit, a 2012 Sonic owner had the EVAP vent valve (by the tank) replaced by a dealership to fix a P0455 code, but the check engine light returned the next day. The problem was only resolved after the EVAP purge valve (in the engine bay) was replaced, highlighting that even professional shops can misdiagnose the issue by replacing the less common failure point first.

OEM Part Supersession History

• Unknown (Original Purge Valve on 2012 models) → ACDelco 55573017 (1.4L) or 55567453 (1.8L) — The original purge valve design was prone to sticking open. The updated part is more robust.
  Heads up: Some early models (e.g., 2012) replacing the original purge valve with the updated design may require a separate wiring harness adapter because the electrical connector was changed. This is a strong indicator of a known design flaw in the original part.
