P0448 on 2005-2012 Nissan Frontier: EVAP Vent Valve and Fuel Filling Fixes

What's Unique About the 2005-2012 Nissan FRONTIER

The second-generation (D40) Nissan Frontier is notoriously prone to code P0448 🎬 Watch this easy fix for the P0448 check engine light. due to a design vulnerability. The fresh air intake for the EVAP system is located near the fuel filler neck, which allows dust, sand, and debris—especially from off-road driving or dirt roads—to be drawn into the system. This debris travels down the vent hose and clogs the EVAP canister and the vent control valve, causing it to fail. The problem is so widespread that Nissan issued multiple Technical Service Bulletins (TSBs). The comprehensive repair involves not only replacing the valve and canister but also replacing the fuel filler pipe and adding an EPT foam seal to better block debris from entering the system.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Difficulty filling the fuel tank (gas pump nozzle clicks off repeatedly).
• A 'whoosh' sound of air escaping when opening the gas cap.
• A faint fuel smell near the rear of the truck.

Most Likely Causes

1. Failed EVAP Canister Vent Control Valve 🔴 High Probability The valve is highly susceptible to contamination from dust and debris drawn in through the fuel filler area, causing it to stick closed or short circuit. This is the most common failure point for this code on the Frontier.
   How to confirm: Locate the valve on the EVAP canister at the rear of the truck. You can test it by applying 12V power to its terminals to see if it clicks open and closed. A more common confirmation is simply finding it clogged with dirt upon removal.
   Typical fix: Replace the vent control valve. It removes with a quarter-turn twist from the EVAP canister. However, due to contamination, Nissan's TSBs recommend replacing the canister at the same time.
   Est. part cost: $35-$100
2. Clogged EVAP (Charcoal) Canister 🔴 High Probability The same dust that kills the vent valve also saturates the charcoal canister, restricting airflow. Since the vent valve is mounted directly to it, and Nissan's TSBs recommend replacing both, it's considered part of the same common failure.
   How to confirm: When the canister is removed, it may be visibly full of dirt or sand. One owner on 'TheNissanPath.com' forum noted their old, clogged canister weighed 9.4 ounces more than the new replacement due to the trapped dirt. Shaking it may reveal loose debris.
   Typical fix: Replace the entire EVAP canister assembly, which often includes a new vent valve. For a temporary fix, some owners have successfully removed the canister and used compressed air to blow the dust out.
   Est. part cost: $150-$250
3. Damaged Wiring or Connector ⚪ Low Probability The wiring is located under the truck and is exposed to the elements, which can lead to corrosion or physical damage over time, causing a short circuit as the code name implies.
   How to confirm: Visually inspect the wiring harness and connector going to the vent control valve for any breaks, corrosion, or loose pins. Check for 12V power at the connector with a multimeter with the key in the ON position.
   Typical fix: Repair the damaged section of the wiring harness or clean/replace the connector.
   Est. part cost: $5-$30

Diagnosis Steps

1. Scan the vehicle for the P0448 code and any other related codes.
2. Attempt to fill the fuel tank. If the pump clicks off repeatedly, it strongly suggests a blocked vent path, which is characteristic of this issue on the Frontier.

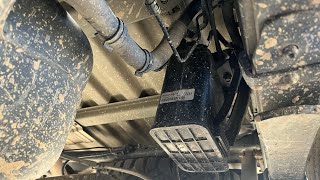

3. Locate the EVAP canister and vent control valve assembly. It is mounted to a bracket near the spare tire at the rear of the truck. Access is from underneath, and a long 12mm socket extension is a key tool needed.
4. Inspect the wiring and connector to the vent control valve for any visible damage or corrosion.
5. It is often easier to disconnect the hoses and electrical connectors *after* unbolting the canister bracket and lowering the assembly for better access.
6. Disconnect the vent control valve. It typically removes with a counter-clockwise quarter-turn twist. Be careful, as the plastic tabs can be brittle.
7. Inspect the valve and the port on the canister for dust, sand, or other debris. Contamination is the most likely cause.
8. As a temporary measure, you can try cleaning the valve and blowing compressed air through the canister to dislodge dust. Be sure to also blow out the vent lines.
9. For a permanent fix, replace the vent control valve and the charcoal canister as per Nissan TSBs NTB15-079g. This procedure also calls for replacing the fuel filler pipe and adding a new foam seal to it to prevent recurrence.
10. After replacing the necessary parts, clear the code with a scan tool and perform a drive cycle to ensure the Check Engine Light does not return.

Parts You'll Likely Need

• EVAP Canister Vent Control Valve — This is the component that fails most frequently due to dust contamination, causing the P0448 code and fueling issues.
  Trusted brands: Hitachi, Dorman, Standard Motor Products, Bosch
  OEM price range: $70-$110
  Aftermarket price range: $35-$75
• EVAP Charcoal Canister (OEM #14950-EA20B (supercedes 14950-EA200, 14950-EA20A, 14950-EA201)) — The canister becomes clogged with the same dust that fouls the valve. Nissan's official repair procedure is to replace the canister and valve together for a permanent fix.
  Trusted brands: Nissan (OEM), Dorman
  OEM price range: $200-$250
  Aftermarket price range: $150-$200
• Fuel Filler Pipe (OEM #17221-9BF0B (Long Wheel Base models, check VIN for exact fit)) — The original design allows dust ingress. TSBs call for replacing it with a new pipe and adding an EPT foam seal (Part #17295-EZ30C) to prevent future contamination.
  Trusted brands: Nissan (OEM)
  OEM price range: $80-$150

Related Codes That Often Appear With This One

• P0442 — This code for a 'small EVAP leak' can sometimes accompany P0448 if the system is compromised by the same dust intrusion issue or if the vent valve O-ring is damaged.
• P0455 — This code for a 'large EVAP leak' may appear if the vent valve is stuck open, though P0448 is typically for a stuck closed or circuit fault condition.

Technical Service Bulletins (TSBs) & Recalls

• NTB15-079g: 'MIL ON WITH DTC P0448'. This is a key bulletin, amended over several years, confirming the issue for 2005-2019 models. It outlines the full repair procedure: replace the EVAP canister, fuel filler pipe, canister drain hose, and fuel filler cap (on some years).
• NTB15-079d: An earlier version of the bulletin which also confirms the action is to replace the canister, remove the old filter, and replace the fuel filler pipe with an added EPT foam seal.
• NTB07-060a: An older bulletin that hints at dirt clogging the EVAP canister as a potential source for P0448 and other EVAP codes, recommending the installation of a filter kit.

Platform-Specific Known Issues

• A known design flaw allows dust and debris from near the fuel filler neck to enter the EVAP system, leading to chronic P0448 codes.
• Nissan issued multiple Technical Service Bulletins (e.g., NTB15-079g) that detail a comprehensive repair. This repair involves replacing the vent valve, EVAP canister, the fuel filler pipe, and adding a new EPT foam seal around the filler pipe to mitigate dust intrusion.
• For owners in very dusty areas, this can be a recurring problem even after repairs, leading some to explore custom solutions like relocating the EVAP system's air intake hose.

Mechanic-Grade Diagnostic Values

• EVAP Canister Vent Control Valve Solenoid Resistance — expected: 15 - 30 Ohms. Failure: A reading of 0 Ohms (short circuit) or infinite/OL (open circuit) indicates a failed solenoid coil.
• Voltage at Vent Control Valve Connector — expected: 12V (Battery Voltage) on one pin with ignition ON. Failure: No voltage suggests a problem with the power supply circuit, such as a blown fuse or broken wire. The other pin is the ground, controlled by the ECM.

Scan Tool Commands That Help

• Nissan CONSULT or advanced bidirectional scanner (e.g., iCarsoft, Autel): EVAP System > Vent Valve Control / Active Test — Use this command to manually cycle the vent control valve. With the valve accessible, you should hear an audible 'click' each time it's commanded ON or OFF. No click indicates a seized valve or an electrical fault. This confirms if the valve is mechanically stuck or if the circuit is failing to activate it.
• Nissan CONSULT or advanced bidirectional scanner: EVAP Leak Test — After repairs are completed, this function seals the EVAP system (by closing the vent valve) and monitors system pressure to confirm there are no leaks and that the new valve is sealing correctly. A 'Pass' result validates the repair.

Wiring & Ground Locations

• EVAP Canister Assembly — Under the vehicle at the rear, mounted to a bracket near the spare tire, typically on the driver's side.. This is the physical location of the vent control valve and charcoal canister, the primary points of failure for P0448.
• IPDM E/R (Intelligent Power Distribution Module Engine Room) — In the engine compartment, typically on the right (passenger) side rear.. This module contains the fuses and relays that supply power to many components, including the EVAP vent valve circuit. A blown fuse (check for one labeled 'EVAP') in this box could cause the P0448 code.
• Ground Points E15, E24 — Located in the right front of the engine compartment.. These are common grounding points for various engine and chassis components. A corroded or loose ground connection at these locations can cause a variety of electrical issues, including an intermittent or shorted circuit for the EVAP vent valve, leading to P0448.

Real Owner Repair Stories

• Reddit user 'ashevillain7' on r/nissanfrontier (2015 Nissan Frontier SV) — P0448 Check Engine Light, difficulty filling the gas tank, especially in cold or rainy weather.
  ❌ Tried (didn't work) One shop insisted on performing the full TSB repair, including replacing the fuel filler neck, gas cap, and other parts, which the owner considered overkill.
  ✅ What actually fixed it A different shop replaced only the EVAP canister and the vent solenoid. The Check Engine Light turned off immediately after the repair, resolving the issue without needing to replace the filler neck or other TSB components.
• TheNissanPath.com forum user (Nissan Pathfinder (similar D40 platform and EVAP system)) — Continuous P0448 code that would return within a day or two of being reset.
  ❌ Tried (didn't work) Replacing the vent control valve alone ($40), which did not fix the problem.
  ✅ What actually fixed it The owner removed the charcoal canister, took off the vent valve, and used compressed air to blow a large amount of dust out of the canister through all its ports. This free repair fixed the code permanently.
• YouTube video by 'Maic Salazar Diagnostics' (2007 Nissan Pathfinder) — P0448 Check Engine Light.
  ❌ Tried (didn't work) The vent control valve was tested with 12V power and was heard clicking, indicating the solenoid itself was functional.
  ✅ What actually fixed it Upon removing the vent valve, the port on the EVAP canister was found to be completely clogged with dirt. The canister was cleaned out with compressed air, and the code did not return after driving 70 miles.

OEM Part Supersession History

• 14950-EA200, 14950-EA201, 14950-EA20A, 14950-EA20B → 14950-EA20D — Part revision to improve durability or address known failure modes.

Model Year Variations Within This Range

• 2011 and older: According to Nissan TSB NTB15-079d and later revisions, when performing the comprehensive P0448 repair, the fuel filler cap (Part # 17251-9BD0E) must also be replaced on 2011 and older models. This is not required for 2012 and newer models under the same TSB.
