P0443 on 2004-2013 BMW 1-Series: EVAP Purge Valve Circuit Malfunction Causes and Fixes

What's Unique About the 2004-2013 BMW 1-Series

For the first-generation BMW 1-Series (E82, E88, etc.), this code is a very common and well-documented issue. The N52, N54, and other gasoline engines used in this chassis are known for the eventual failure of the Bosch-made purge valve solenoid. The part is tucked under the intake manifold on N52/N53 engines, making access a little tight but still manageable for a DIY repair. On other engines, it may be more accessible. The failure is almost always the valve's internal electrical coil, making diagnosis with a multimeter quick and definitive.

Generation note: The 2004-2013 model years cover the entire first generation of the BMW 1-Series, which includes the E81, E82, E87, and E88 chassis codes. The cause, diagnosis, and repair for code P0443 are consistent across all gasoline engines offered in this generation (e.g., N51, N52, N54, N55).

Symptoms You May Notice

• Check Engine Light is on.
• Slightly reduced fuel economy.
• Rough engine idle (less common, but can occur if the valve is stuck open).
• Possible fuel odor (rare).
• Car may enter limp mode with reduced power (very rare for this specific code).

Most Likely Causes

1. Failed EVAP Purge Valve (Solenoid) 🔴 High Probability The internal coil winding of the solenoid is a common failure point over time and with heat cycles from the engine. This is a well-documented issue across many BMW models that use this part.
   How to confirm: Disconnect the electrical connector from the valve. Use a multimeter to measure the resistance between the two pins on the valve itself. A healthy valve for a similar BMW engine should read between 20-30 ohms. A forum user with a similar issue reported their new, good valve measured 26 ohms, while the old one was 31 ohms. A video demonstration shows a good valve measuring 28.1 ohms, while a failed valve gives a reading of over 190 ohms. 🎬 Watch: How to test the purge valve with a multimeter An infinite reading (O.L.) or a reading significantly outside the 20-30 ohm range confirms it has failed. You can also try applying 12V directly to the pins; a healthy valve will make an audible 'click'.
   Typical fix: Replace the EVAP purge valve. This involves disconnecting one electrical connector and two hoses.
   Est. part cost: $40-$120
2. Damaged Wiring or Connector ⚪ Low Probability The wiring harness is located in the engine bay and can become brittle or damaged from heat and vibration over time, especially the section under the intake manifold on N52 engines.
   How to confirm: Visually inspect the wiring harness and connector leading to the purge valve for any signs of cracking, chafing, or corrosion. With the ignition on (engine off), use a multimeter to check for battery voltage (approx. 12V) at one of the pins in the connector. Lack of voltage points to a wiring or fuse issue.
   Typical fix: Repair the damaged section of wire or replace the connector pigtail.
   Est. part cost: $5-$30
3. Blown Fuse ⚪ Low Probability
   How to confirm: Check the vehicle's fuse diagram for the fuse related to the emissions system or DME. The specific fuse location can vary, so consulting an owner's manual or vehicle-specific diagram is necessary.
   Typical fix: Replace the blown fuse. If the fuse blows again, it indicates a short circuit in the system that needs to be diagnosed, possibly in the purge valve itself or its wiring.
   Est. part cost: $1-$5

Rare But Worth Checking

• Faulty Engine Control Module (DME): This is extremely rare. The DME's internal driver for the purge valve circuit can fail, but this should only be considered after the valve and wiring have been thoroughly tested and confirmed to be good. A faulty DME is the least likely cause.

Diagnosis Steps

1. Scan the vehicle's computer to confirm P0443 is the active code. Use a BMW-specific scanner if available to check for shadow codes like 2A15 or 2A16.
2. Locate the EVAP purge valve. On 6-cylinder N52/N53 engines, it is typically found under the intake manifold.
3. Inspect the electrical connector and wires going to the valve for any visible damage, corrosion, or loose connections.
4. Disconnect the connector. With the ignition on (engine off), use a multimeter to confirm that one of the pins in the connector has battery voltage (approx. 12V).
5. With the connector still off, measure the resistance across the two pins on the purge valve itself. An infinite reading (open), a reading near zero (short), or a reading significantly outside the 20-30 ohm range confirms the valve is bad. A good reading is typically in the 20-30 ohm range.
6. If the valve's resistance is good and power is present at the connector, check the signal wire (the other wire) for continuity back to the DME. This checks for a broken wire.
7. As a final functional test, you can apply 12V from the battery directly to the valve's pins. You should hear a distinct click. You can also attempt to blow through the valve; it should be closed by default and open only when 12V is applied.
8. If all wiring and the valve test good, the issue could be a rare failure of the DME.

Parts You'll Likely Need

• EVAP Purge Valve / Fuel Tank Breather Valve (OEM #13907618643) — This is the most common failure by a wide margin. The internal solenoid coil fails, causing the electrical circuit fault. It is highly recommended by forum users to use a Genuine BMW or original Bosch part, as some aftermarket versions have been reported to not resolve the code.
  Trusted brands: Bosch, Genuine BMW, Febi Bilstein
  OEM price range: $80-$135
  Aftermarket price range: $40-$85

Related Codes That Often Appear With This One

• P0444 — P0444 indicates 'Purge Control Valve Circuit Open.' It is very similar to P0443 and often points to the same failure of the purge valve's internal coil or a broken wire.
• 2A15 — This is a BMW-specific 'shadow' code for 'Tank-venting valve, activation: short circuit to B+ or open circuit.' It is the manufacturer-specific equivalent of the generic P0443/P0444 and requires a BMW-capable scanner to read.

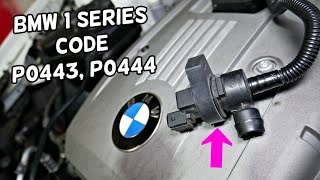

🎬 See: BMW 1-Series P0443 and P0444 diagnostic guide
• 2A16 — This is a BMW-specific 'shadow' code for 'Tank-venting valve, activation: short circuit to ground.' It points directly to a short in the purge valve circuit, which is one of the potential causes of P0443.

Platform-Specific Known Issues

• N52/N53 Engine Access: On the popular N52 and N53 6-cylinder engines, the purge valve is located under the intake manifold, making it somewhat difficult to access without removing other components like the airbox and intake boot.
• Hose Clamp Replacement: The original hose clamps are often single-use crimp-style clamps. It is recommended to have standard worm-gear style hose clamps on hand to replace them during the repair.
🎬 Watch: Step-by-step N52 purge valve replacement walkthrough

Mechanic-Grade Diagnostic Values

• EVAP Purge Valve (Solenoid) Coil Resistance — expected: 20-30 Ohms. Failure: An infinite reading (O.L.), near-zero reading, or a reading significantly higher than 30 Ohms (e.g., 190+ Ohms) indicates a failed coil.
• Voltage at Purge Valve Connector — expected: Approximately 12V (Battery Voltage). Failure: No voltage indicates a problem upstream, such as a blown fuse or broken wire.

Hidden / Shadow Codes Worth Checking

• 2A15: DMTL, tank-venting valve, activation: short circuit to B+ or open circuit. This is the BMW-specific code for an open or short to positive in the purge valve circuit. (see via BMW-specific diagnostic software like ISTA, INPA, or an advanced professional scan tool.)
• 2A16: DMTL, tank-venting valve, activation: short circuit to ground. This is the BMW-specific code for a short to ground in the purge valve circuit. (see via BMW-specific diagnostic software like ISTA, INPA, or an advanced professional scan tool.)

Scan Tool Commands That Help

• ISTA or advanced OBD-II scanner: Active Test for EVAP VSV (Purge Valve) — This command allows the technician to manually open and close the purge valve to verify its mechanical function (listening for a 'click') and to check the integrity of the control circuit from the DME.

Wiring & Ground Locations

• Engine Ground Strap — On N52/N54/N55 engines, the main engine-to-chassis ground strap is located on the driver's side, connecting the engine mount arm to the vehicle's chassis.. This strap is known to corrode, creating high resistance. A poor ground can cause unstable voltage references for various electronic components, including the DME's drivers, potentially leading to erroneous circuit fault codes like P0443. While not a primary cause, it should be inspected if other electrical issues are present.

OEM Part Supersession History

• 13907572234 → 13907618643 — Standard part revision by the manufacturer.
• 13904588396 → 13907618643 — Standard part revision by the manufacturer.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• N52 Electric Water Pump & Thermostat Failure 🔴 High — Very common failure, typically between 60,000-100,000 miles. Failure can cause rapid overheating and leave you stranded.
• N54 High-Pressure Fuel Pump (HPFP) Failure 🔴 High — Extremely common on N54 engines. Symptoms include long cranks, stuttering, and limp mode. Subject to recalls and extended warranties. (Ref: Yes, multiple recalls and extended warranties were issued.)
• N54 Turbocharger Wastegate Rattle 🟠 Medium — Common on N54 engines, causing a rattling noise on deceleration. Can lead to boost control issues over time. (Ref: An 8-year/82,000-mile warranty extension was offered by BMW for this issue.)
• Oil Filter Housing Gasket (OFHG) & Oil Cooler Gasket Leaks 🟠 Medium — A very common oil leak on both N52 and N54 engines. The gasket hardens and leaks oil, often onto the serpentine belt, which can cause belt failure and serious engine damage if ingested.
• Valve Cover & Gasket Leaks 🟠 Medium — Common on both N52 and N54 engines due to heat cycles causing the plastic cover to warp or the gasket to fail.
• N54/N55 Plastic Charge Pipe Failure 🟠 Medium — The stock plastic charge pipe is prone to cracking and failing, especially on tuned cars, causing a sudden loss of power.
• N52 VANOS Solenoid Failure 🟡 Low — Fairly common. Clogged or failed VANOS solenoids cause rough idle, poor performance, and check engine lights (codes 2A82, 2A87). Easy to clean or replace.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this specific repair, buying a used part is not recommended. The failure is an internal electrical coil that degrades with heat and time, so a used part has a high risk of either being already faulty or having a very short remaining service life.

What to inspect on the donor part:

• Not applicable as used part is not recommended.

OEM-only on this vehicle (don't cheap out):

• While not strictly 'OEM-only', it is strongly advised to use either a Genuine BMW part or a part from the original equipment manufacturer, which is typically Bosch. This ensures correct coil resistance and valve operation to satisfy the DME's sensitive checks.

Aftermarket brands forum-validated for this vehicle:

• Bosch (OEM)
• Febi-Bilstein

Brands owners have reported issues with on this vehicle:

• Unbranded, low-cost parts from online marketplaces should be avoided, as forum members have reported instances where these parts do not clear the code or fail quickly.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• 2A15 — A BMW-specific shadow code often found alongside P0443 during a diagnostic scan of the EVAP system.
• 2A16 — A BMW-specific shadow code related to the EVAP system that may appear with P0443.
• 2A82 — Related to N52 VANOS solenoid failure; though not part of the EVAP system, it is a common companion code in engine management diagnostics for this vehicle.
• 2A87 — Related to N52 VANOS solenoid failure, frequently cited in the same diagnostic context as other N52 engine management faults.
