P0442 on 2007-2013 Chevrolet Avalanche: EVAP Small Leak Causes and Fixes

What's Unique About the 2007-2013 Chevrolet AVALANCHE

On this generation of GM trucks (GMT900 platform), including the Avalanche, Silverado, and Tahoe, the EVAP system components are known weak points. Dust and road debris frequently cause the rear-mounted vent solenoid to fail, while the engine-mounted purge valve solenoid is notorious for getting stuck open. Several GM Technical Service Bulletins (TSBs) have been issued regarding P0442, pointing technicians toward specific diagnostic procedures for these common EVAP system leaks and confirming the prevalence of the issue.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on.
• A faint smell of fuel, especially around the gas cap area or after parking.
• Slightly reduced fuel economy.
• A whooshing sound when removing the gas cap.
• Difficulty starting or extended cranking right after filling the gas tank.

Most Likely Causes

1. Loose or Faulty Gas Cap 🔴 High Probability The gas cap is the most frequently handled part of the EVAP system. Its seal can wear out, or it can be cross-threaded or simply left loose after refueling, creating a leak. This is the most common and easiest fix for a P0442.
   How to confirm: Ensure the gas cap is tightened until it clicks at least three times. Inspect the rubber O-ring on the cap for cracks, hardening, or damage. An OEM cap is often recommended as some aftermarket caps do not seal correctly.
   Typical fix: Tighten the cap. If the seal is damaged or the cap is old, replace it with a new OEM-equivalent cap.
   Est. part cost: $15-$30
2. Faulty EVAP Purge Valve Solenoid 🟡 Medium Probability This valve, located on the engine intake manifold, is a very common failure point on GM trucks. It can get stuck open due to carbon buildup or diaphragm failure, creating a constant small leak that the system detects.
   How to confirm: With the engine off, remove the valve and try to blow through it. If air passes through, the valve is stuck open and is bad. A handheld vacuum pump can also be used to test if it holds a vacuum when not energized; if it doesn't, it's faulty.
   Typical fix: Replace the purge valve solenoid. It is mounted on the intake manifold and is typically a very quick repair.
   Est. part cost: $25-$50
3. Faulty EVAP Vent Valve Solenoid 🟡 Medium Probability Located near the charcoal canister by the fuel tank, this valve is exposed to road debris, dust, and moisture. This can cause it to get stuck open or fail electronically, preventing it from sealing the EVAP system for the self-test. This often triggers code P0449 alongside P0442.
   How to confirm: The valve is normally open and should close when 12 volts are applied. It can be tested with a scan tool that can command it closed. A smoke test is the most effective way to confirm a leak at the valve itself or its connections.
   Typical fix: Replace the vent valve solenoid assembly. Many owners opt for a relocation kit that moves the valve's filter to a cleaner, more protected location like the transmission bell housing or high up in the engine bay to prevent future failures.
   Est. part cost: $30-$70
4. Cracked or Disconnected EVAP Hoses ⚪ Low Probability Over time, the rubber and plastic hoses in the EVAP system can become brittle from heat and age, leading to cracks. Connections can also become loose, especially after other service work.
   How to confirm: Visually inspect all accessible EVAP lines from the engine bay to the fuel tank for obvious cracks or loose connections. A smoke test is the best method to find small, hard-to-see leaks in the lines.
   Typical fix: Replace the cracked section of hose or reconnect any loose fittings.
   Est. part cost: $10-$40

Rare But Worth Checking

• Leaking Charcoal Canister: The plastic housing of the canister itself can develop cracks from road debris impact or age, creating a leak. This is less common than the valves failing but should be inspected during a smoke test.
• Leaking Fuel Tank or Filler Neck: Rust or physical damage can cause a small leak in the fuel tank or the filler neck where the gas cap seals. This is usually accompanied by a strong fuel smell and is best found with a smoke test.
• Faulty Fuel Tank Pressure Sensor (FTP): The sensor that monitors EVAP system pressure can fail, sending incorrect data to the ECM and tricking it into thinking there is a leak when there isn't one. This is a more likely cause if you have replaced other components and the code persists, especially if you also have fueling issues.
• Pinhole Leak in Fuel Pump Hanger Assembly: In some cases, a very small, hard-to-find leak can develop on the fuel pump module/hanger assembly itself. This will not be fixed by replacing common EVAP parts and requires a smoke test to identify. One owner reported this as the final solution after replacing other parts.

Diagnosis Steps

1. Read the code with an OBD-II scanner and check for any other related codes like P0455, P0449, or P0496.
2. Inspect the gas cap. Remove it, check the seal for damage, and reinstall it, ensuring it clicks several times. Also inspect the fuel filler neck for rust or debris that could prevent a good seal.
3. If the code returns, perform a visual inspection of all EVAP hoses and lines you can see in the engine bay and under the truck near the gas tank. Look for obvious cracks or disconnections.
4. Locate the EVAP purge valve on the engine. With the engine off, disconnect the hoses and try to blow through it. If air passes, it's faulty and needs replacement. Alternatively, use a hand vacuum pump to see if it holds vacuum.
5. If the purge valve is good, the next likely culprit is the vent solenoid near the fuel tank. Testing this part often requires a scan tool to command it closed or applying 12v power to see if it actuates.
6. If you don't have a scan tool and the simple checks don't reveal the issue, the most effective next step is to have a mechanic perform a smoke test. This involves pumping vapor-filled smoke into the EVAP system to quickly and accurately find the source of the leak, which could be a tiny crack in a hose or a leaking canister.
7. After a repair is made, the code must be cleared. The vehicle will then need to complete a specific drive cycle, which may take several days of normal driving, for the EVAP monitor to run its self-test and confirm the fix.

Parts You'll Likely Need

• Gas Cap (OEM #GT295 (ACDelco)) — This is the most common cause due to wear on the seal or not being tightened properly. It's the first and cheapest part to check and replace.
  Trusted brands: ACDelco, Stant
  OEM price range: $20-$30
  Aftermarket price range: $15-$25
• Vapor Canister Purge Valve / Solenoid (OEM #12690512 (supersedes 12610560)) — A very common failure point on these GM trucks. It gets stuck open, causing a constant small leak and sometimes a rough start after refueling.
  Trusted brands: ACDelco, Bosch, Dorman (P/N: 911-032)
  OEM price range: $35-$50
  Aftermarket price range: $25-$40

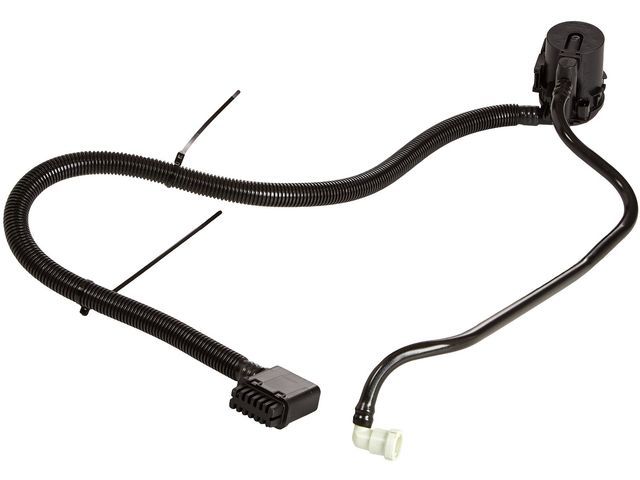

• Vapor Canister Vent Valve / Solenoid (OEM #23481275) — Located near the tank, this valve fails from exposure to road debris and moisture, preventing the system from sealing for its pressure test. Often fails with code P0449.
  Trusted brands: ACDelco, Dorman
  OEM price range: $40-$70
  Aftermarket price range: $30-$50

Related Codes That Often Appear With This One

• P0455 — This code indicates a large EVAP leak. It often appears with P0442 if a component fails completely or a hose becomes disconnected. TSB 21-NA-124 specifically addresses diagnosing both P0442 and P0455 together.
• P0449 — This code specifically points to a fault in the EVAP vent solenoid valve control circuit. If you see P0449 with P0442, the vent solenoid near the fuel tank is almost certainly the problem.
• P0496 — This code indicates 'EVAP Flow During a Non-Purge Condition,' often caused by a purge valve that is stuck open, allowing fuel vapors into the engine at the wrong time.

Technical Service Bulletins (TSBs) & Recalls

• 21-NA-124: Diagnostic tips on testing for possible EVAP leaks for P0442/P0455, recommending a specific order of component checks.
• PIT4943D: Information regarding a Service Engine Soon light with DTC P0442, directing technicians to an article on using an EVAP system tester for accurate diagnosis.
• 15-NA-019: Addresses customer complaints of fuel odor during fuel filling or at idle, linking it to potential P0442 or P0455 codes.

Platform-Specific Known Issues

• A GM Technical Service Bulletin (21-NA-124) provides diagnostic tips for technicians to test for EVAP leaks related to codes P0442 and P0455. It advises checking line connections first, then the vent valve, and finally performing a smoke test if the leak isn't found.

Mechanic-Grade Diagnostic Values

• Fuel Tank Pressure (FTP) Sensor Voltage — expected: 1.45V - 1.47V with Key On, Engine Off, and gas cap removed.. Failure: A sensor that is stuck and does not change its voltage reading (e.g., stuck at 1.5V) when vacuum is applied to the system is faulty.
• EVAP Vent Solenoid Voltage (Ground-Side Switched) — expected: With the solenoid unplugged and key on, one wire should have 12V (power feed). With the solenoid plugged in and NOT commanded by the scan tool, both wires should read ~12V.. Failure: When commanded ON (closed) by a scan tool, the control wire voltage should drop to near 0V. If it stays at 12V, there is an open in the control wire or a bad ECM driver.
• EVAP Purge Valve Mechanical Test — expected: With the valve removed from the vehicle and de-energized, it should be normally closed. No air should pass through when you blow into it.. Failure: If you can blow air through the valve when it is not energized, it is stuck open and must be replaced.
• EVAP Purge/Vent Valve Vacuum Test — expected: When tested with a handheld vacuum pump, the valves should hold vacuum when in their closed state (Purge valve de-energized, Vent valve energized).. Failure: If a valve fails to hold a few inches of mercury ("Hg) of vacuum, it is leaking internally and can cause a P0442, even if it passes a pressure-based smoke test.

Hidden / Shadow Codes Worth Checking

• EVAP Vent Solenoid Status PID: Professional scan tools like the Tech2 or Autel can display a specific data PID for the vent solenoid circuit status, which may read 'Open' or 'Shorted'. This provides more direct diagnostic information than the generic P0442 code. (see via View live data on a professional-grade scan tool.)

Scan Tool Commands That Help

• GM Tech2 / GDS2 / Professional Scan Tool: EVAP System Test / Output Controls — This function allows the technician to manually command the EVAP Purge and Vent solenoids on and off. It is essential for testing the electrical and mechanical function of the solenoids without having to remove them. For example, you can command the Vent Solenoid closed and then perform a smoke or vacuum test to see if the system seals.

Wiring & Ground Locations

• EVAP Vent Solenoid Connector — At the EVAP vent solenoid, located near the charcoal canister by the fuel tank.. The wires near this connector are a very common failure point. They can break *inside* the insulation due to stress and exposure, causing an open circuit (often with code P0449) that is not visible. Wiggling the harness while checking for voltage can reveal the break.
• G103 — On the front of the right cylinder head.. This is a primary engine ground. A poor connection here can cause erratic behavior in various engine sensors and actuators controlled by the ECM, potentially including EVAP components.
• ECM (Engine Control Module) — Located on the left side of the engine compartment.. The ECM is the source of the 5V reference for the FTP sensor and provides the ground-side driver for the vent and purge solenoids. All control wiring for the EVAP system terminates here.

Real Owner Repair Stories

• YouTube video (Older GM Truck (similar EVAP design)) — P0442 code.
  ❌ Tried (didn't work) Replacing the gas cap.
  ✅ What actually fixed it The fuel filler neck, where the gas cap seals, was rusted and pitted. Cleaning the rust off the metal surface with a wire brush to create a smooth sealing surface for the gas cap gasket resolved the leak.
• Chevrolet Forum user (2002 Silverado 5.3L (similar GMT800 platform)) — P0442 code and a strong fuel smell near the driver's side door/rocker panel.
  ❌ Tried (didn't work) Initial inspection.
  ✅ What actually fixed it The recommended fix, common for the platform, was replacing the EVAP vent solenoid located on the frame rail. The user was advised to get the updated kit that includes a remote filter to be mounted on top of the transmission to prevent future clogging from dust and debris.
• YouTube video by ScannerDanner (GM Vehicle) — P0449 (EVAP Vent Control Circuit), often seen with P0442.
  ❌ Tried (didn't work) A simple visual inspection of the wiring.
  ✅ What actually fixed it The control wire for the EVAP vent solenoid was broken internally, right at the connector. The insulation was intact, hiding the break. The fault was only found by pulling on the wire, which then stretched and broke the insulation, revealing the corroded copper inside.

"I Checked Everything" — The Actual Cause

• A common scenario is when a smoke test, which applies positive pressure, shows no leaks, yet the P0442 code persists. The actual cause can be a purge or vent valve that seals correctly under pressure but fails to seal under vacuum. The ECM's self-test uses vacuum, so the leak only appears during the vehicle's own test cycle. Confirming this requires testing the valves with a handheld vacuum pump to see if they hold vacuum in their closed state.

OEM Part Supersession History

• 12610560 → 12690512 — Standard part update/revision by GM.
  Heads up: The new part is a direct replacement for the old one with no known compatibility issues.
• Original Vent Solenoid on 2007 models → Updated Vent Solenoid Kit (e.g., Dorman 911-064, ACDelco 23481275) — The original connector design was updated.
  Heads up: When replacing the original vent solenoid on early models of this generation (e.g., 2007), a new wiring harness pigtail is often required because the connector on the replacement part is different from the factory harness. This pigtail must be spliced in.

Model Year Variations Within This Range

• 2007-2008 (Early Models): The original EVAP vent solenoid may have a different electrical connector than the current replacement part. As a result, installing a new vent solenoid often requires purchasing an adapter pigtail and splicing it into the vehicle's wiring harness.
