P0441 on 2015-2016 Ram ProMaster City: EVAP Purge System Fault Causes and Fixes

What's Unique About the 2015-2016 Ram PROMASTER CITY

For the 2015-2016 Ram ProMaster City, P0441 is often not a simple hardware failure. Ram issued multiple Technical Service Bulletins (TSBs) indicating that the original PCM software was overly sensitive and could falsely trigger P0441, often along with a cluster of other seemingly unrelated codes. Therefore, the first diagnostic step for this vehicle is to check if a PCM software update has been performed before replacing any parts. This issue is common across other FCA vehicles using the 2.4L Tigershark engine, such as the Jeep Cherokee, Chrysler 200, and Dodge Dart.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light illuminated
• Slightly rough idle, especially at a stop
• Possible minor reduction in fuel economy
• Potential for other related trouble codes to be stored
• Difficulty starting the engine immediately after refueling.
• A faint smell of fuel.

Most Likely Causes

1. Outdated Powertrain Control Module (PCM) Software 🔴 High Probability Multiple TSBs (#18-063-17 REV. A, #18-008-16 REV. B, #18-030-16) were issued by Ram to correct overly sensitive diagnostic logic that falsely triggers P0441 and other codes. This is the most critical first step in diagnosis for this specific vehicle.
   How to confirm: Contact a Ram dealership or a qualified shop with your VIN. They can check if the software updates from the TSBs have been performed. The presence of multiple codes like P0171, P0456, or P0335 alongside P0441 strongly suggests a software issue.
   Typical fix: The PCM must be reprogrammed ("flashed") with the latest software. This is a dealer or professional-level repair. Owners on forums for platform-mate vehicles confirm this resolves the issue.
   Est. part cost: $0

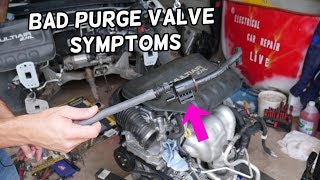

2. Faulty EVAP Purge Valve / Solenoid 🟡 Medium Probability The purge valve is a common failure item on many modern vehicles, including those with the 2.4L Tigershark engine. It can get stuck open or closed, directly causing an incorrect purge flow condition.
   How to confirm: The valve is located on the back of the intake manifold. Remove the valve by disconnecting the electrical connector and two hoses. With the valve disconnected from power, try to blow through it. If air passes, it is stuck open and faulty. A scan tool can also command the valve to open and close to test its function.
   Typical fix: Replace the purge valve. This is a straightforward repair that many owners perform themselves.
   Est. part cost: $25-$65
3. Cracked or Disconnected EVAP Hoses ⚪ Low Probability Hoses can become brittle and crack over time due to heat and age, creating vacuum leaks that disrupt the purge flow. This can happen to any vehicle.
   How to confirm: Visually inspect all EVAP hoses connected to the purge valve and charcoal canister for cracks, loose connections, or damage. A smoke test is the most definitive way to find small leaks that are not visually apparent.
   Typical fix: Replace the damaged hose section.
   Est. part cost: $10-$30

Rare But Worth Checking

• Clogged or Failed Charcoal Canister: If the vehicle is frequently overfilled with fuel ('topping off'), liquid gasoline can saturate the charcoal canister, causing it to become clogged and preventing proper vapor flow.
• Faulty Fuel Tank Pressure (FTP) Sensor: The system uses the FTP sensor to verify purge flow. If the sensor provides incorrect readings, it can lead to a P0441 code. This is a known issue on other Ram trucks and may be accompanied by other pressure-sensor-specific codes like P018C.

Diagnosis Steps

1. Read all stored DTCs with an OBD-II scanner. Note if other codes mentioned in the TSBs (e.g., P0171, P0456, P0335, P0133) are present.
2. CRITICAL FIRST STEP: Contact a Ram dealer or qualified shop with your VIN. Ask them to check if the software updates from TSBs #18-063-17 REV. A, #18-008-16 REV. B, or #18-030-16 have been performed. If an update is available, this is the most likely fix.
3. If software is up-to-date, perform a visual inspection of the EVAP purge valve and its associated hoses in the engine bay. The valve is on the back of the intake manifold. Look for obvious cracks or loose connections.
4. Test the purge valve. Disconnect it from power and attempt to blow through it. Air should not pass. If it does, the valve is stuck open and must be replaced. You can also use a bidirectional scanner to command the valve open and closed while monitoring fuel tank pressure.
5. If the valve tests good, inspect the EVAP lines running from the engine bay to the charcoal canister near the fuel tank for any damage.
6. If no visible issues are found, a smoke test is the most effective method to locate a hard-to-find leak in a hose or the charcoal canister.

Parts You'll Likely Need

• Vapor Canister Purge Valve / Solenoid (OEM #04627182AA) — This is the most common hardware component to fail for this code after software issues are ruled out. It gets stuck open or closed, directly causing the incorrect flow condition. Note: Some parts catalogs incorrectly list a similar part number (04891735AC) as a throttle body, so verify the part is the purge valve.
  Trusted brands: Mopar, Dorman (p/n 994-015), Standard Motor Products (p/n CP813), Wells (p/n 2M1383)
  OEM price range: $40-$70
  Aftermarket price range: $25-$45

Related Codes That Often Appear With This One

• P0171 - Fuel System 1/1 Lean — A purge valve stuck open creates a vacuum leak, allowing unmetered air into the engine and causing a lean condition. Both codes are mentioned together in TSBs #18-063-17 REV. A and #18-008-16 REV. B.
• P0456 - EVAP System Small Leak — A faulty purge valve can cause both an incorrect flow and a small leak. The TSBs also group these codes together as being potentially resolved by a PCM software update.
• P0335 - Crankshaft Position Sensor Circuit — This code is frequently listed alongside P0441 in TSBs #18-063-17 REV. A and #18-030-16, indicating a broader software calibration issue that a reflash is designed to fix.
• P0133 - O2 Sensor 1/1 Slow Response — Also mentioned in the same TSBs as P0441, pointing to an overly sensitive diagnostic logic in the original PCM software.
• P050D - Cold Start Rough Idle — A vacuum leak from the EVAP system can disrupt the air-fuel mixture, causing a rough idle, especially during a cold start. This code is also cited in TSB #18-063-17 REV. A.

Technical Service Bulletins (TSBs) & Recalls

• 18-063-17 REV. A: Lists P0441 among many other DTCs that can be resolved by reprogramming the PCM with updated software.
• 18-008-16 REV. B: Supersedes two previous bulletins and lists P0441 as a code that may be set due to software sensitivity, fixed by a PCM flash.
• 18-030-16: Lists P0441 as one of several DTCs that can be resolved with a PCM software update.
• 18-023-16 REV. B: A related TSB for the platform-mate Chrysler 200 and Dodge Dart with the same 2.4L engine, also addressing P0441 with a PCM flash.

Platform-Specific Known Issues

• The primary vehicle-specific issue is the need for a PCM software update to correct overly sensitive diagnostic logic, as documented in TSBs #18-063-17 REV. A, #18-008-16 REV. B, and #18-030-16. This often presents with a wide array of other fault codes that are also resolved by the software flash.
• The purge valve is located on the rear of the intake manifold, which can be slightly difficult to access but does not require major disassembly.

Mechanic-Grade Diagnostic Values

• EVAP Purge Valve/Solenoid Coil Resistance — expected: 14 to 36 Ohms. Failure: An open circuit (infinite resistance) or a reading significantly outside the expected range indicates a failed solenoid coil.

Scan Tool Commands That Help

• wiTECH (or equivalent professional scanner): EVAP Purge Solenoid Test / Actuator Test — This bidirectional command allows a technician to manually open and close the purge valve while monitoring the Fuel Tank Pressure (FTP) sensor's live data. With the engine running and the vent valve closed, commanding the purge valve on should cause a noticeable drop in fuel tank pressure (increase in vacuum). If no pressure change occurs, it points to a stuck-closed valve or a blockage.

Wiring & Ground Locations

• EVAP Purge Solenoid Connector — On the purge solenoid itself, located at the rear of the intake manifold.. The 2-pin connector provides power and control. Pin 1 is typically the control wire (ground-side switched) from the PCM. Pin 2 is the power supply, active when the ignition is on. A poor connection or damaged wire here will prevent the valve from operating, directly causing a P0441.
• G104 — Typically located on the left front frame rail in the engine bay on related FCA platforms.. This is a primary engine bay ground point. While not directly for the purge solenoid, a corroded or loose G104 can cause erratic behavior and fault codes from various engine sensors that the PCM relies on for system checks, potentially contributing to complex diagnostic scenarios.

Real Owner Repair Stories

• promasterforum.com user reports (2016 Ram ProMaster City) — Persistent P0441 Check Engine Light.
  ❌ Tried (didn't work) Replaced the EVAP purge valve., Had the dealer perform the TSB software update (PCM flash).
  ✅ What actually fixed it The final repair was replacing the Evaporative System Integrity Monitor (ESIM) switch, which is located on the charcoal canister assembly. The faulty switch was incorrectly reporting pressure data to the PCM, leading it to believe there was a flow problem when the issue was with the monitoring system itself.

"I Checked Everything" — The Actual Cause

• In cases where a smoke test of the EVAP lines shows no leaks, the P0441 code can be caused by a faulty Evaporative System Integrity Monitor (ESIM) switch. This component is located on the charcoal canister and is responsible for verifying the system's ability to seal. If the switch fails, it can send incorrect data to the PCM, causing the computer to misinterpret a flow fault when no leak or flow restriction exists. This is often missed because P0441 diagnosis tends to focus on the purge valve and its lines in the engine bay.

When the Usual Fixes Don't Work

• While the TSBs and common wisdom point heavily towards PCM software updates and purge valve replacement, there are documented cases where neither of these common fixes resolved the P0441 code. In one such case involving a 2016 ProMaster City, the owner replaced the purge valve and had the dealer perform the software flash, but the code persisted. The ultimate cause was a failed ESIM switch on the charcoal canister. This highlights that if the top two causes do not resolve the issue, the diagnostic path must expand to the system's monitoring components, such as the ESIM and the Fuel Tank Pressure (FTP) sensor, rather than repeatedly focusing on the purge flow circuit.

OEM Part Supersession History

• 04627182AA → 04627182AB — Standard part revision by the manufacturer, likely for minor improvements in materials or internal design.
  Heads up: The parts are interchangeable. When ordering, it is best practice to use the latest part number (04627182AB) to ensure you receive the most current version.
