P0420 on 2004-2008 GMC Sierra: Catalytic Converter, O2 Sensor, or Exhaust Leak?

What's Unique About the 2004-2008 Gmc SIERRA

For the 2004-2008 GMC Sierra, which spans the late GMT800 and early GMT900 generations, the P0420 code is a straightforward but often misdiagnosed issue. While catalytic converter failure is common at higher mileage, these trucks are particularly known for exhaust manifold leaks that can introduce outside oxygen and trigger a false P0420 code. A ticking sound from the engine bay, especially when cold, is a classic symptom of this leak. Furthermore, GM Technical Service Bulletin #PIP3119M notes that on new or low-mileage trucks (or after a converter replacement), this code can be set falsely if the new converter hasn't gone through a proper break-in drive cycle.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Generation note: This range covers the first generation 'Classic' (GMT800, 2004-2007) and the second generation (GMT900, 2007-2008). A 2007 model could be either. While the causes for P0420 are similar, the physical part numbers for catalytic converters and exhaust components differ. The GMT900 platform introduced a more refined interior and, on some engines, Active Fuel Management (AFM), which can have its own set of related engine issues, including excessive oil consumption that can contaminate and ruin a catalytic converter. For 2006, the catalytic converter was moved closer to the engine.

Symptoms You May Notice

• Check Engine Light is on.
• Possible reduction in fuel economy.
• Potential for reduced engine power or sluggish acceleration if the converter is clogged.
• A sulfur or "rotten egg" smell from the exhaust, indicating the converter is failing to process sulfur in the fuel.
• Failure to pass a state emissions inspection.
• A ticking noise from the engine bay, especially when cold, which often points to an exhaust manifold leak.

Most Likely Causes

1. Failed Catalytic Converter 🔴 High Probability Catalytic converters have a finite lifespan and can fail from age, contamination from burning oil/coolant, or overheating caused by engine misfires. On high-mileage trucks, this is the most likely direct cause. Models with Active Fuel Management (AFM) are prone to oil consumption issues, which can foul the converter.
   How to confirm: After ruling out other causes, a professional can use a scan tool to graph O2 sensor data. A downstream 🎬 Watch: How to graph O2 sensors and test for leaks. sensor (Sensor 2) that mimics the upstream sensor's (Sensor 1) rapid switching indicates a bad converter. An infrared thermometer can also be used; the converter's outlet should be at least 100°F hotter than its inlet after the engine is fully warm.
   Typical fix: Replace the Bank 1 catalytic converter assembly. Using cheap, non-OEM converters can sometimes lead to the code returning due to improper fitment or lower efficiency.
   Est. part cost: $300-$800
2. Faulty Downstream Oxygen (O2) Sensor 🟡 Medium Probability O2 sensors age and become 'lazy' or slow to respond, sending inaccurate data to the ECM. This can trick the computer into thinking the converter is bad when it's actually the sensor that's failing. It's a common misdiagnosis to replace the converter when only the sensor was needed.
   How to confirm: Use a scan tool to observe the live data for the Bank 1 Sensor 2. If its voltage is stuck, flat, or responds very slowly compared to the upstream sensor, the sensor itself is likely faulty. A good test is to create a rich or lean condition (e.g., by introducing propane or creating a vacuum leak) and see if the sensor responds accordingly.
   Typical fix: Replace the Bank 1, Sensor 2 (downstream) oxygen sensor. It is highly recommended to use OEM (ACDelco) or high-quality OE-style (Denso, NTK) sensors, as cheap aftermarket sensors are known to cause issues.
   Est. part cost: $50-$150
3. Exhaust Leak 🟡 Medium Probability Exhaust manifold gaskets and the flange gaskets on the Y-pipe are common failure points on these trucks, leading to leaks. A leak located before the downstream O2 sensor allows outside oxygen to enter the exhaust, which skews the sensor's readings and triggers a false P0420 code. A user on a forum noted their P0420 was caused by a bad flange gasket seal due to a backward-installed stud.
   How to confirm: Perform a visual inspection for black soot trails or cracks, especially around the exhaust manifolds. Listen for a distinct ticking noise on a cold start that may quiet down as the engine warms up. A professional smoke test is the most effective way to pinpoint a leak. A DIY method involves using a shop-vac on its blow setting, sealing it to the tailpipe, and spraying soapy water on exhaust joints to look for bubbles.
   Typical fix: Replace the leaking gasket or repair the cracked exhaust component.
   Est. part cost: $20-$200
4. Underlying Engine Issue ⚪ Low Probability Engine misfires (from bad spark plugs, wires, or coils) or a rich fuel condition (from leaking injectors) can send unburned fuel into the exhaust, which superheats and destroys the catalytic converter's internal structure. This is a root cause that must be fixed, or the new converter will fail quickly.
   How to confirm: Check for other trouble codes, especially misfire codes (P0300-P0308) or fuel trim codes (P0171, P0174). These must be addressed first.
   Typical fix: Perform a full engine tune-up (spark plugs, wires) or replace faulty fuel system components before replacing the catalytic converter.
   Est. part cost: $100-$500

Rare But Worth Checking

• A contaminated Mass Airflow (MAF) sensor can provide incorrect airflow readings, leading to an improper air/fuel mixture that can affect the converter's efficiency.
• Use of leaded fuel (if available) or fuel additives containing silicone can poison the catalytic converter.
• An engine coolant leak (e.g., from a bad head gasket) or excessive oil consumption can contaminate the converter substrate, rendering it ineffective.

Diagnosis Steps

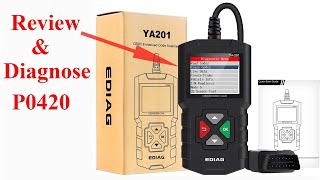

1. Scan for Codes: Use an OBD-II scanner to confirm P0420 and check for any other codes (e.g., misfire, fuel trim, or other O2 sensor codes). Address any other codes first, as they are often the root cause.
2. Inspect for Exhaust Leaks: Visually and audibly inspect the exhaust system from the engine manifold to the downstream O2 sensor. Look for black soot marks or listen for a ticking sound, especially on a cold start. For a definitive test, use a smoke machine or a shop-vac in reverse to pressurize the system and spray joints with soapy water to find bubbles.
3. Analyze Oxygen Sensor Data: Use a scan tool with live data graphing. At a steady 2,000 RPM, observe the voltage of the upstream (Bank 1 Sensor 1) and downstream (Bank 1 Sensor 2) O2 sensors. The upstream sensor should fluctuate rapidly between ~0.1V and ~0.9V. The downstream sensor should show a relatively steady, high voltage (typically above 0.5V). If the downstream sensor's graph mirrors the upstream sensor's, the converter is likely bad. If the downstream sensor is flat or slow to respond, the sensor itself is suspect.
4. Test the Oxygen Sensor: If the sensor is suspected, it can be tested for response time by inducing a rich/lean condition. Swapping the Bank 1 downstream sensor with the Bank 2 downstream sensor is a practical test; if the code changes to P0430, the sensor is bad.
5. Check Catalytic Converter Temperature: After the engine is fully warmed up (driven for 15-20 minutes), use an infrared thermometer to measure the temperature of the pipe just before and just after the catalytic converter. The outlet should be at least 100°F hotter than the inlet. If not, the converter is not functioning.
6. Check for TSB #PIP3119M: If the truck is new, has very low mileage, or the converter was just replaced, perform the catalyst break-in drive cycle described in the TSB before further diagnosis. This involves sustained highway driving.

Parts You'll Likely Need

• Catalytic Converter (Bank 1) — This is the component identified by the code as having failed. It is often the ultimate fix after other causes are ruled out. Be aware that cheap aftermarket converters may not meet efficiency standards and can cause the code to return.
  Trusted brands: MagnaFlow, Walker Exhaust, ACDelco (OEM)

Related Codes That Often Appear With This One

• P0430 — This is the identical code for Bank 2 (passenger side). It's common for both converters to fail around the same time on high-mileage vehicles, or for an underlying engine issue to affect both banks.
• P0300-P0308 — These are misfire codes (P0300 for random, P0301-P0308 for specific cylinders). An ongoing misfire is a primary cause of catalytic converter failure, as it sends raw fuel into the exhaust, overheating the converter.
• P0171 / P0174 — These codes indicate a lean fuel condition on Bank 1 and Bank 2. While less common to directly cause P0420, they can point to vacuum leaks or MAF sensor issues that, if unaddressed, can contribute to long-term exhaust and catalyst problems. A user on a forum reported these codes appearing before the P0420.

Technical Service Bulletins (TSBs) & Recalls

• PIP3119M: Details a procedure for a false P0420/P0430 code on new/low-mileage vehicles or after a catalytic converter replacement. The diagnostic test may run before the converter has completed its break-in cycle. The solution is to perform a specific drive cycle to properly break in the new converter.

Platform-Specific Known Issues

• A Technical Service Bulletin (TSB #PIP3119M) was issued for a wide range of 2004-2015 GM trucks and SUVs. It states that P0420/P0430 codes can appear on low-mileage vehicles or after a converter has been replaced. This can be a false code caused by the diagnostic running before the converter has been properly broken in. The fix is to clear the codes and perform a specific highway drive cycle to allow the converter to out-gas and break in properly.

Mechanic-Grade Diagnostic Values

• Upstream O2 Sensor (Bank 1, Sensor 1) Voltage — expected: Fluctuating rapidly between 0.1V and 0.9V (100-900mV) in closed loop.. Failure: Stuck high, stuck low, or very slow to switch.
• Downstream O2 Sensor (Bank 1, Sensor 2) Voltage — expected: Relatively steady voltage, typically above 0.45V (450mV) when the catalyst is hot and working.. Failure: Voltage fluctuates in a pattern that mimics the upstream sensor, indicating the catalyst is not storing oxygen.
• O2 Sensor Heater Resistance — expected: Between 5 and 16 Ohms (Ω) when measured across the two heater circuit wires on the sensor side of the connector.. Failure: An open circuit (infinite resistance) or a reading outside the specified range indicates a failed heater element.
• Short-Term and Long-Term Fuel Trims — expected: Ideally within +/- 5%. Values consistently above +10% indicate the engine is compensating for a lean condition (like a vacuum or exhaust leak). Values below -10% indicate a rich condition.. Failure: High positive fuel trims can point to unmetered air entering from an exhaust leak before the upstream O2 sensor, which can trigger a false P0420.

Scan Tool Commands That Help

• Tech 2 / GDS2: Catalyst System Test — This is a specific GM service function that runs the engine at set parameters to actively test the oxygen storage capacity of the catalytic converter, providing a more definitive pass/fail result than just observing live data during a normal drive.
• Advanced Scan Tool: Mode $06, TID $01, CID $01-$04 — To view the raw results of the catalyst efficiency monitor. This allows a technician to see the measured catalyst efficiency ratio from the last test cycle and compare it to the PCM's failure threshold, indicating how close to failing (or passing) the converter is.

Wiring & Ground Locations

• Bank 1 O2 Sensors — Bank 1 is the driver's side of the engine. Sensor 1 is in the exhaust manifold before the catalytic converter. Sensor 2 is after the catalytic converter.. Correctly identifying Bank 1 is the first step. Mistaking it for Bank 2 (passenger side) will lead to replacing the wrong parts.
• O2 Sensor Heater Circuit Wires — On the 4-wire O2 sensor pigtail, the two wires of the same color (often black or white) are for the heater circuit. The other two different colored wires are for the sensor signal and signal ground.. A failed heater circuit can cause the sensor to respond slowly or inaccurately, especially when cold, which can contribute to setting a P0420. Knowing which wires to test for resistance is crucial.
• G103 / G104 — These are primary engine/chassis ground locations. G103 is typically located on the rear of the driver's side cylinder head. G104 is on the front of the passenger side cylinder block. Locations can vary slightly by year and engine.. The PCM and its sensors rely on clean, solid ground connections. A corroded or loose ground at G103 can cause erratic sensor readings, including from the O2 sensors, potentially leading to false codes.

Real Owner Repair Stories

• GMTrucks.com forum user (2005 GMC Sierra 5.3L) — Persistent P0420 code, ticking noise on cold start.
  ❌ Tried (didn't work) Replacing the downstream O2 sensor., Using an O2 sensor spacer/defouler (code came back).
  ✅ What actually fixed it The owner discovered a crack in the exhaust manifold flange where it bolts to the Y-pipe. The ticking noise was the key indicator. Replacing the exhaust manifold and the donut gasket finally resolved the P0420 code permanently.
• YouTube video comment (2007 GMC Sierra with 5.3L AFM engine, 140,000 miles) — P0420 and P0300 (random misfire) codes, excessive oil consumption (1 quart every 1000 miles).
  ❌ Tried (didn't work) Replacing spark plugs and wires., Replacing catalytic converter (code returned after 5,000 miles).
  ✅ What actually fixed it The root cause was the Active Fuel Management (AFM) system. Oil consumption had fouled the spark plugs and contaminated the new catalytic converter. The final fix involved installing an AFM disabler kit and replacing the fouled spark plugs and the catalytic converter again. This stopped the oil consumption and prevented the P0420 from returning.

"I Checked Everything" — The Actual Cause

• A common scenario on these trucks is a smoke test showing no leaks, but the P0420 code persists. The actual cause is often a hairline crack in the exhaust manifold that only opens up and leaks when the metal is cold. As the engine warms and the metal expands, the crack seals itself, which is why it passes a smoke test on a warm engine and the ticking noise disappears.

Model Year Variations Within This Range

• 2007-2008 (GMT900): The introduction of Active Fuel Management (AFM) on many V8 engines (e.g., 5.3L LH6, LY5; 6.0L L76). These engines are known for potential oil consumption issues due to piston ring coking and lifter problems, which is a direct cause of catalytic converter contamination and failure leading to P0420. GMT800 trucks (2004-2006) did not have this specific failure mode.
• 2006: For the 2006 model year, GM moved the catalytic converters closer to the exhaust manifolds for faster light-off and improved emissions. This design change can affect which specific aftermarket parts fit and may alter the labor time for replacement compared to earlier years.
