OBD-II Code P0327: Knock Sensor 1 Circuit Low Input

What Does P0327 Mean?

P0327 means the Powertrain Control Module (PCM) detects a voltage signal from the bank 1 knock sensor that falls below the specified minimum threshold (typically under 0.5V). The knock sensor acts as a microphone bolted to the engine block, listening for harmful vibrations called 'knocking' or 'pinging'. A low signal indicates a dead sensor, a shorted wire, or a severely corroded connection.

Technical definition: The SAE/OBD-II definition is "Knock Sensor 1 Circuit Low Input (Bank 1 or Single Sensor)". The PCM triggers this code when the bank 1 knock sensor voltage drops below the minimum threshold (often 0.5V) for a set duration (e.g., 1-2 seconds). This confirms the signal is weak, shorted to ground, or completely absent.

Can I Drive With P0327?

Yes, But With Caution. You can drive, but do not ignore it long-term. The engine's computer reduces power and retards ignition timing to prevent damage, causing sluggish acceleration and poor fuel economy. Without a functioning knock sensor, the engine cannot detect harmful detonation. Ignoring this code turns a $250 sensor replacement into a $3,000+ engine rebuild if actual knocking occurs and goes unmitigated.

Common Causes

• Faulty Knock Sensor (Very Common) — The sensor fails internally from age, heat cycles, or moisture intrusion. Cheap aftermarket replacement sensors also frequently fail out of the box or shortly after installation, causing the code to return.
• Damaged Wiring or Sub-Harness (Common) — Wiring harnesses become brittle, short to ground, or suffer rodent damage. On specific engines like the Nissan VQ35DE, a short sub-harness connecting the sensor to the main harness is the primary failure point.

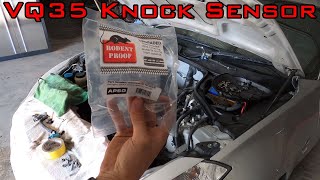

🎬 Watch: Nissan VQ35DE knock sensor and harness replacement guide
• Water or Fluid Contamination (Common) — On GM V8s and Subaru boxers, sensors sit in engine block valleys where water from rain or car washes pools, permanently corroding the sensor 🎬 See how to diagnose GM-specific knock sensor issues and its connector.
• Incorrect Installation Torque (Less Common) — Sensors not tightened to the exact factory torque spec cannot detect vibrations. Over-tightening cracks the internal piezoelectric crystal, while under-tightening mutes the signal.
• Poor Engine Ground (Rare) — A corroded engine ground strap causes system-wide low voltage, dropping the sensor's signal below the PCM's acceptable threshold.
• Faulty Engine Control Module (PCM) (Very Rare) — The computer itself has a faulty internal circuit, misreading the signal from a perfectly good sensor. Consider this only after exhausting all electrical tests.

Symptoms

• Reduced Engine Power and Acceleration — The PCM enters a fail-safe mode, retarding ignition timing and making the vehicle feel sluggish.
• Decreased Fuel Economy — Inefficient ignition timing causes the engine to consume 5-10% more fuel than normal.
• Audible Engine Pinging or Knocking — A metallic rattling sound under heavy acceleration, which the sensor is failing to report and mitigate.
• Check Engine Light On (also visible on scanner) — Illuminates immediately once the PCM detects the low voltage fault.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this code.

Common Fixes & Costs

• Replace Knock Sensor (and Intake Gaskets if applicable) — Parts: $50-$190 (Sensor: $30-$150, Gaskets: $20-$40), Labor: $150-$450 (Higher end for V6/V8 engines requiring intake manifold removal), ~2.5 hr book time (Intermediate)
• Replace Knock Sensor Sub-Harness — Parts: $40-$80, Labor: $200-$450 (Requires intake manifold removal), ~3.0 hr book time (Professional)
• Repair Damaged Wiring or Connector — Parts: $10-$50 (Pigtail connector or wire), Labor: $100-$250, ~1.5 hr book time (Intermediate)
• Clean Corroded Electrical Connectors — Parts: $10 (Contact cleaner), Labor: $50-$100, ~0.5 hr book time (DIY)

DIY vs Professional

• Replace Knock Sensor — Beginner: No. Ranges from Intermediate to Professional.
  Tools: Socket set, torque wrench (critical), extensions, service manual. For buried sensors: intake manifold gaskets, fuel line disconnect tools.
• Repair Damaged Wiring or Connector — Beginner: No. Intermediate DIYers only.
  Tools: Multimeter, wire strippers, soldering iron, heat shrink tubing.
• Clean Corroded Electrical Connectors — Beginner: Yes. Beginner-friendly.
  Tools: Electrical contact cleaner, dielectric grease.

Used vs. New Parts: Buying Guide

When a used part is worth it: Never buy a used knock sensor. It is a sensitive electronic component with a finite lifespan, and the labor to access it is too high to risk premature failure.

Donor quality checklist:

• Do not buy used.

Decision logic:

• If Sensor is easily accessible on the block exterior → Buy a new OEM or premium aftermarket sensor (Denso, NTK).
• If Sensor is located under the intake manifold → Buy a new OEM part only. The risk of repeat labor with a cheap part is too high.

Warranty tradeoff: New OEM parts carry a 1-year/12,000-mile warranty. Cheap aftermarket sensors often fail within months.

Worst-case if a used part fails: $400-$800 if a cheap sensor fails, requiring you to pay for intake manifold removal labor twice.

What Happens If You Wait — Timeline

1. 0-1 month: PCM enters fail-safe mode, retarding ignition timing. Driver notices slight power loss. (MPG impact: 2-5%% · Added cost: $0-$25 in wasted fuel)
2. 1-4 months: Engine performance becomes noticeably sluggish. Fuel economy drops significantly. (MPG impact: 5-10%% · Added cost: $50-$150 in wasted fuel)
3. 4-12 months: Retarded timing causes a rich condition, stressing the catalytic converter. Actual knock events go undetected. (MPG impact: 10-15%% · Added cost: $1,200-$2,800 (Catalytic converter damage))
4. 12+ months: Prolonged, undetected detonation destroys pistons and rod bearings. (MPG impact: 15-25%% · Added cost: $3,000-$8,000+ (Engine rebuild))

Cost of Not Fixing It

• 0-3 months: Reduced fuel economy (5-10% drop) and sluggish performance. (Added cost: $50-$150 in wasted fuel.)
• 3-12 months: Retarded timing causes the engine to run rich, stressing and potentially melting the catalytic converter. (Added cost: $1,200-$2,800 for catalytic converter replacement.)
• 12+ months: Catastrophic internal engine damage from prolonged, undetected detonation (rod knock, cracked pistons). (Added cost: $3,000-$7,500+ for engine rebuild or replacement.)

Diagnosis Steps

1. Confirm Code and Freeze Frame Data
   Connect an OBD-II scanner to verify P0327. Check for related codes like P0332 (Bank 2) or misfires (P0300). Document the freeze frame data to identify engine load and RPM when the fault occurred.
   Tools: OBD-II Scanner (Beginner)
2. Visually Inspect Sensor and Wiring
   Locate the bank 1 knock sensor. Inspect for frayed wires, melted insulation, or fluid contamination. Pay strict attention to engine valleys where water pools and shorts the connection.
   Tools: Flashlight, Vehicle Service Manual (Beginner)
3. Check the Electrical Connector
   Unplug the sensor and inspect the pins for green corrosion or moisture. Ensure the connector seats tightly.
   Tools: Electrical Contact Cleaner (Beginner)
4. Test Sensor Internal Resistance
   With the sensor unplugged, measure resistance across its terminals using a multimeter set to Ohms (Ω). Compare to factory specs (e.g., GM sensors read 95-105 kΩ; Subarus read 400-700 kΩ). An 'OL' (open line) reading confirms a dead sensor.
   Tools: Multimeter, Vehicle Service Manual (Intermediate)
5. Check Reference Voltage and Ground
   Turn the ignition 'On' (engine off). Measure the harness connector for the correct reference voltage (typically 5V or 2.5V bias). Verify the ground wire has less than 0.5 Ω resistance to the chassis.
   Tools: Multimeter (Intermediate)
6. Perform a Tap Test (AC Voltage)
   With the sensor plugged in and key on, back-probe the signal wire with a multimeter set to AC millivolts. Lightly tap the engine block near the sensor with a wrench. A healthy sensor produces a fluctuating 50mV-300mV AC signal. Zero voltage means the sensor is dead.
   Tools: Multimeter, Back-probe Pins, Wrench (Advanced)
7. Check for Short to Ground
   Unplug both the sensor and the PCM. Measure resistance between the signal wire and chassis ground. It must read 'OL'. Any continuity indicates a shorted wire in the harness.
   Tools: Multimeter (Advanced)

When This Code Triggers (Freeze-Frame Conditions)

• Engine Coolant Temp: 180-200°F (Triggers when the engine reaches full operating temperature.)
• RPM: 1500-3000 (Triggers during steady-state cruising or light acceleration, rarely at idle.)
• Engine Load: 30-60% (Detected under moderate load, such as climbing a slight grade.)

Related Codes

• P0332 — Identical code for Bank 2. If both appear simultaneously, suspect a shared failure point like a flooded engine valley (GM V8s) or a chewed main wiring harness.
• P0328 — Knock Sensor 1 Circuit High Input. P0327 (Low) indicates a short to ground or dead sensor, while P0328 (High) indicates an open circuit like a broken wire. Both require testing the same circuit.
• P0300-P0308 — Misfire codes. P0327 forces the PCM to retard ignition timing. This inefficient timing causes incomplete combustion, triggering secondary misfire codes. Fix P0327 first.

Climate & Environmental Factors

• High Humidity and Water Pooling: On GM V8s and Subaru WRXs, sensors sit in block valleys. Rain or high-pressure car washes flood these valleys, shorting the sensor and connector.
• Cold Temperatures: Condensation forms on the sensor in cold, humid climates, triggering false codes. Thoroughly warm the engine to evaporate moisture before replacing parts.

How to Talk to a Mechanic About This Code

Say this: "I have a P0327 code. Before replacing the sensor, please confirm you will test the sensor's resistance and inspect the wiring harness for a short to ground."

Directs the mechanic to perform a full circuit diagnosis instead of immediately recommending an expensive sensor replacement.

Avoid saying:

• 'Just fix whatever's wrong'
• 'My check engine light is on, can you look at it?'
• 'Replace my knock sensor'

Questions to ask before authorizing the repair:

• Did you test the sensor's resistance, and what was the reading?
• Did you check the wiring for a short to ground?
• Are you using an OEM part?
• What is the exact torque specification you will use for the new sensor?

Where to Take It: Dealer vs Independent vs Chain

• Dealer: Recommended only if a TSB applies or the vehicle is under warranty.
  Best for: Vehicles under powertrain warranty, Vehicles with known TSBs (e.g., Subaru)
  Downsides: Highest labor rate, Defaults to replacing parts rather than repairing wiring (Typical cost: +40% vs. baseline)
• Independent Shop: Best overall fit. A good independent shop will perform circuit checks and repair wiring if possible.
  Best for: Out-of-warranty vehicles, Common vehicles (GM, Toyota, Honda)
  Downsides: Diagnostic skill varies; vet through reviews. (Typical cost: +0% vs. baseline)
• Chain Shop: Avoid for repairs requiring intake manifold removal or complex electrical diagnosis.
  Best for: Routine maintenance only
  Downsides: Technician skill varies dramatically, Lacks advanced diagnostic capability for electrical shorts (Typical cost: -10% vs. baseline)

When to Walk Away From the Repair

If the estimated repair cost exceeds 40% of the car's private-party value, consider selling the vehicle instead of repairing it.

• Car worth $4000, fix is $600: Fix it. The repair is 15% of the car's value.
• Car worth $2000, fix is $1000: Walk away. The repair is 50% of the car's value.

What Scan Tool You Need for This Code

Minimum: An OBD-II reader that displays Freeze Frame data and live sensor voltage.

A $20 reader only shows the code. You need Freeze Frame data and live voltage to diagnose a wiring short versus a dead sensor.

Budget: BlueDriver Pro Scan Tool (~$99) — Connects via Bluetooth. Reads the code, shows Freeze Frame data, and displays live knock sensor voltage.

Mid-range: Foxwell NT510 Elite (~$180) — Provides manufacturer-specific diagnostics, accessing detailed data PIDs related to the knock sensor system.

Professional: Autel MaxiCOM MK808 (~$500) — Offers full bidirectional control to command the PCM and rapidly pinpoint complex wiring issues.

Rent vs buy: If this is a one-time repair, auto parts stores scan codes for free. Buy a scanner only if you diagnose vehicles multiple times a year.

How to Clear the Code After You Fix It

1. Reconnect the battery if disconnected.
2. Use an OBD-II scan tool to clear the stored diagnostic trouble codes.
3. Perform a complete OBD-II drive cycle to reset readiness monitors.

Drive cycle (~20 minutes): Start cold (coolant below 122°F). Idle for 3 minutes. Drive steadily at 55 mph for 5 minutes. Decelerate without braking to 20 mph. Accelerate to 60 mph and hold for 5 minutes. Let the vehicle cool down completely.

Readiness monitors affected: Comprehensive Component Monitor (CCM), Catalyst (CAT) monitor, Evaporative System (EVAP) monitor

Before emissions retest: drive at least 50 miles to fully set monitors.

Watch out for:

• Disconnecting the battery clears the code but resets all monitors, causing an immediate emissions failure.
• The code returns immediately if the underlying short or dead sensor was not fixed.

Will This Fail Emissions / State Inspection?

Yes — this code typically fails an OBD-II emissions inspection.

• California: An active P0327 code results in an automatic smog check failure. A full OBD-II drive cycle must be completed post-repair.
• New York: Any Check Engine Light causes an automatic emissions failure.
• Texas: In the 17 emissions counties, P0327 fails the inspection. Readiness monitors must be 'Ready'.

Most Commonly Affected Vehicles

• Chevrolet / GMC Silverado, Sierra, Tahoe, Suburban (V8 models) (1999-2007) — Sensors sit under the intake manifold. Factory foam seals fail, allowing water to flood the sensor wells. Repair requires replacing both sensors, the harness, and building a silicone dam.
• Subaru WRX, Forester, Impreza, Legacy (2011-2018) — Highly prone to P0327 due to water intrusion under the intercooler. TSB #07-133-18R mandates an updated sensor.
• Nissan / Infiniti Maxima, Pathfinder, 350Z, G35 (VQ35DE engine) (2002-2008) — The short wiring sub-harness under the intake plenum becomes brittle and shorts out. Replace the sub-harness concurrently with the sensor.
• Toyota Camry (V6), Highlander, Sienna (2002-2017) — Sensors are buried deep in the engine 'V' under the lower intake manifold, driving labor costs up significantly. Rodent damage to the harness is common here.
• Honda Accord, Odyssey, Civic (2003-2012) — Prone to wiring harness degradation from heat and rodent damage. Sensors are generally accessible on the block exterior.

Manufacturer-Specific Notes

• General Motors (Chevrolet/GMC): On 4.8L, 5.3L, and 6.0L V8s, water floods the sensor wells under the intake manifold. The permanent fix requires replacing the sensors and harness, then sealing the rear well with RTV silicone to block future water intrusion.
• Subaru: TSB #07-133-18R dictates replacing the original sensor with an updated part (P/N 22060AA180). Torque is hyper-critical at exactly 17.7 ft-lbs (24 Nm).
• Nissan: On VQ35DE V6 engines, the primary failure is the sub-harness connecting the sensor to the main harness, not the sensor itself. Always replace this $50 sub-harness when removing the intake manifold.

Real Owner Stories

2007 Chevy Silverado

P0327 returned days after replacing both knock sensors with cheap aftermarket parts.

What they tried:

1. Replaced sensors with non-OEM parts.

Outcome: The owner replaced them again with genuine GM OEM parts, resolving the issue permanently.

Lesson: For labor-intensive sensors, cheap aftermarket parts are a false economy. Buy OEM.

2016 Subaru WRX

P0327 appeared only during or after heavy rainfall.

What they tried:

1. Clearing the code with a scan tool.

Outcome: Letting the engine bay dry allowed the code to stay off. The permanent fix was replacing the sensor and sealing the connector with dielectric grease.

Lesson: If P0327 appears after a car wash or rain, the root cause is water pooling on the sensor, not a failed part.

2003 Infiniti G35

Car felt sluggish, throwing P0327. Owner replaced the sensor and sub-harness, but the code returned.

What they tried:

1. Replaced sensor and sub-harness.

Outcome: The true fault was a poor ground connection. Cleaning all body ground points dropped the resistance and resolved the code.

Lesson: Even after replacing known failure points, a bad ground triggers P0327. Always test circuit integrity.

How to Prevent This Code From Triggering

• Use OEM sensors (During replacement) — OEM sensors have accurate piezoelectric crystals, eliminating false signals and premature failures.
• Apply dielectric grease to connectors (During replacement) — Prevents moisture from corroding the pins, which is a primary cause of low-voltage signals.
• Seal GM V8 sensor wells (During replacement) — Building an RTV silicone dam around the rear sensor well prevents water from flooding the valley and destroying the new sensors.

Frequently Asked Questions

What is a knock sensor and what does it do?

A knock sensor is a piezoelectric microphone bolted to the engine block that detects harmful vibrations caused by premature fuel ignition (engine knock). It converts these vibrations into a voltage signal. The engine computer uses this signal to adjust ignition timing and prevent engine damage.

Can I just clear the P0327 code?

No, clearing the code only temporarily turns off the Check Engine Light. P0327 indicates a hard electrical fault, meaning the light returns as soon as the computer runs its next diagnostic cycle. You must repair the underlying circuit issue to keep the code away.

Why did my P0327 code come back after replacing the sensor?

The code returns if the replacement sensor was a cheap aftermarket part or if it was not tightened to the exact factory torque specification. It also returns if the root cause was actually a damaged wiring harness or a corroded connector. Always test the full circuit before assuming the sensor is the only problem.

What's the difference between P0327 and P0328?

P0327 means the knock sensor circuit voltage is too low, typically caused by a short to ground, water intrusion, or a dead sensor. P0328 means the voltage is too high, which usually indicates an open circuit like a broken wire or unplugged connector. Both require inspecting the same sensor and wiring harness.

How tight should a knock sensor be?

A knock sensor must be tightened to the exact manufacturer specification, typically between 15 and 20 ft-lbs. Over-tightening crushes the internal piezoelectric crystal, destroying the sensor. Under-tightening prevents the sensor from accurately picking up engine vibrations, triggering a low input code.

Will a P0327 code cause my car to fail an emissions test?

Yes, an active P0327 code illuminates the Check Engine Light, resulting in an automatic failure during an OBD-II emissions inspection. You must repair the fault and complete a full drive cycle to reset the readiness monitors before retesting.

What happens if I ignore the P0327 code?

Ignoring P0327 forces the engine to run with retarded ignition timing, causing sluggish acceleration and poor fuel economy. If actual engine knock occurs, the computer cannot detect or correct it. Over time, this undetected detonation causes catastrophic internal damage to pistons and bearings, requiring a $3,000+ engine rebuild.

Can a car wash cause a P0327 code?

Yes. On engines like GM V8s and Subaru boxers, the knock sensors sit in block valleys where high-pressure water easily pools. This water floods the sensor connector, causing an immediate short circuit and triggering the P0327 code.

Key Takeaways

• P0327 triggers when the engine computer receives a voltage signal below 0.5V from the bank 1 knock sensor, disabling the engine's primary defense against detonation.
• Driving with P0327 drops fuel economy by 5-10% and noticeably reduces acceleration because the computer retards ignition timing to protect the engine.
• Replacing the knock sensor costs between $250 and $600, with labor accounting for the majority of the bill on V6 and V8 engines where the sensor sits under the intake manifold.
• Before replacing parts, verify the sensor well is free of pooled water and test the wiring harness for a short to ground, as these cause over 30% of P0327 codes.
