Ultimate Guide to OBD-II Code P0326: Knock Sensor Performance

What Does P0326 Mean?

Your Engine Control Module (ECM) is receiving an erratic or irrational signal from Knock Sensor 1. This sensor acts as a microphone, listening for engine 'knock' (detonation caused by premature fuel combustion). Because the signal is unreliable, the computer cannot accurately adjust ignition timing, triggering the check engine light and reducing performance.

Technical definition: Knock Sensor 1 Circuit Range/Performance (Bank 1 or Single Sensor). The ECM detects the knock sensor's voltage signal is outside its pre-programmed expected range, intermittent, or not performing as anticipated under current engine load and RPM.

Can I Drive With P0326?

Yes, But With Caution. Yes, but only for short, necessary trips at lower speeds. The ECM enters a protective 'safe mode,' reducing engine power and ignition timing. Ignoring the code risks severe internal engine damage if a genuine knock is occurring. Inefficient combustion also dumps unburnt fuel into the exhaust, destroying the catalytic converter over time—an $800 to $2,500 repair.

Common Causes

• Faulty Knock Sensor (Very Common) — The sensor fails internally from prolonged heat exposure, vibration, or age, sending incorrect or erratic voltage signals to the ECM.
• Wiring or Connector Issues (Common) — The wiring harness degrades from engine heat, or rodents chew the wires. Connectors corrode or fill with oil, disrupting the signal.
• Faulty ECM Software (Common) — Overly sensitive ECM logic misinterprets valid signals as faults. This is exceptionally common on 2010-2021 Hyundai, Kia, and GM vehicles, requiring a dealer software update.
• Actual Engine Knock (Less Common) — The sensor works perfectly and detects a real mechanical issue caused by low-octane fuel, heavy carbon buildup, lean air/fuel ratios, or excessive ignition timing.
• Improper Sensor Installation (Less Common) — Knock sensors are piezoelectric microphones requiring exact torque specifications. 🎬 See this step-by-step knock sensor replacement walkthrough A loose sensor misses vibrations; an over-tightened sensor becomes overly sensitive or breaks.
• Loose Engine or Exhaust Components (Less Common) — Vibrations from loose intake manifold bolts, worn engine mounts, or rattling exhaust heat shields travel through the block and are falsely recorded as engine knock.
• Poor Engine Ground Connection (Rare) — A corroded main engine ground strap introduces electrical 'noise' into sensitive sensor circuits, leading to erratic readings and a false P0326 code.

Symptoms

• Reduced Power and Hesitation — The ECM retards ignition timing to protect the engine, making the vehicle feel noticeably slow, hesitant, or weak under load.
• Audible Engine Pinging or Knocking — A metallic rattling or pinging sound echoes from the engine during acceleration, climbing hills, or when running hot.
🎬 Listen: What real engine knock sounds like
• Worse Fuel Economy — Compromised ignition timing forces the engine to run inefficiently, decreasing gas mileage by 5-10%.
• Check Engine Light is On (also visible on scanner) — The primary and sometimes only indicator that the ECM logged a fault.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this code.

Common Fixes & Costs

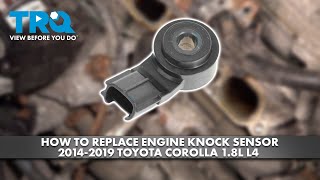

• Replace Knock Sensor — Parts: $50-$150, Labor: $150-$700, ~1.5 hr book time (Intermediate)
• Update ECM/PCM Software — Parts: $0, Labor: $150-$250, ~1.0 hr book time (Professional)
• Repair Wiring or Clean Connector — Parts: $10-$30, Labor: $120-$250, ~1.2 hr book time (DIY)
• Tighten Loose Knock Sensor to Torque Spec — Parts: $0, Labor: $75-$150, ~0.8 hr book time (DIY)
• Perform Engine Decarbonization Service — Parts: $20-$60, Labor: $150-$250, ~1.5 hr book time (Professional)

Used vs. New Parts: Buying Guide

When a used part is worth it: Only when the sensor is easily accessible on the engine block, the new OEM part exceeds $150, and you are pulling it from a low-mileage donor vehicle.

Donor-vehicle mileage cap: roughly under 60000 miles for the part to have meaningful remaining life.

Donor quality checklist:

• Verify the donor vehicle was not scrapped for engine-related issues.
• Inspect the used sensor's connector for corrosion or heat damage.
• Match the part number exactly; visual similarity guarantees nothing.

Decision logic:

• If The sensor is easily accessible and the new OEM part is under $100 → Buy new OEM or a premium aftermarket brand (Denso, NTK) for peace of mind.
• If The sensor is located under the intake manifold → Buy a new OEM part exclusively. Never risk paying $500 in repeat labor because a used or cheap aftermarket sensor failed.

Warranty tradeoff: Used parts carry a 30-day warranty. New OEM parts carry a 1-year warranty. The labor to replace a failed part is never covered.

Worst-case if a used part fails: $800 if a used part fails after installation under an intake manifold, requiring repeat labor.

What Happens If You Wait — Timeline

1. 0-1 month: Code is set. The ECM retards ignition timing. Driver notices a slight drop in fuel economy and sluggishness during acceleration. (MPG impact: 5-10%% · Added cost: $20-$50 in wasted fuel.)
2. 1-4 months: If real knock exists, constant detonation causes micro-pitting on the piston crown. Inefficient combustion dumps unburnt fuel into the exhaust. (MPG impact: 10-15%% · Added cost: $50-$200 in wasted fuel and early catalytic converter stress.)
3. 4-8 months: Sustained detonation cracks piston ring lands. Unburnt fuel overheats and begins melting the internal substrate of the catalytic converter. (MPG impact: 15-20%% · Added cost: $1,500-$3,000 for catalytic converter replacement or top-end engine repairs.)
4. 8+ months: Catastrophic failure. Persistent knock bends a connecting rod or melts a hole through a piston. A fully melted catalytic converter causes total power loss. (MPG impact: 20-50%+% · Added cost: $4,000-$8,000+ for engine replacement.)

Cost of Not Fixing It

• 0-1 month: Reduced fuel economy (5-10% drop) and sluggish performance due to retarded ignition timing. (Added cost: $20-$50 in extra fuel costs.)
• 1-6 months: If real knock exists, unburnt fuel overheats and melts the catalytic converter substrate. (Added cost: $1200-$2800 for catalytic converter replacement.)
• 6+ months: Continued driving with severe, unaddressed engine knock shatters pistons and destroys rod bearings. (Added cost: $3000-$8000+ for engine rebuild or replacement.)

Diagnosis Steps

1. Check for Other Codes
   Use an OBD-II scanner to read all stored codes. If P0326 is accompanied by misfire codes (P030x) or air/fuel ratio codes, diagnose those first. They are often the root cause of the knock.
   Tools: OBD-II Scanner (Beginner)
2. Listen for Actual Engine Knock
   With the engine running, listen for audible pinging or deep mechanical knocking. If a clear knock is present, the sensor is doing its job. Investigate fuel octane or carbon buildup.
   Tools: None (or Mechanic's Stethoscope) (Beginner)
3. Visual Inspection
   Inspect the knock sensor, connector, and wiring harness. Look for melted plastic, frayed wires, rodent damage, and oil contamination in the connector.
   Tools: Flashlight, Inspection Mirror (Beginner)
4. Check Live Data (Voltage)
   View the 'Knock Sensor' PID on an advanced scan tool. At idle, voltage sits around 0.5V-1.0V. A signal stuck at 0V, above 4.5V, or extremely erratic points to a faulty sensor or circuit.
   Tools: Advanced OBD-II Scanner (Intermediate)
5. Simulate a Knock Signal (Tap Test)
   With the engine running, lightly tap the engine block near the sensor with a small wrench. Watch the live data; a healthy sensor shows a clear voltage spike (1.0V-3.0V) in response to each tap.
   Tools: Advanced OBD-II Scanner, Small Wrench (Intermediate)
6. Check Sensor Resistance
   Disconnect the sensor and measure resistance across its terminals. Common ranges are 1-3 kΩ or 8-10 kΩ (check your manual). Infinite resistance (open circuit) confirms a dead sensor.
   Tools: Digital Multimeter, Service Manual (Intermediate)
7. Test Circuit Reference Voltage
   Turn the ignition 'On' (engine off). Check for reference voltage at the harness connector's signal wire. A reading of 5V is standard. No voltage indicates a wiring or ECM failure.
   Tools: Digital Multimeter (Intermediate)
8. Check Fuel Pressure
   If you suspect real knock, check fuel pressure to rule out a lean condition. Low fuel pressure causes a lean air/fuel mixture, leading directly to detonation.
   Tools: Fuel Pressure Gauge, Service Manual (Advanced)
9. Analyze Waveform with Oscilloscope
   Connect an oscilloscope to the signal wire. A good sensor produces a clean AC sine wave (5-15 kHz) that increases in amplitude when tapped. A flat line or heavy electrical 'hash' confirms failure.
   Tools: Oscilloscope (Advanced)

When This Code Triggers (Freeze-Frame Conditions)

• Engine Coolant Temp: 180-210°F (The engine has reached full operating temperature.)
• RPM: 1500-3000 (The fault sets during light acceleration or steady cruising, rarely at idle.)
• Engine Load: 30-60% (Appears under moderate engine load, such as climbing a slight incline or maintaining highway speeds.)
• Vehicle Speed: 35-65 mph (Detected at standard city and highway cruising speeds.)

Related Codes

• P0325 — Indicates a complete circuit malfunction (open or short). The ECM sees zero signal. P0326 means a signal is present, but it is erratic.
• P0327 — Specifies 'Circuit Low Input,' meaning voltage is consistently below the minimum threshold, pointing to a short to ground. P0326 is for an erratic signal.
• P0330 — The identical 'Range/Performance' fault but for Knock Sensor 2, appearing only on V-shaped engines to indicate a problem on Bank 2.
• P1326 — A critical Hyundai/Kia code indicating the Knock Sensor Detection System (KSDS) detected excessive connecting rod bearing wear. This forces 'limp mode' and signals severe mechanical failure.

Climate & Environmental Factors

• High Altitude: Lower air pressure reduces cylinder pressure, making actual engine knock less likely. A P0326 at high altitude strongly points to a sensor or circuit fault rather than mechanical detonation.
• High Humidity: Water vapor cools combustion, suppressing detonation. However, high humidity exacerbates moisture intrusion in cracked wiring harnesses, triggering false codes.
• Extreme Heat: Engine bay heat bakes wiring insulation and connector plastic until brittle, leading to cracks, shorts, and connection failures.

How to Talk to a Mechanic About This Code

Say this: "I have a P0326 code and need a diagnostic. I want to determine if it's a faulty sensor, a wiring issue, or if the sensor is correctly detecting real engine knock. Please also check for TSBs related to ECM software updates for this code."

Signals you understand the multiple causes. It directs the shop to perform a comprehensive diagnosis rather than blindly replacing the sensor, and specifically asks them to check for cost-saving software fixes.

Avoid saying:

• 'My check engine light is on, can you just fix it?'
• 'I think I need a new knock sensor.'
• 'Just do whatever you think is best.'

Questions to ask before authorizing the repair:

• Did you test the sensor's signal with a scan tool to confirm it's faulty?
• Did you rule out actual engine knock from carbon buildup or fuel issues?
• If replacing the sensor, what is the manufacturer's specified torque?
• What is the warranty on both parts and labor?

Where to Take It: Dealer vs Independent vs Chain

• Dealer: Recommended first stop for Hyundai/Kia/GM to rule out software issues.
  Best for: Hyundai, Kia, and GM vehicles, where a software update is a very common fix., Vehicles still under a powertrain or emissions warranty.
  Downsides: Highest labor rates, often 1.5-2x more than independent shops. (Typical cost: +50% vs. baseline)
• Independent Shop: Excellent choice for most P0326 repairs after a software issue has been ruled out.
  Best for: Out-of-warranty vehicles where the cause is a physical part., High-labor jobs (sensor under the intake manifold) where lower labor rates provide significant savings.
  Downsides: May not have the equipment to perform ECM software updates. (Typical cost: +0% vs. baseline)
• Chain Shop: High risk for initial diagnosis. Only consider if you confirmed it's a simple sensor swap.
  Best for: Simple, pre-diagnosed repairs where the sensor is easily accessible.
  Downsides: Technician skill varies dramatically., Not equipped for complex diagnostics or software updates. (Typical cost: -10% vs. baseline)

When to Walk Away From the Repair

If the estimated repair cost exceeds 40-50% of the car's private-party value, seriously consider selling or trading it in.

• Car worth $8000, fix is $800: Fix it. The repair cost is 10% of the car's value.
• Car worth $4000, fix is $1800: Borderline. The repair is 45% of the car's value. Get a second opinion.
• Car worth $2500, fix is $1500: Walk away. The repair cost is 60% of the vehicle's value.

What Scan Tool You Need for This Code

Minimum: A scan tool that can read and graph live sensor data.

A $20 code reader only tells you the code exists. It cannot show the live voltage signal from the sensor, which is essential for determining if the sensor is dead, noisy, or working correctly.

Budget: BlueDriver Pro or Ancel BD310 (~$100) — Connects to your smartphone via Bluetooth. The app displays and graphs the knock sensor's live voltage, allowing you to perform a 'tap test'.

Mid-range: Innova 5610 or XTOOL D7 (~$320) — Bidirectional tools offering advanced diagnostics, manufacturer-specific codes, and detailed freeze-frame data.

Professional: Autel MaxiCOM MK808 (~$500-1200) — Provides professional-level diagnostics, advanced live data graphing, access to TSBs, and potentially ECM software updates.

Rent vs buy: For a one-time diagnosis, AutoZone offers a Loan-A-Tool program where you pay a deposit for a scanner, fully refunded upon return within 90 days.

How to Clear the Code After You Fix It

1. Use an OBD-II scan tool to clear the P0326 code from the ECM's memory.
2. Perform a specific drive cycle to allow the onboard readiness monitors to run their self-tests.
3. Re-scan the vehicle to confirm no codes returned and readiness monitors are set.

Drive cycle (~20 minutes): 1) Cold start (after sitting 8+ hours). 2) Idle for 3 minutes. 3) Drive at a steady 55-60 mph for 15 minutes. 4) Perform several smooth decelerations without braking. 5) Drive in stop-and-go traffic for 5 minutes.

Readiness monitors affected: Comprehensive Component Monitor, Catalyst Monitor, EVAP System Monitor

Before emissions retest: drive at least 50 miles to fully set monitors.

Watch out for:

• Disconnecting the battery clears the code but resets all readiness monitors, guaranteeing an emissions test failure until a full drive cycle is completed.
• Clearing the code without fixing the root cause results in the code returning immediately under load.

Will This Fail Emissions / State Inspection?

Yes — this code typically fails an OBD-II emissions inspection.

• California: A P0326 code triggers an automatic smog check failure. All readiness monitors must be set to 'Ready' after the repair.
• New York: An active Check Engine Light for code P0326 causes an immediate failure of the NYS DMV emissions inspection.
• Texas: In the 17 counties requiring emissions testing, P0326 results in a failed inspection. Monitors must be set before retesting.

Most Commonly Affected Vehicles

• Hyundai Sonata, Elantra, Accent, Tucson (2010-2021) — Extremely common due to overly sensitive software. A dealer ECM update is the most frequent fix. Do not confuse with P1326, which signals imminent engine failure.
• Kia Optima, Forte, Rio, Sorento (2009-2020) — Shares platforms with Hyundai, experiencing identical software sensitivity. TSBs (e.g., SA194) call for an ECM update as the primary solution.
• Toyota Camry, Corolla, RAV4 (2002-2018) — The knock sensor is notoriously located under the intake manifold on the 2.4L 2AZ-FE engine, making replacement a $500-$700 labor-intensive job.
• Honda Accord, Civic, CR-V (2003-2021) — Many V6 and 4-cylinder engines bury the sensor under the intake manifold. Rodent damage to the soy-based wiring sub-harness is a frequent trigger.
• Chevrolet / GMC Colorado, Malibu, Equinox, Silverado (2010-2024) — For 2015-2022 V6 Colorados, P0326 is a software issue fixed by an ECM reflash (TSB 16-NA-307). Other bulletins point to loose intake manifold bolts.
• Ford F-150, Focus, Escape (2004-2016) — On Triton V8s, the sensor is under the intake manifold. Wiring harness damage near the sensor is frequent on the 2.0L Duratec.
• Subaru Forester, Impreza, Outback (2005-2018) — Diagnosis must include checking for stretched timing chains or carbon buildup, which create vibrations the sensor correctly identifies as knock.

Manufacturer-Specific Notes

• Hyundai/Kia: The Knock Sensor Detection System (KSDS) is notoriously sensitive. A P0326 is frequently a software logic error fixed by a dealer ECM update. Never confuse P0326 with P1326, which indicates catastrophic bearing failure covered under a lifetime warranty extension (Campaign 953).
• General Motors (Chevy, GMC): TSBs frequently point away from the sensor. TSB 16-NA-307 addresses software issues on V6 trucks. Other bulletins suggest checking for loose intake manifold bolts (PIP5529B) causing false knock vibrations.
• Honda: Official procedures emphasize inspecting the sub-harness. Rodents chew the soy-based wiring insulation, causing intermittent shorts. The sub-harness is sold as a separate, replaceable part.
• Subaru: P0326 is an early indicator of stretched timing chains or heavy carbon buildup on intake valves. Replacing the sensor ignores the underlying mechanical problem creating the vibrations.

Real Owner Stories

2020 Hyundai Elantra with P0326 after dealership service

Check engine light with code P0326 appeared the day after a dealership service for a piston ring recall.

Outcome: Another user reported that a simple ECU software upgrade performed by the dealer resolved their persistent P0326 code permanently.

Lesson: On modern Hyundai/Kia vehicles, a P0326 code is very often a software issue. An ECU update is the first diagnostic step before replacing parts.

2013 Hyundai Veloster with recurring P0326 after engine replacement

After a new engine was installed, P0326 appeared. The owner replaced the knock sensor, but the code returned within 10 minutes.

Outcome: The issue remained unresolved. The combination of a recent engine swap and persistent code suggests an installation error or improper sensor torque.

Lesson: If P0326 appears after a major repair, and a new sensor doesn't fix it, suspect an installation error (like improper torque or a pinched wire).

2012 Hyundai Accent at 60k miles with P0326 and no audible knock

The check engine light came on showing P0326, but the owner heard no audible engine knocking.

Outcome: Forum members advised that Hyundai released an ECU software update specifically to address false P0326 codes on the 1.6L GDI engine.

Lesson: The absence of an audible knock is a strong clue that the sensor or its programming is at fault. Always check for relevant TSBs.

2013 Chevy Malibu with P0326 caused by a loose motor mount

Vehicle had a check engine light on with code P0326, accompanied by engine pinging sounds.

Outcome: Investigation revealed a loose motor mount creating excessive vibrations. The knock sensor correctly picked up these vibrations. Tightening the mount resolved the issue.

Lesson: P0326 does not always mean the sensor is bad. It means the sensor is detecting vibrations, which can come from loose engine components.

How to Prevent This Code From Triggering

• Use high-quality, top-tier gasoline (Every fill-up) — Correct octane ratings and detergents prevent engine knock and carbon deposits, stopping the sensor from detecting actual detonation.
• Perform regular engine oil changes (Per manufacturer's schedule) — Clean oil reduces oil vapors that create carbon deposits in the combustion chamber, preventing hot spots and pre-ignition.
• Use a fuel system cleaner additive (Every 3,000-5,000 miles) — Dissolves minor carbon deposits from fuel injectors and intake valves before they cause knocking issues.
• Protect wiring harnesses near heat sources (During related maintenance) — Adding a high-temperature heat shield sleeve to the harness prevents engine bay heat from baking the insulation and causing shorts.

Frequently Asked Questions

What is the most common fix for P0326?

Replacing the knock sensor is standard. However, on modern Hyundai, Kia, and GM vehicles, a dealer software update is frequently the required fix.

Can I fix P0326 myself?

Yes, if the sensor is easily accessible on the engine block. If it is located under the intake manifold (common on Toyota and Honda V6s), take it to a professional shop to avoid breaking brittle components.

Will P0326 clear itself?

No, the code remains until the underlying fault is repaired. Once fixed, clear it with a scan tool or wait for 3-5 successful drive cycles for it to extinguish automatically.

I replaced the knock sensor but the code came back. What now?

You likely used a low-quality aftermarket part or failed to torque it to the exact manufacturer specification. Inspect the wiring harness for intermittent shorts and check for pending ECM software updates.

What is a common misdiagnosis for P0326?

Immediately replacing the knock sensor without confirming it isn't correctly detecting a real mechanical problem. Always rule out actual engine knock from low-octane fuel or carbon buildup first.

Can using the wrong octane fuel cause a P0326 code?

Yes. Low-octane fuel causes pre-ignition (knock), which the sensor reports to the ECM. Constant high-level knock signals trigger the P0326 performance fault.

Can a bad catalytic converter cause a P0326 code?

Indirectly, yes. A severely clogged catalytic converter increases exhaust backpressure and engine temperature, creating conditions that cause real engine knock.

What is the difference between P0326 and P0325?

P0325 indicates a total circuit failure (open or short) where the ECM gets zero signal. P0326 means the ECM receives a signal, but it is erratic, noisy, or outside expected parameters.

Key Takeaways

• P0326 triggers when the ECM receives an erratic knock sensor signal, forcing the engine into a low-power 'safe mode' to prevent internal damage.
• While a failed sensor or frayed wiring are primary culprits, 2010-2021 Hyundai, Kia, and GM vehicles frequently require a $150-$250 dealer ECM software update to fix overly sensitive logic.
• Never ignore P0326; driving with an unaddressed, severe engine knock causes catastrophic piston or bearing failure within months, costing upwards of $4,000.
• Always rule out actual engine knock (caused by low-octane fuel or carbon buildup) and check for manufacturer Technical Service Bulletins (TSBs) before spending $300+ on sensor replacement.
