P0301 on 2005-2010 Pontiac Vibe: Cylinder 1 Misfire Causes and Fixes

What's Unique About the 2005-2010 Pontiac VIBE

The Pontiac Vibe is mechanically a Toyota Matrix, sharing its reliable Toyota engines, chassis, and most parts. This is great news for owners, as parts are widely available and issues are well-documented across both platforms. The 2005-2010 year range covers two distinct generations: the first-gen (2005-2008) with the 1.8L 1ZZ-FE engine, and the second-gen (2009-2010) with the 1.8L 2ZR-FE or 2.4L 2AZ-FE. The first-generation model is particularly known for intake manifold gasket leaks that cause misfires, a well-documented issue on the 1ZZ-FE engine also found in the Toyota Corolla.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Generation note: The 2005-2010 range covers two Vibe generations. The 1st generation (2005-2008) uses the Toyota 1.8L 1ZZ-FE engine and is highly prone to intake manifold gasket leaks causing misfires, often accompanied by a P0171 lean code. The 2nd generation (2009-2010) uses the Toyota 1.8L 2ZR-FE or 2.4L 2AZ-FE engines. The intake gasket is not a common failure point on these engines. However, the 2.4L 2AZ-FE engine is known for excessive oil consumption due to piston ring design, which can foul spark plugs and lead to misfires.

Symptoms You May Notice

• Flashing or solid Check Engine Light
• Rough or shaking idle
• Engine hesitation or stumbling during acceleration
• Noticeable loss of power
• Reduced fuel economy
• Smell of raw gasoline from the exhaust
• Difficulty starting the engine

Most Likely Causes

1. Faulty Ignition Coil 🔴 High Probability Coil-on-plug systems are a common failure point on most modern engines as they age. The Vibe's Toyota engines are no exception, and owners on forums frequently report solving P0301 with a coil replacement.
   How to confirm: Swap the ignition coil from cylinder 1 with the coil from cylinder 2. Clear the codes and drive. If the code changes to P0302 (Cylinder 2 Misfire), the coil is bad. This is the most common and effective diagnostic step recommended by owners.
   Typical fix: Replace the faulty ignition coil. It is held on by a single 10mm bolt and is easily accessible after removing the plastic engine cover.
   Est. part cost: $30-$75
2. Worn or Fouled Spark Plug 🔴 High Probability
   How to confirm: Remove the spark plug from cylinder 1. Inspect it for wear (rounded electrode), heavy carbon buildup, or oil/coolant fouling. A worn or contaminated plug cannot create a strong enough spark.
   Typical fix: Replace the spark plug. It's recommended to replace all four at the same time for even performance. Use high-quality Iridium plugs from Denso (SK16R11) or NGK (IFR5T11) as recommended by owners.
   Est. part cost: $8-$20 per plug
3. Leaking Intake Manifold Gasket (2005-2008 models) 🔴 High Probability The 1.8L 1ZZ-FE engine used in the first-generation Vibe and Matrix has a well-documented issue with the original black intake manifold gasket failing, causing a vacuum leak. This often triggers lean codes (P0171) along with misfires, particularly on cylinders 1 and 4.
   How to confirm: With the engine running, spray brake cleaner or a combustible fluid around the area where the intake manifold meets the cylinder head near cylinder 1. If the engine's idle speed changes or stumbles, you have a leak. A professional smoke test is the most definitive method.
   Typical fix: Replace the intake manifold gasket with the updated, more durable orange or green-colored OEM gasket (Part #17171-22060). This is a common DIY repair detailed in many owner forums. 🎬 See this step-by-step intake manifold gasket replacement walkthrough.
   Est. part cost: $10-$30
4. Clogged or Faulty Fuel Injector ⚪ Low Probability
   How to confirm: This is more difficult to diagnose. You can listen for a clicking sound from the injector with a mechanic's stethoscope. The most reliable method is to swap the cylinder 1 injector with another cylinder's injector to see if the misfire code follows.
   Typical fix: Some owners report success using a high-quality fuel system cleaner like Chevron Techron. If that fails, replace the faulty fuel injector. Always replace the small O-ring seals and lubricate them when installing to prevent fuel leaks.
   Est. part cost: $50-$150

Rare But Worth Checking

• Low Engine Compression: If ignition and fuel system checks don't solve the issue, a mechanical problem like a burnt valve, worn piston rings, or a leaking head gasket could be the cause. A compression test is needed to confirm this. A user on Car Talk Community with P0301 and P0304 on a 2003 Vibe performed a warm compression test and found good results (190 PSI on cylinder 1), helping to rule out a major mechanical issue.
• Fuel Contamination: As noted in TSB PIP3333C, contaminants in the fuel can gather near the #1 injector during turns, causing an intermittent misfire. This is more likely on vehicles with a returnless fuel system.
• Faulty Engine Computer (ECM/PCM): In very rare cases, the driver circuit within the Engine Control Module that fires the ignition coil can fail. This is difficult to diagnose and should only be considered after all other possibilities have been exhausted.

Diagnosis Steps

1. Read the code with an OBD-II scanner to confirm P0301 and check for any other codes like P0171 or other misfire codes.
2. Swap the ignition coil from cylinder 1 to cylinder 2. Clear the codes, run the engine, and rescan. If the code is now P0302, you have a bad coil. This is the most definitive first step.

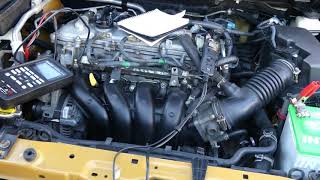

🎬 Watch: How to swap ignition coils to diagnose a misfire.
3. If the code remains P0301, inspect the spark plug in cylinder 1. Look for wear, damage, or fouling from oil or carbon. Replace if in doubt, preferably as a set of four.
🎬 Watch: How to replace spark plugs on a Vibe or Matrix.

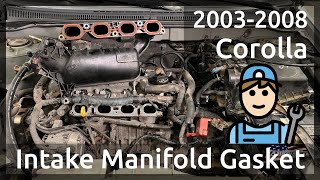

4. For 2005-2008 models (1.8L 1ZZ-FE), check for a vacuum leak at the intake manifold gasket. With the engine running, carefully spray carb cleaner or starting fluid around the gasket area near cylinder 1. If the idle changes, the gasket is leaking and must be replaced.
5. If the above steps don't identify the issue, consider testing the fuel injector. Listen for a click with a stethoscope or swap it with another cylinder's injector to see if the code moves.
6. If all else fails, perform a compression test to check for mechanical engine issues in cylinder 1, such as worn rings or a bad valve.

Parts You'll Likely Need

• Ignition Coil (OEM #90919-02258) — This is a very common failure part causing a single-cylinder misfire. The coil-on-plug design makes it easy to diagnose by swapping and easy to replace.
  Trusted brands: Denso, NGK, Delphi
  OEM price range: $80-$120
  Aftermarket price range: $30-$75
• Spark Plug (OEM #Denso SK16R11 or NGK IFR5T11) — Spark plugs are a routine maintenance item and can wear out or become fouled, causing a weak or nonexistent spark. Using the correct OEM-spec Iridium plug is recommended.
  Trusted brands: Denso (Iridium), NGK (Iridium)
  OEM price range: $12-$20
  Aftermarket price range: $8-$15
• Intake Manifold Gasket (for 2005-2008 1.8L) (OEM #17171-22060) — A known failure point on the 1ZZ-FE engine, the original gasket deteriorates and causes a vacuum leak, leading to misfires (P0301/P0304) and lean conditions (P0171).
  Trusted brands: Toyota (OEM - Updated Orange/Green design), Fel-Pro (MS 93942)
  OEM price range: $8-$20
  Aftermarket price range: $5-$15

Related Codes That Often Appear With This One

• P0300 — If the misfire is intermittent or also happening on other cylinders, P0300 (Random/Multiple Misfire) may appear alongside P0301.
• P0171 — This code for "System Too Lean" is a very common partner to P0301 on 2005-2008 models, strongly indicating a vacuum leak from a failed intake manifold gasket.
• P0302, P0303, P0304 — If other cylinders are also misfiring, their specific codes will be stored as well. Seeing P0301 and P0304 together on a 2005-2008 model is another strong pointer towards the intake manifold gasket being the culprit.

Technical Service Bulletins (TSBs) & Recalls

• Bulletin #PIP3333C: Notes that intermittent P0301 or P0304 codes can be caused by fuel contamination collecting in the fuel rail, especially during turns.

Platform-Specific Known Issues

• Intake Manifold Gasket Failure (2005-2008 1.8L 1ZZ-FE): The most significant vehicle-specific issue for first-generation models is the failure of the intake manifold gasket. The original black gasket material degrades, causing a vacuum leak that commonly triggers P0301 and P0171 codes. A GenVibe.com forum member created a detailed guide with photos for replacing it. The fix is to use the updated orange/rust-colored OEM gasket (part #17171-22060).
• Excessive Oil Consumption (2009-2010 2.4L 2AZ-FE): The 2.4L 2AZ-FE engine, used in second-generation Vibe GT models, is known for excessive oil consumption due to a piston ring design flaw. This allows oil to enter the combustion chamber, which fouls the spark plug in cylinder 1 (and others), directly causing a P0301 misfire. The fix often requires more than just a new spark plug; it may involve addressing the oil consumption issue, which in severe cases required piston and ring replacement under a warranty enhancement program from Toyota.

Mechanic-Grade Diagnostic Values

• Ignition Coil Resistance (1.8L 1ZZ-FE) — expected: Primary: 0.36 – 0.55 Ω (cold). Secondary: 9.0 – 15.0 kΩ (cold).. Failure: Readings outside of this range indicate a faulty coil winding.
• Fuel Injector Resistance (1.8L 1ZZ-FE) — expected: 13.4 – 14.2 Ω at 68°F (20°C).. Failure: Resistance outside this range suggests an electrical fault within the injector.
• Fuel Pressure (1.8L 1ZZ-FE & 2.4L 2AZ-FE) — expected: 44 to 50 psi at idle.. Failure: Pressure below this range can indicate a weak fuel pump or clogged filter, while high pressure could point to a faulty regulator.
• Injector Pulse Width (Live Data) — expected: 1.0 to 3.0 ms at idle.. Failure: Significantly different values on cylinder 1 compared to others could indicate a fueling problem or a compensation for a mechanical issue.

Hidden / Shadow Codes Worth Checking

• Mode $06, Test ID $53: This function on advanced scan tools shows the raw misfire count for each cylinder before it's high enough to trigger a P030x code. Component ID $01 corresponds to Cylinder 1. (see via Use an OBD-II scanner with Mode $06 capabilities. Look for TID $53 (or sometimes $A2-$A7 on newer CAN systems) and check the count for CID $01. A high count confirms misfires on that cylinder even if the CEL isn't on yet.)

Scan Tool Commands That Help

• Toyota Techstream: Active Test: Power Balance — This test allows you to individually disable the fuel injector for each cylinder. When you disable a healthy cylinder, the engine RPM will drop noticeably. If you disable cylinder 1 and there is little or no change in RPM, it confirms that cylinder was not contributing power, pinpointing the location of the misfire.

Wiring & Ground Locations

• G105 / G106 — Located on the rear of the cylinder head on the 1.8L 1ZZ-FE engine.. These are primary ground points for the engine control system. Corrosion or a loose connection at these grounds can cause erratic voltage and signal issues for the ignition coils and injectors, leading to intermittent misfires that are difficult to diagnose.
• ECM Connector E5, Pin 24 (IGT1) — At the Engine Control Module (ECM), which is typically located behind the glove box.. This is the specific pin that sends the trigger signal (IGT) from the ECM to the ignition coil for cylinder 1 on the 1ZZ-FE engine. A technician can back-probe this pin to verify if the ECM is commanding the coil to fire, which helps differentiate between a wiring problem, a bad coil, or a rare ECM fault.

Real Owner Repair Stories

• GenVibe forum member (2009 Pontiac Vibe 2.4L (2AZ-FE)) — Recurring P0301 misfire code, rough idle.
  ❌ Tried (didn't work) Replacing the spark plug, Swapping ignition coils
  ✅ What actually fixed it The root cause was excessive oil consumption fouling the new spark plug. The ultimate fix was a short block replacement performed under Toyota's extended warranty program for the 2AZ-FE oil consumption issue.
• ToyotaNation forum member (2005 Toyota Matrix 1.8L (1ZZ-FE)) — P0301 and P0171 codes, hesitation.
  ❌ Tried (didn't work) Cleaning the MAF sensor, Replacing spark plugs and ignition coil #1
  ✅ What actually fixed it The intake manifold gasket was leaking, but the leak was too small to be detected with a carb cleaner spray test. Only after removing the intake manifold was the deteriorated black gasket visible. Replacing it with the updated orange gasket (17171-22060) resolved both codes.

"I Checked Everything" — The Actual Cause

• In some cases with the 1.8L 1ZZ-FE engine, a failing intake manifold gasket can cause a very small, intermittent vacuum leak that does not show up during a typical smoke test or when spraying carb cleaner. The leak may only be significant when the engine is cold. The definitive diagnosis in these cases was removing the intake manifold and visually inspecting the gasket for flatness and deterioration, then replacing it with the updated part.

When the Usual Fixes Don't Work

• While swapping the ignition coil is the most common first step, there are numerous owner reports for the 2009-2010 2.4L Vibe where the P0301 code returned shortly after replacing the coil and plug. In these instances, the true root cause was the spark plug becoming fouled by oil due to the engine's oil consumption problem. This highlights that for the 2.4L engine, a recurring P0301 is a strong indicator of the more serious underlying oil consumption issue.

OEM Part Supersession History

• Unknown (Original Black Gasket) → 17171-22060 — The original black intake manifold gasket on the 1ZZ-FE engine was made of a material that would harden and flatten over time, losing its seal. The updated part uses a more durable orange or green rubber compound to prevent this failure.

Model Year Variations Within This Range

• 2005-2008: These models use the 1.8L 1ZZ-FE engine and are highly susceptible to P0301 caused by a leaking intake manifold gasket, often paired with code P0171.
• 2009-2010: These models use the updated 1.8L 2ZR-FE or 2.4L 2AZ-FE engines. The intake gasket is not a common failure. However, the 2.4L 2AZ-FE engine has a known issue with oil consumption that can foul the cylinder 1 spark plug, causing P0301.
