P0202 on 2021-2024 Cadillac Escalade: Injector Circuit Malfunction Causes and Fixes

What's Unique About the 2021-2024 Cadillac ESCALADE

For this specific generation of Cadillac Escalade and its platform-mates (Chevy Tahoe/Suburban, GMC Yukon), the P0202 code is a known issue acknowledged by General Motors. The manufacturer has released multiple Technical Service Bulletins (TSBs) for both the 6.2L V8 and 3.0L Duramax engines. TSB 22-NA-087, for example, specifically points to a broken terminal pin inside the injector harness connector as a potential cause. Unlike a simple injector clog, the official repair procedure requires replacing both the injector and the wiring harness, suggesting a potential design or manufacturing flaw in these components that makes them prone to premature failure.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Rough or shaking idle
• Engine misfire, which may feel like a stumble or pop
• Hesitation or lack of power during acceleration
• Reduced fuel economy
• Strong fuel smell from the exhaust
• Engine may be hard to start or have an extended crank time

Most Likely Causes

1. Faulty Fuel Injector (Cylinder 2) 🔴 High Probability GM has issued multiple TSBs (e.g., #PIE0802A, #22-NA-087, #21-NA-149) for the 2021-2024 Escalade that specifically call for the replacement of the fuel injector to fix injector circuit codes. This indicates a higher-than-normal failure rate.
   How to confirm: A technician can perform a resistance test on the injector using a multimeter. A definitive test is to swap the cylinder 2 injector with another cylinder's injector (e.g., cylinder 4). If the trouble code changes to P0204 after clearing codes and driving, the injector is confirmed to be faulty.

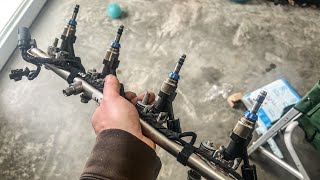

   Typical fix: Replace the fuel injector for cylinder 2. 🎬 Watch: GDI injector removal and installation walkthrough Per GM TSBs, it is highly recommended to also replace the wiring harness at the same time to prevent a repeat failure.
   Est. part cost: $75-$250
2. Faulty Fuel Injector Wiring Harness 🔴 High Probability TSB #22-NA-087 explicitly identifies a broken terminal pin inside the harness connector as a possible cause. Other bulletins like #21-NA-149 point to potential for the harness to chafe or be pinched against engine components, causing a short or open circuit.
   How to confirm: Visually inspect the harness for any signs of damage, chafing, melting, or corrosion at the connector. Use a multimeter to check for continuity and shorts in the wires running from the PCM to the injector. A 'noid light' can confirm if the PCM is sending a signal to the connector. 🎬 Watch: How to diagnose a fuel injector circuit malfunction
   Typical fix: Replace the fuel injector wiring harness or pigtail connector. This is often done in conjunction with replacing the fuel injector itself, as mandated by GM's repair procedure for this issue.
   Est. part cost: $50-$150
3. Poor Electrical Connection 🟡 Medium Probability TSB #22-NA-087 mentions a broken terminal pin, and TSB #21-NA-149 mentions checking for poor terminal tension at connector X160. This suggests the connectors themselves are a weak point.
   How to confirm: Inspect the connector at the fuel injector and at the main engine harness connector (X160). Look for loose or backed-out pins, corrosion, or dirt. A terminal drag test can check for proper pin tension.
   Typical fix: Clean and secure the electrical connector. Apply a small amount of dielectric grease to prevent future corrosion. If pin tension is poor, the connector pigtail may need to be replaced.
   Est. part cost: $5-$50

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): This is very rare. The internal driver circuit for the injector can fail, but all other possibilities (injector, wiring, connections) should be exhausted before condemning the PCM. One forum user reported a dealer replacing the ECM for a recurring P0202, but the issue returned, suggesting it was not the root cause. TSB #PIP6005A explicitly states "Do not replace the ECM for this concern."

Diagnosis Steps

1. Scan the vehicle for any other stored trouble codes to get a full picture of the issue.
2. Visually inspect the wiring harness for cylinder 2's fuel injector. Per TSB #21-NA-149, pay close attention to where the harness may chafe against engine components or brackets, and check for damage near the X160 connector.
3. Disconnect the injector and use a multimeter to measure its internal resistance. Compare the reading to the manufacturer's specification (e.g., a spec for a similar engine is 11.4-13.4 ohms). An open circuit (infinite resistance) or a short (near-zero resistance) indicates a bad injector.
4. Use a 'noid light' to test the injector connector. The light should flash steadily when the engine is running, indicating the PCM is sending a signal.
5. If the injector resistance is good and the signal is present, consider swapping the cylinder 2 injector with one from another cylinder (e.g., cylinder 4).
6. Clear the codes and drive the vehicle. If the code returns as P0204, the fuel injector is faulty. If the code remains P0202, the problem is in the wiring harness or PCM.
7. If the wiring is the suspected cause, perform a continuity test on the wires between the PCM connector and the injector connector to find any breaks or shorts. Also perform a terminal drag test on the injector connector pins.

Parts You'll Likely Need

• Fuel Injector (6.2L V8 L87) (OEM #12710481) — This is the most common failure point for code P0202 on the V8 engine, as confirmed by multiple GM service bulletins.
  Trusted brands: ACDelco, GM Genuine Parts
  OEM price range: $80-$140
  Aftermarket price range: $50-$100
• Fuel Injector (3.0L Duramax LM2) (OEM #55506244) — This is the injector specified in TSB #22-NA-087 for the Duramax engine when addressing injector circuit codes.
  Trusted brands: ACDelco, GM Genuine Parts
  OEM price range: $150-$250
  Aftermarket price range: $100-$180
• Fuel Injector Wiring Harness (3.0L Duramax LM2) (OEM #55513485) — GM TSBs #PIE0802A and #22-NA-087 specifically recommend replacing the harness along with the injector to ensure a complete and lasting repair on the diesel models.
  Trusted brands: ACDelco, GM Genuine Parts
  OEM price range: $70-$150
  Aftermarket price range: $50-$100

Related Codes That Often Appear With This One

• P0302 — P0302 means "Cylinder 2 Misfire Detected." Since the P0202 code indicates a problem with fuel delivery to cylinder 2, it will almost always cause a misfire in that same cylinder, leading to a P0302 code being stored as well.

Technical Service Bulletins (TSBs) & Recalls

• PIE0802A: Addresses Check Engine Light with DTC P0202 on 2024 3.0L engines, instructing to replace the wire harness and affected fuel injector.

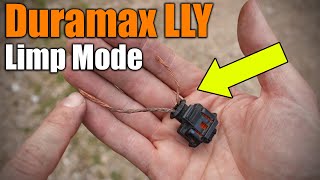

• 22-NA-087: Recommends replacing the fuel injector and wiring harness for a customer concern of MIL on with DTCs P0201-P0206 set on 2021-2022 🎬 See how Duramax injector codes can cause limp mode 3.0L engines. Specifies a potential broken terminal pin in the harness connector.
• 21-NA-149: Details potential engine wiring harness chafing locations that can cause a variety of DTCs, including P0202, on both V8 and diesel engines.
• PIP6005A: A preliminary information bulletin covering a wide range of injector codes (including P0202) on 2022-2023 V8 engines, noting a faulty injector as the likely cause and advising against replacing the ECM.

Platform-Specific Known Issues

• GM Technical Service Bulletin #PIE0802A explicitly states that for a P0202 code on 2024 models with the 3.0L engine, the technician should replace the wire harness and the affected fuel injector.
• GM Technical Service Bulletin #22-NA-087 advises replacing the fuel injector and wiring harness for a range of injector codes including P0202 on 2021-2022 models with the 3.0L LM2 engine, noting the cause may be a broken terminal pin in the connector.
• GM Technical Service Bulletin #21-NA-149 provides inspection points for engine harness chafing that can cause codes P0201-P0206 on both 6.2L L87 and 3.0L LM2 engines.

Mechanic-Grade Diagnostic Values

• Fuel Injector Internal Resistance (Gasoline and Diesel) — expected: 10-16 Ohms. Compare the reading of the suspect injector to a known good one; they should be very close.. Failure: A reading of infinite resistance (open) or near-zero resistance (shorted) indicates a failed injector. A significant deviation from other injectors also points to a problem.
• Injector Circuit Voltage (Key On, Engine Off - GDI) — expected: Low millivolts (e.g., 5-160 mV). Unlike older port injection systems, you should not expect to see 12V.. Failure: Absence of voltage or presence of full battery voltage may indicate a wiring issue or PCM fault.
• Fuel Injector Balance Test (Pressure Drop) — expected: When pulsing each injector for a set duration, the fuel rail pressure drop should be nearly identical for all cylinders.. Failure: A pressure drop difference of more than 2 psi between cylinders indicates a clogged or failing injector.

Scan Tool Commands That Help

• GDS2 (GM) or equivalent professional scan tool: Injector Balance Test / Fuel Injector Test — This bidirectional command allows the technician to individually activate each fuel injector. It can be used to listen for an audible click from the injector, command a fuel pressure drop test to check flow, or disable one injector at a time to see the effect on RPM. This helps isolate a faulty injector without swapping it physically.
• GDS2 (GM) or equivalent professional scan tool: Cylinder Power Balance — This test monitors the RPM contribution of each cylinder. By sequentially disabling the fuel injector for each cylinder, the tool displays the RPM drop. A cylinder with a significantly smaller RPM drop indicates it was not contributing as much as the others, pointing to a problem with that cylinder's fuel, spark, or compression.

Wiring & Ground Locations

• Engine Harness Chafe Point (3.0L LM2) — Inspect the harness approximately 18 inches (46 cm) from the ECM connectors, specifically where it may rest on top of the generator. Also check near the PCV hose clamp at the crankcase pressure regulator.. GM TechLink has identified this as a specific location where engine vibration can cause the harness to chafe through, leading to an open or short in the injector circuits.
• Connector X160 — This is a major engine harness inline connector. TSBs advise inspecting the wiring harness near this connector for damage.. This connector is a critical junction for multiple engine circuits, including the fuel injectors. Poor terminal tension or damage to the harness near this point can cause intermittent open circuits.
• G103 (Engine Ground) — Located on the right rear (passenger side) of the engine block or cylinder head.. This is a primary ground point for multiple engine components and sensors. A loose or corroded connection here can introduce electrical noise and voltage issues, potentially affecting the PCM's ability to correctly monitor injector circuits.

OEM Part Supersession History

• 12698484, 12687650 → 12710481 (which may be further superseded by 12742701) — Standard part revision and improvement by the manufacturer.
  Heads up: The newest part number should always be used for repairs to ensure the latest design is installed.
• 55513485, 55512145, 55510039, 55508024, 40009103 → 40009605 — This extensive supersession history for the 3.0L Diesel injector harness suggests multiple revisions were made to address the known failure points.
  Heads up: Using the latest part number (40009605) is critical to get the most durable version of the harness and avoid repeat failures.

Model Year Variations Within This Range

• 2021-2024: The 3.0L Duramax Diesel engine in the Escalade for these model years is the LM2 version. An updated LZ0 version with higher power and steel pistons was introduced in GM trucks for 2023, but Escalades did not receive it until the 2025 model year. Therefore, TSBs and parts related to the 3.0L diesel in this range specifically apply to the LM2 engine.
