P0175 on 2010-2014 Subaru Outback 3.6L: Causes and Fixes for Rich Fuel Condition

What's Unique About the 2010-2014 Subaru Outback

While the causes for a P0175 code are common across many V6 or H6 engines, the Subaru EZ36 engine is particularly reliant on accurate readings from its front Air/Fuel (A/F) ratio sensors for precise fuel control. A lazy or failing A/F sensor is a very frequent culprit for this code on this platform, sometimes even before other symptoms become severe. Unlike issues that affect the whole engine (like a MAF sensor), this code points specifically to a problem on the driver's side bank.

Symptoms You May Notice

• Check Engine Light is on
• Reduced fuel economy
• Rough or unstable idle
• Engine hesitation or lack of power during acceleration
• Strong smell of gasoline from the exhaust
• Black smoke from the tailpipe in severe cases
• Fuel dilution of engine oil, identifiable by a gasoline smell on the dipstick

Most Likely Causes

1. Failing Air/Fuel Ratio Sensor (Bank 2, Sensor 1) 🔴 High Probability The front A/F sensor provides the primary data for fuel mixture adjustments. They have a finite lifespan and are a common failure point leading to fuel trim codes on Subarus. Owners and mechanics widely report this as the number one cause for a solitary P0175.
   How to confirm: Use a scan tool to graph the voltage or current of the Bank 2, Sensor 1. Compare it to the Bank 1, Sensor 1. A lazy, slow-to-respond, or biased sensor on Bank 2 that doesn't switch rapidly like the Bank 1 sensor indicates failure.
   Typical fix: Replace the Bank 2 (driver's side) upstream (pre-catalytic converter) Air/Fuel ratio sensor. Using an OEM or Denso-branded sensor is highly recommended for longevity and compatibility.
   Est. part cost: $150-$250
2. Leaking Fuel Injector(s) 🟡 Medium Probability An injector can get stuck partially open or develop a poor seal, dripping excess fuel into one or more cylinders on Bank 2. This can happen due to age or fuel deposits.
   How to confirm: Perform a fuel pressure leak-down test; if pressure drops after the engine is off, an injector may be leaking. Another method is to remove the spark plugs on Bank 2 and check for one that is excessively black and sooty, indicating a rich condition in that specific cylinder.
   Typical fix: Identify and replace the faulty fuel injector(s) on Bank 2. It is often recommended to replace them as a set on that bank, or at least have the others cleaned and tested.
   Est. part cost: $70-$150 per injector

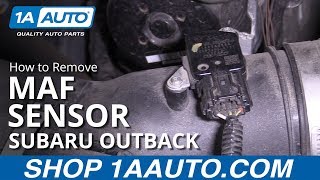

3. Dirty or Faulty Mass Airflow (MAF) Sensor ⚪ Low Probability The MAF sensor measures all air entering the engine. If it's dirty, it can under-report the amount of air, causing the ECM to calculate too much fuel.
   How to confirm: This usually sets codes for both banks (P0172 and P0175). If only P0175 is present, it's less likely. Inspect the sensor for dirt and try cleaning it with dedicated MAF sensor cleaner. Monitor MAF readings on a scan tool to see if they are stable and logical.
   Typical fix: Clean the MAF sensor with a specific MAF sensor cleaner spray. If cleaning doesn't work, replace the sensor. Use an OEM or Denso replacement for best results.
   Est. part cost: $20 (cleaner) or $100-$200 (new sensor)

Rare But Worth Checking

• High Fuel Pressure: A faulty fuel pressure regulator can cause excessive pressure in the entire fuel rail, forcing too much fuel through the injectors. This would typically trigger codes for both banks (P0172 & P0175), making it a rare cause for just P0175.
• Faulty Engine Coolant Temperature (ECT) Sensor: If the ECT sensor incorrectly tells the computer the engine is cold, the computer will command a richer fuel mixture. This can sometimes lead to a rich code, though it often affects both banks.

Diagnosis Steps

1. Connect an OBD-II scanner and confirm P0175 is the active code. Check for any other codes and review the freeze frame data to see the engine conditions when the code was set.
2. Monitor live data. Observe the Short-Term Fuel Trim (STFT) and Long-Term Fuel Trim (LTFT) for both Bank 1 and Bank 2. For P0175, you should see significantly negative numbers for Bank 2 (e.g., -15% or more), while Bank 1 trims are near normal.
3. Inspect the air intake system from the air filter to the throttle body for any blockages or contamination around the MAF sensor.
4. Graph the performance of the Bank 2, Sensor 1 (Air/Fuel Ratio Sensor). It should switch rapidly. Compare its readings to Bank 1, Sensor 1. If it is slow, stuck, or biased, it is likely faulty.
5. Check fuel pressure using a fuel pressure gauge connected to the fuel rail. Ensure it is within the manufacturer's specified range.
6. If the A/F sensor and fuel pressure are good, suspect a leaking fuel injector on Bank 2. You can perform a fuel pressure leak-down test or remove the spark plugs on that bank to look for evidence of one cylinder running richer than the others.

Parts You'll Likely Need

• Air/Fuel Ratio Sensor (Bank 2, Sensor 1) (OEM #22641AA51A) — This is the upstream sensor on the driver's side. It is the most common component to fail and directly cause a P0175 code without other codes present. Owners strongly recommend using the OEM Subaru part or the direct Denso equivalent (often part number 234-9123) to avoid compatibility issues.
  Trusted brands: Denso (OEM Manufacturer), NTK
  OEM price range: $200-$280
  Aftermarket price range: $150-$220

Related Codes That Often Appear With This One

• P0172 — This is the 'System Too Rich' code for Bank 1. If both P0172 and P0175 are present, it points to a problem common to the entire engine, like a faulty MAF sensor or fuel pressure regulator.
• P0302, P0304, P0306 — These are misfire codes for the cylinders on Bank 2 (cylinders 2, 4, and 6). An extremely rich condition can foul spark plugs and cause misfires on the affected bank.

Technical Service Bulletins (TSBs) & Recalls

• While no TSBs directly address P0175 on this platform, TSB 05-48-10 for steering vibration and discussions around torque converter shudder (related to TSB 16-90-13R on other models) are common platform issues owners should be aware of.

Platform-Specific Known Issues

• Access to the Bank 2 (driver's side) A/F sensor can be tight, but it is generally accessible from underneath the vehicle without removing major components. Using a specialized 22mm offset oxygen sensor socket is highly recommended for removal and installation.

Mechanic-Grade Diagnostic Values

• Upstream Air/Fuel (A/F) Ratio Sensor Voltage (Bank 1 & 2) — expected: Fluctuating between 2.0 - 2.3 V at warm idle.. Failure: A sensor on Bank 2 that is stuck, slow to respond, or has readings significantly different from the Bank 1 sensor.
• Downstream Oxygen (O2) Sensor Voltage (Bank 1 & 2) — expected: Fluctuating between 0.1 - 0.8 V at warm idle with a healthy catalytic converter.. Failure: This sensor primarily monitors catalyst efficiency; its reading is secondary for a P0175 diagnosis but can indicate related problems.
• Fuel Pressure at Idle — expected: Approximately 2.5 - 2.6 BAR (36 - 38 PSI).. Failure: Significantly higher pressure (e.g., over 45 PSI) could indicate a faulty fuel pressure regulator, causing a rich condition across both banks.
• Long-Term Fuel Trim (LTFT) for Bank 2 — expected: Close to 0%, typically within +/- 8%.. Failure: Consistently negative values, often -15% or more, confirm the ECM is subtracting large amounts of fuel to compensate for a rich condition.

Scan Tool Commands That Help

• Generic (No Scan Tool Required): ECU Adaptation Reset (Battery Disconnect) — After replacing a component like an A/F sensor, MAF sensor, or fuel injectors. This clears the long-term fuel trim values that were learned with the faulty part. Disconnect the negative battery terminal for 15-30 minutes to force the ECU to erase its volatile memory and relearn fuel strategies from its base map with the new component.

Wiring & Ground Locations

• Ge (Engine Ground) — Located on the left (driver's side) rear of the EZ36 engine block.. A corroded or loose engine ground can cause erratic voltage readings from engine-mounted sensors, including the A/F sensor, potentially leading to incorrect fuel mixture calculations.
• Chassis/Body Ground — A primary ground point from the negative battery cable attaches to the vehicle body near the battery, typically with a 10mm bolt.. While less likely to cause a bank-specific code, a poor main ground can create a host of electrical issues. Ensuring this connection is clean and tight is a fundamental step.
• Bank 2 A/F Sensor Connector — The connector for the driver's side upstream A/F sensor is located above the under-engine splash shield, accessible by partially removing the shield.. This is the connection point to inspect for corrosion or damage and to test wiring continuity back to the ECM if a sensor replacement does not solve the issue.

Real Owner Repair Stories

• subaruoutback.org forum user (2011 Subaru Outback 3.6R) — Check engine light with code P0175.
  ❌ Tried (didn't work) Initial diagnosis pointed towards the common A/F sensor failure.
  ✅ What actually fixed it The owner confirmed the issue was resolved by replacing the Bank 2 (driver's side) upstream Air/Fuel ratio sensor. Live data showed fuel trims for Bank 2 were highly negative before the repair and returned to normal afterward.

"I Checked Everything" — The Actual Cause

• An exhaust leak located between the cylinder head and the upstream A/F sensor can cause a P0175 code. This issue would not be found with a standard intake smoke test. The leak draws outside oxygen into the exhaust stream, causing the A/F sensor to read a false lean condition. In response, the ECM commands more fuel, which makes the actual air/fuel mixture rich and triggers the code. This is commonly missed because technicians focus on vacuum leaks in the intake system, not pre-sensor exhaust leaks.

OEM Part Supersession History

• 22641AA51A (Subaru) → No supersession found, but Denso 234-9123 is the direct OEM equivalent. — N/A
  Heads up: Using non-OEM or non-Denso/NTK branded A/F sensors is a common cause of repeat failures or persistent codes on this platform. While other brands may physically fit, their performance characteristics may not match the ECM's expectations, leading to incorrect fuel control.

Model Year Variations Within This Range

• 2013-2014: The instrument cluster was updated, and the analog engine coolant temperature gauge was replaced with a blue 'cold engine' indicator light. This makes it harder for a driver to notice if the engine is running consistently cool due to a stuck-open thermostat, which is a rare but possible cause of a rich condition, without using a scan tool to monitor live ECT data.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• 5EAT Transmission Torque Converter Shudder 🟠 Medium — Common enough that Subaru issued a TSB. Tends to appear as a vibration or shudder during light acceleration in higher gears (3rd, 4th, 5th). (Ref: TSB 05-48-10 addresses a similar vibration, and forum users frequently discuss torque converter lock-up issues.)
• Excessive Oil Consumption 🟠 Medium — While more famous on the 2.5L 4-cylinder, some EZ36 owners also report higher-than-average oil consumption, sometimes up to a quart every 1000-1500 miles, often due to piston rings or a faulty PCV valve.
• Headlight Bulb Burnout and Difficult Replacement 🟡 Low — A very common complaint is the frequent failure of low-beam headlight bulbs and the frustrating replacement process, which requires accessing them through the wheel well.
• Steering Wheel Vibration/Shimmy 🟠 Medium — Primarily affects 2010-2011 models. A steering wheel shake at highway speeds was a known issue addressed by a TSB involving steering and suspension component modifications. (Ref: TSB 05-48-10)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this specific trouble code, using used parts is not recommended for the most common fixes. The primary culprits are electronic sensors and fuel injectors which have a finite lifespan and are sensitive to wear, heat cycles, and contamination. Sourcing these from a junkyard is a significant gamble with a high probability of inheriting a worn-out part.

What to inspect on the donor part:

• Not applicable for the common failure parts. Do not purchase used sensors or fuel injectors for this repair.

OEM-only on this vehicle (don't cheap out):

• Air/Fuel Ratio Sensor: This part is critical for correct engine operation. It is strongly recommended to use either the genuine Subaru part or the direct OEM equivalent from Denso or NTK. Generic or off-brand sensors are a frequent cause of unresolved issues.

Aftermarket brands forum-validated for this vehicle:

• Denso (specifically part number 234-9123 for the upstream sensor)
• NTK

Brands owners have reported issues with on this vehicle:

• Unbranded or 'white-box' sensors sold on auction sites. While no specific brands are consistently cited as 'bad', the community consensus is to stick with the known OEM suppliers to avoid compatibility problems.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0172 — The Bank 1 equivalent of P0175; often appears alongside P0175 if a shared component like the MAF sensor is dirty or faulty.
• P0171 — Lean condition code; monitored alongside P0175 to compare Bank 1 and Bank 2 performance during diagnosis.
• P0174 — Lean condition code for Bank 2; used as a reference point when checking if the A/F sensor is biased rich or lean.
