P0133 on 2016-2020 Volkswagen Jetta: O2 Sensor Slow Response Causes and Fixes

What's Unique About the 2016-2020 Volkswagen JETTA

For the 2016-2020 Jetta, which includes both the late A6 (Mk6) and early A7 (Mk7) generations, the P0133 code is a commonly documented issue. Volkswagen has issued Technical Service Bulletin 2044943/4 (also listed as 24-16-01) for some 2016 models, which involves an ECM software update to correct overly sensitive monitoring parameters that could falsely trigger P0133. This should be checked before replacing parts. Furthermore, these Jettas are sensitive to exhaust leaks from the manifold or the turbo-to-downpipe flange, which can introduce oxygen and mimic a faulty sensor, leading to misdiagnosis. It's crucial to rule out leaks and software issues before spending money on a new sensor.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Generation note: This range covers two Jetta generations. The 2016-2018 models belong to the A6 (or Mk6) generation, while the 2019-2020 models are the start of the A7 (Mk7) generation. The causes and symptoms are identical, but the specific OEM part number for the upstream O2 sensor is different for each generation.

Symptoms You May Notice

• Check Engine Light is on
• Reduced fuel economy.
• Rough or unstable idle.
• Hesitation or lag during acceleration.
• Failure to pass an emissions test.
• Strong smell of gasoline from the exhaust in some cases.

Most Likely Causes

1. Failing Upstream Oxygen (O2) Sensor 🔴 High Probability O2 sensors are wear items that degrade over time from heat and contaminants like carbon, oil, or coolant. They typically have a finite lifespan of 60,000-100,000 miles and are the most frequent cause of this code.
   How to confirm: Use an OBD-II scanner with live data to graph the Bank 1, Sensor 1 voltage. A healthy sensor's voltage should switch rapidly between approximately 0.1V and 0.9V multiple times per second at operating temperature. A slow, lazy-switching, or flat-lining sensor is faulty.
   Typical fix: Replace the Bank 1, Sensor 1 oxygen sensor. This requires a special slotted socket (O2 sensor socket) to accommodate the wire.
   Est. part cost: $60-$180
2. Exhaust Leak 🟡 Medium Probability Leaks can develop at the exhaust manifold gasket or the V-band clamp/gasket between the turbocharger and the downpipe. This is a common issue on many turbocharged vehicles and will introduce unmetered oxygen, making the sensor appear slow.
   How to confirm: Visually inspect the exhaust manifold and downpipe for black soot trails, which indicate a leak. Listen for a ticking or hissing sound from the engine bay on a cold start. A professional smoke test is the most definitive way to find a leak. 🎬 Watch: How to find exhaust leaks for under $15
   Typical fix: Replace the leaking gasket or tighten the loose flange bolts/clamp. In some cases, a cracked manifold may need replacement.
   Est. part cost: $15-$100
3. Outdated ECM Software 🟡 Medium Probability For 2016 models specifically, VW released TSB 24-16-01 (2044943/4) because the original engine computer software had overly sensitive thresholds for O2 sensor response time, leading to false P0133 codes.
   How to confirm: A Volkswagen dealer or a qualified independent shop with the appropriate tools (like VCDS or ODIS) can check the current software version of your ECM and compare it to the latest version available from VW.
   Typical fix: Update or 'reflash' the ECM to the latest software version. This must be done by a dealer or a properly equipped independent shop.
   Est. part cost: $0-$250
4. Damaged Wiring or Connector ⚪ Low Probability The wiring harness to the O2 sensor is close to hot exhaust components and can become brittle, melted, or corroded over time. Sometimes connectors can be accidentally swapped if other work was recently performed.
   How to confirm: Visually inspect the wiring harness and connector for the upstream O2 sensor. Look for any signs of melting, chafing, corrosion on the pins, or loose connections. Ensure the correct harness is plugged into the correct sensor.
   Typical fix: Repair the damaged section of the wiring harness or clean/replace the connector. Use dielectric grease on the connector to prevent future corrosion.
   Est. part cost: $10-$50
5. Intake (Vacuum) Leak ⚪ Low Probability
   How to confirm: A vacuum leak allows unmetered air into the engine, which can throw off the air-fuel ratio and cause the O2 sensor to read incorrectly. Perform a smoke test on the intake system to find the source of the leak.
   Typical fix: Replace the cracked vacuum hose or faulty gasket that is causing the leak.
   Est. part cost: $5-$75

Rare But Worth Checking

• Low Fuel Pressure: If the engine is running lean due to a weak fuel pump or clogged filter, it can affect O2 sensor readings. This would typically be accompanied by other codes or drivability issues.
• Failing Mass Air Flow (MAF) Sensor: A dirty or failing MAF sensor can provide incorrect airflow data to the ECM, leading to an improper air-fuel mixture that can trigger a P0133 code.

Diagnosis Steps

1. Connect an OBD-II scanner and confirm that P0133 is the primary code. Note any other codes present, like P0171 or P0420.
2. For 2016 models, contact a VW dealer or specialist to check if TSB 24-16-01 (2044943/4) for an ECM software update applies to your VIN. This could be the entire fix.
3. Clear the codes and perform a short test drive to see if the P0133 code returns immediately. If it does, the fault is persistent.
4. Perform a thorough visual inspection of the exhaust system from the engine to the catalytic converter. Look for black soot marks around gaskets and flanges (especially the turbo-to-downpipe connection), which indicate a leak. Listen for ticking noises on a cold start.
5. Inspect the O2 sensor's wiring harness and connector for any signs of melting, corrosion, or damage.
6. Use a smoke machine to test both the exhaust system (when cold) and the intake system for leaks. This is the most reliable way to find small cracks or bad gaskets.
7. If no leaks or software issues are found, use the live data function on your scanner to monitor the Bank 1 Sensor 1 voltage. At operating temperature and holding RPMs steady (around 2500), the voltage should fluctuate rapidly and consistently between ~0.1V and ~0.9V. If the switching is slow, erratic, or the graph looks more like a gentle wave than a sharp sawtooth pattern, the sensor is likely faulty.

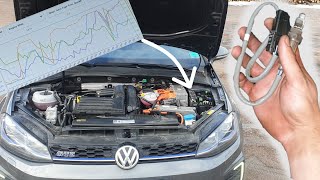

🎬 See how to test O2 sensor live data on a 1.4 TSI
8. If all other checks pass, replace the upstream oxygen sensor (Bank 1, Sensor 1). A specialized O2 sensor socket will be required for removal and installation.

Parts You'll Likely Need

• Upstream Oxygen Sensor (A6 / Mk6) (OEM #04E906262EE) — This is the correct upstream sensor for the 2016-2018 Jetta 1.4T (CZTA engine). It is the most common part to fail and cause a P0133 code.
  Trusted brands: Bosch (p/n 17351 or similar), NTK (p/n 24361 or similar), Denso, Walker Products
  OEM price range: $120-$180
  Aftermarket price range: $60-$110
• Upstream Oxygen Sensor (A7 / Mk7) (OEM #04E906262CR) — This is the correct upstream sensor for the 2019-2020 Jetta 1.4T. It is the most common part to fail and cause a P0133 code.
  Trusted brands: Bosch, NTK, Denso
  OEM price range: $130-$200
  Aftermarket price range: $70-$120
• Turbo to Downpipe Gasket/Seal (OEM #5Q0253115B (example, verify by VIN)) — This gasket is a common failure point for exhaust leaks on the 1.4T engine, which can be misdiagnosed as a bad O2 sensor.
  Trusted brands: Genuine VW/Audi, Elring, Victor Reinz
  OEM price range: $20-$40
  Aftermarket price range: $10-$25

Related Codes That Often Appear With This One

• P0171 — System Too Lean. An exhaust or vacuum leak that causes P0133 can also cause the system to run lean, triggering P0171.
• P0420 — Catalyst System Efficiency Below Threshold. A long-term P0133 condition can lead to an incorrect air-fuel mixture that may eventually degrade the catalytic converter's performance.
• P2097 — Post Catalyst Fuel Trim System Too Rich. If the ECU is trying to compensate for a perceived lean condition from the slow O2 sensor, it can create an actual rich condition detected by the downstream sensor.

Technical Service Bulletins (TSBs) & Recalls

• TSB 2044943/4 (24-16-01): MIL on, DTC P0133 in ECM (Software update for 2016 1.4T)
• VIN4APIN20200124: Customer states MIL-on with P0133
• VIN4APIN20200320: Customer states MIL-on with P0133
• VIN4APIN20200108: Customer states MIL-on with P0133
• VIN4APIN20191122: Customer states MIL-on with P0133
• VIN4APIN20190906: Customer states MIL-on with P0133

Platform-Specific Known Issues

• Volkswagen has issued TSB 24-16-01 (also known as 2044943/4) for certain 2016 Jetta models. This involves an ECM software update to fix overly sensitive parameters for the P0133 code. This should be investigated before any parts are replaced on a 2016 model.

Mechanic-Grade Diagnostic Values

• Upstream O2 Sensor (B1S1) Heater Circuit Resistance — expected: 5 to 6 Ohms when the engine is cool.. Failure: A reading of 0 Ohms or infinite resistance (OL) indicates a failed heater element within the sensor. This test should be performed across pins 3 and 4 of the disconnected sensor-side connector.
• Upstream O2 Sensor (B1S1) Live Data Voltage — expected: Rapidly fluctuating between approximately 0.1V and 0.9V at steady RPM once warmed up.. Failure: Voltage transitions that take longer than 1-2 seconds, or a signal that is flat or biased to one side, indicate a slow or failed sensor.
• Upstream O2 Sensor (B1S1) Wiring Harness Resistance — expected: Less than 0.5 Ohms.. Failure: Resistance greater than 0.5 Ohms in the wiring harness can dampen the voltage signal and trigger a P0133 code.

Scan Tool Commands That Help

• ODIS (VW Dealer Software): Guided Fault Finding (GFF) — When diagnosing a P0133 code at a professional level. After reading the DTC, GFF automatically generates a step-by-step test plan specific to the vehicle and fault, guiding the technician through electrical tests, component checks, and software verification.
• VCDS (VAG-COM) by Ross-Tech: Basic Settings / Adaptation Reset — After replacing the oxygen sensor or fixing an exhaust/intake leak, it can be beneficial to reset the learned fuel trim and O2 sensor adaptation values. This forces the ECM to relearn with the new/repaired components immediately.

Wiring & Ground Locations

• Fuse #8 (Engine Bay Fuse Box) — In the main fuse box located in the engine bay.. On similar 1.4TSI engines, this fuse provides power to the O2 sensor's heater circuit. A blown fuse will prevent the sensor from heating up quickly, causing a slow response time and triggering P0133, especially on cold starts.
• O2 Sensor Connector Pins 3 & 4 — At the electrical connector for the upstream O2 sensor.. These are the pins for the internal heater circuit. They are used to test the resistance of the heater element directly at the sensor.

OEM Part Supersession History

• 04E906262GD → 04E906262EE — Standard part revision for improved performance or manufacturing process.
  Heads up: The newer part number (04E906262EE) is the correct replacement for any earlier versions on the 1.4T CZTA engine.

Model Year Variations Within This Range

• 2016-2018 (A6/Mk6) vs. 2019-2020 (A7/Mk7): The 2019 redesign introduced the A7/Mk7 platform. While both use a 1.4T engine, the Mk7 version has slightly less horsepower (147 hp vs 150 hp) and is paired with a different automatic transmission (8-speed vs. the Mk6's 6-speed). This results in different OEM part numbers for the O2 sensors and potentially different ECM software logic.
