P0100 on 2017-2018 Jaguar XF: MAF Sensor Circuit Causes and Fixes

What's Unique About the 2017-2018 Jaguar XF

On the 2017-2018 Jaguar XF, this code is specifically addressed by Jaguar in Technical Service Bulletin #SSM73671. The bulletin notes that P0100 often appears alongside other codes like P0111 (Intake Air Temperature Sensor) and P0299 (Turbocharger Underboost). Since the IAT sensor is integrated into the MAF sensor assembly on these vehicles, this strongly suggests the fault lies with the MAF sensor unit itself, its connector, or the associated wiring. For the 2.0L Ingenium petrol engines, the TSB also points to a potential air leak from an incorrectly fitted air intake elbow below the throttle body as a cause for this group of codes. Models with the 3.0L V6 engine have two MAF sensors; P0100 refers to 'Circuit A', which is for Bank 1 (typically the passenger side on LHD vehicles).

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Reduced engine power and sluggish acceleration, sometimes entering 'Restricted Performance' mode.
• Rough or unstable idle
• Engine may be hard to start or may stall
• Decreased fuel economy
• Black smoke from the exhaust in some cases
• A distinct 'gasping' sound from the intake when blipping the throttle.

Most Likely Causes

1. Dirty or Contaminated MAF Sensor 🔴 High Probability Over time, fine dust, oil vapor from the PCV system, or oil from aftermarket oiled air filters can coat the sensor's delicate sensing element, causing inaccurate readings.
   How to confirm: Visually inspect the MAF sensor's wire or film. If it appears dirty or coated, it needs cleaning.
   Typical fix: Remove the sensor and clean it carefully using only a dedicated Mass Air Flow sensor cleaner spray. Do not touch the internal wires or use aggressive cleaners like brake or carb cleaner. 🎬 See how to safely clean your MAF sensor without damaging it.
   Est. part cost: $10-$20 for cleaner spray
2. Faulty MAF Sensor 🟡 Medium Probability The sensor is an electronic component that can fail internally over time due to heat cycles and vibration, leading to the 'signal frequency incorrect' fault described in the TSB.
   How to confirm: After cleaning, if the code returns, test the sensor's output signal using a scan tool's live data function. The g/s reading should increase smoothly with engine RPM. If it's erratic, stuck, or unresponsive, the sensor is likely bad. On V6 models, you can swap the sensors between banks; if the code changes to P010B (Circuit 'B'), the sensor is confirmed faulty.
   Typical fix: Replace the MAF sensor. On V6 models with two sensors, ensure you are replacing the correct one ('A' circuit is Bank 1). It is often recommended to replace them in pairs to ensure balanced readings. 🎬 Watch: Step-by-step guide to replacing the MAF sensor on a 3.0L engine.
   Est. part cost: $150-$400
3. Wiring or Connector Issue 🟡 Medium Probability The electrical connector or wiring to the MAF sensor can become corroded, loose, or damaged, interrupting the signal to the PCM. Forum users have reported issues with damaged wiring or a poor ground connection causing this code.
   How to confirm: Inspect the MAF sensor's electrical connector for bent pins, corrosion, or a loose fit. Check the wiring harness for any visible signs of fraying, breaks, or heat damage. Use a multimeter to check for 12V power and a good ground at the connector with the key on.
   Typical fix: Clean the connector terminals. Repair or replace any damaged sections of the wiring harness or the connector itself.
   Est. part cost: $5-$50 for connector repair kits
4. Vacuum Leak ⚪ Low Probability A leak in the intake system after the MAF sensor allows 'unmetered' air into the engine, causing the sensor's readings to conflict with what the oxygen sensors report. TSB SSM73671 specifically calls out an incorrectly fitted air intake elbow on 2.0L petrol engines as a potential cause.
   How to confirm: A professional smoke test is the most effective way to find leaks in intake hoses, gaskets, or the intake manifold itself. You can also perform a careful visual inspection of all intake ducting between the MAF and the throttle body for cracks or loose clamps.
   Typical fix: Replace the cracked hose or faulty gasket that is causing the leak. Ensure the intake elbow is correctly seated.
   Est. part cost: $20-$150 depending on the leaking part

Rare But Worth Checking

• Clogged Engine Air Filter: A severely clogged air filter can restrict airflow so much that it causes the MAF sensor to generate an out-of-range signal. This is a simple and inexpensive check.
• Restricted Exhaust: A clogged catalytic converter or muffler can restrict exhaust flow, which in turn limits air intake and can cause the MAF sensor readings to be abnormal, potentially triggering a P0100 code.
• Faulty Powertrain Control Module (PCM): This is extremely rare. The PCM should only be considered after all other possibilities (sensor, wiring, leaks) have been exhaustively ruled out.

Diagnosis Steps

1. Verify the code P0100 is present using an OBD-II scanner.
2. Visually inspect the entire air intake tract from the air filter box to the throttle body for any obvious cracks, loose clamps, or disconnected hoses.
3. Inspect the MAF sensor's electrical connector for damage, corrosion, or loose pins. Ensure it is seated firmly.
4. Remove the MAF sensor and inspect the sensing element. If dirty, clean it with dedicated MAF sensor cleaner and let it dry completely before reinstalling.
5. Check the engine air filter and replace it if it is dirty or clogged.
6. Clear the code and perform a test drive. If the code returns, proceed with further diagnosis.
7. Use a scan tool to monitor live data from the MAF sensor (measured in grams/second or g/s). At idle, the value should be stable, typically between 2-7 g/s depending on the engine. The value should increase smoothly and proportionally to 15-25 g/s or more as you increase engine RPM to 2500.
8. If live data is erratic, does not change with RPM, or is zero, check the sensor's wiring. Confirm 12V power and ground at the connector. If wiring is good, the sensor is likely faulty and should be replaced.
9. If the sensor appears to be working, perform a smoke test to check for vacuum leaks downstream of the MAF sensor, paying close attention to the intake elbow on 2.0L models as per TSB SSM73671.

Parts You'll Likely Need

• Mass Air Flow (MAF) Sensor (OEM #T2H7707) — This is the most common component to fail or become contaminated, directly causing the P0100 code. The provided TSB points directly to a fault with this sensor assembly. This part number is used across several Jaguar/Land Rover models with Ingenium and V6/V8 engines.
  Trusted brands: Genuine Jaguar, Bosch, Denso
  OEM price range: $250-$400
  Aftermarket price range: $100-$250
• MAF Sensor Cleaner — Often, the sensor is just dirty and not actually broken. A cleaning is a low-cost first step that frequently resolves the issue.
  Trusted brands: CRC, Liqui Moly
  Aftermarket price range: $10-$20

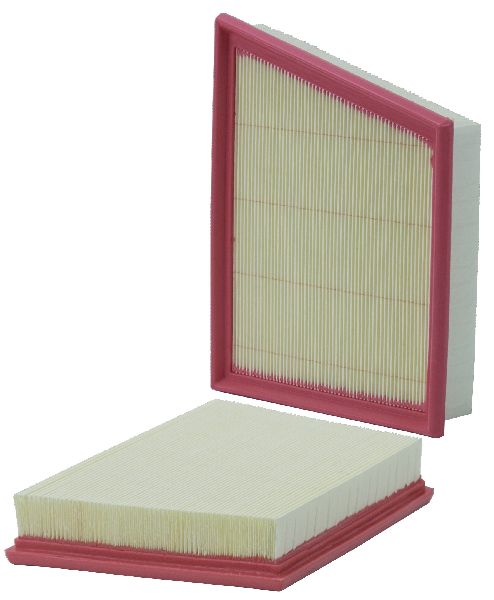

• Engine Air Filter — A dirty air filter can contribute to MAF sensor contamination and is a critical maintenance item to protect the new sensor.
  Trusted brands: Mann-Filter, Mahle, WIX
  OEM price range: $40-$70
  Aftermarket price range: $20-$40

Related Codes That Often Appear With This One

• P0111 — The Intake Air Temperature (IAT) sensor is often integrated into the same housing as the MAF sensor. A fault in the unit or its connector can trigger both codes, as noted in Jaguar TSB SSM73671.
• P0299 — This code for 'Turbocharger/Supercharger Underboost' can be logged alongside P0100, particularly when there is a significant air leak, as mentioned in TSB SSM73671.
• P0171 / P0174 — These 'System Too Lean' codes can be triggered if the MAF sensor is under-reporting airflow or if there is a vacuum leak, causing the PCM to not inject enough fuel.

Technical Service Bulletins (TSBs) & Recalls

• SSM73671: Addresses the Check Engine Light appearing with DTC P0100-38 and/or P0111-84 logged in the Powertrain Control Module (PCM). It points to either a faulty MAF/IAT sensor assembly or, on 2.0L petrol engines, a leak at the throttle body intake elbow.

Platform-Specific Known Issues

• Jaguar issued Technical Service Bulletin #SSM73671 for the 2017 model year, which directly links P0100-38 (signal frequency incorrect) with P0111-84 (IAT sensor performance), indicating a common failure mode for the combined MAF/IAT sensor unit.
• For the 2.0L Ingenium Petrol engine, TSB #SSM73671 specifically suggests checking for an air leak at the intake elbow below the throttle body, which may have been incorrectly fitted from the factory.

Mechanic-Grade Diagnostic Values

• MAF Sensor Power Supply Voltage (Key On, Engine Off) — expected: 12V (Battery Voltage). Failure: No voltage or significantly lower voltage indicates a wiring or fuse issue.
• MAF Sensor Ground Circuit — expected: Good continuity to chassis ground (near 0 ohms).. Failure: High resistance indicates a poor ground connection, which can cause erratic sensor readings.
• MAF Sensor Signal Voltage (at idle, engine warm) — expected: ~0.8V to ~1.5V DC. Failure: Voltage is stuck, does not increase smoothly with RPM, or is near 0V or 5V.
• Live Data MAF Rate (3.0L SC V6 at idle, engine warm) — expected: ~1.6 g/s to ~1.8 g/s per sensor. Failure: Readings are significantly different between banks, or are erratic or unresponsive to RPM changes.

Hidden / Shadow Codes Worth Checking

• P0100-38: Mass or Volume Air Flow Sensor 'A' Circuit signal frequency incorrect. This sub-code, referenced in TSB #SSM73671, specifically points to an electrical signal integrity problem (like noise, incorrect frequency, or instability) rather than a simple out-of-range airflow reading. (see via Jaguar dealer-level diagnostic tools (SDD/Pathfinder) or advanced professional scanners that can read manufacturer-specific DTC suffixes.)

Scan Tool Commands That Help

• Jaguar SDD/Pathfinder or high-level generic scanner: Reset Adaptations / Clear Fuel Trims — This should be performed after replacing a MAF sensor. The PCM has 'learned' to compensate for the old, faulty sensor's readings. Failing to reset the long-term fuel trims can cause the engine to run poorly with the new, accurate sensor until it has time to relearn, and may cause other codes to appear temporarily.

Wiring & Ground Locations

• MAF Sensor Connector (Bank 1) — Located on the air intake tube between the air filter box and the throttle body. On the 3.0L V6, Bank 1 ('A' Circuit) is typically the passenger side on LHD vehicles.. This is the primary connection point for the sensor. Corrosion, bent pins, or loose connections here are a common cause of P0100. A technician on a forum noted checking for 12V power on the Brown/Red wire and ground on the Black wire is a key first step.
• Engine Ground Straps — There are multiple ground points on the engine and chassis. A full wiring diagram is needed to trace the specific ground for the MAF circuit.. A corroded or loose engine ground can introduce electrical noise and voltage drops, causing the 'signal frequency incorrect' fault (P0100-38) even if the sensor and its direct wiring are good.

Real Owner Repair Stories

• Jaguar Forums user (2007 Jaguar XJ 2.7D (V6 Diesel with two MAF sensors, similar principle)) — Restricted Performance message, codes P0100 and P010A (for both MAF circuits).
  ❌ Tried (didn't work) Cleaning the MAF sensors.
  ✅ What actually fixed it The electrical connectors for the two MAF sensors had been accidentally swapped during a previous repair on the alternator. Although the plugs are identical, the cable lengths are slightly different. Swapping them back to their correct sides resolved the issue.
• Jaguar Forums user (2015 Jaguar XF 3.0 Supercharged) — High long-term fuel trims (+10 on both banks), a common symptom related to MAF issues or vacuum leaks.
  ❌ Tried (didn't work) Initially suspected the MAF sensors.
  ✅ What actually fixed it The user found that the plastic air intake tube was cracked and deteriorated where it connected to the throttle body, causing a significant vacuum leak. Replacing the intake tube was the correct fix.

OEM Part Supersession History

• T2H7707 → LR071914, 0280218307 (Bosch) — This part is shared across Jaguar and Land Rover platforms. LR071914 is the Land Rover part number, and 0280218307 is the Bosch OEM part number, which is often identical to the Genuine part without the Jaguar/Land Rover branding.
  Heads up: While physically identical, there are many low-quality aftermarket clones. Forum users frequently report that cheap aftermarket MAF sensors fail quickly or provide inaccurate readings out of the box, leading to a repeat of the P0100 code. It is highly recommended to use a Genuine or OEM-branded (Bosch) part.
