OBD-II Code P0049: Turbocharger/Supercharger Turbine Overspeed

What Does P0049 Mean?

Your vehicle's Powertrain Control Module (PCM) detected the turbine inside your turbocharger or supercharger spinning faster than its safe operating limit. The computer sets this code to protect the engine and turbo from catastrophic damage caused by excessive centrifugal force. This is a critical warning that the system responsible for controlling boost pressure has failed.

Technical definition: The official SAE/OBD-II definition is "Turbocharger/Supercharger 'A' Turbine Overspeed". The PCM received a signal from the turbocharger speed sensor indicating the turbine's rotational speed exceeded a pre-programmed maximum threshold (often upwards of 150,000 RPM). The code sets when the sensor reading is out of range high.

Can I Drive With P0049?

No — Do Not Drive. Driving is not recommended. The vehicle immediately enables a "limp mode," drastically reducing engine power to prevent damage. Continuing to drive risks catastrophic turbocharger failure, where the turbine disintegrates at speeds over 150,000 RPM, sending metal fragments into the engine and exhaust. This turns a $1,500 turbo repair into a $10,000+ engine replacement. Stop driving as soon as it is safe to do so.

Common Causes

• Stuck or Failing Boost Control (Wastegate/VGT Actuator) (Very Common) — The wastegate or Variable Geometry Turbo (VGT) actuator controls turbo speed. If it sticks closed, it cannot vent excess exhaust pressure, forcing the turbine to spin out of control. This is the most frequent cause, especially on diesel engines with VGTs.
• Faulty Boost Control Solenoid (Common) — This electronic valve directs vacuum or pressure to the actuator. If the solenoid fails electrically or mechanically, it cannot send the correct command, leading to an immediate overspeed condition.
• Damaged or Disconnected Vacuum Lines (Common) — Many boost control systems use vacuum lines to operate the actuator. A cracked, disconnected, or heat-brittled vacuum line prevents the wastegate from opening correctly, resulting in uncontrolled boost.
• Faulty Turbocharger Speed Sensor (Common) — The sensor measuring the turbine's speed sends incorrect, high readings to the computer. The turbo spins normally, but the faulty sensor tricks the computer into registering an overspeed event.
• Aftermarket Modifications or Tuning (Less Common) — Aggressive engine tunes, performance chips, or physical modifications push the turbocharger beyond its factory-set speed limits. This happens when a tune requests more boost than the stock hardware safely handles.
• Restricted Exhaust System (Less Common) — A clogged catalytic converter or Diesel Particulate Filter (DPF) increases exhaust back-pressure. This forces the turbo to work harder and spin faster to achieve the desired boost level.
• Wiring or Connector Issues (Less Common) — Damaged wires, corroded connectors, or a poor ground in the turbo speed sensor or boost control solenoid circuit cause erratic signals that trigger the code.
• Mechanical Turbocharger Failure (Rare) — Internal damage to the turbocharger, such as worn bearings or damaged blades, causes it to spin beyond its designed limits or allows the shaft to spin uncontrollably with less resistance.
• PCM/ECM Software Glitch (Rare) — The Powertrain Control Module (PCM) has corrupted software or requires an update, causing it to misinterpret normal signals from the turbo speed sensor as an overspeed event.

Symptoms

• Check Engine Light is On — The check engine light illuminates immediately on your dashboard.
• Reduced Engine Power / Limp Mode — The computer deliberately cuts power to protect the engine, resulting in a severe loss of acceleration.
• Unusual Noises from Engine Bay — A high-pitched whistling, hissing, or whining sound emits from the turbo area during acceleration, indicating extreme rotational speed.
• Erratic Boost Gauge or Performance — The engine surges with too much power (over-boost) right before losing all power as the computer intervenes.
• Jerking or Hesitation — The vehicle jerks or hesitates during acceleration as the computer struggles to manage unstable boost levels.
• Engine Knocking or Misfires — Extreme pressure and temperature from an overspeeding turbo causes engine knocking (detonation) or misfires.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this code.

Common Fixes & Costs

• Replace Boost Control Solenoid — Parts: $50 - $150, Labor: $100 - $200, ~1 hr book time (DIY)
• Repair Vacuum Lines or Wiring Harness — Parts: $10 - $50, Labor: $150 - $300, ~2 hr book time (Intermediate)
• Replace VGT Actuator — Parts: $400 - $1,200, Labor: $250 - $500, ~3.5 hr book time (Professional)
• Replace Turbocharger Speed Sensor — Parts: $150 - $300, Labor: $100 - $200, ~1.2 hr book time (Intermediate)
• Replace Turbocharger Assembly — Parts: $900 - $3,000+, Labor: $600 - $1,200+, ~8 hr book time (Professional)

DIY vs Professional

• Replace Boost Control Solenoid — Beginner: Yes
  Tools: Basic hand tools (socket set, wrenches).
• Repair Vacuum Lines or Wiring Harness — Beginner: Maybe
  Tools: Hose cutters, wire strippers, crimpers, heat shrink, multimeter.
• Replace Turbocharger Speed Sensor — Beginner: Yes
  Tools: Basic hand tools (socket set, screwdrivers).
• Replace VGT Actuator — Beginner: No
  Tools: Hand tools, professional-grade bidirectional scan tool (e.g., Cummins INSITE, Autel MaxiSys).
• Replace Turbocharger Assembly — Beginner: No
  Tools: Extensive mechanics tools, torque wrench, lift/jack stands, fluid drain pans, professional scan tool.

Used vs. New Parts: Buying Guide

When a used part is worth it: For a complete turbo assembly, a used part only makes sense if it comes from a verified low-mileage vehicle scrapped for reasons other than engine failure. For electronic VGT actuators, a high-quality remanufactured unit is better than used or new, as common failure points are re-engineered.

Donor-vehicle mileage cap: roughly under 60000 miles for the part to have meaningful remaining life.

Donor quality checklist:

• Verify the donor vehicle did not have a blown engine, as metal shavings contaminate the turbo.
• Physically inspect the turbo: there must be zero in-and-out (axial) shaft play, and minimal side-to-side (radial) play.
• Check that the compressor and turbine wheels spin freely and have no bent or chipped blades.
• Avoid parts with obvious signs of corrosion, cracked housings, or heavy oil residue in the ports.

Decision logic:

• If The failed part is an electronic VGT actuator on a Cummins engine. → Buy a quality remanufactured actuator; they are more reliable than the original design.
• If The vehicle is high-mileage (>150k miles) and the budget is extremely tight. → A carefully inspected used turbo from a reputable salvage yard is an option, but carries significant risk.
• If The turbo failed mechanically (seized bearings, damaged wheels). → Buy a new or remanufactured complete turbo assembly. A used part carries too high a risk of repeat failure.

Warranty tradeoff: Used parts from a salvage yard typically offer a 30-90 day warranty covering only the part, not the labor. New aftermarket and remanufactured parts usually come with a 1 to 3-year warranty.

Worst-case if a used part fails: $1000-2000 if a used turbo or actuator fails shortly after installation, requiring a second purchase and repeat labor costs.

What Happens If You Wait — Timeline

1. 0-1 month: Intermittent Check Engine Light and P0049 code, triggered under heavy load. Vehicle enters limp mode but performance returns to normal after restarting. (MPG impact: 0-5%% · Added cost: $0)
2. 1-3 months: The code sets more frequently and limp mode becomes regular during acceleration. A high-pitched whistle from the turbo becomes noticeable. The underlying issue worsens. (MPG impact: 5-15%% · Added cost: $50-150 in wasted fuel and potential stress on control solenoids.)
3. 3-6 months: The vehicle is permanently in limp mode. Constant over-boosting puts extreme stress on turbo bearings and seals. Oil leaks past the seals into the intake or exhaust. (MPG impact: 15-25%% · Added cost: $1,500 - $4,000 (The original failure causes mechanical damage requiring full turbocharger replacement).)
4. 6+ months: Catastrophic turbocharger failure. The turbine wheel fractures. Metal fragments enter the engine's cylinders and exhaust system, destroying pistons, valves, and the catalytic converter. (MPG impact: N/A (Vehicle is undrivable)% · Added cost: $8,000 - $20,000+ (Cost of a replacement engine and new turbocharger assembly).)

Cost of Not Fixing It

• Immediate (0-1 Month): Vehicle is in limp mode with severely reduced power, making it unsafe to drive. Fuel economy decreases by 10-25%. Intermittent, uncontrolled over-boosting puts high stress on engine components. (Added cost: $50 - $200 in wasted fuel.)
• Short Term (1-6 Months): Continued operation with an uncontrolled turbo damages the exhaust system. Extreme heat from over-boosting overheats and destroys the catalytic converter and oxygen sensors. (Added cost: $800 - $2,500 (for catalytic converter and O2 sensor replacement).)
• Long Term (6+ Months): Catastrophic turbocharger failure occurs. The turbine wheel disintegrates at high RPM, sending metal fragments through the intake and into the engine cylinders, destroying the engine. (Added cost: $8,000 - $20,000+ (for turbocharger and complete engine replacement).)

Diagnosis Steps

1. Read Fault Codes & Freeze Frame Data
   Use an OBD-II scanner to confirm P0049. Check for related codes (P0234, P0299, P0047/48) to pinpoint the problem area. Analyze freeze-frame data to see exact engine conditions (RPM, load, speed) when the code triggered.
   Tools: OBD-II Scanner (Beginner)
2. Visual Inspection of Turbo System
   Inspect all wiring and connectors going to the turbo speed sensor, boost control solenoid, and VGT actuator for cracks or corrosion. Trace all small vacuum lines connected to the turbo system, checking for brittleness or disconnections.
   Tools: Flashlight, Inspection Mirror (Beginner)
3. Analyze Live Data PIDs
   Graph live data for Turbo Speed Sensor RPM, Boost Pressure (MAP), and Wastegate/VGT Command Percentage. Watch for erratic or impossibly high speed readings at idle. Compare commanded boost pressure to actual boost pressure; a large deviation confirms a control system failure.
   Tools: Advanced OBD-II Scanner (Intermediate)
4. Test the Boost Control Solenoid & Actuator
   Command the solenoid on and off with a scan tool while monitoring vacuum/pressure at the actuator. Use a handheld vacuum pump to test the mechanical operation of the wastegate or VGT actuator. It must move freely and hold vacuum without leaking.
   Tools: Advanced OBD-II Scanner, Multimeter, Vacuum Pump, Hand Tools (Intermediate)
5. Test Turbo Speed Sensor Resistance
   Disconnect the sensor and measure internal resistance with a multimeter. A common specification (e.g., 6.7L Cummins) is 600-1600 Ohms. A reading outside your vehicle's specific repair manual range indicates a faulty sensor.
   Tools: Multimeter, Repair Manual (Advanced)
6. Test Turbo Speed Sensor Circuit Integrity
   With the sensor and PCM disconnected, check the signal and return wires for continuity (under 5 Ohms). Check each wire for a short to ground (should read OL/infinite). Check for a 5-volt reference signal at the connector with the key on, engine off.
   Tools: Multimeter, Repair Manual (Advanced)
7. Check for Exhaust Restriction
   Perform an exhaust back-pressure test by threading a pressure gauge into an upstream oxygen sensor port. Back-pressure exceeding 1.5 PSI at 2,000 RPM indicates a clogged catalytic converter or DPF.
   Tools: Exhaust Back-Pressure Gauge (Intermediate)
8. Perform a Mechanical Turbo Inspection
   With the engine off and cool, remove the intake hose to the turbocharger. Check for play in the turbine shaft by wiggling it side-to-side and in-and-out. Significant movement, blade damage, or heavy oil leaks require turbo replacement.
   Tools: Hand Tools (Advanced)
9. Pro Tip: Scope Test the Speed Sensor Signal
   For intermittent issues, use an oscilloscope to back-probe the sensor's signal wire. A good sensor produces a clean AC sine wave that increases in frequency and amplitude with engine RPM. Dropouts or noise indicate a failing sensor.
   Tools: Oscilloscope, Back-probe Kit (Advanced)

When This Code Triggers (Freeze-Frame Conditions)

• Engine Coolant Temp: 180-200°F (The engine is fully warmed up and operating at normal temperature.)
• Engine RPM: 1800-2800 RPM (The code sets during steady-state cruising or light to moderate acceleration, not typically at idle.)
• Engine Load: 40-70% (Occurs when the engine is under a sustained load, such as climbing a grade or maintaining highway speed.)
• Vehicle Speed: 45-65 mph (Triggers during highway driving when the turbo control system makes constant adjustments to maintain speed and boost.)

Related Codes

• P0234 — P0234 means "Engine Overboost Condition." P0049 measures turbine speed, while P0234 measures boost pressure. They appear together because an over-speeding turbine directly causes excessive boost pressure. The mechanical boost control system is the primary suspect.
• P0047 / P0048 — These are electrical circuit codes for the boost control solenoid. If present with P0049, the problem is electrical (bad solenoid, damaged wiring). If you only have P0049, the circuit is fine, but the solenoid is mechanically stuck.
• P0299 — P0299 means "Engine Underboost Condition." Appearing intermittently with P0049 strongly suggests an erratic VGT actuator or wastegate sticking closed (causing overspeed) and then sticking open (causing underboost).
• P2563 — This code indicates the PCM is not seeing the expected position from the VGT actuator sensor. P0049 is the result of this failure; because the PCM cannot see the correct position, it cannot control turbo speed effectively.

Climate & Environmental Factors

• High Altitude: At higher altitudes, the air is less dense. To achieve the same target boost pressure, the turbocharger must spin significantly faster, reducing the safety margin. A borderline faulty control system is more likely to trigger P0049 at altitude.
• Extreme Temperature Cycles (Hot/Cold): Repeated exposure to extreme engine heat and cold ambient temperatures accelerates material degradation. Plastic vacuum lines become brittle and crack. Solder joints on electronic circuit boards develop micro-fractures.
• Humidity and Corrosion: Moisture and road salt accelerate corrosion on electrical connectors for the speed sensor, boost solenoid, and VGT actuator. Corrosion increases circuit resistance, corrupting signals and triggering erroneous codes.

How to Talk to a Mechanic About This Code

Say this: "I have a P0049 Turbo Overspeed code and the vehicle is in limp mode. I'd like to schedule a diagnostic appointment. Please focus on testing the turbo control system components—specifically the VGT actuator or wastegate, the control solenoid, and the turbo speed sensor—before assuming the entire turbocharger needs replacement."

This language signals you know the expensive turbo assembly is often not the root cause. It directs the technician to perform a logical, component-level diagnosis first, preventing a premature recommendation to replace the whole turbo.

Avoid saying:

• 'My turbo is blown.'
• 'My check engine light is on, can you look at it?'
• 'Just fix whatever's wrong.'

Questions to ask before authorizing the repair:

• Did you test the VGT actuator or wastegate's physical range of motion?
• What were the live data readings for the turbo speed sensor and the boost pressure sensor during your test drive?
• If you are recommending a VGT actuator replacement, can you confirm your scan tool performs the required post-install calibration procedure?
• Can you provide a written estimate breaking down parts and labor costs?
• What is the warranty on the recommended parts and labor?

Where to Take It: Dealer vs Independent vs Chain

• Dealer: Recommended if the vehicle is under warranty or has a complex issue (like a Cummins VGT actuator) requiring dealer-level tools for calibration.
  Best for: Vehicles under powertrain warranty, Complex, brand-specific turbo systems (e.g., BMW, Mercedes-Benz), Repairs requiring proprietary software for calibration, like a VGT actuator on a Cummins or Duramax.
  Downsides: Highest labor rates, often 1.5-2x more than independent shops., Quicker to replace an entire assembly rather than diagnose a smaller component. (Typical cost: +50% vs. baseline)
• Independent Shop: Best fit for most out-of-warranty repairs, provided you choose a reputable specialist. Ask if they have the tools to test and calibrate turbo actuators for your specific vehicle.
  Best for: Out-of-warranty vehicles where cost is a major factor., Finding a shop specializing in your vehicle type (e.g., a diesel truck specialist)., Common turbo systems on brands like Subaru, Ford, or older VW/Audi models.
  Downsides: Diagnostic capabilities vary; a general mechanic lacks the expensive bidirectional tools needed for VGT calibration., Quality must be vetted through reviews and certifications. (Typical cost: +0% vs. baseline)
• Chain Shop: AVOID. The risk of misdiagnosis and being sold an unnecessary, expensive repair is extremely high for a complex code like P0049.
  Best for: Simple jobs like oil changes, tires, and brakes.
  Downsides: Technician skill and diagnostic equipment are highly inconsistent., Lacks specialized tools or expertise for complex turbo diagnostics or VGT calibration., High pressure to upsell leads to a quick quote for a full turbo replacement. (Typical cost: -10% vs. baseline)

When to Walk Away From the Repair

If the estimated repair cost exceeds 40-50% of the car's private-party value, seriously consider selling or trading in the vehicle instead of repairing it.

• Car worth $8000, fix is $4500: Walk away. The repair cost is over 50% of the vehicle's value. This money is better put toward a replacement vehicle.
• Car worth $18000, fix is $1500: Fix it. The repair cost is well under the threshold and restores the vehicle's primary function and value.
• Car worth $4000, fix is $1800: Borderline. At 45% of the car's value, this is a tough call. Get a second opinion before authorizing the repair.

What Scan Tool You Need for This Code

Minimum: OBD-II reader with live data graphing.

A simple $20 code reader only gives you the P0049 code. It cannot show live data for turbo speed, commanded boost, or actual boost pressure, which is essential to determine if you have a sensor fault or a real mechanical overspeed condition.

Budget: BlueDriver Pro Scan Tool (~$100) — Connects to your smartphone and graphs critical live data PIDs like Manifold Absolute Pressure (MAP) and Engine RPM. This helps you see if boost pressure is actually spiking.

Mid-range: Foxwell NT710 / NT809 (~$200-400) — Provides full bidirectional control. This allows you to actively command the boost control solenoid or VGT actuator to test its function directly from the tool.

Professional: Autel MaxiCOM MK808S / MK900-BT (~$500-800) — Offers full bidirectional controls plus advanced service functions, including the critical 'VGT Electronic Actuator Installation and Calibration' needed for modern diesel trucks. If you replace a VGT actuator, this capability is mandatory.

Rent vs buy: You can borrow a basic OBD-II reader from auto parts stores to confirm the code. However, they do not rent the advanced bidirectional scanners needed for in-depth diagnosis or calibration. Buying a midrange bidirectional tool is a worthwhile investment for serious DIY work.

How to Clear the Code After You Fix It

1. Use an OBD-II scan tool to clear the P0049 and related fault codes.
2. Perform a complete OBD-II drive cycle to allow readiness monitors to run.
3. Re-scan for codes to ensure the fix was successful.

Drive cycle (~30 minutes): A general drive cycle includes: a cold start, idling for 2-3 minutes, 15 minutes of mixed city/suburban driving (including stops and accelerations), followed by 10-15 minutes of steady driving at highway speeds (55-65 mph). Shut the vehicle off and allow it to cool completely.

Readiness monitors affected: Catalyst Monitor, Evaporative System Monitor, Oxygen Sensor Monitor

Before emissions retest: drive at least 100 miles to fully set monitors.

Watch out for:

• Disconnecting the battery clears the code but resets all readiness monitors to 'Not Ready', guaranteeing an emissions test failure.
• The code returns immediately if the underlying mechanical or electrical fault is not repaired.
• Taking the vehicle for an emissions test before driving at least 50-100 miles results in a failure due to 'Not Ready' monitors.

Will This Fail Emissions / State Inspection?

Yes — this code typically fails an OBD-II emissions inspection.

• California: An illuminated Check Engine Light results in an automatic smog check failure. All OBD-II readiness monitors must be in a 'Ready' state. Clearing the code requires a significant drive cycle (often 100+ miles) to reset monitors before a retest.
• New York: A vehicle with an active P0049 code and illuminated Check Engine Light automatically fails the OBD-II emissions portion of the state inspection.
• Texas: In emissions-testing counties, an illuminated Check Engine Light is an automatic failure. Texas allows for one 'Not Ready' monitor for model year 2001 and newer vehicles after a repair.

Most Commonly Affected Vehicles

• Dodge / Ram 2500 / 3500 (2007-2018) — Extremely common on 6.7L Cummins engines. The failure is almost always the electronic VGT actuator on the Holset HE351VE turbo. Replacement requires calibration with a capable scan tool.
• BMW 335d, X5 35d (2009-2013) — Common on the M57 twin-turbo diesel. The cause is usually failing, brittle vacuum lines or a faulty pressure converter (solenoid) controlling the changeover between turbos.
• Hyundai / Kia Santa Fe, Sorento, Stinger, Genesis Coupe (2011-2021) — Seen on 2.0T and 3.3T engines. Causes range from faulty electronic wastegate actuators to aftermarket tunes pushing boost levels too high. On the Stinger, high JB4 tune settings are a known trigger.
• Volkswagen / Audi Golf, Passat, Jetta, Tiguan, A3, A4 (2008-2018) — Prone to this code from wastegate actuator issues on TSI and TDI engines. On 2.0T TSI engines, the wastegate actuator linkage pivot pin wears, causing excessive play and loss of boost control.
• Chevrolet / GMC Silverado / Sierra 2500/3500 HD, Cruze (2006-2016) — Seen on Duramax diesel engines (LBZ, LMM, LML) where VGT actuator or vane position sensor problems lead to overspeed conditions. Also reported on the 1.4L turbo Cruze due to wastegate failures.
• Ford F-Series Power Stroke, Focus, Fusion (2008-2017) — TSB 11-10-14 for the 6.7L Power Stroke notes a faulty MAP sensor causes false overboost and overspeed codes. EcoBoost engines suffer from failing electronic wastegate actuators and brittle vacuum lines.
• Subaru WRX, Forester XT (2008-2018) — Triggered by a faulty Electronic Boost Control Solenoid (EBCS), vacuum leaks in control lines, or aftermarket modifications increasing boost beyond stock ECU parameters.
• Mercedes-Benz Sprinter, E-Class, GL-Class (Diesel) (2007-2016) — On OM642/OM651 diesel engines, this code points to a seized VNT/VGT actuator or linkage due to carbon buildup. The actuator motor also fails electronically.

Manufacturer-Specific Notes

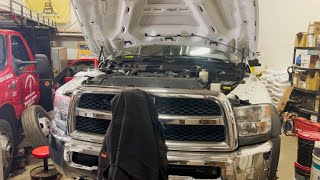

• Dodge / Ram (Cummins): The electronic VGT actuator on the Holset HE351VE turbo is a high-failure part. It fails electronically or internal plastic gears strip. Replacement requires calibration with a specialized scan tool. TSB 11-002-15 REV. A addresses related software updates.
• Volkswagen / Audi: On 2.0T TSI engines, the wastegate actuator linkage pivot pin wears out, causing 'wastegate rattle' and loss of precise boost control. An aftermarket clip fixes the linkage play without replacing the entire turbo.
• Ford (Power Stroke & EcoBoost): On 6.7L Power Stroke engines, TSB 11-10-14 points to a faulty MAP sensor causing false overboost and overspeed codes. On EcoBoost engines, electronic wastegate actuators fail, and vacuum lines become brittle from heat.
• BMW (M57 Diesel): The complex vacuum line system controlling the twin-turbo setup is a frequent failure point. Plastic lines become brittle and crack, preventing pressure converters from actuating the wastegate correctly.

Real Owner Stories

2013 Genesis Coupe 2.0T with aftermarket exhaust

Car enters limp mode with no boost when accelerating hard (over 5000 RPM) in higher gears. Code P0049 appears, which clears upon restarting the car.

Outcome: The aftermarket exhaust changed the backpressure, causing the turbo to spool faster than the stock tune expects, leading to an overspeed condition. The fix requires adjusting the tune to match the new hardware.

Lesson: Aftermarket exhaust or intake modifications trigger P0049 if the engine's computer is not retuned to account for changes in airflow and backpressure.

Kia Stinger GT with a JB4 tuner

Owner installed a JB4 piggyback tuner and gets a P0049 overspeed code, even on conservative settings. The car goes into limp mode during hard acceleration.

Outcome: The solution was installing the JB4 EWG wires, giving the tuner direct control over the wastegates, and lowering the 'FF' (Feed Forward) setting in the JB4 software from 50 to 40 to prevent over-boosting.

Lesson: Piggyback tuners manipulating sensor signals easily cause P0049. Fixing it requires using all the tuner's hardware (like EWG wires) and carefully adjusting software settings to keep boost safe.

2012 Ram 2500 6.7L Cummins with intermittent P0049 and P0299

Truck randomly throws a P0049 (overspeed) or P0299 (underboost) code, goes into limp mode, and is fine after a restart. The issue worsens in cold weather.

Outcome: The actual cause was a failing electronic VGT actuator. The internal electronics failed intermittently, losing control of the vane position. Replacing only the actuator and performing the mandatory calibration fixed both codes.

Lesson: Getting overspeed and underboost codes together strongly points to a control problem, not a mechanical turbo failure. On Cummins engines, diagnose the VGT actuator before replacing the expensive turbo assembly.

How to Prevent This Code From Triggering

• Use high-quality synthetic engine oil and adhere to change intervals. (Per manufacturer schedule) — Clean oil is essential for lubricating and cooling the turbocharger's bearings, which spin at over 150,000 RPM. Oil breakdown leads to bearing failure.
• Allow a 30-60 second cool-down idle before shutdown after hard driving. (After every spirited drive or towing session) — This allows circulating oil to carry heat away from the turbocharger bearings. Shutting down a hot engine immediately causes oil to burn onto the bearings.
• Regularly exercise the VGT system on diesel trucks. (Weekly) — Regularly using the exhaust brake forces the actuator and vanes through their full range of motion, preventing soot and carbon buildup that causes sticking.
• Perform periodic 'spirited' driving. (Once or twice a month) — For diesel engines seeing a lot of idle time, harder acceleration increases exhaust gas temperature, burning off soot deposits on VGT components.
• Inspect air filter and vacuum lines regularly. (Every oil change) — A clean air filter prevents debris from damaging the compressor wheel. Intact vacuum lines are critical for the wastegate actuator to receive correct signals.

Frequently Asked Questions

What is the most common misdiagnosis for a P0049 code?

The most common mistake is replacing the entire turbocharger assembly without proper diagnosis. Often, the turbo itself is mechanically sound. The actual problem is usually a cheaper component like the boost control solenoid, VGT actuator, or a simple vacuum leak.

What is turbo 'overspeed'?

It means the turbine wheel inside your turbocharger is spinning faster than its maximum designed speed, often exceeding 150,000 RPM. This is extremely dangerous. Centrifugal force can cause the turbine wheel to explode, sending metal fragments into your engine.

Can I just clear the code and keep driving?

You can clear the code, but it will return immediately because P0049 indicates a hard physical or electrical problem. Ignoring it is extremely risky. Continued driving leads to a very expensive turbocharger and complete engine replacement.

Can an aftermarket engine tune cause a P0049 code?

Yes, absolutely. An aggressive engine tune or performance chip that requests more boost than the stock system can handle is a known cause. The tune pushes the turbo past its factory-set speed limits.

Can a clogged DPF or catalytic converter cause P0049?

Yes, a significant restriction in the exhaust system downstream from the turbo increases back-pressure. This forces the turbo to work harder and spin faster to produce the commanded boost. Eventually, it exceeds the safe speed limit and triggers P0049.

What's the difference between a wastegate and a VGT actuator?

A traditional wastegate is a simple bypass valve that opens to let exhaust bypass the turbine. A VGT (Variable Geometry Turbo) actuator moves vanes inside the turbo to change the exhaust housing's effective size for better response. Both control turbo speed, but VGT systems are more precise and common on modern diesels.

How can I prevent a P0049 code?

Regular maintenance is key, starting with high-quality engine oil changed on schedule to protect the turbo's bearings. Allow your engine to warm up properly before driving hard, and let it idle for 30-60 seconds before shutting it down to cool the turbo. Periodically inspect vacuum lines and electrical connectors for wear.

What is the difference between the Turbo Speed Sensor and the Boost Pressure Sensor?

The Turbo Speed Sensor measures the rotational RPM of the turbine shaft itself. The Boost Pressure Sensor (MAP sensor) measures the air pressure in the intake manifold after the turbo compresses it. P0049 is triggered by the speed sensor, while an overboost code like P0234 is triggered by the pressure sensor.

Key Takeaways

• P0049 indicates your turbocharger turbine is exceeding safe speeds (often over 150,000 RPM), triggering an immediate 'limp mode' that drastically cuts engine power.
• Before replacing a $2,000 turbocharger, test the boost control system; stuck VGT actuators, faulty solenoids, and cracked vacuum lines cause 80% of P0049 codes.
• Diesel trucks like the 2007-2018 Ram 6.7L Cummins are highly susceptible to this code due to frequent electronic VGT actuator failures requiring specialized scan tool calibration.
• Driving with an active P0049 code risks catastrophic turbine disintegration, turning a $150 solenoid repair into a $10,000+ complete engine replacement.
