P0046 on 2015 Ram 2500 6.7L Cummins: Turbocharger Boost Control Circuit Causes and Fixes

What's Unique About the 2015-2015 Ram 2500

The 6.7L Cummins engine uses a sophisticated Holset HE300VG or HE351VE Variable Geometry Turbocharger (VGT). Unlike vacuum or pressure-operated systems, this turbo is controlled by a dedicated 'smart' electronic actuator that communicates directly with the engine's computer over the J1939 or CAN bus. While this allows for precise boost control and enables the powerful exhaust brake feature, the actuator itself is a widely-documented failure point on this platform, making it the primary suspect for a P0046 code. FCA has issued Technical Service Bulletins (TSBs) specifically addressing this failure.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Generation note: This issue is common across the 2013-2018 Ram HD trucks equipped with the 6.7L Cummins engine, as they share the same Holset VGT and electronic actuator design. TSBs from FCA cover multiple model years within this range.

Symptoms You May Notice

• Check Engine Light is on
• Significant loss of engine power and acceleration ('limp mode')
• Exhaust brake (jake brake) not working or is disabled.
• Audible cycling, whirring, or clicking from the turbo area on startup (or a complete lack of this self-test sound).
• Reduced boost pressure, often limited to around 20 PSI.
• Intermittent return to normal function after clearing codes or an engine restart, only for the issue to return.

Most Likely Causes

1. Failing Electronic Turbo Actuator 🔴 High Probability The electronic actuator is a known common failure item on the 6.7L Cummins engine, acknowledged by manufacturer TSBs. The internal electronics or motor can fail over time due to heat, vibration, or sometimes internal coolant leakage.
   How to confirm: Use a high-end scan tool to run a VGT actuator test. Listen for grinding or no movement during the key-on self-test. The presence of codes P003A, P00AF, or U010C alongside P0046 strongly points to a bad actuator. 🎬 Watch: A professional guide to diagnosing your turbo actuator. A specific diagnostic check involves measuring resistance between the two middle CAN bus pins on the actuator connector; it should be between 115-125 ohms.

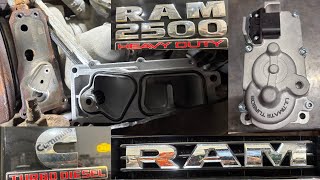

   Typical fix: Replace the electronic turbo actuator. Many aftermarket kits (e.g., from City Diesel, Fleece Performance) are available and are pre-calibrated, simplifying installation. 🎬 See this step-by-step walkthrough for replacing the actuator. OEM actuators must be calibrated after installation using a special tool.
   Est. part cost: $250 - $1400
2. Sticking Turbocharger Vanes 🟡 Medium Probability Soot and carbon can build up inside the turbocharger housing, causing the VGT vanes to stick. The actuator then struggles to move them, triggering a performance code. This is more common on trucks that are driven short distances, idled extensively, or rarely worked hard, preventing the exhaust from getting hot enough to burn off soot.
   How to confirm: If a new actuator doesn't solve the code, the issue is likely mechanical. With the actuator removed, manually move the sector gear/linkage on the turbo itself. It should move smoothly from stop to stop with minimal effort. Any binding, grittiness, or sticking indicates a carboned-up turbo.
   Typical fix: In some cases, regularly using the exhaust brake can help clean the vanes. If they are badly stuck, the turbocharger must be removed for professional cleaning or replacement. Simply installing a stronger aftermarket actuator can sometimes force the vanes to move, but this masks the root problem.
   Est. part cost: $0 - $3900
3. Wiring Harness or Connector Issues ⚪ Low Probability The wiring harness to the turbo actuator is in a high-heat area and can become brittle, chafed, or corroded over time. The U010C (Lost Communication) code often points specifically to a wiring or connector problem.
   How to confirm: Visually inspect the entire length of the wiring harness from the PCM to the turbo actuator. Pay close attention to the connector at the actuator for corrosion, bent pins, or a loose connection. Wiggle the harness while checking for resistance on the CAN bus wires to identify intermittent breaks.
   Typical fix: Repair the damaged section of the wiring harness or replace the connector pigtail. Clean any corrosion from connector pins using a specialized electronic cleaner.
   Est. part cost: $20 - $150

Rare But Worth Checking

• Failed Powertrain Control Module (PCM): This is very rare. The PCM should only be considered after all other possibilities, including the actuator, turbo, and wiring, have been definitively ruled out. Diagnostic procedures often list this as the final step if no other fault is found.

Diagnosis Steps

1. Scan the PCM for all fault codes. Note if P003A, P00AF, or U010C are present with P0046, as this combination strongly suggests an actuator or wiring issue.
2. Turn the ignition to the 'ON' position without starting the engine. Listen for a distinct cycling/whirring sound from the turbo area as the actuator performs a self-test sweep. Lack of this sound, or a grinding noise, points to a problem.
3. Thoroughly inspect the wiring harness and connector going to the turbo actuator for any signs of melting, chafing, or corrosion. Check for secure connection.
4. With the actuator unplugged and ignition off, use a multimeter to check the resistance between the two middle pins (CAN High and CAN Low) on the actuator itself. A reading between 115-125 ohms is expected. Do the same for the harness side.
5. If you have a capable bidirectional scan tool, command the VGT actuator through its sweep test (VGT Actuator Self-Calibration). Monitor the commanded position vs. the actual position. A failure to sweep or a large discrepancy indicates a faulty actuator or sticking vanes.
6. If tests point away from the actuator, remove it from the turbocharger (typically 3-4 bolts). Manually operate the VGT linkage arm on the turbo. It should move smoothly through its full range of motion. If it is stuck or gritty, the turbo needs cleaning or replacement.
7. If a communication code like U010C is present, focus on checking the power, ground, and CAN bus circuits between the PCM and the actuator before replacing parts.

Parts You'll Likely Need

• Electronic Turbocharger Actuator (OEM #68481772AA) — This is the most common failure point for the P0046 code on the 6.7L Cummins engine. The internal motor or electronics fail, leading to poor performance. This part number supersedes several previous versions, including 68232771AA, 68244609AA, 68307025AA, and 68445522AA.
  Trusted brands: Mopar (OEM), Holset (OEM Supplier), City Diesel (Aftermarket, Pre-Calibrated), Fleece Performance (Aftermarket, Performance), Circuit Board Medics (Remanufactured)
  OEM price range: $900-$1400
  Aftermarket price range: $250-$700
• Turbo Actuator Calibration Tool — Required when installing a new OEM actuator to allow the actuator to learn the start and end points of the VGT vane travel. Some aftermarket actuators come with a rental tool or are pre-calibrated. This can also be done with dealer-level software like wiTECH or some advanced aftermarket scan tools like AlfaOBD. 🎬 Watch: How to properly calibrate your new turbo actuator.
  Trusted brands: AVI Electronics, Synapse Auto, Included with some aftermarket actuator kits
  OEM price range: N/A (Shop Tool)
  Aftermarket price range: $100 - $250 (or rental)

Related Codes That Often Appear With This One

• P003A — This code, 'Turbocharger Boost Control Module Position Exceeded Learning Limit,' directly relates to the actuator's physical movement and often appears with P0046 when the actuator is failing or the vanes are sticking.
• P00AF — 'Turbocharger Boost Control Module Performance' is another performance-related code for the actuator, indicating a general failure and is frequently seen with P0046.
• U010C — 'Lost Communication with Turbocharger Control Module' points to an electrical issue, either in the actuator's internal circuit board or the wiring leading to it. It is a strong indicator of an electrical fault rather than a mechanical (sticking vane) issue.
• P0234 — 'Turbocharger Overboost Condition' can sometimes accompany P0046 if the actuator fails in a position that causes excessive boost. This is mentioned in some related TSBs.

Technical Service Bulletins (TSBs) & Recalls

• 09-005-22 REV A: Titled 'Cummins 6.7L Turbocharger Actuator - X99 Warranty Extension', this TSB directly addresses P0046 for the 2015 Ram 2500/3500. It lists P0046, U010C, P003A, and P00AF as symptom codes and instructs dealers to replace the turbocharger actuator.
• 09-001-22: A similar TSB for Ram 4500/5500 Cab Chassis models from 2013-2015, also covering P0046 and related codes, indicating the same failure pattern on heavier-duty platform mates.

Platform-Specific Known Issues

• Warranty Extension TSB 09-005-22 REV. A: FCA issued this TSB for 2015 Ram 2500/3500 trucks, acknowledging that codes P0046, U010C, P003A, and P00AF could be caused by a failed actuator. The bulletin provides for the replacement of the turbocharger actuator under an extended warranty for some vehicles.
• Calibration Requirement: A critical aspect of this platform is the need to calibrate a new OEM actuator to the turbo. This is a two-step electronic process involving a pre-alignment and a final calibration to learn the vane end-stops. Failure to do this will result in continued fault codes. Aftermarket actuators from brands like City Diesel are often marketed as "no calibration needed."

Mechanic-Grade Diagnostic Values

• CAN Bus terminating resistance at the actuator — expected: 115 - 125 Ohms. Failure: An open reading (OL) or a value outside this range indicates a failed actuator or wiring issue.
• CAN Bus network resistance at diagnostic connector — expected: 60 Ohms. Failure: A reading of 120 Ohms suggests one of the terminating resistors (one is in the actuator) is not being seen by the network.
• Voltage supply at actuator connector — expected: Within 1 volt of battery voltage (approx. 12.5V). Failure: Low or no voltage indicates a problem with the power supply circuit from the PCM.

Scan Tool Commands That Help

• wiTECH (OEM), AlfaOBD, Calterm: VGT Actuator Self-Calibration / Turbo VGT pre-align and self-calibrate — This function is required after installing a new OEM turbo actuator. It commands the actuator to sweep through its full range of motion to learn the physical stop points of the VGT vanes in that specific turbo. Failure to perform this step will result in continued fault codes and poor performance.
• Holset eTool, ATS Tester, CIMAT Turbotest: Installation and Calibration — These are specialized aftermarket tools used by turbo remanufacturers and specialty shops to test and calibrate Holset VGT actuators off the vehicle. They can perform span checks, learn tests, and hysteresis tests.

Wiring & Ground Locations

• Actuator Connector (4-way) — The 4-pin black connector on the electronic turbo actuator itself, located on the passenger side of the engine.. This is the primary connection point for power, ground, and CAN bus communication between the PCM and the actuator. Corrosion or damage here is a common cause of communication codes (U010C) seen with P0046. The pinout is: Pin 1 (Power), Pin 2 (Ground), Pin 3 (CAN High), Pin 4 (CAN Low).

Real Owner Repair Stories

• RamForum.com user (2014 Ram 3500 Cummins) — Check engine light with codes P00AF, P003A, U010C, and P0046. Intermittent loss of power and exhaust brake function. Clearing codes would temporarily restore function, but the issue would return at lower, in-town speeds.
  ❌ Tried (didn't work) Replacing the turbo actuator
  ✅ What actually fixed it The user was advised that the problem persisted because the underlying issue was likely sticking VGT vanes in the turbo or a wiring harness problem, not just the actuator that was replaced. The resolution was not posted, but the story highlights that a new actuator is not a guaranteed fix if the root cause is mechanical (stuck vanes) or a separate electrical issue.

OEM Part Supersession History

• 68232771AA, 68244609AA, 68307025AA, 68445522AA → 68481772AA — Standard part evolution by the manufacturer to improve reliability or address failure modes.
  Heads up: The latest part number, 68481772AA, is the correct service replacement for 2013-2018 models. While older actuators might physically fit, using the latest superseded part is always recommended.
