P0018 on 2007-2014 GMC Acadia: Stretched Timing Chain Causes and Fixes

What's Unique About the 2007-2014 Gmc ACADIA

The 3.6L V6 engine used in the first-generation GMC Acadia (and its siblings, the Chevrolet Traverse, Buick Enclave, and Saturn Outlook) is notorious for premature timing chain stretching. This issue is so prevalent that GM issued multiple Technical Service Bulletins (TSBs) and a special extended warranty program for this specific problem. The cause is often attributed to a combination of an aggressive Oil Life Monitor (OLM) system that encouraged overly long oil change intervals and the design of the original timing chains. While other causes are possible, a P0018 code on this specific vehicle is highly indicative of a timing chain problem, often preceded or accompanied by code P0008.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Reduced engine power and poor acceleration
• Rough or unstable idle
• Engine rattling noise, especially on cold startup or from the front of the engine
• Stalling, particularly when coming to a stop
• Decreased fuel mileage
• Engine running rough

Most Likely Causes

1. Stretched Timing Chains 🔴 High Probability The GM 3.6L V6 from this era has a well-documented history of premature timing chain wear and stretching, confirmed by multiple TSBs like #12-06-01-009F. The original chains were susceptible to wear, exacerbated by long oil change intervals recommended by the oil life monitor.
   How to confirm: A physical inspection is the definitive method. A mechanic can remove the valve cover and observe excessive slack in the chain. An advanced scan tool can also be used to monitor the 'Camshaft Position Variance' PIDs; a deviation that consistently exceeds +/- 4-6 degrees at idle or under load is a strong indicator of a stretched chain.
   Typical fix: Replace all three timing chains, all tensioners, and all guides with the updated parts. This is a major job often requiring engine removal or significant disassembly in the vehicle. 🎬 See this walkthrough of an in-car timing chain replacement. It is also recommended to replace the water pump and camshaft phasers during this service.
   Est. part cost: $200-$500
2. Failed Timing Chain Tensioner(s) or Guide(s) 🔴 High Probability The hydraulic tensioners, which keep the chains tight, can fail, lose pressure, or stick. The plastic guides can also wear or break. This is part of the same common timing system failure and the parts are always replaced during a timing chain job.
   How to confirm: Diagnosed during a physical inspection for a stretched timing chain. A rattling noise is a strong indicator. TSB #PIP3423P specifically mentions inspecting for loose tensioners.
   Typical fix: Tensioners and guides are always replaced as part of a complete timing chain service kit.
   Est. part cost: $50-$150 (included in a full kit)
3. Faulty Camshaft Position Actuator Solenoid 🟡 Medium Probability These solenoids control oil flow to the cam phasers. They can become clogged with sludge from infrequent oil changes or simply fail electrically. This is a common failure point and a relatively easy part to replace as a diagnostic step.
   How to confirm: Use a scan tool to command the solenoid on and off while monitoring cam phaser position. A simpler method is to swap the Bank 2 intake solenoid with another one (e.g., the Bank 2 exhaust solenoid) and see if the trouble code changes (e.g., to P0019). The Bank 2 solenoids are on the front of the engine and accessible after removing the engine cover.
   Typical fix: Replace the Bank 2 intake camshaft position actuator solenoid. It is located on the front valve cover and is relatively easy to access. 🎬 Watch: How to locate and replace the camshaft actuator solenoids.
   Est. part cost: $25-$70
4. Low or Dirty Engine Oil ⚪ Low Probability The entire variable valve timing (VVT) system, including the cam phasers and tensioners, is hydraulically operated by engine oil. Low pressure or dirty, sludgy oil can impede its function and set correlation codes. This was a major contributing factor to the timing chain failures in these engines.
   How to confirm: Check the oil level on the dipstick and inspect its condition. If it's low or very dirty, this is a likely contributing factor, if not the direct cause.
   Typical fix: Perform an oil and filter change using a full synthetic 5W-30 oil. Clear codes and see if the problem returns. This is often a contributing factor rather than the sole cause and will not fix a chain that is already stretched.
   Est. part cost: $40-$80

Rare But Worth Checking

• Faulty Camshaft Position Sensor: While possible, the sensor itself is less likely to fail than the mechanical timing components. It can send incorrect data to the ECM, mimicking a timing issue.
• Slipped Crankshaft Reluctor Wheel: Extremely rare, but documented in TSB #PIP3423P. The reluctor wheel is pressed onto the crankshaft and provides the position signal. If it moves, it will throw off the correlation to the camshafts, setting multiple codes. This requires crankshaft replacement.
• Failed Camshaft Phaser (Actuator): The phaser itself, located on the end of the camshaft, can get stuck or fail mechanically. This is less common than solenoid or chain failure but is often replaced during a timing chain job for peace of mind, as a failing one can damage a new chain.
• Faulty Crankshaft Position Sensor: A failure here would typically set other codes alongside P0018 or cause more severe drivability issues like a no-start condition.

Diagnosis Steps

1. Check Engine Oil: Verify the oil level is correct and the oil is clean. If low or dirty, perform an oil change with full synthetic 5W-30 oil, clear the codes, and re-test. This is a critical first step.
2. Scan for Codes: Use an OBD-II scanner to confirm P0018 and check for any other related timing codes (P0008, P0016, P0017, P0019). The presence of multiple codes strengthens the timing chain diagnosis.
3. Test Actuator Solenoids: Swap the Bank 2 (front) intake camshaft actuator solenoid with the adjacent exhaust solenoid. Clear codes and drive the vehicle. If the code changes to P0019 (exhaust correlation error), the solenoid is faulty and should be replaced.
4. Live Data Analysis: Use an advanced scan tool to monitor desired vs. actual camshaft position angles for Bank 2 Intake ('Camshaft Position Variance'). At idle and 2500 RPM, observe the values. A consistent deviation greater than 4-6 degrees indicates a mechanical timing problem (stretched chain).
5. Physical Inspection: If the above steps point to a mechanical issue, the next step is to remove the front valve cover to physically inspect the Bank 2 timing chain for slack. A loose, rattling chain will confirm the diagnosis.
6. Check Crankshaft Reluctor Wheel (Advanced): In the rare case that the chains appear tight but codes persist, follow TSB #PIP3423P to inspect the crankshaft reluctor wheel for movement, possibly with a borescope through the crank sensor hole.

Parts You'll Likely Need

• Engine Timing Chain Kit (OEM #12650230 (For 2007 Models), 12693218 / 12700436 (Later Models))

Related Codes That Often Appear With This One

• P0008 — A general engine position system performance code, often the first sign of a timing chain issue on these engines.
• P0016 — Crank/Cam correlation error on Bank 1 Intake. If both P0016 and P0018 are present, it strongly suggests an issue with the primary timing chain affecting both banks.
• P0017 — Crank/Cam correlation error on Bank 1 Exhaust. Often appears with other timing codes, indicating a widespread timing issue.
• P0019 — Crank/Cam correlation error on Bank 2 Exhaust. This points to a timing issue on the same bank as P0018, making a stretched chain on that bank's secondary chain very likely.
• P0021 — Intake Camshaft Position Timing - Over-Advanced (Bank 2). This code was seen with P0018 in an owner complaint, pointing to a camshaft actuator or timing issue.

Technical Service Bulletins (TSBs) & Recalls

• Announces the availability of updated timing chain service kits to repair stretched chains causing codes P0008, P0009, P0016, P0017, P0018, and/or P0019.
• Advises technicians to inspect for loose timing chains or tensioners when various timing codes are present. Also introduces the rare possibility of a moved crankshaft reluctor wheel as a root cause, which requires crankshaft replacement.
• Special Coverage Adjustment - This was a well-known program where GM extended the warranty on the timing chains for many 2007-2009 models to 10 years or 120,000 miles. While expired for most vehicles now, it confirms the widespread nature of the issue.

Platform-Specific Known Issues

• Premature timing chain stretching is a widely documented problem on the 2007-2014 GMC Acadia and other GM vehicles with the 3.6L V6.
• GM issued TSB #12-06-01-009F regarding the availability of updated timing chain kits to repair stretched chains causing codes like P0018.
• GM also had a special coverage program (11340C) that extended the warranty on the timing chains to 10 years or 120,000 miles for certain model years. Many of these vehicles are now outside that coverage period due to age.

Mechanic-Grade Diagnostic Values

• Camshaft Position Actuator Solenoid Resistance (LLT Engine) — expected: 7-12 Ohms. Failure: A reading of 0 Ohms (short) or infinite/OL (open) indicates a failed solenoid.
• Camshaft Position Actuator Solenoid Resistance (LY7 Engine, e.g., 2007) — expected: 4.6-7.5 Ohms. Failure: A reading outside this range indicates a failed solenoid.
• Camshaft Position Sensor Low Reference Circuit — expected: < 5 Ohms to ground. Failure: A higher reading indicates high resistance or an open in the ground circuit.
• Camshaft Position Sensor 5V Reference Circuit — expected: 4.8-5.2 Volts. Failure: Voltage outside this range suggests a problem with the ECM or wiring.
• Scan Tool 'Camshaft Position Variance' PID — expected: < 2 degrees. Failure: A variance greater than 2 degrees while using the scan tool to command the actuator from 0 to 40 degrees indicates a mechanical actuator (phaser) or oil flow problem.
• Engine Oil Pressure (Warm Idle) — expected: As low as 20-25 PSI. Failure: Significantly lower pressure can cause VVT system malfunctions, though this is considered normal operating range.

Hidden / Shadow Codes Worth Checking

• Diagnostic Logic Prerequisite: The ECM will not set correlation codes like P0018 if certain other DTCs related to the camshaft position sensors (e.g., P0341, P0346) or actuator solenoid circuits (e.g., P0010, P0020) are currently active. Resolving these circuit/sensor codes is a necessary first step. (see via This is a rule within the ECM's diagnostic strategy, visible in the 'Conditions for Running the DTC' section of the service manual.)

Scan Tool Commands That Help

• GDS2 / Tech2 (or equivalent advanced scanner): Camshaft Position Actuator Control — This bidirectional control is used to test the functionality of the actuator solenoid and the mechanical cam phaser. The technician commands the actuator ON/OFF or to a specific angle (e.g., 0 to 40 degrees) and observes the 'Camshaft Position Variance' PID to see if the camshaft responds correctly and holds its position.

Wiring & Ground Locations

• Engine Control Module (ECM/K20) — Located in the engine compartment, on the left side of the engine.. The ECM provides the 5V reference, ground, and receives the signal from the camshaft position sensor. It also controls the actuator solenoid. Poor connections at the ECM connectors (X1, X2) can cause this code.
• Bank 2 Camshaft Position Sensor (B23 Intake) — On the front of the left cylinder head (Bank 2 is near the radiator).. This sensor provides the primary signal for Bank 2 intake cam timing. Wiring issues or backed-out terminals at its connector are a known cause of timing codes.

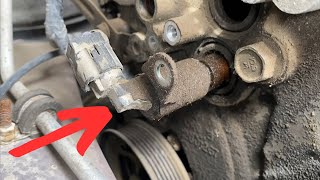

• Bank 2 Camshaft Position Actuator Solenoid (Intake) — On the front valve cover, easily accessible. It is the solenoid for the intake camshaft on the cylinder bank closer to the radiator.. This solenoid controls oil flow to the phaser. A faulty solenoid or clogged screen will directly cause timing correlation errors. Its connector receives ignition voltage (Terminal 1) and a control signal from the ECM (Terminal 2).

Real Owner Repair Stories

• Common forum reports and a Reddit story (r/AskMechanics) (Various vehicles, including a Ford Taurus with a similar V6 design, exhibiting P0018 after a timing chain replacement.) — Check engine light with P0018 immediately returns after a complete timing chain service. The engine often runs perfectly fine with no noticeable idle or power issues.
  ❌ Tried (didn't work) Clearing the code (it returns instantly), Replacing camshaft and crankshaft sensors, Replacing VVT solenoids
  ✅ What actually fixed it The timing was off by a single tooth on one of the camshafts or the primary chain. This small deviation was not enough to cause mechanical symptoms but was immediately detected by the ECM, setting the correlation code. The repair required a complete re-do of the timing procedure, sometimes with a second mechanic or dealer technician verifying the marks.

OEM Part Supersession History

• N/A → 12650230 — Updated timing chain kit for 2007 models to address premature stretching.
  Heads up: TSB #12-06-01-009F notes that for a stretched chain, only the chains, guides, and tensioners should be replaced. Camshaft actuators and sprockets are not typically worn and replacing them is not recommended under warranty.

Model Year Variations Within This Range

• 2007: For early 2007 models (built before July 15, 2006), a separate bulletin (07-06-01-013) must be consulted for correct timing chain identification.
• 2007-2009 (pre-06/05/2009 builds): When performing a timing chain replacement, the camshaft saddle caps must be inspected. First-design cylinder heads used Teflon camshaft thrust washers that may require attention, whereas later designs do not.
• 2007-2008 (LY7) vs 2009-2014 (LLT): The specified resistance for the camshaft actuator solenoids may differ. LY7 engines may have a spec of 4.6-7.5 ohms, while LLT engines have a spec of 7-12 ohms, indicating a different part is used.
