OBD-II Code C1814: Left Front Air Spring Solenoid Circuit Failure

What Does C1814 Mean?

Code C1814 means the Suspension Control Module (SCM) or Powertrain Control Module (PCM) detected an electrical circuit fault in the front left air spring solenoid. This prevents the system from raising or lowering that corner, compromising ride quality and safety.

Technical definition: C1814 is universally defined as a Left Front Air Spring Solenoid Circuit Malfunction. The control module detected an open circuit (no connection), short circuit (to ground or power), or an out-of-spec resistance/amperage draw in the front left air spring solenoid circuit.

Can I Drive With C1814?

Yes, But With Caution. Yes, but only for a short trip to a repair shop. Driving with a failed air spring causes extremely poor handling, braking instability, and a harsh ride. Continuing to drive causes a cascading failure of other expensive components. The constantly-running air compressor will burn out (a $900-$2,000+ repair), and incorrect suspension geometry causes abnormal tire wear and damage to the wheel hub bearing. Ignoring a $700 air spring repair quickly turns into a $3,000+ system overhaul.

Common Causes

• Leaking Front Left Air Spring (Air Bag) (Very Common) — The rubber air spring is the primary failure point. It develops cracks from age and millions of compression cycles, causing air leaks. This forces the compressor to overwork and triggers a circuit fault when the solenoid commands a fill on a spring that cannot hold pressure.
• Damaged Wiring or Corroded Connector (Common) — The wiring harness and connector for the front left solenoid are exposed to road debris and moisture. Corrosion (green/white powder), severed wires, or a loose ground strap interrupt the electrical signal, causing an immediate circuit fault.
• Failed Air Spring Solenoid (Common) — The electronic solenoid valve, often attached directly to the air spring, fails electrically or sticks mechanically. This creates an open or short circuit, directly triggering C1814.
• Faulty Ride Height Sensor (Common) — The front left ride height sensor fails electrically or its mechanical linkage breaks. If the sensor provides an implausible signal, the control module stops commanding the solenoid and logs a circuit fault code as a secondary result.
• Failing Air Suspension Compressor or Dryer (Less Common) — A saturated air dryer allows moisture into the system. This moisture corrodes solenoid valves and electrical connectors from the inside out, leading to circuit faults.
• Faulty Air Suspension Relay (Less Common) — The relay providing power to the compressor or solenoid valve block fails. While this usually presents as a compressor code, it contributes to circuit fault codes on certain systems.
• Faulty Suspension Control Module (SCM) (Rare) — The electronic control module operating the suspension system fails internally. Consider this only after exhaustively eliminating leaks, wiring, sensors, and solenoids.

Symptoms

• Vehicle Leaning or Sagging — The front left corner of the vehicle sits noticeably lower than the others, especially after parking overnight.
• Harsh, Bouncy, or Noisy Ride — With no air to absorb impacts, the ride becomes stiff and uncomfortable. You hear clunking noises as the suspension bottoms out over bumps.
• Air Compressor Runs Constantly or Not At All — The compressor runs continuously attempting to fill a leaking spring, or shuts down completely to prevent burnout after detecting a persistent fault.
• Suspension Warning Light (also visible on scanner) — A 'Check Air Ride' or 'Suspension Fault' warning light illuminates on the dashboard.

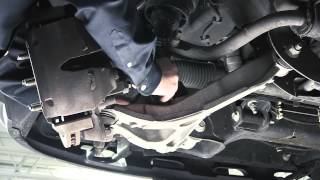

🎬 Watch: How to diagnose a service suspension system message.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this code.

Common Fixes & Costs

• Replace Front Left Air Spring Assembly — Parts: $200-$1,300, Labor: $250-$400, ~2.5 hr book time (Intermediate)
  Lincoln Navigator (2003-2006): OEM 6L1Z-3C199-AA (Alt: Arnott: AS-2143, Dorman: 949-256)
  Ford Expedition (2007-2013): OEM 7L1Z5A891B (Alt: Arnott: AS-2700, Suncore: 139N-11-F)
  Cadillac Escalade (2015-2020 w/MagneRide): OEM 84176638 (Alt: Arnott: SK-3354, Dorman: 698-058)
• Repair or Replace Wiring Harness/Connector — Parts: $25-$150, Labor: $150-$450, ~2 hr book time (Professional)
• Replace Ride Height Sensor — Parts: $70-$450, Labor: $75-$175, ~1 hr book time (DIY)
  Lincoln Navigator / Ford Expedition (2007-2014, Front): OEM 7L1Z-3C174-A (Alt: Duralast: SU10912, TRQ: LSA84732)
• Replace Air Suspension Compressor — Parts: $250-$900, Labor: $150-$400, ~1.5 hr book time (Intermediate)
  Lincoln Navigator / Ford Expedition (2007-2013): OEM 7L1Z-5319-AE (Alt: Arnott: P-2937, Dorman: 949-201)
  Cadillac Escalade (2015-2020): OEM 23303358 (Alt: Arnott: P-3221, Dorman: 949-001)
• Replace Air Suspension Control Module — Parts: $400-$1,200, Labor: $100-$250, ~1.5 hr book time (Professional)

Used vs. New Parts: Buying Guide

When a used part is worth it: A used air spring assembly is a budget-conscious choice for an older, high-mileage vehicle where the goal is to keep it running for a limited time. It is a significant gamble on part longevity.

Donor-vehicle mileage cap: roughly under 60000 miles for the part to have meaningful remaining life.

Donor quality checklist:

• Verify the part came from a vehicle with lower mileage.
• Inspect the rubber for visible dry rot, cracking, or abrasions.
• Avoid parts from regions with heavy road salt use due to metal corrosion.
• Accept that it is impossible to know the true remaining service life of a used air spring.

Decision logic:

• If Vehicle is less than 10 years old or has under 100k miles → Buy new (OEM or quality aftermarket). The risk of repeat labor costs outweighs the savings from a used part.
• If Vehicle is over 10 years old AND budget is the primary constraint → A used part is a viable risk, but expect a significantly shorter lifespan than a new part.
• If You plan to keep the vehicle for more than 2 years → Buy new. The peace of mind and warranty are worth the extra cost.

Warranty tradeoff: Used parts from a salvage yard typically offer a 30-90 day warranty on the part only. New aftermarket parts (Arnott, Dorman) offer a one-year to limited lifetime warranty. New OEM parts carry a 1-2 year warranty.

Worst-case if a used part fails: $500 - $800. This represents paying for the labor to install the part a second time, plus the cost of another replacement part.

What Happens If You Wait — Timeline

1. 0-1 week: Intermittent 'Service Air Suspension' light appears. The front-left corner sags slightly overnight but inflates after starting. No significant performance change. (Added cost: $0)
2. 1 week - 2 months: The warning light becomes constant. The front-left corner consistently sags when parked. The air compressor runs for an extended period after startup. Ride is harsh until the corner lifts. (Added cost: $50 - $150 (in accelerated compressor wear))
3. 2-4 months: The air leak is significant. The compressor runs almost constantly while driving. The ride is harsh, handling is poor, and braking stability is reduced. Uneven tire wear begins. (Added cost: $1,100 - $2,400 (Guaranteed cost of a new air compressor and relay plus a new tire).)
4. 4+ months: The air compressor burns out. The front-left corner is permanently collapsed. The vehicle is extremely unstable and noisy. Constant impacts cause secondary damage to wheel bearings and ball joints. (Added cost: $2,500 - $5,000+ (Cost of a full system repair: new compressor, new air springs, new tire, and replacement of damaged suspension joints).)

Cost of Not Fixing It

• 0-1 Month: Harsh, unstable ride; poor handling and braking; excessive noise. The air compressor begins running constantly to compensate for the leak. (Added cost: Negligible, but safety is compromised.)
• 1-3 Months: Guaranteed failure of the air suspension compressor from overuse. Accelerated and uneven tire wear becomes visible. (Added cost: $900 - $2,000 (for a new compressor and relay) + $200-$400 (for a new tire).)
• 3+ Months: Cascading damage to suspension components like wheel bearings, ball joints, and control arm bushings due to constant impacts and incorrect geometry. (Added cost: $2,500 - $5,000+ (for a complete system overhaul including multiple springs, compressor, sensors, and worn suspension parts).)

Diagnosis Steps

1. Visual Inspection and Bounce Test
   Park on level ground. Visually confirm the front left corner is lower. Push down firmly on the front left bumper; if it bounces multiple times, the air spring is empty. Listen for the air compressor when the vehicle starts; note if it runs constantly, makes grinding noises, or remains silent.
   Tools: None (Beginner)
2. Perform the Soapy Water Test
   With the vehicle running to activate the compressor, spray soapy water on the front left air spring (especially top/bottom seals and rubber folds) and air line connections. Bubbles forming indicate a definitive air leak.
   Tools: Spray bottle, soap, water (Beginner)
3. Use a Bi-Directional Scan Tool
   Access the suspension control module to command the front left solenoid to open and close. Listen for a 'click'. If it clicks but the spring doesn't inflate (and there are no leaks), the solenoid is stuck internally. If it doesn't click, an electrical fault is confirmed.
   Tools: Bi-directional OBD-II scan tool (Advanced)
4. Inspect the Electrical Connector and Harness
   Unplug the front left air spring solenoid connector. Inspect pins for corrosion (green/white powder), moisture, or damage. Trace the wiring, looking for breaks, chafing against suspension components, or heat damage.
   Tools: Flashlight, safety glasses, electrical contact cleaner, small brush (Intermediate)
5. Check Fuses and Relays
   Locate the fuses and relays for the air suspension control module and compressor. Inspect each fuse for a break. Swap the suspension relay with an identical known-good relay (e.g., the horn relay) to rule out a faulty relay.
   Tools: Owner's manual, fuse puller or pliers (Intermediate)
6. Advanced: Solenoid and Circuit Integrity Test
   Disconnect the solenoid. Use a multimeter set to Ohms to measure resistance across the solenoid pins (typically 5-20 Ohms). 'OL' indicates an open circuit; near 0 Ohms indicates a short. Next, check for battery voltage at the harness connector with the key on. Check for voltage drop on the ground side; a reading above 0.5V indicates a poor ground.
   Tools: Multimeter, vehicle-specific wiring diagram (Advanced)
7. Advanced: Ride Height Sensor Voltage Correlation
   Graph the voltage output of all four ride height sensors using a scan tool. At normal height, front left and right sensors should read similarly (typically 2.0V-3.0V). Manually push down on the front bumper; voltages should change smoothly and in unison. Erratic or fixed voltage indicates a faulty sensor.
   Tools: Bi-directional OBD-II scan tool with graphing capabilities (Advanced)
8. Advanced: System Pressure Test
   Access live data for the air suspension system pressure sensor. Running system pressure should be 140-175 PSI (up to 290 PSI on Land Rovers). If the compressor runs but cannot build pressure, suspect a major leak, saturated air dryer, or worn compressor.
   Tools: Bi-directional OBD-II scan tool with live data (Advanced)
9. Check for Related Technical Service Bulletins (TSBs)
   Check for manufacturer TSBs related to the air suspension system. Phantom codes or erratic behavior are sometimes fixed with a software update to the suspension control module.
   Tools: Online service information subscription or dealer inquiry (Professional)

When This Code Triggers (Freeze-Frame Conditions)

• Solenoid Command State: On (Fill or Vent) (SCM commanded the solenoid to activate to adjust ride height.)
• System Voltage: 11.0 - 14.5V (Vehicle running or recently shut down, with sufficient battery voltage for module operation.)
• Solenoid Circuit Current: Out of Spec (Too High/Low) (The module detected an amperage draw inconsistent with a healthy solenoid, indicating a short or open circuit.)
• Ride Height Sensor (Front Left): No Change (The module commanded the solenoid to fill/vent the spring but detected no corresponding change in the height sensor's voltage reading.)

Related Codes

• C1725 — A general pneumatic failure code for the front axle. C1814 isolates the problem to the left front corner's solenoid or wiring. Resolving C1814 typically clears C1725.
• C1A20 — A Land Rover code indicating the compressor is not filling the reservoir fast enough. A large leak at the front left spring (C1814) causes C1A20. Fix the leak first; if C1A20 persists, the compressor is faulty.
• C1A31 — The Land Rover-specific equivalent of C1814 ('Front Left Corner Valve - General Electric Failure'). Diagnostic and repair procedures are identical.
• C1772 — Indicates an 'Air Compressor Outlet Valve Circuit Fault'. C1814 is for the solenoid at the wheel, while C1772 is for a valve on the compressor assembly itself.

Climate & Environmental Factors

• Cold Weather: Temperatures below freezing (32°F / 0°C) stiffen rubber air springs and seals, turning minor leaks into major ones. Moisture in the air lines freezes, causing blockages and damaging components.
• High Heat: Prolonged exposure to high ambient temperatures accelerates the degradation of rubber air springs, causing them to become brittle and crack. It also increases the risk of compressor overheating.
• Humidity / Moisture: Humid climates draw more water vapor into the system, overwhelming the air dryer. This moisture corrodes electrical connectors, solenoid valves, and damages the compressor internally.
• Road Salt / Corrosion: Road salt aggressively attacks metal air lines, fittings, compressor housings, and electrical connectors in the wiring harness, leading to leaks and circuit failures.

How to Talk to a Mechanic About This Code

Say this: "I have a 'Service Air Suspension' light and an OBD code C1814. The front left corner of the car is sagging. I'd like to schedule a diagnostic appointment. Please start by performing a soapy water leak test on the front left air spring and inspecting the solenoid connector before checking the compressor or control module."

This signals to the shop that you understand the most common cause is a simple air leak, preventing them from immediately quoting a costly compressor or control unit.

Avoid saying:

• 'My air suspension is broken, fix it.'
• 'The car is bouncy, I think I need a new compressor.'
• 'Just do whatever it takes to fix the warning light.'

Questions to ask before authorizing the repair:

• Did you find a leak with the soapy water test? If so, can you show me a picture or the part?
• If there was no leak, what were the results of the electrical tests on the solenoid and its circuit?
• Is the ride height sensor for that corner showing correct and smooth voltage changes?
• Does this repair require a ride height calibration afterward, and is that included in the quote?
• What is the warranty on the replacement part and the labor?

Where to Take It: Dealer vs Independent vs Chain

• Dealer: A safe but expensive option. Recommended if you suspect a complex electronic issue or want the peace of mind of OEM parts and procedures.
  Best for: Vehicles under warranty, Complex electronic issues on German brands (Mercedes, Audi, BMW), Repairs covered by a manufacturer Technical Service Bulletin (TSB)
  Downsides: Highest labor rates, often 1.5-2x an independent shop., Defaults to replacing an entire assembly rather than a smaller component. (Typical cost: +50% vs. baseline)
• Independent Shop: Best fit for most owners. An experienced independent mechanic handles this repair effectively and more affordably than a dealer. Ask if they have the tools to perform a 'ride height calibration' before booking.
  Best for: Out-of-warranty vehicles where cost is a factor., Common failures like air spring or compressor replacement.
  Downsides: Quality varies greatly. You must verify the shop owns a bi-directional scan tool capable of calibration. (Typical cost: +0% vs. baseline)
• Chain Shop: Not Recommended. The complexity of C1814 diagnosis and the requirement for post-repair calibration make it a poor fit for most chain shops.
  Best for: Simple jobs like conventional brakes, tires, and oil changes.
  Downsides: Technicians are rarely equipped or trained for the electronic diagnostics and specific calibration procedures required for air suspension systems., High risk of misdiagnosis, leading to unnecessary replacement of parts like the compressor. (Typical cost: -10% vs. baseline)

When to Walk Away From the Repair

If the total estimated repair cost exceeds 50% of your car's current private-party value, sell or trade in the vehicle instead of repairing it.

• Car worth $6000, fix is $800: Fix it. This is a standard repair cost and is well below the threshold.
• Car worth $5000, fix is $2800: Walk away. The repair cost is over 50% of the car's value. The money is better put toward a replacement vehicle.
• Car worth $15000, fix is $3000: Borderline. This is a significant cost. Get a second opinion and evaluate the car's overall condition before proceeding.

What Scan Tool You Need for This Code

Minimum: Bi-directional control to perform active tests and suspension height calibration.

A basic $20-$50 code reader only pulls the C1814 code. It CANNOT command the solenoid to test the circuit, activate the compressor, or perform the mandatory ride height calibration after the repair. Attempting a DIY repair without a bi-directional tool results in an incomplete and non-functional fix.

Budget: None Recommended (~$0) — True bi-directional scanners with reliable suspension calibration functions are not available in this price range.

Mid-range: Autel MaxiCOM MK808S / MP808S (~$350) — Provides full bi-directional control to command solenoids and the compressor. Critically, it includes the special function for 'Suspension Calibration' needed for Ford, GM, Land Rover, and European makes after replacing a spring or sensor.

Professional: XTOOL D7 or Launch X431 Series (~$450-900) — Offers professional-level bi-directional control, extensive service functions including suspension calibration, and advanced features like ECU coding.

Rent vs buy: Buy. Auto parts store loaner tool programs typically only offer basic code readers, not the bi-directional scanners required for this job.

How to Clear the Code After You Fix It

1. Fix the root cause (e.g., replace the air spring).
2. Use a bi-directional scan tool to perform a system height recalibration.
3. Use the scan tool to clear the fault code from the Suspension Control Module.
4. Perform a test drive that includes various speeds to confirm the fix.

Drive cycle (~20 minutes): After clearing the code, start the vehicle and allow it to self-level. Drive for 10-15 minutes, including both city and highway conditions, to allow the suspension module to verify the repair. The key step is the recalibration, not a specific drive cycle.

Readiness monitors affected: None

Watch out for:

• Failing to perform the mandatory suspension height recalibration after replacing a spring or sensor, causing erratic system behavior and new codes.
• Clearing the code without fixing the underlying air leak, causing the code to return immediately upon the next system self-test.

Will This Fail Emissions / State Inspection?

No — by itself this code doesn't fail OBD inspection (but it can keep readiness monitors from setting, which causes a separate fail).

• California: This code does not illuminate the Check Engine Light and will not fail the OBD-II emissions test. However, a technician fails a vehicle during the visual inspection if the suspension is mechanically unsafe.
• New York: While C1814 passes the OBD-II emissions scan, it fails the mandatory safety inspection. A visibly sagging corner or poor handling is grounds for failure.
• Texas: As of 2025, most personal vehicles no longer require a safety inspection, only an emissions test in 17 counties. C1814 does not cause an emissions failure.

Most Commonly Affected Vehicles

• Lincoln Navigator (2003-2017) — Extremely common failure. Early models (2003-2006) are known for rubber air springs dry-rotting and cracking. All years are susceptible to solenoid and ride height sensor failures.
• Ford Expedition (2003-2017) — Shares its platform and air suspension system with the Lincoln Navigator, making it prone to identical air spring leaks and sensor issues.
• Cadillac Escalade (and other GM SUVs like Tahoe, Yukon) (2002-2020) — GM's full-size SUVs with 'Autoride' or 'MagneRide' are susceptible to air spring leaks and compressor failures. For 2021-2023 models, diagnose door ajar sensor communication faults (DTCs U0222, U0223) first.
• Land Rover Discovery (LR3/LR4) (2005-2016) — Frequently experience issues with compressor failure, clogged air dryers, and electrical faults in the valve blocks. The front valve block is a common source of leaks.
• Land Rover Range Rover Sport (2006-2013) — Susceptible to compressor burnout and valve block failures. The compressor relay is a known weak point and must be checked early in the diagnosis.
• Ram 1500 (2013-2018) — The four-corner air suspension system develops air leaks at the springs and becomes slow or unresponsive in cold weather. Requires a diagnostic tool to self-reset properly after repair.
• Mercedes-Benz GL-Class (X164), S-Class, E-Class (2007-2015) — Notorious for air spring leaks and compressor failures. On the X164 GL-Class, plastic ride height sensor linkage arms soften and flex, providing incorrect readings.
• Audi A8, Q7, Allroad (2004-2018) — Commonly suffers from front-end sagging due to leaking air springs. A system reset via the MMI interface or scan tool is required after repairs.

Manufacturer-Specific Notes

• Ford/Lincoln: The plastic linkage arm for the ride height sensor pops off or breaks, sending an incorrect signal to the module and mimicking a solenoid fault. Always check this mechanical part first.
• Land Rover: The air compressor's air dryer desiccant becomes saturated, allowing moisture to corrode solenoid valves and electrical connectors, leading to C1814. Replace the compressor relay simultaneously with the compressor.
• Ram: The air suspension system is notoriously sensitive to cold weather (below 40°F/4°C). Aging rubber components stiffen and moisture freezes, exacerbating small leaks.
• Cadillac (2021+): A 'Service Leveling System' message is caused by a loss of communication with a door window motor/regulator (Codes U0222-U0225). Diagnose door-related DTCs before condemning suspension parts.
• General: No active recalls or extended warranty programs exist for this specific fault code. Failures are handled as out-of-warranty repairs unless covered by a TSB software update.

Real Owner Stories

2006 Land Rover LR3 with C1814/C1A31

Owner experienced an intermittent 'Suspension Fault' message that eventually became permanent for the front left corner.

What they tried:

1. Suspected the air compressor or dryer due to wet weather.
2. Read codes revealing C1A31 (Land Rover equivalent of C1814).
3. Replaced the front valve block assembly, but the fault code returned.

Outcome: The owner traced the wiring harness and found a poor connection at the suspension ECU connector. Reseating and securing the connector resolved the electrical fault without needing more parts.

Lesson: An electrical fault code doesn't always mean the component has failed. Always inspect the full circuit, including connectors at the component and the control module, for looseness or corrosion.

2013 Ram 1500 with C1814 in winter

The 'Service Air Suspension' light appeared and the front left corner sagged during cold weather snaps. The compressor ran excessively.

What they tried:

1. A shop suggested replacing the air compressor for over $1,500.
2. Owner declined and performed a soapy water test at home.
3. Discovered very small bubbles forming around the top seal of the air spring.

Outcome: The owner replaced only the front left air spring with an aftermarket part ($350). The code cleared, the sagging resolved, and the original compressor was saved.

Lesson: Cold weather exposes small air leaks by stiffening rubber seals. Always perform a thorough leak test before condemning the air compressor.

2007 Lincoln Navigator with multiple suspension faults

Vehicle sagged on the front left. The owner ignored the warning light for weeks. The ride became harsh, and the air compressor stopped running entirely.

What they tried:

1. A mechanic diagnosed a failed front left air spring and a burned-out air compressor.
2. The quote was for an OEM air spring ($1,200) and an OEM compressor ($900), plus labor.

Outcome: The total repair cost exceeded $2,500. The compressor failure was a direct result of running continuously to compensate for the original air leak.

Lesson: Ignoring a C1814 code turns a single-component repair into a full system overhaul. The air compressor is not designed for continuous operation and will fail, adding $1,000-$2,000 to the bill.

2011 Land Rover L320 with incorrect sensor readings

Vehicle threw suspension faults and behaved erratically, lowering to bump stops unexpectedly. Codes for height sensors and corner valves were present.

What they tried:

1. Replaced front and rear right-side height sensors.
2. Cleaned front and rear valve blocks.
3. Attempted a height calibration with a diagnostic tool, which failed repeatedly.

Outcome: Using live data graphing, the owner observed that when the vehicle lowered, the voltage readings for the left and right side sensors moved in opposite directions. This indicated a reversed or faulty sensor/wiring, preventing calibration.

Lesson: If a calibration fails after a repair, use live data to compare sensor readings side-to-side. Implausible or opposing data points to a sensor, wiring, or mechanical linkage issue.

How to Prevent This Code From Triggering

• Periodically Clean Air Springs and Undercarriage (Every 3-6 months, or after off-road use) — Hosing off the rubber air springs removes road salt, dirt, and debris that abrade the rubber and corrode electrical connectors, extending their life.
• Perform a Visual Inspection (During every oil change) — Ensure air lines are not rubbing against sharp edges. Check that ride height sensor linkages are intact and electrical connectors are secure to prevent future failures.
• Listen for Changes in Compressor Behavior (Weekly) — A healthy compressor runs for short, predictable intervals. Running longer, cycling more frequently, or sounding louder is the earliest sign of a developing air leak.
• Drain Air Tank (if applicable) (Every 2-4 weeks in humid climates) — Draining the tank releases accumulated moisture, preventing water from causing internal corrosion in solenoid valves and freezing in cold weather.
• Replace Compressor Relay with Compressor (Whenever the air compressor is replaced) — A failing compressor draws high current, damaging its power relay. Installing a new compressor without a new relay risks damaging the new compressor.

Frequently Asked Questions

Can I replace just the solenoid?

No. On most modern vehicles, the solenoid is integrated into the air spring assembly and replaced as a single unit. This ensures all related seals are new, preventing future leaks at the connection point.

Is it okay to replace just one air spring?

While you can replace just the failed side, replacing them in pairs (both front) is highly recommended. Air suspension components wear evenly; if one fails from age, the other will fail shortly after.

What are common misdiagnosis mistakes for C1814?

The most common mistake is replacing the expensive air compressor or suspension module without proper diagnosis. Always start with a soapy water test to find air leaks. Visually inspect wiring and test the ride height sensor before condemning electronic modules.

Is this a good DIY repair?

Yes, for an advanced DIYer. Mechanically, replacing an air spring mirrors replacing a conventional strut. However, you must use a bi-directional scanner to depressurize the system before work and recalibrate the ride height afterward.

What is an air suspension conversion kit?

A conversion kit replaces the entire air suspension system with traditional steel coil springs and struts. This permanently eliminates air ride repair costs but removes adjustable ride height and alters the vehicle's ride quality.

Why did the 'Suspension Fault' light turn off but the car is still sagging?

The control module temporarily clears the fault after an ignition cycle, but the corner will not inflate if a physical leak exists. The fault light returns immediately once the module commands the compressor and sees no height change.

Do I need to recalibrate the suspension after the repair?

Yes. On most modern vehicles, you must use a diagnostic tool to perform a suspension height recalibration after replacing a spring or sensor. This establishes the new baseline height; without it, the system functions erratically.

Why does my air suspension seem to fail more in cold weather?

Cold temperatures harden the rubber in air springs and O-ring seals, turning microscopic leaks into major ones. Moisture in the air lines also freezes, blocking valves and triggering electrical circuit faults.

Key Takeaways

• Code C1814 indicates an electrical fault in the front left air suspension solenoid, but a physical air leak in the rubber spring causes over 70% of these failures.
• A front-left corner that sags overnight, a dashboard 'Suspension Fault' warning, and a harsh, bouncy ride are the definitive symptoms of this failure.
• Ignoring a $700 air spring replacement guarantees the failure of the air compressor, turning a single-corner fix into a $2,500+ system overhaul within 1 to 3 months.
• Always perform a 10-minute soapy water test on the front left air spring to rule out physical leaks before replacing expensive electronic modules or the compressor.
• A bi-directional scan tool is mandatory for this repair, as you must electronically depressurize the system before disassembly and perform a ride height calibration afterward.
