OBD-II Code C1737: Air Suspension Corner Leveling Timeout

What Does C1737 Mean?

Code C1737 means the suspension control module tried to raise a corner of the vehicle, but it took too long to reach the correct height. The system timed out, indicating a physical leak or electrical fault preventing that corner from lifting. The module expects a specific voltage change from the ride height sensor within a pre-programmed time limit; when it fails to see this change, it sets the code and illuminates a warning light.

Technical definition: The official SAE OBD-II definition for C1737 varies by manufacturer. The most common definition is "Air Suspension Right Rear Corner Up Timeout." However, on General Motors vehicles it sometimes refers to an "Air Suspension Reservoir Solenoid Valve Circuit" fault, and on Toyota/Lexus models it indicates a "Front Suspension Control Valve LH Malfunction." Note: There is also a medical device code designated C1737 for a "Joint fusion and fixation device," which is entirely unrelated to automotive diagnostics.

Can I Drive With C1737?

Yes, But With Caution. Yes, but driving long distances causes a harsh ride, compromises handling, and burns out the air compressor. Ignoring the issue forces the compressor to run constantly, adding $700 to $1,600 to the final repair bill.

Common Causes

• Leaking Air Spring (Air Bag) (Very Common) — The rubber air spring at the corner has developed cracks or a puncture from age and wear, allowing air to escape. Air springs have an average lifespan of 80,000 to 100,000 miles or 6-10 years.
• Failed Air Suspension Compressor (Common) — The compressor is too weak to generate enough air pressure to lift the vehicle corner in the allotted time. This happens when it overworks to compensate for an existing air leak, or when its internal dryer clogs and restricts exhaust flow.
• Faulty Ride Height Sensor (Common) — The sensor measuring suspension height is broken, its linkage disconnected, or it provides a static signal to the control module. The module doesn't see the height change even if the corner lifts, causing a timeout.
• Moisture in System / Cold Weather (Less Common) — Moisture enters the air system when the compressor dryer fails. In freezing temperatures, this moisture freezes within the lines or valve block, creating a physical blockage. This is a highly documented issue on Ram 1500 trucks.
• Leaking Air Lines or Fittings (Less Common) — The plastic air lines running from the compressor to the air springs become brittle, crack, or suffer damage from road debris. O-rings at the push-to-connect fittings also dry out and leak.
• Defective Solenoid Valve Block (Less Common) — The valve block directs airflow from the compressor to each corner. A valve stuck closed prevents air from reaching the spring, while an internal leak bleeds off pressure.
• Faulty Suspension Control Module (VLM/ECU) (Rare) — The electronic control module managing the system fails or requires a software update. On some GM vehicles, an incorrect software calibration causes leveling issues without hardware failure.
• Blown Fuse or Bad Relay (Rare) — A blown fuse or a faulty relay prevents the compressor or solenoids from receiving power.

Symptoms

• Vehicle Sagging or Leaning — One corner of the vehicle, usually the right rear, sits noticeably lower than the others, especially after parking overnight.
• "Service Air Suspension" Warning Light — A warning message or light illuminates on the dashboard, indicating the control module detected a fault and disabled the system.
• Compressor Runs Constantly or is Loud — The air suspension compressor runs for extended periods or sounds unusually loud as it struggles to compensate for a leak.
• Bumpy or Harsh Ride — With the air spring deflated, the vehicle rides directly on its bump stops, resulting in a stiff, bouncy, and uncomfortable ride.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this code.

Common Fixes & Costs

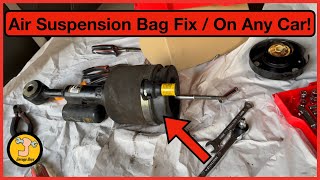

• Replace Leaking Air Spring/Strut — Parts: $250-$800, Labor: $300-$600, ~2.5 hr book time (Intermediate)
  Ford Expedition / Lincoln Navigator (2007-2017): OEM 7L1Z5A891B (Alt: Arnott A-2735, Dorman 949-257)
  Cadillac Escalade (2015-2020): OEM 84176675 (Alt: Arnott AS-3061, Dorman 949-710)

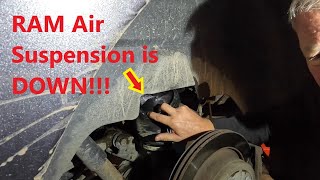

• Replace Air Suspension Compressor — Parts: $250-$1,200, Labor: $150-$300, ~1.5 hr book time (Intermediate)
  Ram 1500 (2013-2019): OEM 68204730AB (Alt: Arnott P-3221, Dorman 949-356)
  Cadillac Escalade / GM SUVs (2015-2020): OEM 84178269 (Alt: Arnott P-3273, Dorman 949-099)
• Replace Ride Height Sensor — Parts: $50-$250, Labor: $100-$200, ~1.0 hr book time (DIY)
  Ford Expedition / Lincoln Navigator (Rear): OEM 6L1Z5A967-BC (Alt: Dorman 926-253)
  Ram 1500 (Rear): OEM 68164094AD (Alt: Dorman 926-273)
• Replace Air Suspension Solenoid Valve Block — Parts: $150-$400, Labor: $150-$250, ~1.5 hr book time (Intermediate)
  Ram 1500 (2013-2019): OEM 68204399AA (Alt: Dorman 949-360)
• Repair or Replace Air Line — Parts: $20-$100, Labor: $100-$200, ~1.0 hr book time (DIY)
  Universal: OEM N/A (Alt: Dorman 800-075 (1/4" Line Repair Kit))

Used vs. New Parts: Buying Guide

When a used part is worth it: A used air spring is only a temporary, budget-only option for an older, high-mileage vehicle where the cost of a new part is unjustifiable.

Donor-vehicle mileage cap: roughly under 60000 miles for the part to have meaningful remaining life.

Donor quality checklist:

• Verify the donor vehicle's mileage; lower is always better.
• Visually inspect the rubber bladder for dry rot, cracking, or abrasions.
• Avoid parts from 'rust-belt' regions, as corrosion on the metal crimp rings guarantees a premature leak.
• Ensure the part number matches exactly.

Decision logic:

• If The vehicle is less than 10 years old or has under 100,000 miles. → Buy new. The remaining lifespan of a used rubber air spring is too short to justify the labor cost.
• If The vehicle is over 10 years old and your budget is extremely tight. → A used part is a gamble but gets the vehicle functional. Expect it to fail much sooner than a new part.
• If You are paying a shop for labor. → Buy new. It is never worth paying shop labor rates twice when the used part inevitably fails.

Warranty tradeoff: Used parts from a salvage yard typically offer a 30-90 day warranty on the part only. New aftermarket parts often come with a 1-year to limited lifetime warranty.

Worst-case if a used part fails: $500-$800 if the used part fails after the short warranty period, requiring a new part and a second round of labor.

What Happens If You Wait — Timeline

1. 0-2 weeks: A small leak develops in an air spring. The 'Service Air Suspension' light appears intermittently. The compressor runs slightly longer than usual. The corner sags slightly after being parked for 8+ hours. (MPG impact: 0%% · Added cost: $0)
2. 2 weeks - 3 months: The leak worsens. The warning light is on constantly. The compressor runs for 60-90 seconds after every startup. The affected corner visibly sags within an hour of parking. Ride quality is noticeably harsher. (MPG impact: 0-1%% · Added cost: $50-$100 in accelerated compressor wear.)
3. 3-6 months: The air spring leak is significant, or the compressor is badly worn. The corner will not lift at all, and the vehicle rides on the bump stop. Handling is severely compromised. (MPG impact: 1-3%% · Added cost: $700-$1,600 as the overworked air compressor burns out and requires replacement.)
4. 6+ months: Continued driving on the collapsed suspension causes cascading damage. The tire shows excessive, uneven wear. Constant impacts damage the wheel bearing, ball joints, and shock absorber. (MPG impact: 2-5%% · Added cost: $1,500+. This includes the spring, compressor, a new tire, and potentially a wheel bearing or control arm.)

Cost of Not Fixing It

• 0-1 month: Poor ride quality, compromised handling, and annoying compressor noise. The air compressor runs constantly to compensate for the leak, causing accelerated wear. (Added cost: Negligible, but the primary failure is still present.)
• 1-6 months: The overworked air compressor burns out and fails completely. Driving on a deflated spring also causes severe, uneven tire wear. (Added cost: $700-$1,600 for a new compressor and potentially $200-$400 for a new tire.)
• 6+ months: Continued driving on a collapsed suspension damages the wheel bearings, ball joints, and control arms due to improper geometry and harsh impact loads. (Added cost: $1,500+ in cascading failures, turning a moderate repair into a major expense.)

Diagnosis Steps

1. Visually Inspect the Vehicle Stance
   Park on a level surface and observe the vehicle. Note if any corner is visibly lower than the others. A sagging corner confirms a physical height control problem, pointing directly to a leak.
   Tools: None (Beginner)
2. Listen to the Air Compressor
   Start the vehicle. You should hear the air compressor turn on briefly. If it runs continuously for more than 60 seconds, you have a large leak. If it doesn't run at all, check the fuses, relays, or suspect a faulty height sensor disabling the system.
   Tools: None (Beginner)
3. Perform a Soapy Water Leak Test
   With the system aired up, spray a mixture of dish soap and water on the sagging corner's air spring, its top fittings, and the air line. Look for growing bubbles. This is the fastest, most definitive way to confirm a leaking air spring.
   Tools: Spray bottle, dish soap, water (Intermediate)
4. Inspect the Ride Height Sensor and Linkage
   Locate the ride height sensor at the affected corner. Ensure the small plastic linkage arm is connected to both the sensor and the suspension control arm. Check the wiring connector for corrosion or broken wires.
   Tools: Flashlight (Intermediate)
5. Monitor Live Data PIDs with a Scan Tool
   Use an advanced OBD-II scanner to view live data from the chassis module. Monitor the 'Ride Height Sensor Voltage' for the affected corner. Push down on the bumper; the voltage must change smoothly (typically between 0.5V and 4.5V). A static voltage confirms a dead sensor or wiring fault.
   Tools: Advanced OBD-II Scan Tool (Advanced)
6. Test Compressor Pressure Output
   Disconnect the main air line from the compressor outlet and attach a pressure gauge. Command the compressor on using a bi-directional scan tool. A healthy compressor generates 120-150 PSI quickly. If it struggles to reach 100 PSI, it requires replacement.
   Tools: Air pressure gauge, appropriate fittings, bi-directional scan tool (Advanced)
7. Command Solenoids Manually
   Using a bi-directional scan tool, manually command the specific corner solenoid to open while the compressor runs. If the corner still doesn't lift, it confirms a massive leak or a physical blockage (like frozen moisture) in the lines.
   Tools: Advanced Bi-Directional Scan Tool (Advanced)

When This Code Triggers (Freeze-Frame Conditions)

• System Self-Test: Active (During vehicle startup, the suspension module checks system pressure and height, commanding the compressor to level the vehicle after sitting.)
• Dynamic Adjustment: Active (While driving, the module monitors sensors and commands leveling adjustments when vehicle load changes or during specific maneuvers.)
• Manual Height Change: Commanded (When the driver selects a different ride height (e.g., Off-Road mode), the module initiates leveling, triggering a timeout if a leak prevents reaching the target.)
• System Pressure: < 100 PSI (The code sets when system pressure is too low to lift the corner in the allotted time, usually due to a significant air leak or a weak compressor.)

Related Codes

• C1738 — The direct counterpart: 'Air Suspension Right Rear Corner Down Timeout.' C1737 occurs when the system can't inflate the corner, while C1738 occurs when it can't deflate it, pointing to a stuck solenoid valve.
• C1725 — A general 'Air Suspension Pneumatic Failure' code common on Fords. It sets when the module commands the compressor on but sees no height change, often triggering alongside C1737 due to a massive leak.
• C1762 — A 'Left Rear Position Sensor Input Fault.' C1737 is a performance code (corner didn't lift), while C1762 is a circuit code indicating an electrical short or open in the sensor wiring.
• C1736 — Indicates 'Air Suspension Left Rear Corner Up Timeout,' representing the exact same timeout problem but on the opposite side of the rear axle.

Climate & Environmental Factors

• Cold Weather: Moisture inside the air lines or valve block freezes, creating a physical blockage that prevents air from flowing to the spring. Rubber air springs also become stiffer and more brittle in extreme cold, accelerating cracking.
• High Humidity / Salt Belt: High humidity overwhelms the compressor's air dryer. In regions where road salt is used, the salt causes accelerated corrosion of metal air line fittings and the metal crimp rings on the air springs, leading to premature leaks.
• High Altitude: At higher altitudes, less dense air forces the compressor to work harder and run longer to achieve system pressure. This increased workload leads to overheating and makes the system more likely to time out.

How to Talk to a Mechanic About This Code

Say this: "I have a 'Service Air Suspension' light and my vehicle is sagging in one corner. The code is C1737. I'd like to schedule a diagnostic to confirm the cause. I suspect it's a leaking air spring or a bad height sensor."

This signals you are an informed consumer. You state the specific code and the most likely causes, directing the shop's focus and reducing the chance of unnecessary diagnostics.

Avoid saying:

• 'My suspension is broken, fix it.'
• 'The car is riding rough, can you check it out?'
• 'Just do whatever it takes to fix the warning light.'

Questions to ask before authorizing the repair:

• Did you perform a leak test with soapy water? Can you show me a picture or video of the leak?
• If you are recommending a compressor, can you confirm you've ruled out a leak and a faulty height sensor first?
• Can you show me the live data from the ride height sensor for the affected corner?
• What is the warranty on the new parts and the labor for this repair?

Where to Take It: Dealer vs Independent vs Chain

• Dealer: Recommended only for complex, newer vehicles or if manufacturer-specific software calibration is needed. Otherwise, an independent shop is more cost-effective.
  Best for: Vehicles under warranty., Complex models with manufacturer-specific software (e.g., newer BMW, Mercedes, Ram)., When a software update or specific calibration is required (common on GM vehicles).
  Downsides: Highest labor rates and part markups., Dealers often replace an entire assembly (e.g., compressor with valve block) when only one component failed. (Typical cost: +50% vs. baseline)
• Independent Shop: Best fit for most common vehicles with this code. Choose a well-reviewed shop that specializes in suspension work or is ASE certified.
  Best for: Out-of-warranty vehicles, especially common models like Ford Expedition or GM SUVs., Diagnosing and replacing common failure parts like air springs, compressors, and sensors.
  Downsides: Quality varies; ensure the shop has specific experience with air suspension systems., May lack the latest manufacturer-specific diagnostic tools for advanced calibration. (Typical cost: +0% vs. baseline)
• Chain Shop: AVOID for diagnosing C1737. The complexity of air suspension systems is beyond the scope of most chain shop technicians, increasing the risk of expensive, incorrect repairs.
  Best for: Simple, non-diagnostic work like tire changes or oil changes.
  Downsides: Technicians lack specialized training for complex air suspension diagnostics., High pressure to upsell leads to misdiagnosis and unnecessary repairs. (Typical cost: -10% vs. baseline)

When to Walk Away From the Repair

If the total estimated repair cost for the air suspension system exceeds 40-50% of your vehicle's private-party value, you should pause and reconsider.

• Car worth $6000, fix is $3200: Walk away. The repair cost is over 50% of the car's value. It is not a financially sound investment.
• Car worth $15000, fix is $1800: Fix it. The repair cost is well below the threshold and restores a key feature of the vehicle.
• Car worth $3500, fix is $1600: Borderline. Get a second opinion, and strongly consider a coil spring conversion kit which is significantly cheaper than the air suspension repair.

What Scan Tool You Need for This Code

Minimum: A scanner that reads Chassis (C-prefix) codes. A basic $20 engine code reader will NOT see C1737.

A standard OBD-II reader only communicates with the Engine Control Unit (ECU). C1737 is stored in the Suspension Control Module. You need a scanner that accesses other vehicle modules to see this code.

Budget: BlueDriver Pro (~$100) — Reads and clears chassis codes like C1737. It displays live data for ride height sensor voltage, which is crucial for distinguishing a sensor fault from a leak.

Mid-range: Foxwell NT510 Elite / Thinkcar Thinkscan 689BT (~$180) — Adds bidirectional controls. This allows you to manually command the compressor on/off and actuate individual corner solenoids, letting you test components directly to confirm failures before buying parts.

Professional: Autel MaxiCOM MK808 / MP808 (~$450-600) — Full bidirectional control plus advanced special functions, including the critical 'Level Calibration' or 'Ride Height Calibration' required on many vehicles after replacing a sensor or compressor.

Rent vs buy: Auto parts stores do NOT typically rent scanners with chassis or bidirectional capabilities. If you plan to DIY this repair, buying a midrange scanner is essential for proper diagnosis.

How to Clear the Code After You Fix It

1. Use an OBD-II scan tool capable of accessing the chassis module to clear the C1737 code.
2. Perform a specific ride height calibration or system reset procedure using a diagnostic tool (mandatory on Ram, Land Rover, and newer GM vehicles).
3. Perform a drive cycle to allow the system to verify the repair.

Drive cycle (~20 minutes): Start the vehicle and let it idle for 2 minutes to allow the system to level. Drive for 15-20 minutes, including a mix of city streets and highway speeds, to allow the suspension to make dynamic adjustments. Park, shut off, and restart to confirm the warning light remains off.

Readiness monitors affected: None

Watch out for:

• Disconnecting the battery will not clear this chassis code on modern vehicles.
• The code returns immediately if the underlying mechanical leak or electrical sensor problem remains.
• Skipping the mandatory system recalibration causes the suspension to behave erratically even with brand new parts.

Will This Fail Emissions / State Inspection?

No — by itself this code doesn't fail OBD inspection (but it can keep readiness monitors from setting, which causes a separate fail).

• California: Chassis code C1737 does not illuminate the Check Engine Light (MIL) and will NOT cause an emissions (smog) test failure. However, a visibly sagging vehicle can be flagged as unsafe.
• New York: The NYVIP3 OBD-II inspection fails vehicles based on MIL-illuminating codes. C1737 triggers a 'Service Suspension' light, not the MIL, so it passes emissions but fails the mandatory safety inspection.
• Texas: C1737 will not cause the vehicle to fail the OBD-II emissions test. While the statewide safety inspection for non-commercial vehicles was eliminated in 2025, law enforcement can still cite a vehicle for being mechanically unsafe.

Most Commonly Affected Vehicles

• Ford Expedition (1997-2017) — Extremely common issue due to aging rear air springs and overworked compressors.
• Lincoln Navigator (1998-2017) — Shares its platform and air suspension system with the Ford Expedition, making it equally prone to leaks and compressor failure.
• Cadillac Escalade (2002-2023) — The Autoride/Magnetic Ride Control systems frequently experience air spring leaks. For 2021 models, GM issued TSB N202326120 for incorrect calibration values causing height issues.
• GMC Yukon / Yukon XL (2000-2023) — The Autoride system is known for rear air shock leaks and compressor failures. Included in GM TSB N202326120 regarding suspension calibration.
• Chevrolet Suburban / Tahoe (2000-2023) — Equipped with the same GM air suspension system as the Yukon and Escalade, suffering from identical common failure points.
• Ram 1500 (2013-2020) — The four-corner air suspension is notorious for freezing in cold weather due to moisture in the lines. Compressor replacement costs frequently exceed $1,500.
• BMW 7-Series (G11/G12), X5, X7 (2016-Present) — These models use a sophisticated air suspension system prone to air spring leaks. BMW issued a warranty extension (TSB B01 05 22) for air struts on some 7-Series models.
• Toyota / Lexus Land Cruiser / LX570 (2008-2021) — Uses a robust hydraulic/nitrogen system (AHC). On these models, C1737 indicates a 'Front Suspension Control Valve LH Malfunction,' pointing to a specific valve issue rather than a generic timeout.

Manufacturer-Specific Notes

• Ford / Lincoln: C1737 almost always means 'Right Rear Corner Up Timeout.' The system disables itself after several failed attempts to level, illuminating the 'Check Suspension' light.
• General Motors (Chevrolet/GMC/Cadillac): GM issued TSB N202326120 for 2021 SUVs due to incorrect calibration values in the Vehicle Leveling Module (VLM) causing height issues. Technicians must check for software updates before replacing hardware.
• Ram: Air suspension problems are frequently linked to cold weather. Moisture freezes in the system, causing blockages and timeout codes. A professional nitrogen purge is often required.
• Toyota / Lexus: On models with Active Height Control (AHC), C1737 means 'Front Suspension Control Valve LH Malfunction.' This requires a specific diagnostic approach focused on the hydraulic valve and its electrical connector.

Real Owner Stories

2013 Ram 1500 at 110K miles with recurring winter failure

The 'Service Air Suspension' light illuminated and the truck failed to lift during the first cold snap of winter. The problem disappeared when temperatures rose.

What they tried:

1. Took it to a shop that couldn't find a physical leak.
2. Researched forums and focused on moisture in the system.

Outcome: A specialized shop purged the air system, refilled it with pure, dry nitrogen, and added a capful of air brake antifreeze. The issue did not return the following winter.

Lesson: For temperature-sensitive air suspension faults, especially on Ram trucks, the root cause is frozen moisture, not a component failure. A nitrogen purge is a specific, effective fix.

2008 Lincoln Navigator at 140K miles with a misdiagnosis

The rear of the vehicle sagged and the compressor ran constantly. A local mechanic immediately quoted over $1,000 for a new air compressor.

What they tried:

1. Skeptical of the immediate compressor diagnosis, the owner sought a second opinion.
2. A second mechanic performed a simple soapy water test on the rear air springs.

Outcome: The soapy water test revealed significant bubbling from cracks in both rear air springs. The owner replaced both rear springs for $600, solving the problem. The original compressor was fine.

Lesson: Always confirm the root cause before replacing the expensive compressor. A constantly running compressor is a symptom of a leak. A 5-minute soapy water test saves you from a $1,000 misdiagnosis.

2015 Cadillac Escalade at 85K miles with an electrical fault

The 'Service Suspension' light was on, and the right rear corner was stuck at an incorrect height. There were no audible air leaks, and the compressor was not running constantly.

What they tried:

1. The owner suspected a leak, but a visual and soapy water inspection found nothing.
2. They used an advanced scan tool to read live data from the chassis module.

Outcome: The scan tool showed the right rear ride height sensor voltage stuck at 4.9V, regardless of suspension movement. The sensor's linkage arm had disconnected. Reconnecting the arm and clearing the codes fixed the issue instantly for $0.

Lesson: If there are no obvious signs of a leak, suspect an electrical issue. A disconnected ride height sensor disables the system and mimics a mechanical failure. Checking live sensor data is the fastest way to confirm.

How to Prevent This Code From Triggering

• Periodically drain moisture from the air tank/system. (Every 3-6 months, or monthly in humid climates.) — Removes water that naturally collects from air compression, preventing moisture from freezing in lines during winter and reducing internal corrosion.
• Clean and inspect ride height sensors and linkages. (Annually or every 30,000 miles.) — Dirt and road grime cause the sensor's linkage to bind or break. Cleaning moving parts ensures the module receives an accurate height signal.
• Rinse undercarriage and suspension components after winter. (Once per year (at the end of winter).) — Washing away road salt prevents corrosion of the air spring's metal crimp rings and air line fittings, which are common failure points in the Salt Belt.
• Service the compressor's air dryer desiccant. (Every 2-3 years or per manufacturer recommendation.) — The desiccant material becomes saturated over time. Replacing it keeps the entire system dry and prevents widespread moisture-related failures.
• Start the vehicle periodically if it sits for long periods. (Every 1-2 weeks.) — Allows the compressor to run and circulates air through the system, keeping seals lubricated and preventing components from seizing.

Frequently Asked Questions

Can I just replace the one broken air spring?

Yes, you can replace just the single failed air spring. However, mechanics recommend replacing them in pairs to ensure balanced performance and prevent a repeat repair trip. The opposite spring has the exact same wear and will likely fail soon.

What is the most common misdiagnosis for code C1737?

A common mistake is immediately replacing the air compressor because the vehicle won't lift. Often, the root cause is a faulty or disconnected ride height sensor. Always check the sensor and its linkage before condemning the expensive compressor.

My suspension only seems to fail in cold weather. Why?

This is a classic symptom of moisture contamination freezing inside the air lines or valve block. The system's dryer becomes saturated over time, allowing water to enter and block airflow in freezing temperatures. The fix requires purging the system and refilling it with pure, dry nitrogen.

Is it expensive to fix air suspension?

Yes, repairing factory air suspension is costly, with a single air spring replacement often exceeding $1,000 at a dealership. A compressor replacement on a Ram 1500 typically costs over $1,500. Many owners opt for aftermarket parts or convert to traditional coil springs to save money.

What happens if I ignore the C1737 code?

Ignoring the code causes a harsh ride and severely compromises vehicle handling. The overworked air compressor will overheat and burn out from constantly trying to fill a leak. This turns a single-part repair into a much more expensive multi-part replacement.

Can I reset the 'Service Air Suspension' light myself?

Sometimes, but it depends on the vehicle and the root cause. On vehicles like the Ram 1500, a persistent light requires a special diagnostic tool procedure to clear codes and recalibrate the system. If the underlying leak or sensor fault remains, the light returns immediately.

Why does my air suspension warning light come on and then go off?

This indicates a small or intermittent leak that the compressor can temporarily overcome. As the leak worsens or the compressor overheats and loses efficiency, the system fails to keep up and triggers the light. It also points to an intermittent fault in a height sensor's wiring.

What is an air suspension conversion kit?

An air suspension conversion kit replaces the factory air springs and struts with traditional steel coil springs and conventional shock absorbers. This aftermarket solution is popular for older vehicles because it permanently eliminates air leaks and compressor failures. It is often significantly cheaper than replacing original air components.

Key Takeaways

• Code C1737 indicates a suspension leveling timeout, but definitions vary wildly—meaning 'Right Rear Up Timeout' on Fords or a specific valve failure on Toyotas.
• A leaking rubber air spring causes over 70% of C1737 codes by preventing the corner from reaching its target height within the module's time limit.
• Driving with a collapsed air suspension forces the compressor to run constantly, turning a $500 air spring repair into a $2,000+ multi-part failure.
• Start diagnosis with a 5-minute soapy water test on the sagging corner's air spring before replacing expensive electronic components.
