OBD-II Code C1569: Steering or Suspension System Fault

What Does C1569 Mean?

C1569 is a manufacturer-specific code with two entirely different definitions. For Toyota and Lexus, it indicates a failure in the Variable Gear Ratio Steering (VGRS) system. For Jeep, Ram, and Mercedes-Benz, it signals a fault in the air suspension system, specifically an incorrect ride height at one of the vehicle's corners.

Technical definition: For Toyota/Lexus, C1569 is defined as 'Lock Mechanism Release Incomplete' or 'Battery Power Supply Voltage Malfunction' within the VGRS system. For Jeep and Ram, it means 'Right Front Ride Height Level Performance', triggering when a corner fails to reach its target height. For Mercedes-Benz, code C156984 means 'The right front vehicle level is outside the tolerance'.

Can I Drive With C1569?

Yes, But With Caution. Driving is possible but dangerous and financially risky. For Toyota/Lexus VGRS faults, the steering becomes dangerously heavy or erratic, creating an immediate safety hazard. For Jeep/Mercedes air suspension faults, driving on a sagging corner forces the air compressor to overwork and fail, adding a $900-$3,400 part to your repair bill while destroying tires and suspension components.

Common Causes

• Leaking Air Suspension Spring/Bag (Very Common) — Rubber air springs develop micro-cracks over time. Air leaks out, causing the vehicle corner to sag and triggering the height sensor to report a C1569 error.
• Low Battery Voltage or Poor Ground (Common) — A weak battery causes voltage drops that trigger false faults in sensitive VGRS or air suspension modules. On some Lexus models, C1569 specifically means 'Battery Power Supply Voltage Malfunction'. Always test the battery before replacing expensive parts.
• Faulty Ride Height Sensor (Common) — These small mechanical arms connect to the suspension and fail from corrosion or physical damage. A bad sensor sends incorrect height data to the control module, causing erratic ride height.
• Failing Air Suspension Compressor (Common) — The compressor creates system air pressure. When weakened by age or overworked by a leaking air spring, it fails to maintain proper ride height and sets a fault code.

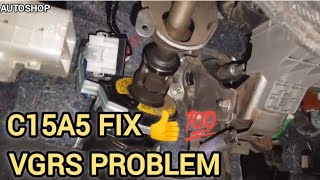

• Failed VGRS Actuator (Toyota/Lexus) (Less Common) — This major steering column component suffers internal locking mechanism failures, triggering the C1569 code and forcing the steering into a heavy failsafe mode.
• Damaged Wiring or Connectors (Less Common) — Corroded or frayed wiring to the ride height sensors, air compressor, or VGRS actuator interrupts the signal and triggers a system fault.
• Air Line Leak or Blockage (Uncommon) — Plastic air lines running from the valve block to the air springs become pinched, kinked, or cracked, preventing proper inflation.

Symptoms

• Vehicle is Leaning or Sagging — On air suspension vehicles, one corner or the entire front/rear sits noticeably lower than normal, especially after parking overnight.

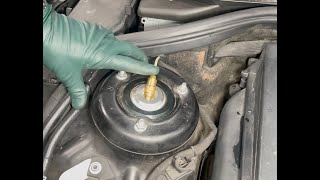

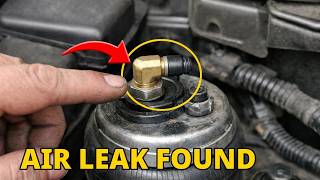

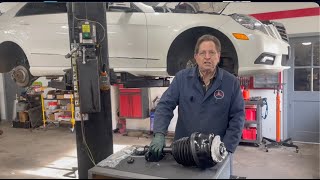

🎬 Watch: How to diagnose sagging air suspension leaks on Grand Cherokees.
• Heavy or Unpredictable Steering — On Toyota/Lexus models, the steering becomes extremely heavy, feels disconnected, or the steering wheel sits off-center while driving straight.
• Air Compressor Runs Constantly — A buzzing or humming noise from the air compressor that doesn't shut off indicates it is desperately trying to compensate for a system leak.
• Warning Lights on Dash — Illumination of the 'Check VGRS', 'Service Air Suspension', ABS, or Traction Control warning lights.
• Bouncy or Harsh Ride — A failed air spring eliminates shock absorption, making the ride on that corner extremely harsh and bouncy.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this code.

Common Fixes & Costs

• Replace Air Suspension Spring/Bag — Parts: $150-$800, Labor: $170-$270, ~2 hr book time (Professional)
• Replace Air Suspension Compressor — Parts: $260-$900, Labor: $177-$260, ~2 hr book time (Intermediate)
• Replace Ride Height Sensor — Parts: $80-$450, Labor: $70-$161, ~1.5 hr book time (Intermediate)
• Replace VGRS Actuator (Toyota/Lexus) — Parts: $2,700-$3,500, Labor: $400-$1,000, ~5 hr book time (Professional)
• Air Suspension to Coil Spring Conversion — Parts: $500-$1,500, Labor: $400-$800, ~6 hr book time (Professional)

DIY vs Professional

• Replace Ride Height Sensor — Beginner:
  Tools: Jack, jack stands, 10mm socket, trim tool, torque wrench.
• Replace Air Suspension Spring/Bag — Beginner:
  Tools: Jack, jack stands, wheel chocks, 10mm wrench, needle-nose pliers, telescopic spring compressor (Mercedes).
• Replace Air Suspension Compressor — Beginner:
  Tools: Jack, jack stands, basic hand tools, line wrenches.
• Replace VGRS Actuator — Beginner:
  Tools: Professional scan tool (Techstream), full steering column disassembly tools, torque wrench.

Used vs. New Parts: Buying Guide

When a used part is worth it: A used VGRS actuator from a low-mileage donor is a reasonable choice due to the $3,000+ cost of a new OEM part. For air suspension components (springs, compressor), always buy new aftermarket parts with a warranty.

Donor-vehicle mileage cap: roughly under 60000 miles for the part to have meaningful remaining life.

Donor quality checklist:

• Verify the exact part number matches; revisions are often incompatible.
• Ensure the donor vehicle was not scrapped for a related electronic issue.
• Avoid air suspension donors from rust-belt states.

Decision logic:

• If Part is an air spring or air compressor → Buy new aftermarket. They are wear items; a new part with a warranty is vastly superior to a used one.
• If Part is a VGRS actuator and budget is tight → A used OEM part is the only alternative to a new dealer part. Accept the risk of a shorter lifespan.
• If Part is a ride height sensor → Buy new. The part is inexpensive and critical for system calibration.

Warranty tradeoff: Salvage yards offer 30-90 day warranties. New aftermarket parts (Arnott, Dorman) offer 1-year to lifetime warranties.

Worst-case if a used part fails: $500-1200 if a used VGRS actuator or compressor fails post-install, requiring repeat labor.

What Happens If You Wait — Timeline

1. 0-4 weeks: Air Suspension: Intermittent sagging on one corner after parking overnight. The compressor runs for 10-30 seconds on startup to correct height. VGRS: Warning light appears intermittently; steering feels slightly off. (MPG impact: 0-1%% · Added cost: $0)
2. 1-3 months: Air Suspension: Sagging occurs within an hour of parking. The compressor runs frequently. A faint hissing is audible. VGRS: Warning light is permanent. Steering is heavy and off-center. (MPG impact: 1-3%% · Added cost: $50 in early compressor wear.)
3. 3-6 months: Air Suspension: The compressor runs constantly and sounds strained. The corner fails to reach full height. Ride quality is harsh. VGRS: System is in full failsafe mode. Steering is dangerously heavy. (MPG impact: 3-8%% · Added cost: $900 - $3,400 (The overworked air compressor fails and requires replacement).)
4. 6+ months: Air Suspension: The compressor is dead. The leaking corner is fully collapsed, destroying the shock absorber, control arm bushings, and wheel bearing. VGRS: High risk of steering loss. (MPG impact: 5-15%% · Added cost: $1,500 - $5,000+ (Cascading failure of suspension components and tires).)

Cost of Not Fixing It

• 0-1 month: Air suspension: bouncy ride, poor handling, and a constantly running compressor. VGRS: unpredictable or heavy steering, creating a severe safety risk. (Added cost: Negligible, but high safety risk.)
• 1-6 months: The overworked air compressor burns out. Tires show significant uneven wear. (Added cost: $900 - $3,400 for a new compressor and tires.)
• 6+ months: Extreme stress destroys shocks, control arm bushings, and wheel bearings. Sudden, catastrophic failure of the air spring or steering system occurs. (Added cost: $1,500 - $5,000+ for multiple component failures.)

Diagnosis Steps

1. Identify Your System
   Determine if your vehicle has Variable Gear Ratio Steering (Toyota/Lexus) or Air Suspension (Jeep/Mercedes). This dictates all subsequent diagnostics.
   Tools: Owner's Manual (Beginner)
2. Visual Inspection
   Walk around the vehicle. If it has air suspension and one corner is sagging, you have found the problem area. Listen for a hissing sound near the wheels.
   Tools: Flashlight (Beginner)
3. Pro Tip: Perform Soapy Water Leak Test (Air Suspension)
   Mix soap and water in a spray bottle. Spray the air springs, air lines, and fittings at the sagging corner. Visible bubbles pinpoint the exact leak, preventing you from misdiagnosing a failed compressor.
   Tools: Spray Bottle, Soapy Water (Intermediate)
4. Pro Tip: Check VGRS Lock-to-Lock Turns (Toyota/Lexus)
   Start the engine. Turn the steering wheel from lock to lock and count the turns. Normal VGRS is 2.4-2.7 turns. If it exceeds 3.4 turns, the VGRS actuator has failed and defaulted to locked failsafe mode.
   Tools: Tape Measure (Intermediate)
5. Check Fuses
   Locate the fuses for the Power Steering (EPS), VGRS, or Air Suspension Control Module. A blown fuse shuts down the entire system.
   Tools: Fuse Puller (Beginner)
6. Scan for Other Codes
   Use an OBD-II scanner to check for companion codes. C1569 often appears with specific ride height sensor codes or power supply codes that pinpoint the root cause.
   Tools: OBD-II Scanner (Intermediate)
7. Inspect Ride Height Sensor and Linkage
   Locate the ride height sensor on the sagging corner. Check for broken plastic linkages, physical damage, or heavily corroded wiring connectors.
   Tools: Jack, Jack Stands, Flashlight (Intermediate)
8. Test ECU Power and Ground (Toyota/Lexus)
   If C1569 indicates a voltage malfunction, disconnect the Power Steering ECU. Test for 11-14 volts between the +B pin and ground, and less than 1 Ohm resistance on the ground pin. Failure here indicates a wiring issue, not a bad ECU.
   Tools: Multimeter (Advanced)
9. Test Ride Height Sensor Voltage
   Back-probe the ride height sensor connector. Verify a 5-volt reference and good ground. The signal wire voltage must change smoothly (0.5V to 4.5V) as you manually move the suspension arm. Erratic voltage confirms a failed sensor.
   Tools: Multimeter, Back-probe kit (Advanced)
10. Advanced Scan Tool Diagnostics
    Use a professional scan tool (Techstream, wiTECH, AlfaOBD) to view live data from ride height sensors, check VGRS actuator overheat history, and perform mandatory system calibrations after replacing parts.
    Tools: Professional Scan Tool (Professional)

When This Code Triggers (Freeze-Frame Conditions)

• Vehicle Speed: 0-10 mph (Faults set during low-speed startup self-checks, parking maneuvers, or when changing ride height modes while stopped.)
• System State: Initializing / Adjusting (Triggers when the air suspension actively tries to change height but fails, or during the VGRS initial check right after engine start.)
• Time Since Start: 0-5 minutes (Logged shortly after starting due to a VGRS initialization failure or the air suspension trying to correct an overnight leak.)

Related Codes

• C1568 — On Toyota/Lexus, C1568 is 'Lock Holder Deviation Detection'. If present with C1569, it guarantees an internal mechanical failure of the VGRS actuator.
• C1551 — Indicates an 'IG Power Source Voltage Malfunction' on Toyota/Lexus. Resolve this power supply issue first, as it causes false C1569 codes.
• C1567 — On Mercedes-Benz, codes C1566-C1568 refer to the other suspension corners. Multiple corner codes suggest a failed compressor rather than an isolated leak.
• C15A1 — On Jeep, 'Unable to Obtain Desired Ride Height' confirms the system tried to adjust a corner but failed, reinforcing a leak or compressor diagnosis.

Climate & Environmental Factors

• Cold Weather: Cold temperatures harden rubber air springs, turning micro-cracks into active leaks. It also freezes moisture in air lines, blocking valves and causing the compressor to burn out.
• Road Salt / Corrosion: Road salt attacks the metal crimp rings on air springs, causing premature failure. It also corrodes electrical connectors and seizes the mechanical linkages of ride height sensors.
• High Humidity: Humid air overwhelms the suspension compressor's air dryer. Water accumulates in the air tank and lines, causing internal valve block corrosion and winter freezing issues.

How to Talk to a Mechanic About This Code

Say this: "For Toyota/Lexus: 'I have a C1569 VGRS code. Before diagnosing the expensive actuator, please verify the battery and charging system are healthy and check for power/ground at the ECU.' For Jeep/Mercedes: 'I have a C1569 code and a sagging right front corner. Please perform a detailed soapy water leak test on the air spring and lines before checking the compressor.'"

Directs the mechanic to check the cheapest potential causes first, preventing them from immediately quoting a $3,000 VGRS actuator or $1,500 compressor.

Avoid saying:

• 'Just fix whatever's wrong'
• 'My check engine light is on, can you look at it?'
• 'Whatever you recommend'

Questions to ask before authorizing the repair:

• For VGRS: 'Did the battery test perfectly? What were the voltage readings? Are there other codes confirming an internal failure?'
• For Air Suspension: 'Did the soapy water test confirm a leak in the spring? If recommending a compressor, can you confirm it failed from being overworked by a leak?'
• For either: 'Does this repair require a system calibration afterward? Is that included in the labor quote?'

Where to Take It: Dealer vs Independent vs Chain

• Dealer: Mandatory for Toyota/Lexus VGRS faults due to complexity. Too expensive for routine air suspension issues.
  Best for: Vehicles under warranty., Complex VGRS repairs on Toyota/Lexus requiring proprietary Techstream software., Seeking a 'goodwill' repair from the manufacturer for known VGRS failures.
  Downsides: Highest labor rates., Will only install expensive OEM parts, refusing cheaper aftermarket air suspension options. (Typical cost: +50% vs. baseline)
• Independent Shop: Best choice for air suspension issues if you find a reputable specialist with the correct scan tools.
  Best for: Out-of-warranty vehicles., Air suspension repairs on common models like the Jeep Grand Cherokee., Installing cost-effective aftermarket air springs or conversion kits.
  Downsides: General mechanics lack the specific scan tools (Techstream, AlfaOBD) needed for mandatory calibrations. (Typical cost: +0% vs. baseline)
• Chain Shop: AVOID. These shops cannot properly diagnose or repair the complex systems that set code C1569.
  Best for: Simple, routine maintenance like oil changes or tires.
  Downsides: Technicians lack the specialized training and expensive diagnostic tools required for VGRS or air suspension calibration., High risk of misdiagnosis. (Typical cost: -10% vs. baseline)

When to Walk Away From the Repair

If the estimated repair cost exceeds 40-50% of the car's current private-party value, sell the car as-is.

• Car worth $8000, fix is $4500: Walk away. A $4,500 VGRS actuator repair on a 2008 Lexus LS460 valued at $8,000 is a poor financial decision.
• Car worth $12000, fix is $2200: Fix it. A $2,200 repair for an air compressor and leaking spring on a 2014 Jeep Grand Cherokee is well below the threshold.
• Car worth $5000, fix is $3000: Walk away. Spending $3,000 to convert the air suspension to coils on a vehicle worth $5,000 is a bad investment.

What Scan Tool You Need for This Code

Minimum: A scanner that reads manufacturer-specific Chassis (C-prefix) codes and features bidirectional controls for mandatory system calibrations.

A $50 code reader only shows engine codes. It cannot see C1569, view live suspension data, or perform the mandatory calibrations required after replacing a ride height sensor or VGRS actuator.

Budget: None Recommended (~$0) — Scanners in this range cannot perform the necessary bidirectional calibrations for VGRS or air suspension systems.

Mid-range: AlfaOBD + OBDLink MX+ (Jeep/Ram) or Foxwell NT510 Elite (~$150) — AlfaOBD reads live height data, commands the compressor, and performs critical ride height calibration. The Foxwell accesses VGRS and air suspension modules for service functions.

Professional: Autel MaxiCOM MK808 / Launch X431 CRP919XBT (~$450-700) — Provides full bidirectional control to perform VGRS initialization, steering angle sensor calibration, and air suspension ride height calibration.

Rent vs buy: Rent. Free rental tools from auto parts stores are not capable enough. Buy a midrange tool only if you plan extensive DIY work. Otherwise, pay a professional shop with the right equipment.

How to Clear the Code After You Fix It

1. Use a manufacturer-specific scan tool (Techstream, wiTECH) to clear the fault code.
2. Perform mandatory system calibration/initialization for the new VGRS actuator or ride height sensor.
3. Cycle through all air suspension height settings to confirm function.

Drive cycle (~20 minutes): After a VGRS repair, drive straight at over 22 mph for at least 5 seconds to help the system learn the steering center.

Readiness monitors affected: Not directly applicable to chassis codes, but an illuminated MIL prevents emissions readiness monitors from running.

Before emissions retest: drive at least 50 miles to fully set monitors.

Watch out for:

• Clearing the code with a generic scanner without performing the mandatory calibration guarantees the code returns immediately.
• Disconnecting the battery on a Toyota/Lexus causes a VGRS fault and pushes the steering wheel off-center until properly initialized.

Will This Fail Emissions / State Inspection?

Yes — this code typically fails an OBD-II emissions inspection.

• California: An illuminated MIL or primary warning light results in an automatic smog check failure.
• New York: The safety inspection checks for illuminated ABS, brake, and suspension warning lights, causing an automatic failure.
• Texas: The safety inspection checks for defects in the steering and suspension systems; an active C1569 fault fails this portion.

Most Commonly Affected Vehicles

• Lexus LS460 (2007-2017) — First-generation models (2007-2012) are notorious for VGRS actuator failures, sometimes triggered by rapid lock-to-lock steering.
• Lexus LX470 (2003-2007) — Prone to VGRS actuator failure, triggering the 'Lock Mechanism Release Incomplete' fault.
• Toyota Land Cruiser (100 Series) (2003-2007) — Shares the VGRS system with the LX470. The actuator part number was revised four times to correct early design flaws.
• Jeep Grand Cherokee (WK2) (2011-2021) — Models with 'Quadra-Lift' air suspension commonly set this code for ride height sensor failures or leaking air springs.
• Mercedes-Benz ML-Class / GL-Class (W164/X164) (2006-2012) — The AIRMATIC suspension sets this code when a leaky air spring causes a corner to fall outside height tolerances.
• Ram 1500 (2013-2022) — Trucks with optional four-corner air suspension experience identical failures to the Grand Cherokee.
• Audi Q7 / A8 / allroad (2004-2018) — Adaptive air suspension sets height-related faults due to leaking bags, bad sensors, or failed compressors.
• BMW X5 / X7 / 7-Series (2007-Present) — Models with self-leveling air suspension log faults for implausible ride height signals, usually due to failing rear air springs.

Manufacturer-Specific Notes

• Toyota / Lexus: This code exclusively relates to the Variable Gear Ratio Steering (VGRS) actuator. The repair is complex and costs upwards of $3,000. C1569 means the failsafe lock mechanism failed to release.
• Jeep: On Quadra-Lift models, TSB 02-007-21 notes C1569 is often caused by pinched front air suspension lines from the factory. Calibration after sensor replacement requires wiTECH or AlfaOBD software.
• Mercedes-Benz: The code indicates a corner is outside height tolerance, almost always caused by a leaking air spring. Replacing these springs requires a special telescopic spring compressor tool to do safely.

Real Owner Stories

2014 Jeep Grand Cherokee shows 'Service Air Suspension Immediately'

The vehicle sagged and the warning light illuminated. The owner suspected a failed compressor.

Outcome: Cleaning the connector terminals and re-seating the plug cleared the code and restored normal function. Repair cost: $0.

Lesson: Always perform a visual inspection of wiring and connectors. Corrosion mimics the exact symptoms of a failed sensor or module.

2006 Lexus LX470 gets a VGRS fault and $3,800 repair quote

VGRS and VSC warning lights illuminated. The dealer diagnosed a catastrophic VGRS actuator failure and quoted $3,800.

Outcome: Lexus agreed to a 'goodwill' repair, charging the owner only $680 for labor while covering the $2,729 part.

Lesson: For known, expensive premature failures on well-maintained vehicles, escalating to corporate customer care often results in a shared-cost repair.

Mercedes W220 S-Class owner ignores a sagging corner

One corner of the car sat lower after parking overnight. The owner ignored the leak and continued driving.

Outcome: The constant running to compensate for the leak burned out the air compressor. The final bill included a new air shock and a new compressor, adding $900 to the repair.

Lesson: Ignoring a small air suspension leak guarantees the destruction of the expensive air compressor. Fix leaks immediately.

How to Prevent This Code From Triggering

• Fix Air Leaks Immediately (As needed) — Ignoring a small air leak forces the compressor to run continuously, causing it to overheat and burn out. This turns a $400 air spring repair into a $1,500+ repair.
• Maintain a Healthy Battery (Test annually after 3 years) — Sensitive VGRS and air suspension ECUs set false voltage-related fault codes if the battery is weak, leading to expensive misdiagnoses.
• Wash the Undercarriage (Monthly in winter) — Removes road salt that corrodes air line fittings, air spring crimp rings, and ride height sensor linkages.
• Inspect Ride Height Sensor Linkages (During every oil change) — The plastic arms connecting sensors to the suspension break or pop off. Visual inspections catch this before it causes erratic suspension behavior.

Frequently Asked Questions

What are the most common misdiagnoses for C1569?

The most common mistake is replacing an expensive component before checking the basics. For air suspension, a failing compressor is often blamed when the real cause is a small air leak. For VGRS, a weak battery triggers a voltage-related fault mistaken for a failed actuator.

Is it safe to drive with a VGRS fault light on?

No. A VGRS fault causes the steering to become extremely heavy or pushes the steering wheel off-center, creating a severe safety hazard. Owners report violent, unpredictable jerking of the steering wheel.

Can I just replace my air suspension with regular shocks and springs?

Yes. Aftermarket companies sell conversion kits that replace the failure-prone air system with traditional coil springs and struts. This provides a cheaper, permanent fix but sacrifices adjustable ride height and adaptive damping.

What happens if I ignore a sagging air suspension?

Ignoring a leak forces the air compressor to run constantly to maintain pressure. This inevitably burns out the expensive compressor, adding $900 to $3,400 to your repair bill. It also causes poor handling and uneven tire wear.

What does 'VGRS' mean and what does it do?

VGRS stands for Variable Gear Ratio Steering, a system that electronically changes the steering ratio based on vehicle speed. At low speeds, it reduces the steering wheel turns needed for easier parking. At high speeds, it increases the ratio for better highway stability.

Can I reset the VGRS light myself?

If the VGRS light flashes after disconnecting the battery, driving straight for a short distance often recalibrates it. A solid light indicates a hard fault requiring a professional scan tool like Techstream to diagnose and clear. Simply disconnecting the battery will not clear a hard fault.

Do I have to calibrate a new ride height sensor?

Yes. Replacing a ride height sensor is not a plug-and-play repair. You must use a compatible scan tool to teach the Air Suspension Control Module the new sensor's baseline reading.

The dealer quoted me thousands for a VGRS actuator. Do I have other options?

Contact Lexus Customer Care if your vehicle has a consistent dealer service history. For known premature failures, Lexus sometimes offers a 'goodwill' repair, sharing the cost with the owner. Always escalate the issue politely before paying out of pocket.

Key Takeaways

• Code C1569 points to a $2,700+ Variable Gear Ratio Steering (VGRS) failure on Toyota/Lexus vehicles, or a leaking air suspension system on Jeep and Mercedes-Benz models.
• Stop driving immediately if the vehicle sags; forcing the air compressor to compensate for a leak burns it out and adds $900 to $3,400 to your repair bill.
• Perform a 5-minute soapy water test on air springs and check battery voltage before replacing parts, as low voltage or tiny leaks cause 80% of misdiagnoses.
• Replacing a ride height sensor or VGRS actuator requires a professional scan tool to perform a mandatory electronic calibration, making these poor DIY projects for beginners.
