C1463 on 2021-2025 Jeep Grand Cherokee: Front Axle Disconnect Causes and Fixes

What's Unique About the 2021-2025 Jeep GRAND CHEROKEE

The WL generation of the Grand Cherokee (2021+) uses a sophisticated, electronically controlled Front Axle Disconnect system. Early production software for the Drivetrain Control Module (DTCM) was sensitive and could incorrectly flag faults, leading to the C1463 code. Because of this, Jeep has issued numerous Technical Service Bulletins (TSBs), such as 08-103-22 Rev. B, that stress the importance of performing a software update before replacing 🎬 See how a DTCM update fixes Service 4WD lights. the FAD actuator or other expensive hardware, especially on vehicles built before December 2021.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• "Service 4WD" light illuminated on the dashboard. [S2503000001, 03-007-25, 1]
• Malfunction Indicator Lamp (MIL) or Check Engine Light may be on. [03-007-25, 2]
• 4WD system is inoperative or the front axle does not engage when selected.
• A low grinding or clicking noise may be heard from under the vehicle before the warning light appears.
• Inability to select different 4WD modes using the terrain select switch.

Most Likely Causes

1. Outdated Drivetrain Control Module (DTCM) Software 🔴 High Probability Multiple TSBs (like 08-103-22 and 08-120-21) were issued by Jeep specifically to address this code with a software update, indicating it was a widespread issue on early production vehicles, particularly those built before December 1, 2021.
   How to confirm: A technician with a wiTECH scan tool can check the current software version of the DTCM against the latest version available from Jeep and see if the vehicle's VIN is covered by a relevant TSB or Rapid Service Update (RSU).
   Typical fix: Reprogramming (flashing) the DTCM with the latest software. This is often performed under warranty or as part of a service campaign.
   Est. part cost: $0 - $200
2. Faulty Front Axle Disconnect (FAD) Actuator 🟡 Medium Probability After software issues are ruled out, the electronic actuator motor on the FAD is the next most likely point of failure. TSB S2503000001 notes that after verifying wiring, the FAD should be replaced before considering the DTCM or transfer case, as many of these parts were being replaced unnecessarily.
   How to confirm: Using a bidirectional scan tool to command the FAD on and off. If the actuator does not respond audibly or change state, and power/ground are confirmed at the connector, the actuator has likely failed.
   Typical fix: Replace the Front Axle Disconnect actuator assembly.
   Est. part cost: $250-$450
3. Wiring or Connector Issue ⚪ Low Probability The wiring harness to the FAD is located under the vehicle and is exposed to the elements, road debris, and corrosion, which can lead to damage. Forum users on the similar Gladiator platform have found bare or shorted wires in the harness leading to the FAD. A STAR bulletin for a similar platform highlights checking for rubbing right off the connector.
   How to confirm: Visually inspect the wiring harness and connector for any signs of damage, corrosion, or loose pins. Perform a continuity and resistance test on the wires between the DTCM and the FAD connector. A Star bulletin for a similar platform highlights checking for rubbing right off the connector and behind zip ties.
   Typical fix: Repair the damaged section of the wiring harness or clean/replace the connector.
   Est. part cost: $10-$50

Rare But Worth Checking

• Failed Drivetrain Control Module (DTCM): While a software issue within the DTCM is common, complete hardware failure is rare. This should only be considered after all other possibilities, including software updates and FAD actuator replacement, have been exhausted.
• Internal Mechanical Failure of the FAD: A mechanical problem inside the front axle disconnect unit itself, such as a broken gear or binding collar, can prevent the actuator from completing its function and trigger the code. This is less common than an electronic failure of the actuator.

Diagnosis Steps

1. Connect a professional scan tool (like wiTECH) and read codes from the Drivetrain Control Module (DTCM). Note the specific C1463 suffix (-92 or -94) and any other stored codes.
2. Check for open Technical Service Bulletins (TSBs) or Rapid Service Updates (RSUs) related to code C1463 for the vehicle's VIN. Pay close attention to TSBs 03-007-25, 08-103-22, and S2503000001.
3. If a software update is indicated by a TSB (especially for vehicles built before Dec 2021), reprogram the DTCM with the latest software. This is the most critical first step.
4. After flashing, the TSB may require a 'PROXI Configuration Alignment' routine and a vehicle 'sleep cycle' to ensure the module updates correctly.
5. Clear all DTCs and perform a road test, engaging and disengaging 4WD if possible. If the code does not return, the repair is complete.
6. If the code returns, visually inspect the wiring harness and electrical connector at the Front Axle Disconnect (FAD) actuator for any signs of corrosion, damage, or chafed wires, particularly near the connector and harness attachment points.
7. Using the scan tool's bidirectional controls, command the FAD actuator to engage and disengage. Listen for the motor operating.
8. If the actuator does not respond, use a multimeter to test for power and ground at the actuator's connector when it is commanded on.
9. If power and ground are present but the actuator is unresponsive, the FAD actuator is faulty and needs to be replaced.
10. If the actuator works but the code persists after the software update, there may be an internal mechanical issue with the FAD or a rare failure of the DTCM itself.

Parts You'll Likely Need

• Front Axle Disconnect Actuator / Output Shaft Assembly (OEM #68728179AA) — If a software update doesn't fix the issue, the electronic actuator motor on the FAD is the most common hardware failure point for this code.
  Trusted brands: Mopar
  OEM price range: $310-$460
  Aftermarket price range: $250-$400

Related Codes That Often Appear With This One

• C1472-92 — This code, 'Transfer Case Clutch Control - Performance or Incorrect Operation', is frequently cited alongside C1463 in the same TSBs (like 08-103-22). Both are related to DTCM software logic for the Quadra-Trac I system (Sales Code DHY) and can be triggered by the same underlying software issue.
• C149D-54 — This code for 'Clutch Calibration Not Learned' can appear after a DTCM software update, indicating a procedural issue during the flash, and is mentioned in related TSBs.
• C2206-56 — This code indicates the Transmission Control Module (TCM) is requesting the check engine light. It can be set in conjunction with drivetrain faults as the systems are interconnected.

Technical Service Bulletins (TSBs) & Recalls

• 03-007-25: Notes C1463-94 and the 'Service 4WD' light.
• 9100191: Advises checking TSB 08-103-22 and DTCM software before replacing the FAD.
• S2503000001: Warns against replacing the DTCM/transfer case and to replace the FAD first if software/wiring is not the cause.
• 08-103-22 / Rev A / Rev B: A key TSB involving a DTCM software flash to fix C1463-94 and C1472-92 on vehicles built before Dec 01, 2021.
• 08-120-21 / Rev A: Another TSB that involves reprogramming the DTCM for code C1463-94, applying to vehicles built on or before July 15, 2021.

Platform-Specific Known Issues

• A significant number of 2021-2022 models were subject to TSBs and RSUs (Rapid Service Updates) requiring a DTCM software flash to correct this specific code. TSB 08-103-22 specifically applies to vehicles built on or before December 01, 2021.
• Technicians are specifically advised by Jeep (via TSB S2503000001) to replace the FAD actuator first after checking wiring, as DTCMs and transfer cases were being replaced unnecessarily for this code.
• Owner experiences confirm that a software update or FAD replacement is the common fix, and sometimes requires visiting a different dealer if the first one misdiagnoses the issue.

Mechanic-Grade Diagnostic Values

• DTCM Reprogramming (Flashing) Battery Voltage — expected: Must be maintained between 13.2 and 13.5 volts. Failure: Dropping below 13.2V or exceeding 13.5V can cause the flash to fail. An interrupted flash may render the DTCM unrecoverable.

Scan Tool Commands That Help

• wiTECH: DTCM Replacement with Value Transfer — Used before reprogramming the DTCM to save original configuration values, as specified in TSB 08-120-21.
• wiTECH: DTCM (Program Transfer case Classification Code) — This routine is used if the 'DTCM Replacement with Value Transfer' function fails or is missed during the reprogramming procedure.
• wiTECH: Power Down Calibration — This routine is run after a successful DTCM flash to perform a mechanical verification check, as noted in TSB 08-103-22 REV. B.

Wiring & Ground Locations

• Drivetrain Control Module (DTCM) — On older Grand Cherokee models (WK2), it was often under the driver's seat. On the WL platform, it may be located in the rear cargo area, under the spare tire trim panels.. The DTCM is the module that sets code C1463. Technicians need to locate it to check its connectors and to replace it if it fails, though hardware failure is rare.

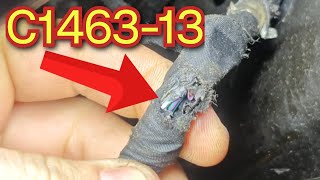

• FAD Wiring Harness Chafe Point — The wiring harness leading to the Front Axle Disconnect (FAD) actuator, specifically right off the connector.. A Chrysler STAR bulletin identified a potential for the harness to rub or chafe at this location, causing an open or short in the circuit that can trigger C1463-13 (Circuit Open) or other related codes.

Real Owner Repair Stories

• Reddit user FBC-01 on r/JeepGladiator (2020 Jeep Gladiator Rubicon Launch Edition (JT Platform, similar FAD system)) — Code C147B-92 (Front Axle Disconnect Sensor - Performance or Incorrect Operation) stored in DTCM. No mechanical symptoms; all 4WD modes and lockers worked correctly.
  ❌ Tried (didn't work) Replaced Front Axle Disconnect (FAD) actuator, Replaced Drivetrain Control Module (DTCM), Replaced the complete wiring harness between the FAD and DTCM
  ✅ What actually fixed it The issue was unresolved after replacing all logical components. The dealer escalated the case to the factory, with the next suggested step being a full front axle replacement. The final resolution was not posted by the user.

Model Year Variations Within This Range

• 2021 models built on or before December 01, 2021: These vehicles are specifically called out in TSB 08-103-22 REV. B as potentially having the software issue that causes C1463-94. The primary fix is a DTCM software update.
• 2021 models built on or before July 15, 2021: These vehicles were subject to Rapid Service Update (RSU) 21-099, which also involved a DTCM software flash to address C1463-94, as detailed in TSB 08-120-21.
