OBD-II Code C1436: Yaw Rate Sensor Circuit Malfunction

What Does C1436 Mean?

Code C1436 signifies that your vehicle's Skid Control ECU has detected a critical error in the yaw rate sensor's circuit. The yaw rate sensor acts as the car's inner ear, measuring rotation on its vertical axis to detect spin-outs. Receiving nonsensical or no data from this sensor forces the computer to disable Vehicle Stability Control (VSC) and Traction Control (TCS) as a fail-safe measure.

Technical definition: The SAE/ISO definition for C1436 is "Yaw Rate Sensor Malfunction." The skid control ECU sets this code when: 1) The yaw rate sensor's output signal is not exactly 0°/s when wheel speed sensors confirm the vehicle is stationary. 2) The reported yaw rate is implausible compared to data from the steering angle sensor and individual wheel speed sensors.

Can I Drive With C1436?

Yes, But With Caution. Yes, but drive with extreme caution for limited distances. Your primary electronic safety systems (Vehicle Stability Control and Traction Control) are disabled. Electronic Stability Control reduces the risk of fatal single-vehicle crashes by up to 56%. Driving without these systems dramatically increases the risk of losing control in slippery conditions or during emergency maneuvers. Diagnose and repair the vehicle immediately.

Common Causes

• Zero-Point Calibration Required (Very Common) — The VSC system must be calibrated to establish the vehicle's "zero point" for driving straight. This calibration is frequently lost after a wheel alignment, suspension repair, or battery disconnection. Without it, the sensor's baseline is incorrect, tricking the ECU into flagging a malfunction.
• Faulty Yaw Rate Sensor (Very Common) — The sensor's internal gyroscope degrades from age, vibration, or internal short circuits. A failed sensor sends incorrect, erratic, or zero data to the ECU.
• Faulty Wheel Speed Sensor (Common) — The VSC system compares yaw rate data with individual wheel speeds. If a wheel speed sensor fails or sends an erratic signal due to debris, the ECU receives conflicting data and incorrectly blames the yaw rate sensor.
• Steering Angle Sensor (SAS) Issues (Less Common) — The stability system cross-references yaw rate with the driver's steering intent. A faulty or uncalibrated steering angle sensor provides conflicting information, causing the ECU to log a C1436 code.
• Low Battery Voltage or Charging System Fault (Less Common) — Sensitive ABS/VSC modules require stable voltage. A failing battery or alternator causes voltage drops that trigger erratic behavior and false diagnostic codes, often accompanied by code C1241.
• Wiring or Connector Issues (Less Common) — Yaw rate sensors are typically located under the center console or seats, making them vulnerable to liquid spills. 🎬 Watch: How to find and replace a faulty yaw rate sensor. Soda or coffee causes rapid corrosion on the connector pins, interrupting the signal.
• Improper Sensor Installation (Less Common) — The yaw rate sensor is highly sensitive to mounting orientation. If it is not perfectly flat, is loose, or lacks the manufacturer's specified torque, it provides false rotation readings.
• Faulty ABS/VSC Control Module (ECU) (Rare) — The Skid Control ECU itself suffers an internal processing failure, preventing it from interpreting sensor signals. Consider this only after exhaustively ruling out all other components and wiring.

Symptoms

• Stability Control (VSC/ESC) Light On — The primary symptom. The dashboard light showing a car with squiggly lines illuminates permanently, indicating the system is disabled.
• Traction Control (TCS/TRAC) Light On — The traction control light illuminates because it relies on the same sensors and control module as the VSC system.
• ABS Light On — The Anti-lock Braking System (ABS) light illuminates if the ABS module is integrated with the VSC/TCS systems, disabling all three.
• Cruise Control Inoperative — Adaptive cruise control systems use stability sensors to function safely. A C1436 code disables cruise control as a precaution.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this code.

Common Fixes & Costs

• Perform Zero-Point Calibration — Parts: $0, Labor: $75-$200, ~0.8 hr book time (DIY)
• Yaw Rate Sensor Replacement — Parts: $450-$900, Labor: $150-$300, ~1.5 hr book time (Professional)
  Toyota Prius (2004-2009): OEM 89180-47010 (Alt: Standard Motor Products YRS103, Dorman 926-248)
  Toyota Sequoia / 4Runner (2003-2007): OEM 89180-0C030 (Alt: Standard Motor Products YRS101)
  Lexus IS250 (2006-2008): OEM 89183-60020 (Alt: Used OEM parts recommended)
• Wheel Speed Sensor Replacement — Parts: $50-$250, Labor: $100-$200, ~1.1 hr book time (DIY)
• Steering Angle Sensor Calibration/Replacement — Parts: $150-$400, Labor: $100-$250, ~1.2 hr book time (Intermediate)
• Repair Wiring or Connector — Parts: $10-$50, Labor: $150-$400, ~2.5 hr book time (Intermediate)

DIY vs Professional

• Perform Zero-Point Calibration — Beginner:
• Yaw Rate Sensor Replacement — Beginner:
• Wheel Speed Sensor Replacement — Beginner:
• Repair Wiring or Connector — Beginner:

Used vs. New Parts: Buying Guide

When a used part is worth it: With new OEM yaw rate sensors costing $600+, a used sensor from a low-mileage donor is a practical strategy for vehicles over 8 years old.

Donor-vehicle mileage cap: roughly under 100000 miles for the part to have meaningful remaining life.

Donor quality checklist:

• Match the part number exactly. Superseded numbers fail to communicate with older VSC software.
• Purchase from a salvage yard offering a 30-90 day warranty.
• Visually inspect connector pins for corrosion or liquid damage.
• Avoid parts from flood-damaged vehicles.

Decision logic:

• If The vehicle is less than 8 years old or has under 80k miles → Buy a new OEM or high-quality aftermarket sensor to ensure longevity.
• If The vehicle is over 10 years old and a new sensor exceeds 25% of the vehicle's value → Purchase a tested, used OEM part.
• If Liquid contamination caused the original failure → Fix the source of the leak before installing any replacement sensor.

Warranty tradeoff: Used parts include a 30-90 day warranty. New aftermarket parts offer 1-year to lifetime warranties. New OEM parts carry a 12-month warranty.

Worst-case if a used part fails: $200-$500 if a used part fails, requiring a second labor charge and another sensor.

What Happens If You Wait — Timeline

1. Immediate: VSC/TCS/ABS warning lights illuminate. Stability and traction control systems are completely disabled. (MPG impact: 0%% · Added cost: $0)
2. 1-6 months: Driving without stability control becomes normalized. If a poor alignment caused the code, uneven tire wear accelerates. (MPG impact: 0-1%% · Added cost: $150 - $300 (premature tire replacement))
3. 6-12 months: The vehicle fails mandatory state safety inspections due to illuminated warning lights. (MPG impact: 0-1%% · Added cost: $50 - $150 (failed inspection fees))
4. 12+ months: The cumulative risk of a loss-of-control accident peaks. The financial cost of an accident far exceeds the repair cost. (MPG impact: 0%% · Added cost: Potentially unlimited (cost of an accident))

Cost of Not Fixing It

• Immediate: Vehicle Stability Control (VSC) and Traction Control (TCS) are disabled, dramatically increasing the risk of losing control on slippery surfaces. (Added cost: N/A)
• 0-6 Months: Driving without stability control normalizes the absence of a critical safety feature and accelerates uneven tire wear if an alignment issue caused the code. (Added cost: $150 - $300 (premature tire replacement))
• 6+ Months: The vehicle fails mandatory state safety inspections. The primary cost remains the severe safety risk of driving without Electronic Stability Control. (Added cost: $50 - $150 (failed inspection fees))

Diagnosis Steps

1. Verify Codes with an Advanced Scanner
   Use an OBD-II scanner capable of reading Chassis ('C') codes. Confirm C1436 is present. Look for related codes like U0123 (communication loss), C1336 (calibration needed), or C1236 (wheel speed sensor).
   Tools: Advanced OBD-II Scanner (Beginner)
2. Analyze Live Sensor Data
   Park on a level surface with the engine running. Access the live data stream for the 'Yaw Rate Sensor'. The reading must be a stable 0°/s. If it fluctuates while stationary, the sensor requires calibration or replacement. Turn the steering wheel left and right; the value must change smoothly.
   Tools: Advanced OBD-II Scanner (Intermediate)
3. Perform Zero-Point Calibration
   Perform this crucial step before replacing parts. If alignment, suspension, or battery work was recently done, calibration is the fix. Use a professional scan tool, or on older Toyota/Lexus models, manually jump the TS and CG pins in the OBD-II port.
   Tools: Advanced OBD-II Scanner or Jumper Wire (Intermediate)
4. Inspect Wheel Speed Sensors and Tone Rings
   If wheel speed sensor codes exist, inspect the affected sensor. Look for physical damage, wiring breaks, or metal debris on the magnetic tip or tone ring. Clean the sensor and retest.
   Tools: Basic Hand Tools, Jack and Jack Stands (Intermediate)
5. Inspect Sensor Mounting and Connector
   Locate the yaw rate sensor under the center console or front seats. Ensure it is bolted securely to the specified torque (e.g., 6-10 Nm) and perfectly level. Check the electrical connector for green or white corrosion from liquid spills.
   Tools: Trim Removal Tools, Socket Set, Torque Wrench (Intermediate)
6. Check Sensor Power and Ground
   Disconnect the sensor. With the ignition ON, use a multimeter to verify 10-14V at the power pin relative to chassis ground. Check for continuity to ground on the ground pin (below 1 Ω). Missing voltage or ground indicates a wiring failure.
   Tools: Digital Multimeter, Vehicle-Specific Wiring Diagram (Advanced)
7. Test CAN Bus Communication Lines
   With ignition OFF and battery disconnected, measure resistance between CAN High and CAN Low pins at the sensor connector. It must read approximately 60 Ω. A reading of 120 Ω indicates a broken wire; 0 Ω indicates a short.
   Tools: Digital Multimeter, Vehicle-Specific Wiring Diagram (Advanced)
8. Test CAN Bus Voltage
   With ignition ON, measure DC voltage. CAN High to ground should be ~2.5-3.0V. CAN Low to ground should be ~2.0-2.5V. Significant deviations point to a communication wiring fault or a bad module on the network.
   Tools: Digital Multimeter (Advanced)
9. Diagnose the ABS/VSC Control Module
   If the sensor, wiring, and calibration are verified good, the ABS/VSC control module is faulty. Verify power and ground at the module and ensure it communicates with a scan tool.
   Tools: Advanced OBD-II Scanner, Digital Multimeter (Professional)

When This Code Triggers (Freeze-Frame Conditions)

• Vehicle Speed: 0 mph (The code sets upon startup if the yaw rate sensor reports rotation while wheel speed sensors confirm the vehicle is stationary.)
• Steering Angle vs. Yaw Rate: Mismatch (The code sets during a turn if the yaw rate is implausible compared to the steering angle (e.g., steering wheel turned 15 degrees, but yaw sensor reports zero rotation).)
• System Voltage: 11-14V (The fault is reliably detected when system voltage is stable. Voltage outside this range indicates a power supply issue rather than a sensor failure.)

Related Codes

• U0123 / U0124 — Indicates "Lost Communication With Yaw Rate Sensor Module." These codes point directly to a wiring issue, a completely failed sensor, or a CAN bus problem.
• C1336 — Specific to Toyota/Lexus, indicating "Zero Point Calibration of Yaw Rate and Deceleration Sensor Undone." It is a direct cause of C1436.
• C1236 / C1238 — Codes for specific wheel speed sensors. A fault in a wheel speed sensor provides conflicting data to the VSC module, causing it to incorrectly flag the yaw rate sensor.
• C1241 — Indicates "Low or High Battery Positive Voltage." Fluctuating voltage causes electronic modules to malfunction and set false codes, including C1436.

Climate & Environmental Factors

• Interior Liquid Spills: The yaw rate sensor's location under the center console makes it highly vulnerable to spilled drinks. Sugar and acids cause severe corrosion on connector pins, leading to high resistance and signal loss.
• Road Salt / High Humidity: While the yaw rate sensor is protected inside the cabin, wheel speed sensors are exposed. Heavy road salt accelerates corrosion on wheel speed sensor wiring, providing conflicting data that triggers C1436 as a secondary fault.

How to Talk to a Mechanic About This Code

Say this: "I have a C1436 yaw rate sensor code and my stability control light is on. I understand the most common causes are a failed sensor or the need for a zero-point calibration. Can you check for calibration needs and related codes before quoting a full sensor replacement?"

This directs the mechanic to check the cheapest fix (calibration) first, preventing them from defaulting to an expensive sensor replacement. Mentioning related codes shows you understand proper diagnostic processes.

Avoid saying:

• 'My stability control light is on, can you fix it?'
• 'The code is C1436, just replace the yaw sensor.'
• 'My car is acting weird, please check it out.'

Questions to ask before authorizing the repair:

• Did you attempt a zero-point calibration, and did it fail?
• Were there any other codes stored with C1436, like a wheel speed sensor (C1236) or low voltage (C1241)?
• What were the live data readings from the old sensor that led you to recommend replacement?
• Does the repair estimate include the mandatory zero-point calibration after installation?

Where to Take It: Dealer vs Independent vs Chain

• Dealer: A strong choice if the issue isn't a simple calibration. They guarantee access to correct calibration procedures, eliminating guesswork, but charge a premium.
  Best for: Vehicles under warranty., Complex cases requiring manufacturer-specific software (like Toyota's Techstream) for calibration.
  Downsides: Significantly higher labor rates and parts costs., Tendency to replace entire assemblies rather than diagnose wiring issues. (Typical cost: +40% vs. baseline)
• Independent Shop: Best fit for most situations. Ask if they have the tools to perform a 'zero-point' calibration before committing.
  Best for: Out-of-warranty vehicles where cost is a major factor., Common C1436 causes like straightforward sensor replacements or calibrations.
  Downsides: Diagnostic equipment varies. Ensure they have a modern scan tool capable of performing ABS/VSC calibrations. (Typical cost: +0% vs. baseline)
• Chain Shop: AVOID for diagnosis. They are likely to misdiagnose the root cause and fail to perform the mandatory post-repair calibration.
  Best for: Simple, unrelated services like oil changes and tires.
  Downsides: Technicians often lack advanced diagnostic training for complex electronic codes., Frequently lack the bi-directional scan tools needed for calibration procedures. (Typical cost: -10% vs. baseline)

When to Walk Away From the Repair

If the estimated repair cost for the C1436 fault exceeds 40-50% of your car's private-party value, seriously consider selling or trading in the vehicle.

• Car worth $5000, fix is $2200: Walk away. Sinking $2,200 into a $5,000 car is a poor investment.
• Car worth $15000, fix is $1200: Fix it. The repair cost is well below the threshold and restores a critical safety feature.
• Car worth $3000, fix is $1800: Walk away. The repair cost exceeds 50% of the vehicle's value.

What Scan Tool You Need for This Code

Minimum: A scanner capable of reading and clearing Chassis (C-prefix) codes for the ABS/VSC/ESC module. Basic engine-only readers cannot see code C1436.

Standard $20 OBD-II readers only communicate with the engine control module. You need a capable tool to view live yaw sensor data and clear ABS codes.

Budget: Foxwell NT301 / BlueDriver Pro (~$70) — Reads and clears ABS/Chassis codes and displays live sensor data to confirm if the yaw rate is 0° when stationary.

Mid-range: Autel AL619 / Foxwell NT630 Plus / Launch CRP123X (~$150) — Offers full system diagnostics. Crucially, some models in this range perform the 'Zero-Point Calibration' function, which is often the entire fix.

Professional: Autel MaxiCOM MK808S / XTOOL D7 (~$450-600) — Provides full bi-directional control for zero-point calibrations, steering angle sensor resets, and OEM-level diagnostics.

How to Clear the Code After You Fix It

1. Use an advanced OBD-II scanner to clear the chassis fault memory.
2. Perform a Zero-Point Calibration of the yaw rate and deceleration sensor. This is mandatory after sensor replacement.
3. Perform a steering angle sensor calibration if alignment work was completed.
4. Complete a full drive cycle to allow the system to self-check.

Drive cycle (~20 minutes): Cold start and idle for 30 seconds. Drive in stop-and-go traffic (25-35 mph) for 5 minutes. Drive at a steady highway speed (55-60 mph) for 5 minutes. Perform several gentle turns to allow the ECU to compare yaw rate, wheel speed, and steering angle data.

Readiness monitors affected: Chassis codes do not directly affect emissions readiness monitors. However, clearing C1436 clears powertrain codes if the Check Engine Light was also illuminated, resetting emissions monitors.

Before emissions retest: drive at least 50 miles to fully set monitors.

Watch out for:

• Clearing the code without performing a zero-point calibration causes the code to return immediately.
• Disconnecting the battery fails to clear this code from the ABS/VSC module's memory on modern vehicles.
• Replacing the yaw rate sensor without fixing a damaged wheel speed sensor guarantees the C1436 code returns.

Will This Fail Emissions / State Inspection?

Yes — this code typically fails an OBD-II emissions inspection.

• California: An illuminated ABS or VSC/ESC warning light triggers a safety inspection failure. Many smog check stations refuse to perform emissions tests if safety lights are on.
• New York: The NYS vehicle safety inspection explicitly checks for an illuminated ABS light. A VSC light usually triggers the ABS light, constituting an automatic failure.
• Texas: An illuminated Check Engine Light causes an automatic emissions test failure in applicable counties. An ABS light alone does not trigger rejection in standard inspections.

Most Commonly Affected Vehicles

• Toyota Prius (2004-2009) — Extremely common. Often requires zero-point calibration. This generation is also known for failures of the entire ABS actuator assembly, presenting similar VSC warnings.
• Toyota Sequoia / 4Runner (2001-2007) — Prone to this code, requiring sensor replacement or calibration. The DIY paperclip method for zero-point calibration is highly effective for these models.
• Lexus IS250, RX350, SC430 (2006-2013) — Zero-point calibration is a frequent fix after alignment or battery replacement. The IS250 sensor is located in a difficult-to-access area under the driver's seat.
• Hyundai Sonata, Santa Fe, Elantra (2006-2018) — Requires steering angle sensor (SAS) calibration via a scan tool after an alignment. Sensor replacement costs on Hyundai models frequently exceed $1,400.
• Subaru Outback, Forester, Crosstrek (2010-2022) — Subaru systems are highly sensitive to alignment changes. A steering angle sensor recalibration is required after almost every alignment to prevent VDC warning lights.
• Chevrolet / GMC Tahoe, Suburban, Yukon, Escalade (2007-2014) — The yaw rate sensor is a known high-failure part. The GM part is expensive, making total repair costs exceed $1,000. Replacement requires scan tool calibration.
• Ford Explorer (2006-2010) — Frequently cited for yaw rate sensor issues. The sensor part alone costs over $600, leading to total repair costs in the $750 range.

Manufacturer-Specific Notes

• Toyota / Lexus: Extremely sensitive to needing a "Zero Point Calibration" after wheel alignments, suspension repairs, or battery disconnections. On 2000s models, perform this without a scan tool by jumping the TS and CG pins of the OBD-II port.
• Hyundai / Kia: Steering Angle Sensor (SAS) calibration is the most common requirement after an alignment. An uncalibrated SAS frequently causes ESC lights and C1436.
• Subaru: Subaru's VDC system requires steering angle sensor recalibration after any wheel alignment. Independent shops often skip this, leading to the VDC light illuminating shortly after.
• Mitsubishi: On specific models like the L200 truck, code C1436 refers to a fault in the air conditioning evaporator temperature circuit, entirely unrelated to stability control. Always verify the code definition for your exact model.

Real Owner Stories

2008 Lexus IS250 at 115K miles

VSC, ABS, and traction control lights appeared immediately after getting a wheel alignment at an independent shop.

What they tried:

1. Returned to the alignment shop, which could not clear the codes.
2. Took the car to a Lexus dealership.

Outcome: The dealership performed a Zero-Point Calibration using their Techstream tool. The lights cleared, and the problem was solved in under 30 minutes for $125. The sensor was perfectly fine.

Lesson: After any alignment on a Toyota/Lexus, a zero-point calibration is required. Independent shops often lack the software, making this a frequent cause for C1436. Always request this calibration.

2005 Toyota 4Runner at 160K miles

VSC TRAC, VSC OFF, and ABS lights stayed on permanently with code C1436 present.

What they tried:

1. Attempted the DIY paperclip zero-point calibration. The code returned immediately.
2. Purchased a used yaw rate sensor from a salvage yard for $150.
3. Replaced the sensor located under the center console.

Outcome: After replacing the sensor, the owner performed the paperclip calibration again. The codes cleared permanently. The original sensor's internal gyroscope had failed.

Lesson: If calibration fails, the sensor is the culprit. A used, part-number-matched sensor is a cost-effective solution, but calibration remains mandatory after installation.

2013 Toyota Prius v at 95K miles

VSC and ABS lights illuminated a month after spilling a large soda in the center console.

What they tried:

1. A mechanic scanned the car, found codes C1436 and U0123, and quoted $1,100 to replace the sensor.
2. The owner removed the center console to inspect the sensor.

Outcome: The owner found the sensor's electrical connector covered in dried soda residue, causing visible corrosion. They cleaned the pins with contact cleaner, cleared the codes, and the lights stayed off.

Lesson: The sensor's location makes it vulnerable to liquid spills. Always inspect the connector for corrosion before replacing the sensor. A 'U' communication code strongly points to a wiring issue.

How to Prevent This Code From Triggering

• Request a Zero-Point Calibration after every wheel alignment. (After each alignment) — Alignments change straight-ahead geometry. Recalibrating ensures the steering angle and yaw sensors agree with this new geometry, preventing false conflict codes.
• Use high-quality floor liners and avoid open liquid containers in the center console. (Daily habit) — The yaw rate sensor is vulnerable to liquid damage. Spills corrode connector pins, causing communication failures.
• Clean wheel speed sensors and tone rings during brake service. (Every brake job) — Rust and metallic brake dust build up on magnetic sensors, causing erratic signals that the VSC module misinterprets as a yaw sensor fault.
• Use a battery maintainer for long-term storage. (If vehicle sits for more than 2-3 weeks) — Maintains stable battery voltage above 12.4V, preventing low-voltage conditions that corrupt the VSC computer's calibration memory.

Frequently Asked Questions

What is the most common misdiagnosis for code C1436?

The most common and costly misdiagnosis is replacing the yaw rate sensor when all that is needed is a zero-point calibration. This happens frequently after a wheel alignment or suspension repair. Always attempt a zero-point calibration first before buying an expensive sensor.

Can a wheel alignment cause a C1436 code?

Yes, this is a primary cause. An alignment changes the car's physical 'straight-ahead' direction. If the VSC system's electronic 'zero point' isn't recalibrated to match, the yaw and steering angle sensors send conflicting data, triggering C1436.

Can I perform a zero-point calibration myself?

On many Toyota and Lexus vehicles from the 2000s, yes. You can often do this by using a paperclip to jump two terminals (TS and CG) in the OBD-II port following a specific sequence. Most newer vehicles require a professional-level scan tool.

My traction control light is on, but there are no codes. What should I check?

If the light is on but a scanner finds no 'C' codes, check for simpler issues first. On some cars, a faulty brake light switch or a blown fuse for an unrelated module disables the VSC/TCS systems as a fail-safe.

Can a bad wheel speed sensor cause code C1436?

Yes. The VSC computer requires plausible data from all sensors to function. If a wheel speed sensor sends an incorrect signal, it conflicts with the yaw rate sensor during a turn, causing the computer to incorrectly flag the yaw sensor.

How much does it cost to fix code C1436?

The cost varies dramatically based on the root cause. A simple zero-point calibration at a shop costs between $75 and $200. If the yaw rate sensor requires replacement, the total cost ranges from $600 to over $1,500 depending on the vehicle.

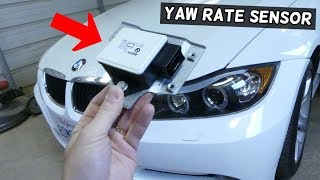

What is a yaw rate sensor and what does it do?

A yaw rate sensor is a gyroscopic device that measures a vehicle's rotation around its vertical axis. It detects if the car is turning, how fast it's turning, and if it's starting to spin out. This data is the primary input for the Vehicle Stability Control (VSC) system to prevent loss of control.

Key Takeaways

• Code C1436 disables Vehicle Stability Control (VSC), increasing the risk of a fatal single-vehicle crash by up to 56% in slippery conditions.
• A missing zero-point calibration causes over 50% of C1436 codes, especially immediately following a wheel alignment or battery replacement.
• Perform a zero-point calibration before buying parts; this $0-$150 procedure fixes the code instantly on most Toyota, Lexus, and Subaru models.
• Verify sensor failure by checking live data with a bi-directional scanner; a stationary vehicle must read exactly 0°/s yaw rate.
• Expect repair costs to range from $0 for a DIY paperclip calibration to over $1,200 for an OEM yaw rate sensor replacement at a dealership.
