C1001 on 2015-2017 Ford Mustang: Rear Camera Failure Causes and Fixes

What's Unique About the 2015-2017 Ford MUSTANG

The S550 generation Mustang (2015-present) is known for this specific issue due to the design of the trunk lid wiring harness. The harness is routed in a way that puts stress on the wires every time the trunk is opened or closed, leading to premature failure. This is so common that Ford issued Technical Service Bulletins (TSBs) and eventually a recall (22S06 / NHTSA 22V082000) to address the problem, which involves either repairing the harness or replacing the camera assembly. The recall affected over 330,000 vehicles.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Backup camera image is black, blue, or displays a message like "Camera not available" or "Contact your dealership".
• Camera image flickers or works intermittently, especially when opening or closing the trunk, or on hot days.
• Trunk release button may also stop working.
• In some cases, the third brake light or luggage compartment lamp may also fail.
• Poor satellite radio reception may occur, as the antenna cable is part of the same harness.

Most Likely Causes

1. Broken Wires in Trunk Lid Harness 🔴 High Probability The wiring harness (part of the 14A005 harness) is routed through the right side trunk lid hinge area and is subject to repeated bending and stretching. A plastic retaining clip can create a pinch point, causing the wires to fatigue and break inside their insulation. The most commonly broken wires are the Blue/White (power) and the LIN bus (signal) wire. The bare shield wire for the video signal is also a common failure point.

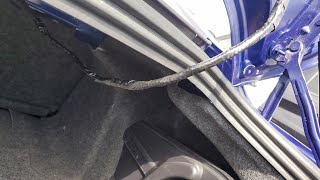

   How to confirm: Remove the trunk lid liner to access the harness. Carefully peel back the fabric tape or mesh covering the wires near the right (passenger side) hinge. Physically inspect for broken or frayed wires. Often, the insulation will look intact, but the copper wire inside will be severed. Gently tugging on individual wires will reveal the break.
   Typical fix: Cut out the damaged section of wire and splice in a new piece using butt connectors and heat shrink tubing to ensure a durable, insulated repair. It is recommended to stagger the splices to avoid creating a large bulge in the harness and to add a few inches of extra wire to relieve tension. Some owners remove a problematic retaining clip to create a more gentle bend radius for the harness. Ford also released a jumper harness repair kit (FR3Z-14A411-X for coupes, FR3Z-14A411-Y for convertibles) as part of the recall procedure.
   Est. part cost: $5-$20 for wiring repair supplies, or $50-$100 for the Ford jumper harness kit.

Rare But Worth Checking

• Failed Rear View Camera: While less common than the wiring issue, the camera itself can fail internally. A recall (22S06) noted that some cameras had improperly soldered circuit boards that could fail from the vibration of the trunk closing. If the wiring is confirmed to be good by testing for power, ground, and signal at the camera connector, the camera is the next likely culprit.
• Blown Fuse: A short in the wiring harness can cause the fuse for the camera circuit to blow. In the 2015-2017 Mustang, this is often fuse F66 (a 5-amp fuse) in the passenger compartment fuse box (BCM). Always check the fuse after repairing the wiring, as a short may have caused it to blow.

Diagnosis Steps

1. Scan for codes to confirm C1001 and any other related DTCs like B115E.
2. Check fuse F66 (5A) in the passenger compartment fuse panel to ensure it is not blown.
3. Open the trunk and remove the plastic rivets holding the felt liner to the trunk lid to gain access to the wiring harness.
4. Locate the harness on the right (passenger) side hinge area. Carefully cut away the factory tape and mesh loom to expose the individual wires. Pay close attention to the area where the harness flexes.
5. Gently tug on each wire. Broken wires will stretch or come apart, even if the outer insulation looks undamaged. Pay special attention to the Blue/White (power) wire and the LIN bus (signal) wire.
6. If broken wires are found, proceed with the repair. Stagger splices and add slack to prevent recurrence.
7. If all wiring appears intact, use a multimeter to test for power (approx. 12V on the Blue/White wire with key on), ground (on the Black wire), and a LIN bus signal (should show fluctuating voltage) at the camera connector.
8. If wiring and fuses are good and signals are present at the connector, the camera itself (FR3Z-19G490-A) is the likely point of failure.

Parts You'll Likely Need

• Wiring Repair Supplies — This is needed to fix the most common cause: broken wires in the trunk harness.
  Aftermarket price range: $5-$20 for butt connectors, 22-24 gauge wire, and heat shrink.
• Decklid Jumper Harness (OEM #FR3Z-14A411-X (Coupe), FR3Z-14A411-Y (Convertible)) — This is the official Ford repair part designed to replace the failure-prone section of the harness. It is the recommended fix per TSB 19-2273.
  Trusted brands: Ford
  OEM price range: $50-$100
• Rear View Camera (OEM #FR3Z-19G490-A) — If the wiring harness is intact, the camera itself may have failed internally, as noted in Ford's recall campaign.
  Trusted brands: Motorcraft
  OEM price range: $70-$120
  Aftermarket price range: $40-$80

Related Codes That Often Appear With This One

• B115E — This code specifically means 'Rear Camera Module' fault. It is often set alongside C1001 because the broken wiring causes a communication or power failure directly at the camera module.
• B1A89 — This code relates to 'Luggage Compartment Lid Ajar'. It can appear with C1001 because the same harness that powers the camera often contains the wiring for the trunk latch sensor and release mechanism. [TSB 19-2273, 3, 6]

Technical Service Bulletins (TSBs) & Recalls

• TSB 19-2273: Notes that DTCs B115E, C1001, and B1A89 may be present due to a damaged harness in the right side luggage compartment lid hinge, and instructs to inspect and repair the wiring, providing part numbers for a jumper harness. [TSB 19-2273, 3, 6, 7]
• SSM 46152: An earlier communication that warns about the harness becoming trapped between the deck lid and opening flange, causing DTCs B115E, C1001, and B1A89. [SSM 46152]
• SSM 45776: An even earlier communication mentioned in forums where technicians were instructed to inspect and repair broken wires in the harness.

Platform-Specific Known Issues

• A Ford recall (NHTSA Campaign 22V082000, Ford recall number 22S06) was issued for this exact problem, affecting over 330,000 vehicles. It cited that the decklid wiring harness could become damaged from opening and closing the trunk, leading to a loss of the camera image. The official remedy involves inspecting and repairing the harness and/or replacing the camera.
• TSB 19-2273 and SSM 46152 both directly address C1001 on these Mustangs, pointing technicians to inspect and repair the 14A005 harness in the luggage compartment lid hinge area. [TSB 19-2273, SSM 46152, 3, 6, 7]
• A class-action lawsuit (Rodriguez v. Ford Motor Company) was filed regarding this defect, alleging Ford knew about the faulty harness prior to selling the vehicles.

Mechanic-Grade Diagnostic Values

• Camera Power Wire Voltage — expected: ~12V (or system voltage) with Key On, Engine Off.. Failure: 0V indicates a break in the power wire or a blown fuse.
• Camera LIN Bus Voltage — expected: A fluctuating voltage, typically between ~1V and ~11V (system voltage minus ~1V).. Failure: A steady 12V may indicate the camera is not responding; a steady low voltage or 0V may indicate a short to ground.
• Video Signal Wire Continuity — expected: Less than 5 ohms, typically around 1.6 ohms from the trunk to the passenger compartment.. Failure: High resistance or an open circuit (OL) indicates a broken wire.

Hidden / Shadow Codes Worth Checking

• C1001:01: General Electrical Failure. While documented on other Ford models, a suffix code like this may be present on the Mustang when using a dealer-level scanner (IDS), providing more specific information than the base code alone. (see via Ford Integrated Diagnostic System (IDS) or equivalent advanced scan tool.)

Scan Tool Commands That Help

• Ford IDS, FORScan, or equivalent professional scanner: LIN New Module Initialization (or BCM Local Interconnect Network New Module Calibration) — This procedure should be performed after replacing the rear view camera. It allows the Body Control Module (BCM) to recognize and establish communication with the new camera hardware. Failure to do so may result in the new camera not functioning or missing features like dynamic guidelines.
• Ford IDS, FORScan, or equivalent professional scanner: BCM Self-Test — Run this before performing a module initialization to ensure there are no other underlying DTCs in the Body Control Module that could prevent the calibration from completing successfully.

Wiring & Ground Locations

• G201 — Under the passenger side dashboard, near the glove box area.. This is a ground point for the rear camera circuit. A poor connection here could cause camera failure, although the harness break is far more common.
• C213 — Under the passenger side dashboard, near the glove box.. This connector is part of the circuit for the video signal wires (White/Green and Brown/Violet) running from the rear of the car to the front display module. While rarely the point of failure, it's a key testing location if a wire break is suspected somewhere other than the trunk lid.
• Right Trunk Hinge Area — The wiring loom that flexes with the passenger side trunk hinge.. This is the primary and most common failure point. The constant flexing from opening and closing the trunk breaks the power, ground, and/or signal wires for the camera within the 14A005 harness. [TSB 19-2273, 15]

Real Owner Repair Stories

• YouTube video 'Fastest 2015 - 2017 Ford Mustang Back Up Camera Fix C1001 B115E Harness Repair' (2015-2017 Ford Mustang) — Backup camera stopped working, displaying a black screen.
  ❌ Tried (didn't work) Initially checked fuse 66, which was found to be good.
  ✅ What actually fixed it The LIN module wire and the blue/white power wire were found broken inside the harness at the trunk hinge. The user spliced in new sections of wire, used heat shrink, and removed a plastic retaining clip to give the harness more slack, which permanently resolved the issue.
• AmericanMuscle.com customer review (2015-2017 Ford Mustang) — Original camera started to flicker, work intermittently, and then disconnect completely.
  ✅ What actually fixed it Replaced the rear view camera with a new OEM unit (FR3Z-19G490-A). This fixed the image issue, but the dynamic steering guidelines were missing. The owner then used FORScan to perform a camera DTC reset/re-initialization, which restored the guidelines.
• Mustang6G.com forum post (2016 Mustang GT) — Backup camera and trunk light stopped working.
  ✅ What actually fixed it Found several cut wires in the trunk harness. Splicing the wires with butt connectors restored function to both the camera and trunk light. The owner noted the wiring still seemed tight when the trunk was fully open.

OEM Part Supersession History

• Multiple, including AL3Z-19G490-A, BL3Z-19G490-B → FR3Z-19G490-A — Part evolution and updates for the S550 platform.
  Heads up: While other camera part numbers may physically fit the mounting location, FR3Z-19G490-A is the correct OEM part for the 2015-2020 Mustang to ensure proper communication and function with the BCM and SYNC system.
• N/A → FR3Z-14A411-X (Coupe), FR3Z-14A411-Y (Convertible) — Ford created this jumper harness specifically to address the TSB and recall for the broken decklid wires.

Model Year Variations Within This Range

• 2015-2017: The official Ford repair harness has a different part number for Coupe (FR3Z-14A411-X) versus Convertible (FR3Z-14A411-Y) models due to differences in trunk lid and wiring geometry.
