C1001 on 2021-2022 Ford Edge: Rear Camera Failure Causes and Fixes

What's Unique About the 2021-2022 Ford Edge

This issue is so prevalent on the 2021-2022 Ford Edge that Ford issued a specific Technical Service Bulletin (TSB SSM 50456) to address it. Unlike a generic camera failure, the TSB points directly to a known weakness in the circuit connections, specifically connectors C4357 and C2383A. C4357 is reportedly located in the headliner near the driver-side C-pillar, while C2383A is within the liftgate itself. This makes diagnosing the problem more direct, as the fault is very likely in the wiring rather than a random component failure. Additionally, these vehicles are subject to safety recall 23S23 (NHTSA 23V-342), which addresses similar symptoms caused by software or camera hardware issues.

Symptoms You May Notice

• Rear view camera image is black, blue, distorted, fuzzy, or flickering.
• "Camera is unavailable" message on the SYNC screen.
• Camera image appears to be in infrared or has a strange tint.
• Complete loss of the rear camera image when in reverse.
• Image is blurry or has poor resolution, especially when compared to previous models.

Most Likely Causes

1. Poor Connection at Harness Connectors 🔴 High Probability Ford TSB SSM 50456 specifically identifies poor circuit connections as the primary cause for this code on these vehicles. The connectors are known points of failure.
   How to confirm: Inspect both male and female sides of connectors C4357 (in the headliner near the driver-side C-pillar) and C2383A (in the liftgate) for loose, bent, pushed-out, or damaged terminals. A 'wiggle test' on the harness while the camera is on may cause the image to cut in and out.
   Typical fix: Repairing the damaged terminals or reseating the connector securely. In some cases, a connector pigtail may need to be spliced in.
   Est. part cost: $15-$50
2. Software/Hardware Failure (Recall 23S23) 🔴 High Probability Ford identified a widespread issue causing a blue or black screen, leading to recall 23S23 (NHTSA 23V-342). 🎬 See how to troubleshoot blue screen camera issues The cause is a combination of camera hardware, wiring retention, and IPMB software.
   How to confirm: Check the vehicle's VIN on the NHTSA or Ford recall website. The symptoms (blue/black screen) are a strong indicator.
   Typical fix: Dealer-installed remedy which includes replacing the rearview camera and updating the Image Processing Module – B (IPMB) software. This repair is free of charge under the recall.
   Est. part cost: $0 (if covered by recall)
3. Damaged Liftgate Wiring Harness 🟡 Medium Probability The wiring harness that passes from the vehicle body to the liftgate through a rubber boot is subject to constant flexing and stress, which can lead to broken wires over time.
   How to confirm: Peel back the rubber conduit between the liftgate and the body and visually inspect the wires for chafing, pinching, or complete breaks. This is a very common failure point on many SUVs.
   Typical fix: Splicing and repairing the broken wire(s) using butt connectors and heat shrink tubing. If damage is extensive, the entire liftgate harness may need replacement.
   Est. part cost: $5-$250
4. Failed Rear View Camera ⚪ Low Probability While less common than wiring issues for this specific code, internal camera failure or corrosion at the camera's integrated connector can occur. Some owners on forums report needing camera replacement even after checking wires.
   How to confirm: After confirming the wiring, connectors, and module software are all good (and the recall is not applicable or has been performed), the camera itself becomes the primary suspect. Test for power, ground, and LIN bus signal at the camera connector.

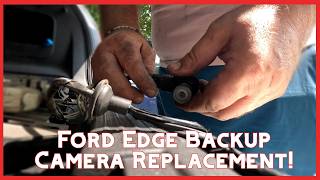

   Typical fix: Replace the rear view camera. 🎬 Watch this budget-friendly Ford Edge camera replacement guide A new module calibration (LIN new module calibration) may be required using a diagnostic scan tool. 🎬 Watch a demonstration of Ford camera calibration
   Est. part cost: $70-$400

Rare But Worth Checking

• Outdated Module Software: TSB SSM 50456 advises to ensure the Image Processing Module B (IPMB) and the APIM (SYNC module) are updated to the latest software level as part of the diagnostic process. This is also the core of several related recalls.
• Failed Image Processing Module B (IPMB): If the camera and all wiring are confirmed to be good, the module itself could be at fault, though this is rare.
• Blown Fuse: A less common cause, but easy to check. The fuse for the backup camera system (often shared with the SYNC system) may be blown. On a 2020 Edge, this was fuse #23 in the under-hood fuse box, but consult your owner's manual for the exact location.

Diagnosis Steps

1. Check for Open Recalls: Enter the vehicle's VIN on the NHTSA or Ford recall website to see if recall 23S23 or others apply. If so, contact a Ford dealer.
2. Scan for Diagnostic Trouble Codes (DTCs) in the IPMB, APIM (Sync), and BCM. Note if C1001 and/or B115E are present.
3. Reference TSB SSM 50456.
4. Begin by inspecting the connectors mentioned in the TSB: C4357 (headliner, driver-side C-pillar area) and C2383A (inside liftgate). Check for any loose, bent, or corroded pins.
5. Visually inspect the wiring harness inside the flexible rubber conduit that runs between the liftgate and the main body. Look for signs of chafing, pinching, or broken wires.
6. Check the fuse for the camera/SYNC system in the vehicle's fuse box.
7. If no issues are found, remove the liftgate trim to access the rear camera connector. Inspect it for corrosion or damage.
8. If wiring and connectors appear intact, use a multimeter to test for correct power, ground, and signal on the LIN bus at the camera connector.
9. Check for any available software updates for the IPMB and APIM modules and apply them if necessary.
10. If all wiring, connectors, and software are confirmed to be good, the final step is to suspect a faulty rear view camera.

Parts You'll Likely Need

• Rear View Camera (OEM #MT1Z-19G490-A (Verify with dealer; may supersede older numbers like F2GT-19G490-CC or EG1Z-19G490-A)) — This is replaced if the camera's internal electronics have failed, which is a known issue addressed by recall 23S23, or after all wiring issues have been ruled out.
  Trusted brands: Motorcraft
  OEM price range: $250-$400
  Aftermarket price range: $70-$150
• Liftgate Wiring Harness Pigtail/Connector — Used to repair damaged or corroded connectors (like C4357 or C2383A) without replacing the entire harness. Sometimes a pigtail for a different model like an F-150 can be adapted.
  Trusted brands: Motorcraft, Dorman
  OEM price range: $40-$80
  Aftermarket price range: $15-$40

Related Codes That Often Appear With This One

• B115E — This code indicates a 'Camera Module: Bus Signal/Message Failure'. It is frequently stored in the Body Control Module (BCM) alongside C1001 and points to the same root cause: a communication breakdown between the camera and the control modules, often due to a wiring fault.

Technical Service Bulletins (TSBs) & Recalls

• SSM 50456: Addresses various rear view camera image issues (infrared, distorted, glitching) on 2021-2022 Edge vehicles with DTC C1001, pointing to poor circuit connections as the cause.
• Recall 23S23 / NHTSA 23V-342: A safety recall addressing a blue or black camera screen caused by a combination of camera hardware, wiring, and software issues. The remedy involves camera replacement and a software update.

Platform-Specific Known Issues

• A known issue documented by Ford in TSB SSM 50456 points to poor circuit connections in connectors C4357 and C2383A causing various rear camera image problems and setting DTC C1001.
• Ford Safety Recall 23S23 (NHTSA 23V-342) was issued for 2020-2023 models for loss of the rearview camera image (blue or black screen), requiring a dealer to replace the camera and update software.

Mechanic-Grade Diagnostic Values

• LIN Bus Voltage (at camera connector) — expected: When the bus is at rest, voltage should be steady at approximately 12V (or 1V less than system voltage). When communicating, a multimeter set to 'peak' min/max should capture a maximum near 12V and a minimum near 1V.. Failure: A voltage that is stuck low (near 0V) or does not toggle indicates a short to ground or a faulty module. A voltage that is stuck high and never toggles could indicate an open circuit or a non-communicating module. Readings between 2V and 10V (not using peak capture) can be inconclusive.

Hidden / Shadow Codes Worth Checking

• C1001:01: General Electrical Failure. This is a common variant of the code stored in the APIM (SYNC Module) and points to a general circuit or communication fault, consistent with the wiring issues in TSB SSM 50456. (see via Professional scan tools like FORScan or Ford IDS.)
• C1001:78: Alignment or Adjustment Incorrect. This sub-code can appear after a camera has been replaced, indicating that the system recognizes the camera but the required calibration procedure has not been completed successfully. (see via Professional scan tools like FORScan or Ford IDS.)

Scan Tool Commands That Help

• Ford IDS / FORScan: LIN New Module Calibration — This function must be performed after replacing the rearview camera to initialize the new hardware with the Image Processing Module (IPMB) and ensure it communicates correctly on the LIN bus.
• Ford IDS / FDRS: 360° Vision System Calibration — If the vehicle is equipped with a 360-degree camera system, this calibration is required after replacing any of the cameras. It can sometimes fail if the new camera's part number is not recognized by the current software, requiring a dealer-level software update.
• FORScan: Hardware Change Detection (IPMB) — This is a diagnostic step suggested by some scan tools when a calibration procedure fails. It forces the module to re-scan for connected hardware, which may help in recognizing a newly installed camera.

Wiring & Ground Locations

• C4357 — In the headliner, near the driver-side C-pillar. This is a key inline connector between the main body harness and the liftgate harness.. TSB SSM 50456 explicitly calls out this connector as a primary point of failure for poor circuit connections causing camera issues.
• C2383A — The main 54-pin connector on the APIM (SYNC module), typically located behind the center touchscreen display.. This is the destination for the camera's video signal and LIN bus communication. TSB SSM 50456 identifies it as a potential location for poor connections.
• G404 — In the right-hand 'D' pillar. This ground point serves multiple components in the rear of the vehicle, including the liftgate.. A poor ground at G404 can cause intermittent or complete failure of electronics mounted in the liftgate, including the rear view camera. It is a critical point to check for corrosion or looseness when diagnosing camera faults.

Real Owner Repair Stories

• YouTube user with a 2013 Ford Edge (2013 Ford Edge) — Rear camera not working, DTC C1001-01 present.
  ❌ Tried (didn't work) Initial diagnosis pointed to a faulty camera.
  ✅ What actually fixed it Upon removing the camera, the owner found two terminals had corroded and broken off, remaining stuck inside the harness connector. The fix required replacing the camera AND splicing in a new pigtail connector. An Edge-specific pigtail was hard to find, so a compatible connector from an F-150 was successfully used.

When the Usual Fixes Don't Work

• While most C1001 issues are resolved by fixing wiring or replacing the camera, there are documented cases where these steps are not enough. In one instance, a vehicle owner had the camera replaced under recall by a Ford dealer, but this introduced a new, persistent C1001:78 calibration code. Neither the dealer nor advanced aftermarket tools like FORScan could complete the necessary post-replacement camera calibration. This indicates a deeper issue of hardware/software incompatibility, where even a new OEM part may not be correctly recognized by the vehicle's modules without a further, specific software update that may not be readily available.

OEM Part Supersession History

• F2GT-19G490-CC → MT1Z-19G490-A (verify with dealer) — Part revision and update, likely to address failure modes seen in earlier versions and recalls.
  Heads up: Always verify the part number with a dealer using the vehicle's VIN before purchase. Using the wrong revision, even if it physically plugs in, can lead to calibration failures or inoperability.

Model Year Variations Within This Range

• 2021-2022: TSB SSM 50456 specifically targets the 2021-2022 model years for the poor connection issue at connectors C4357 and C2383A, suggesting a potential manufacturing or component difference unique to this period.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Rear View Camera Software/Hardware Failure (Recall) 🔴 High — Widespread enough to trigger multiple safety recalls (22V-151, 23S23). Affects 2021-2022 models. (Ref: Recall 23S23 / NHTSA 23V-342)
• SYNC 3/4 Infotainment System Glitches 🟠 Medium — Common owner complaint involving the screen freezing, going black, or rebooting.
• 2.0L EcoBoost Coolant Intrusion 🔴 High — A known issue primarily affecting 2015-2019 model years, where coolant leaks into the cylinders, potentially causing engine failure. While the 2021-2022 models have an updated engine design, vigilance is recommended. (Ref: TSB 19-2346 (for earlier models))
• Harsh or Delayed Shifting (8-Speed Auto) 🟡 Low — Some owners report sporadic harsh shifts or hesitation from the 8F35 transmission, often addressed with software updates. (Ref: Multiple TSBs exist for shift quality concerns.)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used wiring harness pigtail from a salvage yard is an excellent, cost-effective choice for repairing a corroded or damaged connector. A used camera is risky due to the high failure rate of this component but could be considered if from a very low-mileage (sub-30k miles) donor vehicle.

Donor-vehicle mileage cap: roughly under 30000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a pigtail: Inspect for clean, straight, un-corroded pins and ensure there is at least 6-8 inches of wire for splicing.
• For a camera: Verify the part number is an exact match. Check the lens for scratches or fogging. Ask about the donor vehicle's mileage if possible.

OEM-only on this vehicle (don't cheap out):

• Rear View Camera: Due to the frequent recalls, software updates, and mandatory calibration procedures (LIN initialization), using a new OEM camera from a dealer is strongly recommended to ensure compatibility and avoid frustrating calibration failures.

Aftermarket brands forum-validated for this vehicle:

• No specific aftermarket brands have widespread, positive long-term reviews. Some owners have used inexpensive cameras from Amazon with success, but compatibility can be a gamble.

Brands owners have reported issues with on this vehicle:

• No specific brands are cited as problematic, but the general risk with any non-OEM camera on this platform is the failure to communicate properly with the SYNC system for features and calibration.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• B115E — This code is often found alongside C1001 during a diagnostic scan of the IPMB or APIM when camera image issues occur.
• RECALL 23S23 — While not a DTC, this safety recall is the primary administrative reference for the hardware and software failures causing C1001 symptoms.
• SSM 50456 — The specific Ford Technical Service Message that identifies the connection points (C4357 and C2383A) responsible for triggering C1001.
