C0631 on 2020-2021 Lincoln Aviator: Front Axle Disconnect Causes and Fixes

What's Unique About the 2020-2021 Lincoln AVIATOR

The 2020-2021 Lincoln Aviator, along with its sibling the Ford Explorer, uses a specific front axle disconnect unit (FADA) that has proven to be a common failure point on vehicles built on or before August 30, 2021. The issue is so prevalent that Lincoln has issued multiple Technical Service Bulletins (TSBs) acknowledging the problem. The manufacturer's fix involves removing the original electronic actuator and shaft assembly entirely. It is replaced with a purely mechanical, permanently engaged intermediate shaft. As part of this updated design, the old electrical connector is cut off and the wires are sealed, as the new part has no electronic components.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Illuminated powertrain malfunction (wrench) indicator light.
• "4WD Fault Service Required" message on the instrument cluster.
• All-Wheel Drive (AWD) system is inoperative.

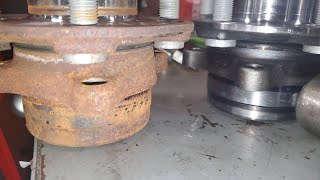

• Grinding, buzzing, or clicking noises from the front axle area, sometimes described as a "playing card tapping sound on the spokes".

Most Likely Causes

1. Faulty Front Axle Disconnect Actuator / Intermediate Shaft 🔴 High Probability This is a well-documented failure on this platform for vehicles built before August 30, 2021, acknowledged by Lincoln through multiple TSBs. The original parts are prone to internal mechanical or electronic failure.
   How to confirm: Confirm DTC C0631 and/or C00A6 are present in the AWD module. A technician can use a scan tool to command the actuator and check for a response. Physical inspection is required if the actuator is unresponsive, as the failure is internal.
   Typical fix: Replace the front axle disconnect actuator and/or intermediate shaft with the revised parts specified in TSB 23-2174. This is a major repair that includes replacing the left half-shaft, cutting and sealing the old actuator's electrical connector, installing a new differential breather tube, and reprogramming the AWD module.
   Est. part cost: $400-$600
2. Damaged Wiring Harness ⚪ Low Probability A separate Special Service Message (SSM 52152) notes that the wiring harness can rub against an underbody heat shield, causing damage to the wires leading to the transfer case actuator motor. Another recall (19S32) was issued for potential harness chafing against the A/C compressor pulley, which could also cause electrical issues.
   How to confirm: Visually inspect the wiring harness where it routes over the underbody heat shield near the transfer case for signs of chafing, melting, or broken wires. Also inspect the harness near the A/C compressor pulley.
   Typical fix: Repair the damaged section of the wiring harness according to Ford's wiring repair procedures and secure it away from the heat shield or pulley using a tie strap as instructed by the service bulletin.
   Est. part cost: $10-$50

Diagnosis Steps

1. Scan the AWD module for Diagnostic Trouble Codes (DTCs). Confirm that C0631 and/or C00A6 are present.
2. Check the vehicle's build date. If it was on or before August 30, 2021, the issue is highly likely to be the FADA unit addressed by TSB 23-2174.
3. Inspect the wiring harness leading to the front axle and transfer case area for any signs of rubbing, chafing, or heat damage, particularly near heat shields and the A/C compressor pulley per SSM 52152 and recall 19S32.
4. Using a capable scan tool (like Ford's FDRS), attempt to command the front axle disconnect actuator to engage and disengage. Monitor for a response and listen for actuator motor sounds.
5. If the actuator does not respond or the code returns immediately, the vehicle should be lifted for physical inspection and repair.
6. Follow the detailed service procedure outlined in TSB 23-2174. This involves disconnecting the battery, removing the left front half-shaft, supporting the engine, removing the left engine mount, and then removing the 3 bolts holding the FADA assembly.
7. Install the new, purely mechanical intermediate shaft (N1MZ-3A329-A).
8. If the old unit had an electrical connector, cut it from the harness and seal each of the four wires individually with heat-shrink tubing.
9. Install the new left half-shaft (N1MZ-3A427-F) and new differential breather hose (N1MZ-3B476-A).
10. After hardware replacement, update the AWD module software to the latest calibration using a Ford/Lincoln diagnostic tool and clear all DTCs. This step is critical as it tells the module the electronic actuator is gone.

Parts You'll Likely Need

• Intermediate Shaft (OEM #N1MZ-3A329-A) — This is the revised, purely mechanical part that replaces the failure-prone original front axle disconnect actuator/shaft assembly as per TSB 23-2174.
  Trusted brands: Motorcraft
  OEM price range: $115-$220
  Aftermarket price range: N/A
• Front Halfshaft (Left) (OEM #N1MZ-3A427-F) — The TSB procedure requires the replacement of the left front halfshaft with an updated design to match the new intermediate shaft.
  Trusted brands: Motorcraft
  OEM price range: $200-$300
  Aftermarket price range: $100-$180
• Front Axle Assembly Breather Hose (OEM #N1MZ-3B476-A) — The TSB specifies replacing the original differential breather tube with this updated hose as part of the comprehensive repair.
  Trusted brands: Motorcraft
  OEM price range: $20-$40
  Aftermarket price range: N/A
• One-Time-Use Bolts and Nuts (OEM #Various (e.g., LB5Z-3B477-A, W715932-S439)) — The TSB procedure requires discarding and replacing numerous one-time-use fasteners, including the wheel hub nut, strut-to-knuckle bolts/nuts, and engine mount bolts.
  Trusted brands: Motorcraft
  OEM price range: $50-$100
  Aftermarket price range: N/A

Related Codes That Often Appear With This One

• C00A6 — This code is also for the 'Front Axle Disconnect Actuator' and is explicitly mentioned alongside C0631 in the manufacturer's TSBs as indicating the same root cause and requiring the same repair.

Technical Service Bulletins (TSBs) & Recalls

• TSB 23-2174: Supersedes previous TSBs (like 23-2114) and provides the definitive service procedure for fixing DTCs C00A6 and C0631. It details replacing the electronic FADA with a mechanical intermediate shaft, replacing the left half-shaft, and reprogramming the AWD module.
• TSB 25-2568: An earlier TSB also identifying the front axle disconnect actuator/intermediate shaft as the cause for C0631.
• SSM 52152: Points to a potential wiring harness rub condition near a heat shield as a possible cause for various AWD module DTCs, including related codes.
• SSM 51836: Authorizes dealers to perform the TSB 23-2174 repair if the original-style left front halfshaft is unavailable, confirming the TSB procedure is the preferred long-term fix.

Platform-Specific Known Issues

• A recall (20V-788 / 20S72) was issued for some 2020-2021 Aviator models for improperly tightened motor mount fasteners, which could lead to axle disconnection and loss of power. While not directly causing code C0631, it highlights sensitivity in the front axle assembly.
• SSM 51836 notes that if a standard left front halfshaft (L1MZ-3A427-G) is on backorder, dealers are authorized to perform the full TSB 23-2174 repair instead, which uses the revised parts. This indicates a known supply chain issue with the original parts.

Mechanic-Grade Diagnostic Values

• Front Axle Disconnect Actuator Motor Resistance — expected: 5–15 Ω. Failure: A resistance value outside of this range suggests an internal electrical failure in the actuator motor.

Scan Tool Commands That Help

• Ford Diagnosis & Repair System (FDRS): AWD Module Software Update — This function is required after replacing the electronic actuator with the mechanical intermediate shaft per TSB 23-2174. The software prompts the technician with questions about the vehicle's build date and whether the electrical connector is still in use to correctly reconfigure the AWD module to operate without the electronic actuator.
• Ford Diagnosis & Repair System (FDRS): Active Torque Coupling Configuration — After replacing the AWD control module itself (not just the axle hardware), this function must be run to write the vehicle-specific configuration to the new module.

Wiring & Ground Locations

• Front Axle Disconnect Actuator Electrical Connector — On the front surface of the actuator itself, which is located on the left (driver's) side of the engine, accessible after removing the left front wheel and supporting the engine to remove the left engine mount.. This connector and its pigtail are the primary points for electrical testing (voltage, resistance). Per TSB 23-2174, if the actuator is replaced with the mechanical shaft, this connector is cut off and the four wires are individually sealed with heat-shrink tubing.

Real Owner Repair Stories

• Reddit user on r/FordExplorerST (2020 Ford Explorer ST (mechanically similar to Aviator)) — Wrench light and associated DTCs for the front axle disconnect.
  ✅ What actually fixed it The user was quoted $2,500 by a dealer to perform the TSB 23-2174 repair out of warranty. Another user confirmed the fix involves replacing the actuator with the new intermediate shaft, replacing the driver's side axle, and reprogramming the AWD module with FDRS. They noted a common technician shortcut is to only remove the driver's side motor mount to gain access, rather than dropping the entire subframe as the service manual suggests.

OEM Part Supersession History

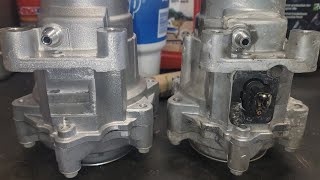

• L1MZ-3D102-A, L1MZ-3D102-BA, M1MZ-3D102-A (Original electronic actuator assemblies) → N1MZ-3A329-A (Revised mechanical intermediate shaft) — The original electronic actuators were prone to high failure rates. The revised part is a purely mechanical shaft that eliminates the electronic disconnect function, providing a permanent fix for the issue described in TSB 23-2174.
  Heads up: When installing N1MZ-3A329-A to replace an older electronic actuator, the corresponding updated left half-shaft (N1MZ-3A427-F) must also be used, and the AWD module must be reprogrammed via FDRS.

Model Year Variations Within This Range

• 2020-2021: According to TSB 23-2114, 2020 model year vehicles may have either the original front axle disconnect actuator (with an electrical connector) or an early version of the intermediate shaft (without a utilized connector). 2021 vehicles built on or before Aug 30, 2021, should have an intermediate shaft. The service repair for both is the same: install the new, redesigned intermediate shaft (N1MZ-3A329-A).
