C0569 on 2007-2014 GMC Yukon: "Service 4WD" Message Causes and Fixes

What's Unique About the 2007-2014 Gmc YUKON

On the GMT900 platform, which includes the 2007-2014 Yukon, Tahoe, Suburban, and Escalade, this code is almost exclusively tied to the 4WD system. It frequently acts as a 'masking' code; an unresolved issue like a bad sensor or motor circuit will prevent the TCCM's startup relearn process from completing, which then triggers the C0569. Technicians know that this code often points away from the control module itself and towards a more fundamental electrical or mechanical failure that needs to be diagnosed and fixed first. TSB PIP5089A explicitly states that if C0569 appears after a repair and won't clear, it means the original fault was not actually fixed.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• "Service 4 Wheel Drive" message on the Driver Information Center (DIC)
• "Service StabiliTrak" or "Traction Control Off" message on the DIC
• 4WD system is inoperative and cannot be shifted.
• Indicator lights for the 4WD selector switch may blink and then turn off, or not illuminate at all.
• Vehicle may default to 2WD or, in some failure modes, get stuck in a 4WD mode.

Most Likely Causes

1. Poor Connection at Harness Connectors X109 or X3 🔴 High Probability GM issued Technical Service Bulletin PIP5080B specifically identifying these connectors as a major weak point. Terminals can lose tension, corrode, or back out of the connector shell, interrupting communication between the TCCM and the encoder motor. [TSB #PIP5080B]
   How to confirm: Visually inspect the terminals at connector X109 (a large, 16-pin connector located below the underhood fuse block) and connector X3 at the TCCM. TSB PIP5080B includes a picture of a backed-out pin (A5) in X109 as a prime example. [TSB #PIP5080B]
   Typical fix: Clean the terminals with electrical contact cleaner and ensure they are fully seated with proper tension using a terminal pick. If a terminal is damaged or backed out, it may need to be replaced or the connector pigtail replaced.
   Est. part cost: $5-$50
2. Faulty Transfer Case Encoder Motor / Position Sensor 🔴 High Probability The position sensor, which is integrated into the transfer case encoder motor assembly, is a very common failure item. It wears out or fails electronically, preventing the TCCM from knowing the transfer case's position, which directly leads to the C0569 configuration error at startup.
   How to confirm: Use a bidirectional scan tool to command transfer case shifts and monitor the position sensor data. If the data is erratic, absent, or doesn't match the commanded position, the sensor/motor assembly is faulty. Resistance checks across the sensor pins can also confirm an internal open or short.
   Typical fix: Replace the transfer case encoder motor assembly. While some have attempted to replace just the sensor ring inside, it is most commonly and reliably sold as a complete unit. After replacement, a 'motor learn' procedure must be performed with a scan tool.
   Est. part cost: $150-$400
3. Outdated Transfer Case Control Module (TCCM) Software 🟡 Medium Probability A GM TSB (#09-04-21-001) notes that outdated software can cause C0569 to set, often in conjunction with C0387, sometimes intermittently in very hot or cold weather or during periods of low battery voltage. [TSB #PIP5080A]
   How to confirm: A dealership or a shop with a subscription to GM's Service Programming System (SPS) can check the current calibration ID against the latest available version on TIS2WEB.
   Typical fix: Reprogram the TCCM with the latest software calibration. The TSB explicitly states NOT to replace the TCCM for this condition and to check wiring first before reprogramming. [TSB #PIP5080A]
   Est. part cost: $100 - $200 for programming service

Rare But Worth Checking

• Internal Transfer Case Mechanical Failure: In some cases, a mechanical problem inside the transfer case, such as a broken shift rail or a worn shift fork, prevents the encoder motor from completing a shift. The TCCM interprets this physical blockage as a configuration error during the startup learn procedure.
• Faulty Transfer Case Control Module (TCCM): While possible, the TCCM itself is less likely to fail than the wiring or sensors connected to it. TSB PIP5080B notes a high number of 'no trouble found' parts returned under warranty. [TSB #PIP5080B] It should only be replaced after all other potential causes have been ruled out through thorough diagnosis.

Diagnosis Steps

1. Scan all vehicle modules for DTCs. Pay close attention to any other codes stored in the TCCM, EBCM, or BCM.
2. If codes like C0306, C0387, or C0398 are present, diagnose them first. C0569 is often a secondary code resulting from these primary faults.
3. Follow TSB #PIP5080B: Critically inspect the wiring and terminals at connectors X109 (under the hood fuse block) and X3 (at the TCCM) for corrosion, damage, or poor pin tension. Look for backed-out pins. [TSB #PIP5080B]
4. Using a bidirectional scan tool, access the TCCM live data. Monitor the transfer case position sensor readings while commanding shifts between 2WD, 4HI, and 4LO.
5. If sensor readings are absent or erratic, inspect the wiring harness going to the transfer case encoder motor. If the wiring is good, the encoder motor/sensor assembly is the likely culprit.
6. If C0569 is the only code and it will not clear, check for available TCCM software updates per TSB #09-04-21-001 before replacing any hardware. [TSB #PIP5080A]
7. If all wiring, sensors, and software are confirmed good, the issue may be an internal mechanical fault in the transfer case or a failed TCCM.
8. After any repair (especially encoder motor replacement), perform the 'ATC Motor Learn' or 'Clutch Reset' procedure using a capable scan tool to clear the C0569 code.

Parts You'll Likely Need

• Transfer Case Shift Encoder Motor Assembly (OEM #84660077 (supercedes 84124173, 84554629, 84604687)) — This assembly contains the position sensor that most commonly fails, preventing the TCCM from learning the transfer case position and triggering code C0569.
  Trusted brands: ACDelco (OEM), Dorman (Aftermarket, e.g., 600-910)
  OEM price range: $250-$400
  Aftermarket price range: $150-$300
• Connector Terminals / Pigtail — If the diagnosis points to a bad connection at connector X109 or X3 as per TSB PIP5080B, replacing the affected terminals or the connector pigtail is the required repair. [TSB #PIP5080B]
  Trusted brands: ACDelco
  OEM price range: $20-$60
  Aftermarket price range: $10-$40

Related Codes That Often Appear With This One

• C0306 — Relates to the transfer case motor A/B circuit. Often appears with C0569 when there's a wiring or encoder motor issue. [TSB #PIP5080B]
• C0321 — Indicates a fault with the transfer case lock control circuit. It points to the same family of electrical issues, often traced back to connector X109. [TSB #PIP5080B]
• C0387 — Means 'Unable to Complete Shift'. This code may set initially, but if the fault persists through a key cycle, the TCCM may then set C0569 on the next startup instead because the underlying fault prevents the relearn process. [6, TSB #PIP5080A]
• C0398 — Relates to the transfer case rotational position sensor circuit. It's a strong indicator that the problem lies with the encoder motor's sensor, which is a direct cause for C0569. [TSB #PIP5080B, 23]

Technical Service Bulletins (TSBs) & Recalls

• PIP5080B: The most critical TSB for this issue. It advises technicians to inspect terminals at connectors X109 and X3 for poor connections before replacing the TCCM or encoder motor, as this is a high-frequency root cause for codes C0306, C0321, C0398, and C0569.
• PIP5089A: Explains that C0569 is set when the TCCM cannot determine the transfer case position during its startup relearn due to an underlying fault. It confirms that if C0569 persists after a repair, the original problem was not solved.
• 09-04-21-001: Advises that C0569, especially when intermittent or paired with C0387, can be caused by outdated TCCM software. It recommends reprogramming the module as a fix, but only after verifying wiring integrity.
• PIP5080A: An earlier version of PIP5080B with similar guidance on checking wiring terminals.

Platform-Specific Known Issues

• Wiring Harness Connector Failures (X109 & X3): A widely documented issue, detailed in TSBs #PIP5080A and #PIP5080B, is poor terminal tension or corrosion at the X109 (underhood) and X3 (TCCM) electrical connectors. This leads to intermittent 4WD faults and is a primary cause for C0569, often accompanied by other circuit codes. [TSB #PIP5080B]
• Startup Relearn Failure Masking: TSB #PIP5089A clarifies that if C0569 appears after a transfer case repair and won't clear, it means the original fault (e.g., a bad encoder motor or internal mechanical issue) was not actually fixed. The system is failing its initial self-test/relearn procedure and setting C0569 as a general failure code.

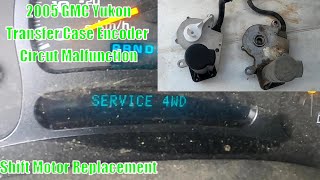

• Real-World Repair Story: Encoder Motor Replacement: On the TahoeYukonForums, a user with a Cadillac Escalade described symptoms of the "Service 4WD" message appearing randoml

Mechanic-Grade Diagnostic Values

• Transfer Case Encoder Motor Position Sensor Resistance — expected: ~2.11 Megaohms (MΩ). Failure: No resistance (open circuit) between the two relevant sensor pins on the motor connector.

Hidden / Shadow Codes Worth Checking

• C0569:4b: This is a more specific version of the code, indicating 'System Configuration Error - Calibration Not Learned'. The ':4b' suffix points directly to a failure in the calibration or relearn process. (see via This variant of the code may be displayed on professional-grade scan tools, such as a Snap-on Modis Edge or similar, which can read manufacturer-specific code suffixes.)

Scan Tool Commands That Help

• GM GDS2 / Tech2 / Professional Aftermarket (Autel, Snap-on): ATC Motor Relearn / Range Actuator Learn / Transfer Case High/Low Clutch Reset — This function is mandatory after replacing the transfer case encoder motor, the TCCM, or the entire transfer case assembly. It allows the TCCM to learn the physical end-points of the shift rail's travel. The C0569 code will not clear until this procedure is successfully completed.

Wiring & Ground Locations

• X109 — A large, 16-pin connector located below the underhood fuse block. [TSB #PIP5080B]. This is a major pass-through connector for wiring between the TCCM and the transfer case encoder motor. TSB #PIP5080B specifically calls out poor pin tension, corrosion, and backed-out pins in this connector as a primary cause of C0569 and related codes.
• X3 (at TCCM) — The main electrical connector at the Transfer Case Control Module (TCCM), which is located under the driver's side dashboard, often on the same bracket as the Body Control Module (BCM). [32, TSB #PIP5080B]. This is the destination for all sensor inputs and the origin for all motor commands. A poor connection here can mimic a failed TCCM or encoder motor. TSB #PIP5080B advises checking for proper terminal tension and seating at this connector.
• G301 — A chassis ground point located under the front passenger's seat.. This ground serves multiple modules. While not directly cited for the TCCM in all diagrams, poor grounds in this area can introduce electrical noise and voltage issues that affect various control modules. Ensuring all chassis grounds are clean and tight is a critical step in diagnosing elusive electronic faults.

Real Owner Repair Stories

• Certified Transmission diagnostic article (2008 Chevrolet Silverado 2500 HD with Magna (RPO NQF) transfer case) — No 4WD engagement, multiple TCCM codes stored. After clearing, C0569 came back immediately and would not clear even after reprogramming the TCCM.
  ❌ Tried (didn't work) Replacing the transfer case motor (encoder), Replacing the 4WD selector switch, Reprogramming the TCCM with the latest software
  ✅ What actually fixed it The technician removed the encoder motor and found the transfer case's internal shift rail shaft was spinning freely. The transfer case had a mechanical failure inside. Replacing the entire transfer case assembly and then performing the ATC motor relearn procedure resolved the code and restored 4WD function.

OEM Part Supersession History

• 84124173, 84554629, 84604687 → 84660077 — Standard part evolution for design improvements, reliability updates, or manufacturing changes.
  Heads up: The listed part numbers are generally interchangeable for the specified application. No major incompatibility issues are noted, but always verify fitment with the vehicle's VIN.
