C0561 on 2007-2013 GMC Yukon: 'Service Stability' Message Causes and Fixes

What's Unique About the 2007-2013 Gmc YUKON

On the GMT900 platform, which includes the 2007-2013 Yukon, Tahoe, Silverado, and Escalade, the StabiliTrak system is highly sensitive to inputs from many other modules. A wide range of issues, from common engine problems like a faulty mass airflow sensor or incorrect fuel/alcohol content readings, to sensor failures can cause the EBCM to disable stability control as a precaution. Therefore, C0561 frequently appears alongside engine-related codes (like P0172/P0175 for a rich condition or P0307 for a misfire) and fixing the primary code will resolve the C0561 and extinguish the 'Service Stability' light.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• "Service Stability" or "Service StabiliTrak" message on the Driver Information Center (DIC)
• ABS warning light illuminated
• Traction Control Off warning light illuminated
• Potentially accompanied by a "Reduced Engine Power" message if the root cause is engine-related.
• Audible chimes when the message first appears
• Harsh transmission shifting if the root cause is engine performance related.
• Cruise control may be disabled

Most Likely Causes

1. A primary trouble code is stored in another module (ECM, BCM, etc.) 🔴 High Probability The EBCM relies on data from other modules for torque, speed, and other calculations. Any fault in those modules, even a non-illuminated 'Type B' code, can lead the EBCM to distrust the data and shut down StabiliTrak as a precaution.
   How to confirm: Use a full-featured scan tool to check for DTCs in ALL vehicle modules. Do not rely on a basic code reader that only checks the ECM. The root cause is often an engine code (P-code) or another chassis code (C-code).
   Typical fix: Diagnose and repair the other codes first. This could involve anything from replacing a wheel speed sensor, cleaning a throttle body, fixing a rich/lean engine condition, or resetting fuel alcohol content. Once the primary fault is fixed and cleared, the C0561 will resolve.
   Est. part cost: $0-$500
2. Incorrect Fuel Alcohol Content Reading 🟡 Medium Probability On FlexFuel models, the ECM estimates the percentage of ethanol in the fuel without a physical sensor. This value can become corrupted over time, leading the ECM to believe the engine is running on E85 when it has regular gasoline. This causes a rich running condition (P0172/P0175), which in turn triggers the C0561.
   How to confirm: Use a scan tool to view the 'Fuel Alcohol Content' PID. If the vehicle has regular gasoline (E10 or less) in the tank but the reading is high (e.g., over 15-20%), the reading is corrupt.
   Typical fix: Use a bidirectional scan tool to perform a 'Fuel Composition Reset'. This function is found under the ECM's special functions or functional tests. After the reset, the alcohol percentage should default to a low number (e.g., 3%) and the rich condition codes should clear, resolving the C0561.
   Est. part cost: $0

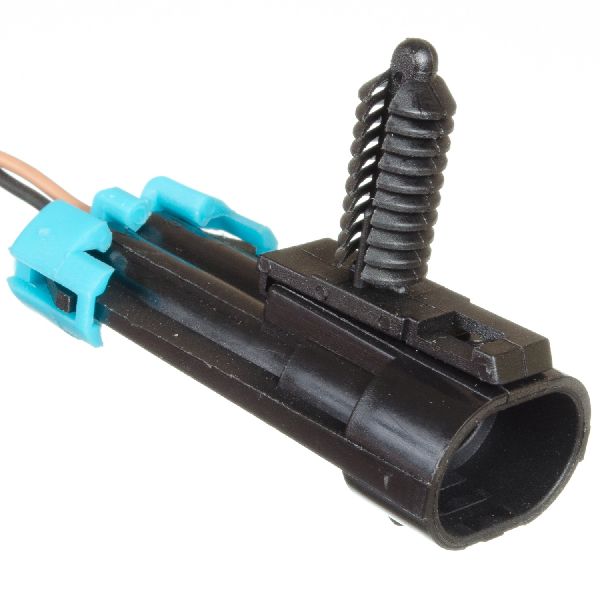

3. Faulty Wheel Speed Sensor or Wiring 🟡 Medium Probability The wiring to the wheel speed sensors is exposed to the elements and can become damaged or corroded. The sensor itself is integrated into the wheel hub bearing assembly, which is a common wear item on these heavy SUVs.
   How to confirm: Look for specific wheel speed sensor codes (C0035-C0050). Use a scan tool to monitor live data from all four wheel speed sensors while driving. A sensor that reads 0 mph or has an erratic signal is faulty.
   Typical fix: Often the wiring pigtail to the sensor is the problem and can be replaced. If the sensor itself has failed, the entire wheel hub and bearing assembly must be replaced. 🎬 See this walkthrough for diagnosing and fixing hub assemblies An ACDelco GM Original Equipment front hub for a 4WD model is part number FW346 or 515096.
   Est. part cost: $20-$50 for a wiring pigtail, $150-$300 for a wheel hub assembly.
4. Faulty or Uncalibrated Steering Angle Sensor 🟡 Medium Probability
   How to confirm: Look for codes related to the steering angle sensor (e.g., C0710). Use a scan tool to view the live data from the steering angle sensor. The angle should be 0 degrees when driving straight and change smoothly as the wheel is turned. An erratic or non-responsive reading indicates a problem. This issue often appears after a wheel alignment.
   Typical fix: The sensor often needs to be recalibrated with a scan tool. This procedure is typically found under 'Special Functions' in the EBCM or Chassis module. If the sensor is faulty, it will need to be replaced. A common GM part number is 19150081.
   Est. part cost: $70-$150
5. Poor Ground Connection for the EBCM ⚪ Low Probability The main ground for the EBCM (often labeled G303, G304, or G305) is located on the frame rail or B-pillar, where it is exposed to road salt and moisture, leading to corrosion and high resistance.
   How to confirm: Visually inspect the ground connections on the frame under the driver's side door area and behind the B-pillar trim. Look for rust, looseness, or broken wires. A video by 'DrShock' on YouTube provides a detailed guide to all GMT900 ground locations.
   Typical fix: Remove the ground bolt, clean the contact surfaces of the frame and the wire terminal down to bare metal, apply dielectric grease, and re-secure it tightly. This is a very common fix for various electrical gremlins on the GMT900 platform.
   Est. part cost: $0-$5

Rare But Worth Checking

• Low or Fluctuating Battery Voltage: Modern vehicles have numerous electronic modules that are sensitive to voltage. A weak battery, failing alternator, or poor battery cable connections (especially a hot negative terminal) can cause random communication errors between modules, triggering a C0561 and other codes like U0121 or U0140.
• Engine Misfires or AFM Issues: An engine misfire (e.g., code P0307 for cylinder 7) can cause the engine to run erratically, prompting the EBCM to disable StabiliTrak for safety. Some owners on forums have also linked C0561 to issues with the Active Fuel Management (AFM) system, suggesting that disabling AFM resolved the issue.

Diagnosis Steps

1. Connect a professional-grade scan tool capable of reading codes from all modules (EBCM, ECM, BCM, etc.).
2. Perform a full vehicle DTC scan and record all codes. Do not clear any codes yet.
3. Follow the advice of TSB PIT4169F: Address ALL other DTCs before C0561. The C0561 is almost always a secondary, informational code.
4. If engine codes (P-codes) like P0172/P0175 are present, check the 'Fuel Alcohol Content' PID. If it's abnormally high for the fuel being used, perform a 'Fuel Composition Reset'.
5. If other chassis codes (C-codes) are present, such as for wheel speed or steering angle sensors, diagnose those systems using live data on the scan tool.
6. If only C0561 is present (which is rare), check for poor EBCM ground connections (G303, G304) on the driver's side frame rail and B-pillar. Also, check battery terminal connections for heat and corrosion.
7. Test the battery and charging system to rule out voltage-related issues.
8. After repairing the primary fault, clear all codes from all modules.
9. Perform a test drive, ensuring you exceed 20 mph, to confirm the 'Service Stability' message does not return and the C0561 code is gone.

Parts You'll Likely Need

• The part causing the primary trouble code — C0561 is a secondary code. The actual part needed is the one that fixes the primary code found in another module (e.g., a wheel speed sensor for a C0040, a MAF sensor for a P0101, etc.).
  Trusted brands: ACDelco, Bosch, Delphi
  OEM price range: $50-$400
  Aftermarket price range: $25-$250
• Wheel Hub and Bearing Assembly (Front, 4WD/AWD) (OEM #ACDelco 515096 (also FW346)) — If a front wheel speed sensor is found to be the cause, it is integrated into the hub assembly on these vehicles and the entire unit must be replaced.
  Trusted brands: ACDelco, Timken, MOOG
  OEM price range: $250-$400
  Aftermarket price range: $100-$200
• Wheel Speed Sensor Wiring Harness Pigtail — The wiring leading to the wheel speed sensor is a common failure point due to exposure and flexing. Sometimes only the connector pigtail needs to be replaced, not the entire hub.
  Trusted brands: ACDelco, Dorman
  OEM price range: $30-$60
  Aftermarket price range: $15-$30

Related Codes That Often Appear With This One

• P0172 / P0175 — These codes indicate a 'System Too Rich' condition in the engine. The EBCM may disable StabiliTrak because the engine is not operating predictably. This is frequently caused by a corrupted Fuel Alcohol Content value on FlexFuel models.
• C0035 - C0050 — These codes point to specific faults in the wheel speed sensor circuits. Since the StabiliTrak system relies on accurate wheel speed data, a fault here will disable the system and set C0561.
• P0101 — This code indicates a fault with the Mass Air Flow (MAF) sensor. An incorrect engine load calculation can cause the EBCM to disable stability control as a precaution. Cleaning or replacing the MAF sensor may be required.
• P0300-P0308 — Engine misfire codes. An unstable engine can cause the StabiliTrak system to be disabled as a safety measure. A user on Tahoe Yukon Forum reported a P0307 (misfire cylinder 7) alongside their C0561.

Technical Service Bulletins (TSBs) & Recalls

• PIT4169F: Explicitly states to diagnose all other DTCs before C0561 and not to replace the EBCM for this code.
• PI0281B: While not directly for C0561, this TSB addresses the P0172/P0175 codes caused by incorrect fuel alcohol learning, which is a primary trigger for C0561. It recommends an ECM reprogram and fuel composition reset.

Platform-Specific Known Issues

• FlexFuel Alcohol Content Corruption: A very common trigger for C0561 on these trucks is not a hardware failure, but a software glitch. The ECM incorrectly 'learns' a high ethanol percentage in the fuel, causing it to run rich (P0172/P0175) and disable StabiliTrak. The fix is a simple 'Fuel Composition Reset' with a capable scan tool.
• EBCM Ground (G303/G304) Corrosion: The primary ground for the brake control module is located on the driver's side frame rail or B-pillar, an area prone to corrosion from road spray and salt. Cleaning this ground point down to bare metal can resolve intermittent communication issues that trigger C0561 when no other codes are present.

Mechanic-Grade Diagnostic Values

• Fuel System Control Module (FSCM) Power Pins — expected: Constant 12V+ at Pin 32 (Red/White wire) and Pin 15 (Pink wire) with key on. 12V+ at Pin 13 (Dark Green/White wire) that is either constant, present during cranking, or present for 3-6 seconds at key-on.. Failure: No voltage at these pins indicates a problem with the fuse, relay, wiring, or the ECM, not necessarily the FSCM itself.
• Fuel System Control Module (FSCM) Ground Pin — expected: Continuity to ground at Pin 1 (Black wire).. Failure: High resistance or an open circuit on the ground pin will cause the module to fail.

Hidden / Shadow Codes Worth Checking

• C0561-71: 'System Disabled, Invalid Serial Data Received.' This is the most common sub-code and indicates the EBCM received data it could not validate. It often points to a fault in another module (ECM, BCM) or a sensor like a wheel speed sensor. (see via A professional scan tool like a GM Tech2 or equivalent is required to view these symptom-byte codes.)
• C0561-72: 'Alive Counter Incorrect.' This indicates a problem with the data packet counter on the communication bus, suggesting the sending module is failing or the bus itself has an issue. (see via Requires a professional scan tool capable of reading GM-specific sub-codes.)
• C0561-74: 'Value of Signal Protection Calculation Incorrect.' This is a checksum error, meaning the data packet arrived but its validation signature was incorrect. This can point to a module that needs reprogramming or is failing internally. (see via Requires a professional scan tool capable of reading GM-specific sub-codes.)
• C0561-59: 'Actuator Stuck / Excessive Duration.' This sub-code can be set if the ABS motor runs continuously for over 60 seconds, often due to excessive brake pedal pumping, a poor service bleed, or a hydraulic leak. (see via Requires a professional scan tool capable of reading GM-specific sub-codes.)

Scan Tool Commands That Help

• GM Tech2 / GDS2 or equivalent: Fuel Composition Reset — Use when P0172/P0175 (System Too Rich) codes are present and the 'Fuel Alcohol Content' PID shows a high percentage (e.g., >20%) while using regular gasoline. This command is found in the ECM special functions and resets the learned alcohol value.
• GM Tech2 / GDS2 or equivalent: Steering Angle Sensor (SAS) Calibration — Use after a wheel alignment, or replacement of the steering angle sensor, steering column, or rack and pinion. This function is found in the Electronic Brake Control Module (EBCM) menu and centers the sensor's value.
• Bidirectional Scan Tool: EBCM Relearn — This procedure, found in the EBCM 'Module Setup' screen, can be used to verify that the brake pressure sensor and valve calibrations are correct. It may be required after certain programming events to clear a C0561-71 code.

Wiring & Ground Locations

• G103 / G104 — G103 is on the cowl, above the brake booster. G104 is on the back of the driver's side cylinder head.. G103 grounds the BCM, Instrument Panel Cluster (IPC), and Data Link Connector (DLC). G104 is a primary engine ground. A poor connection at either can disrupt communication between the ECM, BCM, and EBCM, causing invalid data and a C0561 code.
• G304 / G305 — G304 is on the right side B-pillar behind the trim panel. G305 is under the vehicle on the frame, to the rear of the left B-pillar at the third body mount.. These are body and frame grounds. The EBCM itself is grounded to the frame near the driver's side, and corrosion in this area is common. A poor ground here can directly affect the EBCM's operation and ability to communicate.
• EBCM Connector (X1) — Located on the EBCM module, which is mounted to the ABS hydraulic unit on the inside of the driver's side frame rail.. This is the main connector for all EBCM inputs and outputs. Pin 1 is a primary ground, and Pin 13 is the battery positive voltage supply. Testing for power and ground at these pins is a key diagnostic step.

Real Owner Repair Stories

• Chevrolet Forum user (2007 Silverado 1500 LTZ 5.3L) — Intermittent 'Stabilitrak off' and 'Service Traction Control' messages with only code C0561 present.
  ❌ Tried (didn't work) Initial diagnosis showed no other codes.
  ✅ What actually fixed it The owner traced the issue to a rough idle caused by the Active Fuel Management (AFM) system. Fouled spark plugs, particularly in cylinders #1 and #7, were noted. Disabling the AFM system with a plug-in device and replacing the spark plugs resolved the rough idle and the C0561 code did not return.
• Tahoe Yukon Forum user (2009 Tahoe 5.3L Flex Fuel) — Check engine light, rich running condition, and C0561 with Service Stabilitrak message.
  ❌ Tried (didn't work) Unknown.
  ✅ What actually fixed it The owner's fuel alcohol composition was reading a very high 78%. Using a GM Tech2 clone tool, they performed a 'Fuel Composition Reset' which resolved the high alcohol reading and the associated codes.
• GM Forum user (2008 Yukon XL 2500) — 'Service Stabilitrak' message, with code C0710 for the steering wheel position sensor, which in turn caused C0561.
  ❌ Tried (didn't work) The original sensor (PN 15886733) was an early design with a 6-pin connector that was discontinued and difficult to find.
  ✅ What actually fixed it Another user with a 2009 Yukon confirmed that a newer 8-pin sensor (PN 19418403, superseding 20910871) with its corresponding 6-wire harness plugged directly into the 8-pin sensor and fixed the issue. The original poster was advised to try this newer part.

OEM Part Supersession History

• 20910871 (Steering Wheel Position Sensor) → 19418403 — Part update/revision by GM.
  Heads up: The original sensor for 2007-2008 models (like PN 15886733) may have used a 6-pin connector. The newer design uses an 8-pin sensor, but the vehicle-side harness may still only have 6 wires. The 6-wire harness connector is compatible with the 8-pin sensor body and is a valid repair path.

Model Year Variations Within This Range

• 2007-2008: Early models in this range may have been equipped with a 6-pin steering wheel position sensor (e.g., PN 15886733) that was discontinued.
• 2009-2013: Later models use an updated 8-pin steering wheel position sensor design (e.g., PN 19418403). This part and its associated harness can be used to service earlier models that have the discontinued 6-pin sensor.
