OBD-II Code C0545: Steering Wheel Torque Sensor Circuit

What Does C0545 Mean?

C0545 means the Power Steering Control Module (PSCM) detected a malfunction in the steering wheel torque sensor circuit. This sensor measures the physical force and direction applied to the steering wheel, dictating exactly how much electric assist the motor provides. When the sensor's signal drops out, spikes, or loses calibration, the PSCM disables power assist as a fail-safe, triggering C0545 and illuminating the dashboard warning light.

Technical definition: The SAE/OBD-II definition for C0545 is "Steering Wheel Torque Input Sensor Circuit Malfunction". It sets when the PSCM detects the torque sensor's dual signal voltages are outside the 0.25V to 4.75V range, the inverse signal correlation fails, or the sensor lacks proper calibration data.

Can I Drive With C0545?

No — Do Not Drive. Driving is highly dangerous. The power steering system fails suddenly and without warning, requiring up to 50 pounds of manual force to turn the wheel. 🎬 Watch: How to handle a sudden steering loss warning in a Ford. This sudden increase in steering effort drastically increases the risk of a crash, especially during low-speed turns or emergency maneuvers.

Common Causes

• Defective Steering Wheel Torque Sensor (Very Common) — The sensor fails internally due to wear, sending erratic or dead signals to the module. This is the root cause for millions of GM vehicles under safety recall 14116. Internal signals drop to 0V during rotation, causing a complete loss of assist or violent wheel twitching.
• Missing Steering Angle/Torque Sensor Calibration (Common) — After a wheel alignment, battery replacement, or suspension repair, the sensor must be recalibrated via software. Skipping this sets a C0545-4B code, disabling assist or causing the steering to feel lighter in one direction.
• Damaged or Corroded Wiring/Connectors (Common) — Frayed wires or corroded connector pins interrupt the 5V reference or signal wires between the sensor and the PSCM. A loose connector at the module instantly triggers the code.
• Low Battery Voltage or Weak Ground (Less Common) — A weak battery or corroded chassis ground causes a voltage drop below 12.4V during engine start-up. This faults the sensitive PSCM, triggering a C0545-00 code and temporary loss of steering that resolves after restarting the car.
• Blown Main Power Steering Fuse (Less Common) — The electric motor draws massive current protected by a 60A or 80A fuse. A power surge or motor short blows this fuse, resulting in total assist loss and logging a C0545 as the module loses operating power.
• Failing Electric Power Steering Motor (Less Common) — Carbon dust from the motor's internal brushes accumulates in the commutator slits, causing an internal short circuit. This disables the motor entirely, forcing the module to log a sensor or performance fault.
• Faulty ABS/Wheel Speed Sensor (Rare) — Particularly on Volkswagens, a faulty ABS wheel speed sensor sends illogical speed data to the network. The power steering system relies on this data and disables assist as a precaution, logging a secondary steering fault.
• Defective Power Steering Control Module (PSCM) (Rare) — The control module rarely fails internally. It flags this code due to bad external inputs. Always rule out wiring, fuses, and the sensor before condemning the expensive PSCM.

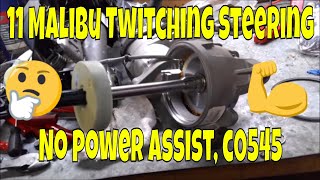

🎬 Watch: Diagnosing electric power steering problems and code C0545 on a Malibu.

Symptoms

• Complete loss of power steering — The steering wheel becomes incredibly heavy, requiring massive physical effort to turn at low speeds.
• "Service Power Steering" dashboard warning — A text message or a red/yellow steering wheel icon illuminates on the instrument cluster, accompanied by a chime.
• Uneven steering effort — The steering feels noticeably lighter in one direction than the other, indicating a lost or incorrect software calibration.
• Vibrating or twitching steering wheel (also visible on scanner) — The steering wheel shakes or makes violent, jerky movements at idle. 🎬 See how a failing sensor causes the steering wheel to twitch. Erratic sensor signals cause the motor to rapidly apply and release torque.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this code.

Common Fixes & Costs

• Replace Steering Wheel Torque Sensor — Parts: $150-$400, Labor: $350-$800, ~3.5 hr book time (Professional)
• Calibrate Steering Angle/Torque Sensor — Parts: $0, Labor: $100-$250, ~0.8 hr book time (Intermediate)
• Replace Main Power Steering Fuse — Parts: $10-$30, Labor: $50-$100, ~0.2 hr book time (Beginner)
• Replace Entire Steering Column Assembly — Parts: $500-$1500, Labor: $250-$600, ~2.5 hr book time (Professional)
• Repair Wiring Harness or Connector — Parts: $20-$100, Labor: $150-$500, ~2 hr book time (Advanced)
• Replace Power Steering Control Module (PSCM) — Parts: $400-$1000, Labor: $150-$300, ~1.5 hr book time (Professional)

Used vs. New Parts: Buying Guide

When a used part is worth it: Buying a used complete steering column assembly from a low-mileage donor is cost-effective for older vehicles. However, never buy a used standalone torque sensor; it is a high-failure electronic wear item.

Donor-vehicle mileage cap: roughly under 60000 miles for the part to have meaningful remaining life.

Donor quality checklist:

• Exact OEM part number match.
• Clean VIN history showing no front-end collisions or flood damage.
• No rust or corrosion on the column's universal joints or electrical pins.

Decision logic:

• If The failure is the torque sensor only (common on GM vehicles) → Buy a new OEM sensor. The labor is too intensive to risk installing a used electronic part.
• If The entire steering column requires replacement on a vehicle over 10 years old → Purchase a used column from a low-mileage donor to save money, accepting a shorter lifespan.
• If The vehicle is newer or has low mileage → Buy a new or remanufactured OEM column to guarantee reliability.

Warranty tradeoff: Salvage yards offer 30-90 day warranties, which rarely cover intermittent electrical faults. New OEM parts provide 1-2 year warranties.

Worst-case if a used part fails: $400-$800 to pay for labor a second time if a used part fails after the short warranty window.

What Happens If You Wait — Timeline

1. 0-1 month: Intermittent failure. Assist drops out but returns after restarting the car. The steering wheel twitches at idle. (MPG impact: 0%% · Added cost: $0. The primary risk is unpredictable loss of steering control.)
2. 1-3 months: Failure becomes frequent. Power steering fails on most trips, requiring multiple restarts. The vehicle is a severe safety hazard. (MPG impact: 0%% · Added cost: $0-$150 for diagnostic scans.)
3. 3-6 months: Permanent failure. Power steering assist is completely dead. The warning light is solid, and the vehicle is incredibly difficult to drive. (MPG impact: 0%% · Added cost: $100-$200 in towing fees, as driving is no longer safe.)
4. 6+ months: The vehicle fails state safety inspections and cannot be legally registered. The risk of a collision is extreme. (MPG impact: 0%% · Added cost: $500 - $2,100 for the inevitable repair, plus fines for driving an uninspected vehicle.)

Cost of Not Fixing It

• Immediate: Catastrophic safety risk. Power steering fails without warning, making emergency reactions or parking lot navigation nearly impossible. (Added cost: Cost of an at-fault accident, ranging from minor bodywork to total vehicle loss and medical liabilities.)
• Weeks to Months: The vehicle remains unsafe to operate. The heavy steering causes severe driver fatigue. Ignoring the issue does not prevent further component damage, but guarantees a dangerous driving experience. (Added cost: The inevitable repair cost ($500 - $2,100) plus the daily risk of a collision.)
• Long Term: The vehicle automatically fails state safety inspections, preventing legal registration. (Added cost: Towing fees to a repair shop, plus fines for driving an uninspected or unregistered vehicle.)

Diagnosis Steps

1. Read Fault Codes & Suffix
   Use an OBD-II scanner to confirm C0545. Check the two-digit suffix: '-00' indicates a hardware sensor failure, while '-4B' means 'Calibration Not Learned', requiring a software fix. Note any ABS or U-codes.
   Tools: OBD-II Scanner (capable of reading 'C' codes) (Beginner)
2. Check for Recalls and TSBs
   Run the VIN to check for GM safety recall 14116, Ford recall 15S18, or related Technical Service Bulletins. Free dealer repairs apply if the vehicle is covered.
   Tools: Vehicle Identification Number (VIN) (Beginner)
3. Check Main Power Fuse and Grounds
   Locate the 60A/80A power steering fuse in the under-hood box and test for continuity. Test the resistance between the PSCM ground pin and the chassis; it must be less than 1 ohm.
   Tools: Digital Multimeter, Basic Hand Tools (Intermediate)
4. Inspect Live Sensor Data
   View live data for 'Torque Sensor Signal 1' and 'Signal 2'. With the wheel still, both should read ~2.5V. Turning right increases Signal 1 to 4.75V and decreases Signal 2 to 0.25V. Any signal that drops to 0V or jumps erratically confirms a dead sensor.
   Tools: Advanced OBD-II Scanner with Live Data (Intermediate)
5. Attempt Sensor Calibration
   If you have a C0545-4B code, command a 'Torque Sensor Calibration' using a bidirectional scanner. On newer GM trucks, a -4B code requires full PSCM reprogramming via dealer software.
   Tools: Bidirectional Scan Tool (Intermediate)
6. Inspect Wiring and Connectors
   Physically inspect the harness between the steering column and PSCM. Unplug connectors to check for bent pins, water intrusion, or wire chafing against metal brackets.
   Tools: Flashlight, Mirror, Trim Removal Tools (Intermediate)
7. Test Sensor Circuits (Advanced)
   Disconnect the sensor and PSCM. Verify the 5V reference voltage from the module. Check for continuity on the signal wires. A reading of OL indicates an open circuit; low resistance to ground indicates a short.
   Tools: Digital Multimeter, Vehicle-specific Wiring Diagram (Advanced)
8. Test Sensor Voltage Thresholds (Advanced)
   With the sensor unplugged, use a 3A fused jumper wire to connect the 5V reference to the Signal 1 terminal. The scan tool should read >4.8V. Repeat for Signal 2. If voltages do not match, the PSCM is faulty.
   Tools: Advanced OBD-II Scanner, Digital Multimeter, Fused Jumper Wire (Advanced)
9. Analyze Sensor Waveform with Oscilloscope (Pro-Tip)
   Back-probe the PSCM connector and graph the two signal wires. The waveforms must be clean mirror images during rotation. Glitches or dropouts confirm a failing sensor that a multimeter misses.
   Tools: Automotive Oscilloscope, Probes (Professional)

When This Code Triggers (Freeze-Frame Conditions)

• Vehicle Speed: 0-15 mph (Parking lot or low-speed maneuvers. The fault manifests when high steering torque is applied to turn the wheels against stationary pavement.)
• System Voltage: 13.5-14.5V (Engine running. A voltage drop below 12.4V during startup also triggers a history code due to module initialization failure.)
• Steering Wheel Angle: Variable (During a turn. The PSCM continuously monitors signals while the wheel rotates. An illogical voltage jump during rotation sets the code.)

Related Codes

• C0460 — Steering Position Sensor circuit. Because torque and position sensors are physically integrated on modern cars, a failure in the assembly often triggers both C0545 and C0460 simultaneously.
• U0131 — Lost Communication With PSCM. If present with C0545, diagnose the U-code first. C0545 is merely a symptom of the module losing power, ground, or network connection.
• C056D — ECU Hardware Failure. Seeing this alongside C0545 strongly indicates the PSCM itself has failed internally and cannot process the sensor's input.
• C0035 — Left Front Wheel Speed Sensor. The EPS relies on ABS speed data. An erratic speed signal forces the PSCM to disable steering assist, falsely flagging a steering fault.

Climate & Environmental Factors

• Cold/Hot Weather: Failures are primarily linked to component wear and electrical faults rather than ambient temperature.
• Humidity: High humidity accelerates corrosion on wiring harnesses and connectors at the PSCM, creating high resistance that interrupts sensor signals.
• Altitude: No correlation. Electric power steering operation is unaffected by atmospheric pressure.

How to Talk to a Mechanic About This Code

Say this: "I have a C0545 code and a 'Service Power Steering' message. I need a diagnostic that checks the live data from the dual torque sensor signals. Please check for a suffix code like '-00' or '-4B' and verify any related TSBs before quoting parts."

This proves you understand the difference between a hardware failure and a software calibration issue, preventing shops from immediately quoting a $1,500 steering column replacement without proper validation.

Avoid saying:

• 'My steering feels weird.'
• 'The power steering light is on, just fix it.'
• 'I think I need a new power steering pump.' (This system is electric, there is no pump)

Questions to ask before authorizing the repair:

• What were the exact voltage readings from Torque Sensor Signal 1 and Signal 2 when turning the wheel?
• Was the suffix code -00 or -4B? If it was -4B, did you attempt a software calibration first?
• If you are quoting a full steering column, why isn't a sensor-only replacement possible for my specific vehicle?
• Does the quoted price include the mandatory post-repair steering angle sensor calibration?

Where to Take It: Dealer vs Independent vs Chain

• Dealer:
  Best for: Vehicles covered by GM 14116 or Ford 15S18 recalls., Newer GM trucks where C0545-4B requires dealer-level SPS module programming.
  Downsides: Highest labor rates., Often defaults to replacing the entire steering column assembly rather than the cheaper standalone sensor. (Typical cost: +50% vs. baseline)
• Independent Shop: Excellent choice, provided you confirm their diagnostic tool capabilities over the phone first.
  Best for: Common out-of-warranty vehicles (Chevy Malibu, Pontiac G6) where torque sensor replacement is routine., Software calibrations after an alignment or battery change.
  Downsides: Must verify the shop owns a professional bidirectional scan tool capable of steering sensor calibration. (Typical cost: +0% vs. baseline)
• Chain Shop: AVOID. The high risk of an incomplete job (no calibration) makes them a poor choice for EPS repairs.
  Best for: Testing the battery or checking the main power steering fuse.
  Downsides: Rarely possess the specific bidirectional scan tools needed for the mandatory post-repair calibration. (Typical cost: -10% vs. baseline)

When to Walk Away From the Repair

If the total repair cost exceeds 50% of the car's private-party value, consider selling the vehicle. Because this fault makes the car unsafe to drive, it drastically reduces resale value.

• Car worth $4000, fix is $2100: Walk away. The repair cost is over half the car's value. Sell 'as-is' to a mechanic.
• Car worth $10000, fix is $900: Fix it. The repair is a small fraction of the vehicle's value and restores safe operation.

What Scan Tool You Need for This Code

Minimum: A scanner that reads 'C' (Chassis) codes and displays live data for the Power Steering Control Module.

A basic $20 code reader cannot see 'C' codes, cannot display live torque sensor voltages, and cannot perform the mandatory steering angle calibration.

Budget: BlueDriver Pro (~$100) — Reads chassis codes and displays live data for torque sensor signals. Cannot perform the software calibration.

Mid-range: Autel MaxiCOM MK808S / Foxwell NT510 Elite (~$300-400) — Full bidirectional tools. They read live data, clear codes, and perform the mandatory 'Steering Angle Sensor Calibration'.

Professional: Autel MaxiSys MS908 / Launch X431 Series (~$900-1500) — Performs module programming, required for C0545-4B on newer GM vehicles where basic calibration fails.

How to Clear the Code After You Fix It

1. Reconnect the battery if disconnected.
2. Use a bidirectional OBD-II scan tool to clear the code from the PSCM.
3. Perform the mandatory Steering Angle/Torque Sensor Calibration procedure using the scan tool.
4. Test drive with multiple full-lock left and right turns to confirm assist remains active.

Drive cycle (~15 minutes): Chassis codes do not require an emissions drive cycle. After clearing the code and calibrating the sensor, a 15-minute test drive involving city-style turns and parking maneuvers confirms the repair. History codes clear automatically after 100 consecutive fault-free ignition cycles.

Readiness monitors affected: None directly. However, disconnecting the battery for the repair resets all emissions monitors, requiring a full drive cycle before state inspection.

Watch out for:

• Clearing the code without fixing the hardware or performing the software calibration causes the warning to return instantly.
• Skipping the mandatory scan-tool calibration after replacing the sensor or steering column guarantees the system will not provide power assist.

Will This Fail Emissions / State Inspection?

No — by itself this code doesn't fail OBD inspection (but it can keep readiness monitors from setting, which causes a separate fail).

• California: C0545 does not fail the OBD-II emissions plug-in test. However, the illuminated power steering warning light fails the visual safety inspection.
• New York: Automatic failure. The NYS safety inspection mandates proper steering operation. An active power steering warning light is an immediate rejection.
• Texas: In safety-inspection counties, an inoperative power steering system or active warning lamp results in an automatic failure.

Most Commonly Affected Vehicles

• Chevrolet Malibu / Malibu Maxx (2004-2012) — Subject to GM Safety Recall 14116. The torque sensor is the primary failure point and is available separately (OEM #23232310).
• Pontiac G6 (2005-2010) — Shares the faulty EPS design with the Malibu. Included in GM Safety Recall 14116.
• Saturn Aura (2007-2009) — Built on the GM Epsilon platform. Included in GM Safety Recall 14116.
• Chevrolet Equinox / Pontiac Torrent (2007-2017) — 2.4L models use an EPS system prone to sensor, wiring, or 80A main fuse failures. V6 models use hydraulic steering and are unaffected.
• Ford Fusion / Mercury Milan / Lincoln MKZ (2010-2012) — Subject to recall 15S18 for sudden EPS failure. Repair requires a PSCM software update or full steering rack replacement.
• Volkswagen Golf / Jetta / Passat (2006-2011) — A yellow steering light often indicates lost calibration after a battery disconnect. A red light indicates a hard fault, frequently misdiagnosed when the true cause is a corroded ABS wheel speed sensor.
• Nissan Versa (2012-2018) — The steering angle sensor, integrated with the clock spring assembly, fails and triggers steering codes.
• Chevrolet Silverado 1500 / GMC Sierra 1500 (2014-2018) — Sets a C0545-4B if the steering rack is replaced without performing the SPS setup procedure via dealer software. A basic calibration will not fix it.

Manufacturer-Specific Notes

• General Motors (Chevrolet, Pontiac, Saturn): GM relies heavily on suffix codes. C0545-00 is a dead sensor. C0545-4B is a missing calibration requiring a scan tool relearn or full module programming. Low battery voltage on startup frequently triggers a false C0545-00.
• Volkswagen / Audi: A yellow steering light after a battery change requires a basic setting: turn full lock left, full lock right, then drive straight. Always check for ABS faults first, as bad wheel speed sensors mimic steering failures.
• Ford / Lincoln / Mercury: Ford's EPAS recall 15S18 dictates checking specific DTCs; if present, the entire steering gear is replaced. If absent, the PSCM software is updated.
• Hyundai / Kia: Steering angle calibration is located under the 'Motor Driven Power Steering (MDPS)' menu on scan tools. The engine must be off with the ignition on to succeed.

Real Owner Stories

2008 Chevy Malibu with intermittent 'Power Steering' message and twitching wheel.

Owner experienced violent steering wheel shaking and intermittent assist loss that resolved after restarting the car.

Outcome: The owner learned the torque sensor is available separately. Replacing just the sensor and performing a calibration fixed the issue for a fraction of the cost.

Lesson: On GM Epsilon vehicles, a C0545-00 with a twitching wheel is almost always the standalone torque sensor. Do not authorize a full column replacement without asking about a sensor-only repair.

2010 Pontiac G6 with jerky steering and 'Power Steering' warning message.

Driver complained of jerky steering and had a stored C0545-00 code.

Outcome: The technician replaced the steering column and performed the scan tool setup, permanently resolving the issue.

Lesson: Live data is the fastest way to confirm a bad sensor. If Signal 1 or Signal 2 voltages jump erratically or drop to 0V when turning the wheel, the hardware is dead.

2017 Chevy Silverado with 'Steering Assist is Reduced' message after a repair.

A shop replaced the steering rack, resulting in a C0545-4B code and reduced assist.

Outcome: Service information revealed that on newer GM trucks, C0545-4B requires the PSCM to be reprogrammed via the dealer-level Service Programming System (SPS). Reprogramming the module cleared the code.

Lesson: For late-model GM trucks, C0545-4B is not a simple calibration. It requires dealer-level software programming. Do not replace parts; the fix is digital.

Chevy Malibu with C0545 and permanent loss of power assist.

The car had a C0545 code and completely heavy steering that never returned.

Outcome: The owner removed the electric motor and found carbon dust from the brushes shorting the commutator slits. Cleaning the dust restored the motor and cleared the code.

Lesson: If sensor signals are perfect but assist is permanently dead, inspect the electric motor for carbon dust shorts before replacing the column.

How to Prevent This Code From Triggering

• Maintain a healthy battery and clean terminals. (Check monthly.) — The EPS system is highly sensitive to voltage. A drop below 12.4V during startup faults the PSCM and sets a false C0545 code.
• Avoid holding the steering wheel at full lock. (Daily driving habit.) — Holding the wheel against the physical stops puts maximum electrical strain on the EPS motor, causing overheating and premature failure.
• Use a surge protector when jump-starting. (Whenever connecting external power.) — Voltage spikes during jump-starts instantly fry sensitive electronics like the PSCM.
• Inspect and clean underbody wiring and connectors. (Annually in salt-belt states.) — Road salt corrodes PSCM connectors on the steering rack, creating high resistance that interrupts sensor signals.

Frequently Asked Questions

Can I just replace the sensor or do I need the whole steering column?

On many GM models, the torque sensor is available separately (OEM #23232310). Replacing it requires removing and disassembling the steering column. For other makes like Ford, the sensor is integrated into the steering gear, requiring full assembly replacement.

What is the difference between a C0545-00 and a C0545-4B?

C0545-00 indicates a hardware failure where the sensor's signal is out of the expected voltage range. C0545-4B is a software issue meaning the sensor's calibration data is missing. A -4B code often appears after an alignment, battery change, or module replacement.

My power steering failed but came back after restarting the car. What does that mean?

This indicates an intermittent sensor failure or a borderline low battery. When you restart the car, the PSCM re-initializes and checks all inputs. If the sensor provides a plausible signal or battery voltage stabilizes, assist returns until the next erratic reading.

What is the difference between the steering torque sensor and the steering angle sensor?

The Torque Sensor measures the physical force applied to the wheel. The Steering Angle Sensor measures how far and in what direction the wheel is turned. Modern vehicles combine these into a single physical component, meaning a failure often triggers codes for both.

What are common misdiagnosis mistakes for C0545?

A common mistake is replacing the torque sensor without checking for simpler causes like a blown 80A fuse, low battery, or missing calibration. Technicians must check the suffix code; a C0545-4B requires a software relearn, not new parts. On Volkswagens, a faulty ABS wheel speed sensor can also falsely trigger this steering code.

Will a wheel alignment cause a C0545 code?

An alignment does not cause the sensor to fail, but it triggers a C0545-4B code if the technician skips the post-alignment steering angle calibration. The system detects a mismatch between the new straight-ahead angle and the old stored position, requiring a software relearn to restore assist.

Is it safe to drive with the C0545 code?

No, driving with a C0545 code is highly dangerous. The power steering shuts off instantly and without warning, requiring immense physical effort to turn the wheel. This sudden loss of control significantly increases the risk of a crash, especially at low speeds.

Key Takeaways

• Code C0545 triggers a sudden loss of power steering, most commonly caused by a failed torque sensor on GM vehicles covered under Safety Recall 14116.
• Do not drive with an active C0545 code; the power steering will shut off without warning, requiring up to 50 pounds of manual force to turn the wheel.
• Always check the 2-digit suffix code: a '-00' confirms a hardware failure requiring sensor replacement, while a '-4B' means the system only needs a software calibration.
• Rule out electrical basics before replacing a $500 steering column by verifying battery voltage exceeds 12.4V, the 80A main fuse is intact, and the PSCM ground resistance is under 1 ohm.
• DIY repair is not recommended because replacing the sensor requires complete steering column disassembly and a mandatory post-install calibration using a $300+ bidirectional scan tool.
